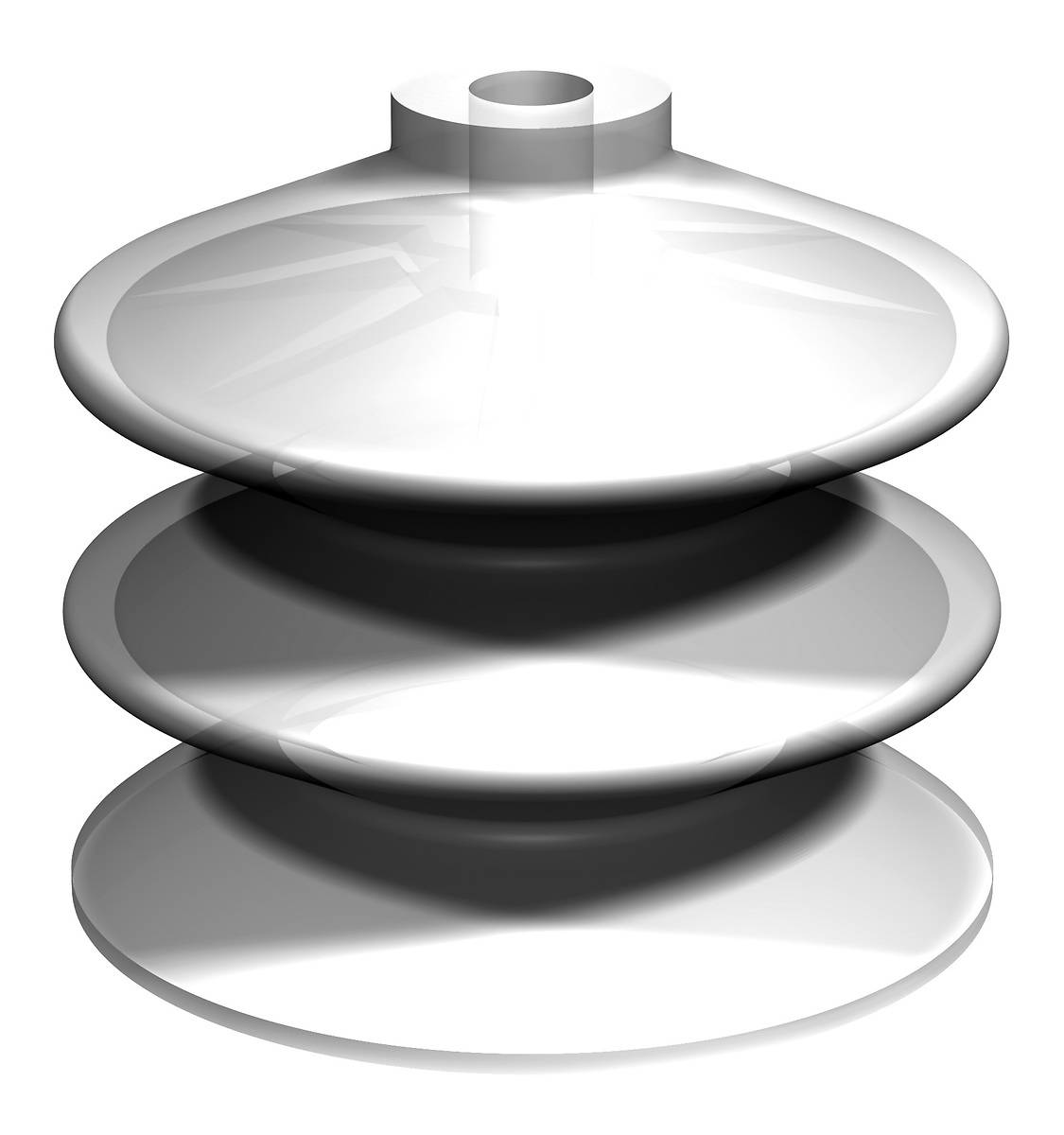

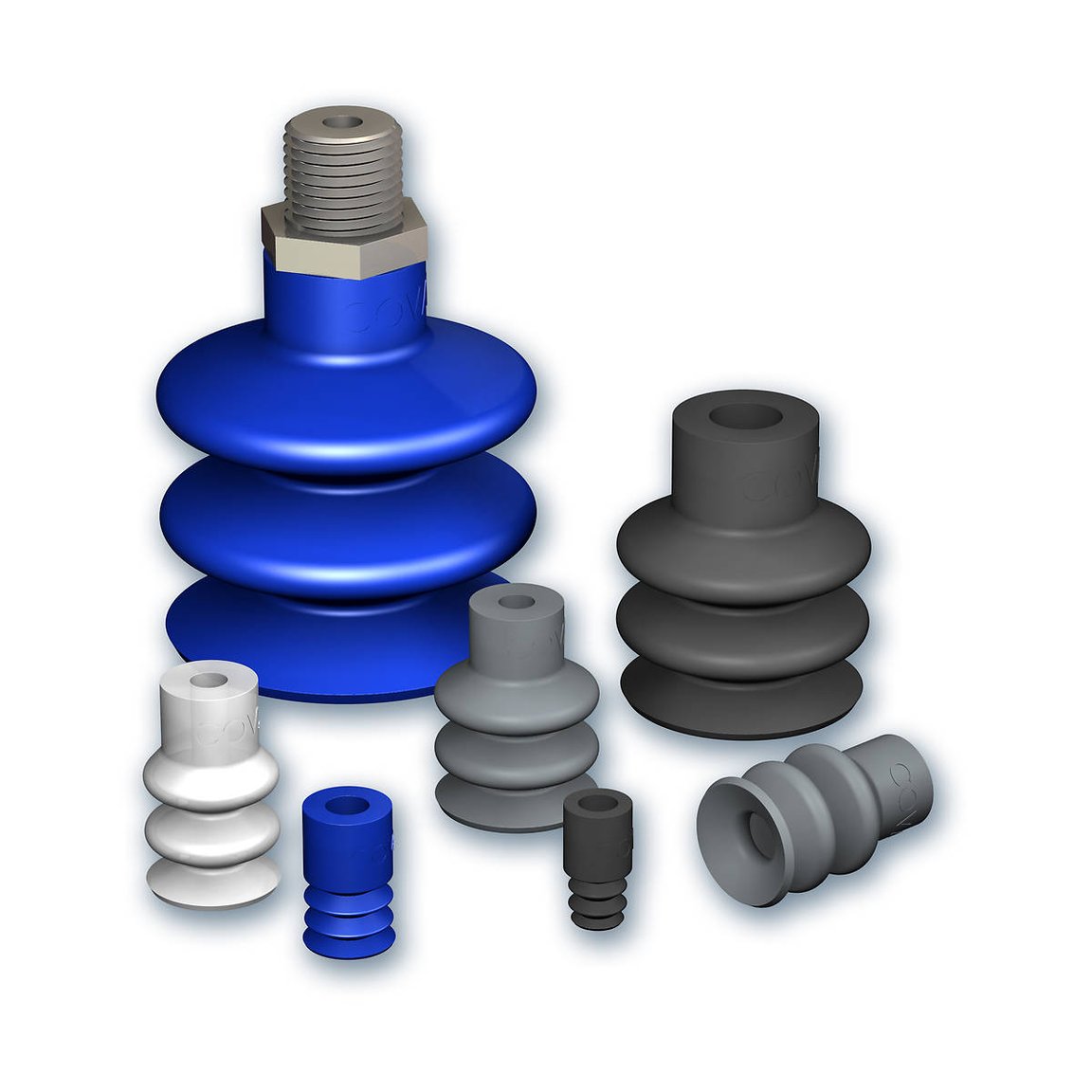

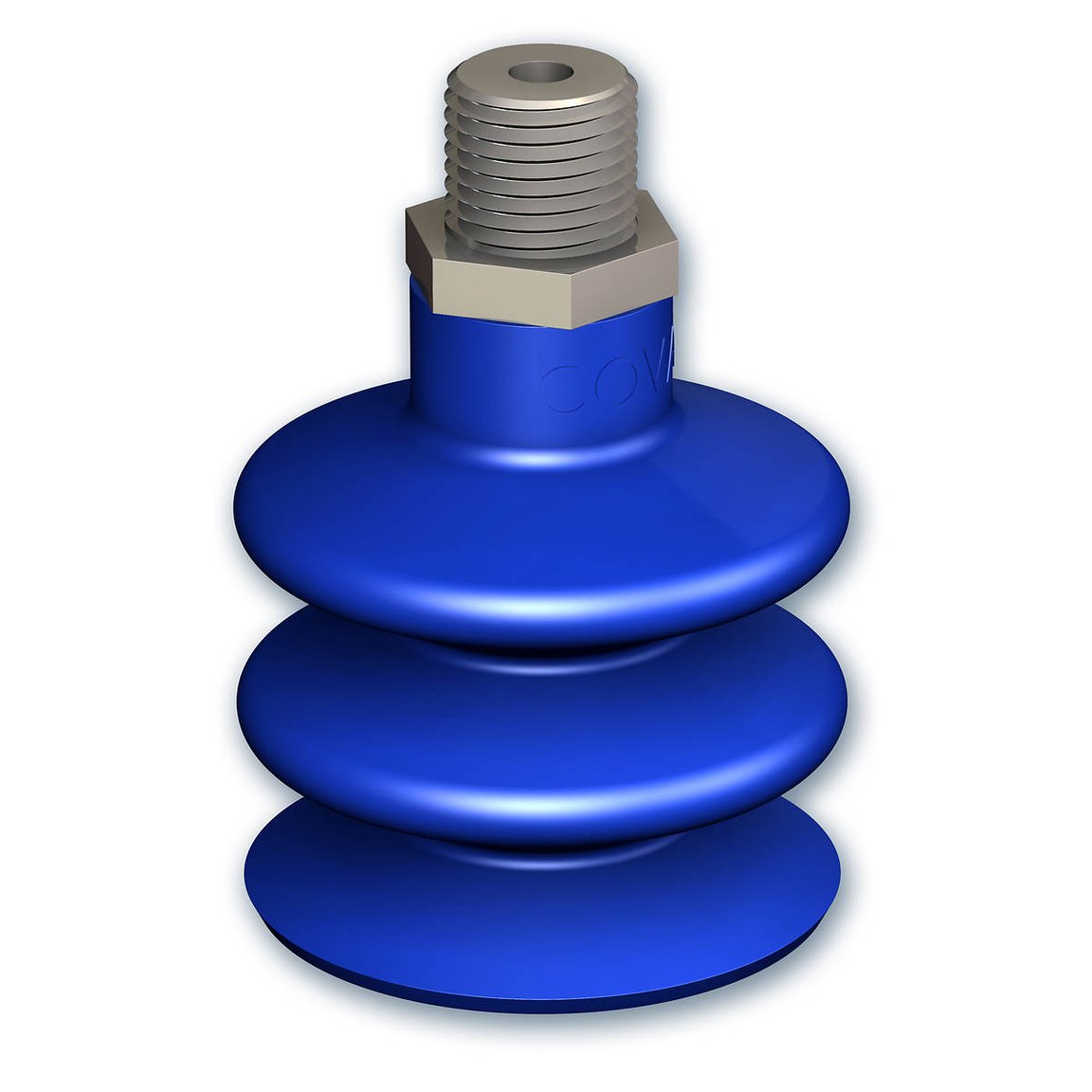

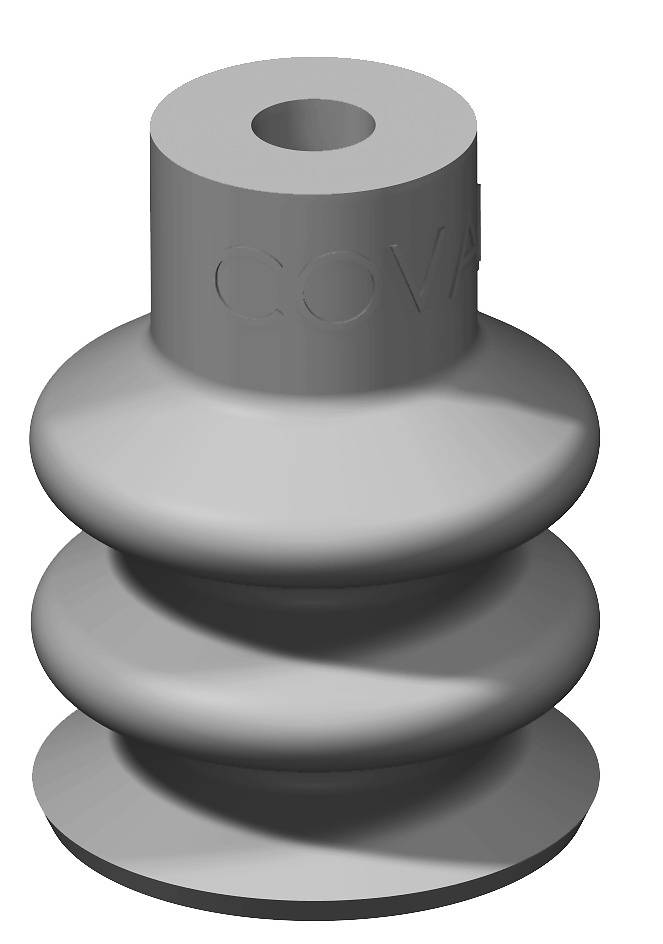

Suction Cups with 2,5 Bellows Ø 5 to 88 mm, VS series

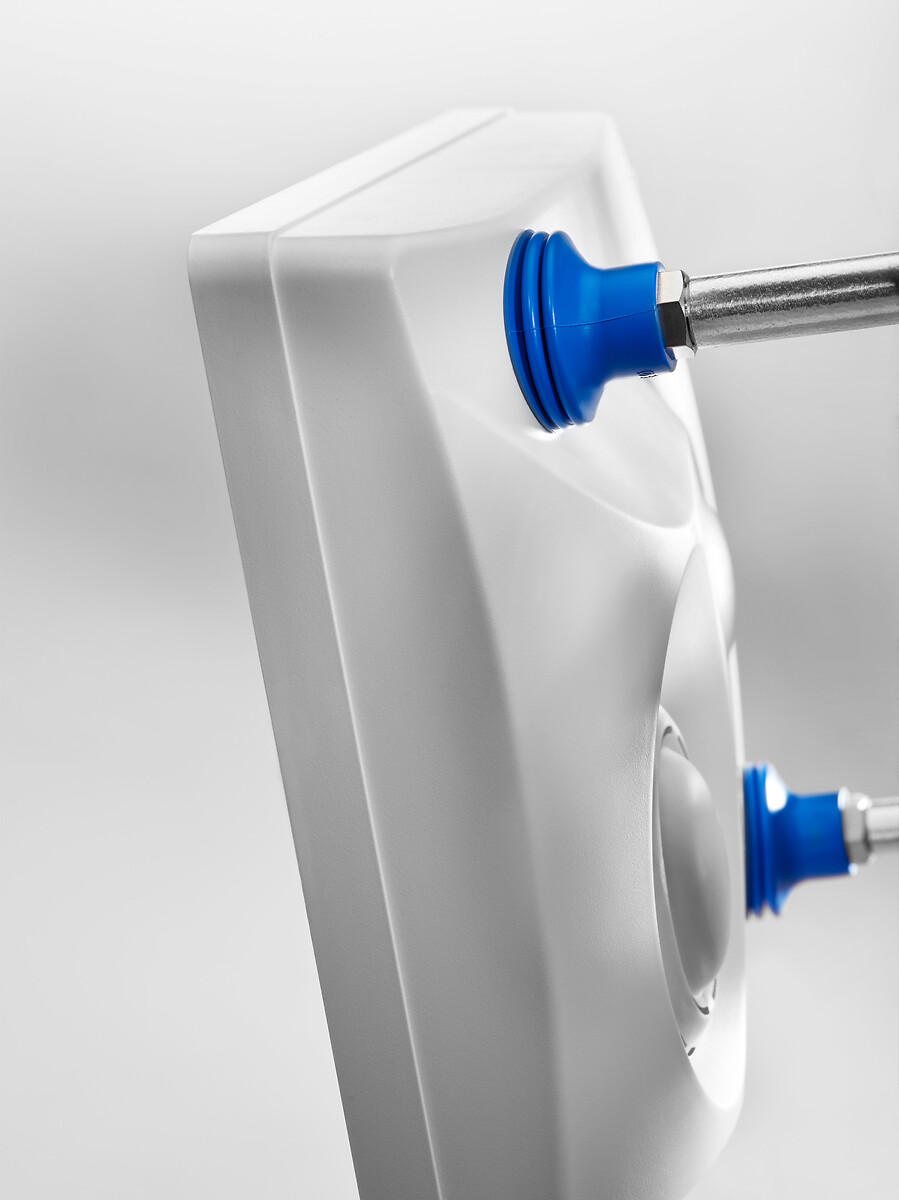

VS series suction cups with bellows are recommended for gripping products on different planes (large deflection) - thus replacing spring systems - and for gripping spherical or cylindrical objects at an angle (ball-joint effect).• Large defl ection (stroke)• FlexibilityThe possible «suction cup+fitting» combinations are available on the documentation to download here.
Industry-specific applications
Types of use
Keypoints
- Ø 5 to 88 mm
- 4 standard materials
VS5NBR
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 5
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS5SIT5
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 5
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
VS5STN
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 5
- Stroke | mm: 3
- Suction cup material: Siton® (STN)
VS6NBR
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 6
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS6SIT5
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 6
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
VS7NBR
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 7
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS7SIT5
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 7
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
VS7STN
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 7
- Stroke | mm: 3
- Suction cup material: Siton® (STN)
VS9NBR
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 9
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS9NR
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 9
- Stroke | mm: 3
- Suction cup material: Natural Rubber (NR)
