Round bellows suction cups

Round bellows suction cups are recommended for gripping products on different planes (wide deflection) where they can replace spring systems, and for gripping spherical or cylindrical objects gripped at an angle (ball-joint effect)
Round bellows suction cups
Result: 10 product ranges found
FlowPack Suction Cups, FPC/FPCX series

FlowPack Suction Cups, FPC/FPCX series

  • Available in four sizes: Round, Ø 35 mm, 1.5 bellows, Round, Ø 45 and 60* mm, Elliptical, 120 x 100 mm (* The Ø60 suction cups are available in 2 versions: FPC and FPCX)
  • Two levels of flexibility: 35 and 50 Shore
  • Materials: the FPC/FPCX Series suction cups are compatible with FDA food standards (FDA 21 CFR 177.2600.) and meet the European regulation (EC) 1935/2004
View

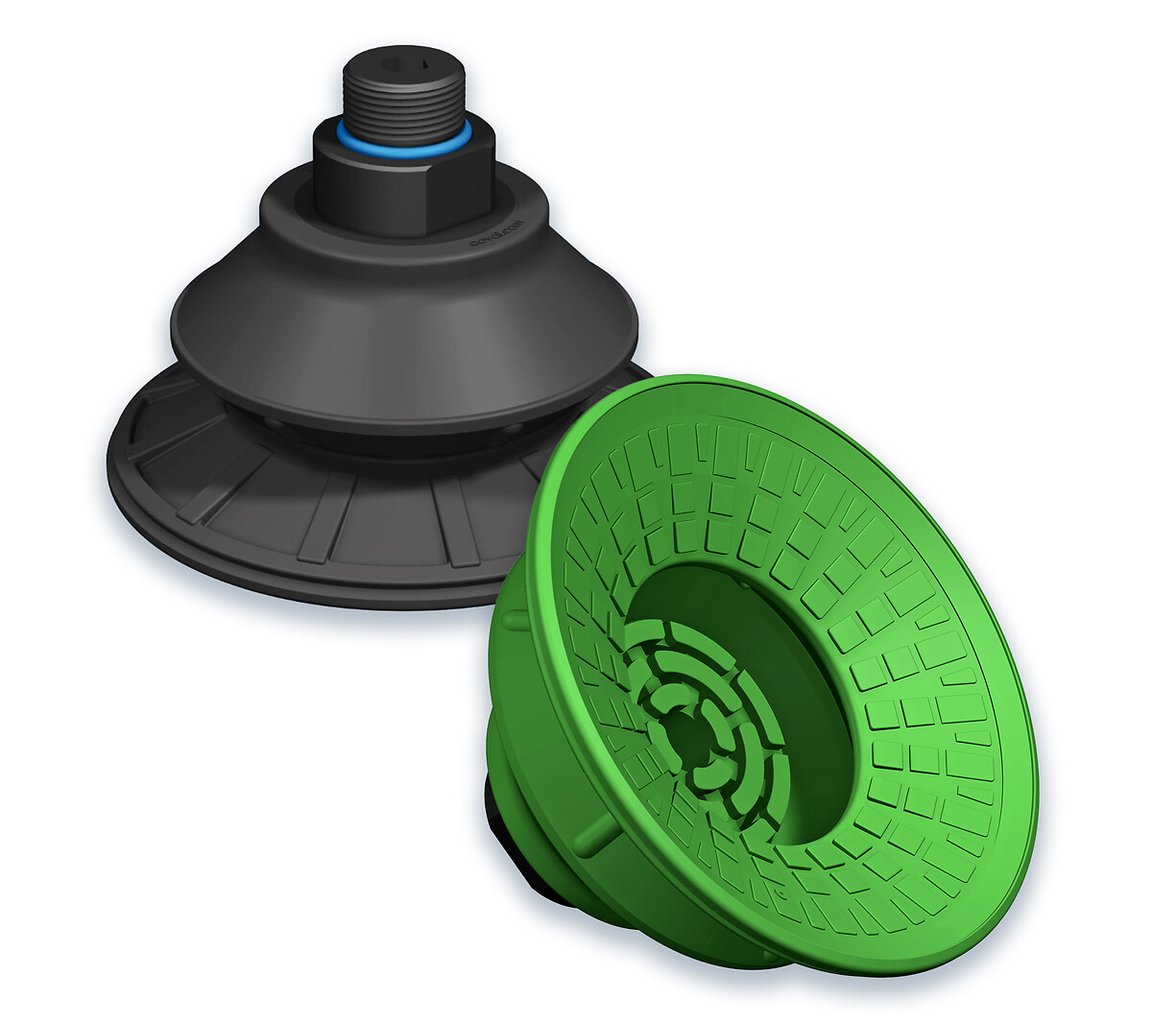

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series

  • Suction Cups with Non-slip cleats
  • Ø 22 to 115 mm
  • Fittings: G3/8"-M, G3/8"-F and square coupling 32
View
Suction Cups with 2,5 Bellows Ø 5 to 88 mm, VS series

Suction Cups with 2,5 Bellows Ø 5 to 88 mm, VS series

  • Ø 5 to 88 mm
  • 4 standard materials
View
Suction Cups with 1,5 Bellows Ø 5 to 78 mm, VSA series

Suction Cups with 1,5 Bellows Ø 5 to 78 mm, VSA series

  • VSA series suction cups with bellows combine the advantages of flat suction cups with increased deflection, flexibility and precision.Used for gripping slightly concave or convex objects.
View
Soft and Flexible Suction Cups, MVS series

Soft and Flexible Suction Cups, MVS series

  • COVAL has designed a range of high performance cups in order to meet Industry-specific applications demanding industry requirements for gripping soft or flexible products at high speeds.
View
Suction Cups with 1.5 Bellows Ø 10 to 150 mm, VSAG series

Suction Cups with 1.5 Bellows Ø 10 to 150 mm, VSAG series

  • Recommended for gripping sensitive products due to the cushioning effect of the bellows
  • Used for gripping slightly concave or convex parts
View
Suction Cups with 1.5 Bellows Ø 5 to 50 mm, VSAB series

Suction Cups with 1.5 Bellows Ø 5 to 50 mm, VSAB series

  • Used for gripping slightly concave or convex parts
  • Suitable for gripping products of various heights
View
Suction Cups with 1.5 Bellows Ø 15 to 30 mm, VSAJ series

Suction Cups with 1.5 Bellows Ø 15 to 30 mm, VSAJ series

  • The VSAJ series 1.5 bellows suction cups are recommended to grip slightly convex or concave products. They are also able to compensate for height variations in products being gripped.
View
Suction Cups with 2.5 Bellows Ø 5 to 30 mm, VSG series

Suction Cups with 2.5 Bellows Ø 5 to 30 mm, VSG series

  • Suitable for gripping small products, concave or convex
  • Ideal for handling sensitive products
View
Long Stroke Suction Cups, VSD series

Long Stroke Suction Cups, VSD series

  • Long stroke suction cups (4.5 and 5.5 bellows) are specially recommended for handling spherical or cylindrical objects or which require compensation for varying heights.
View
