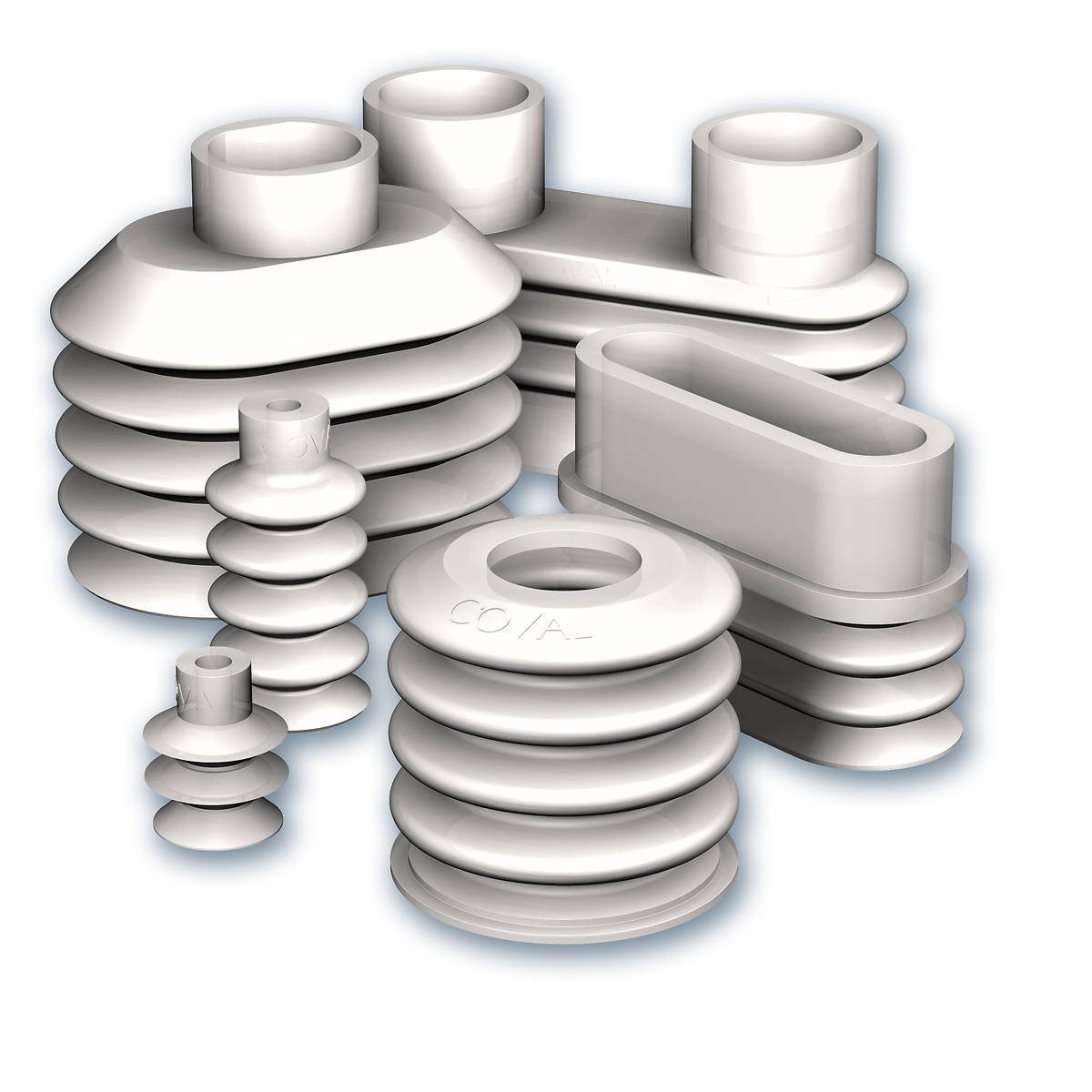

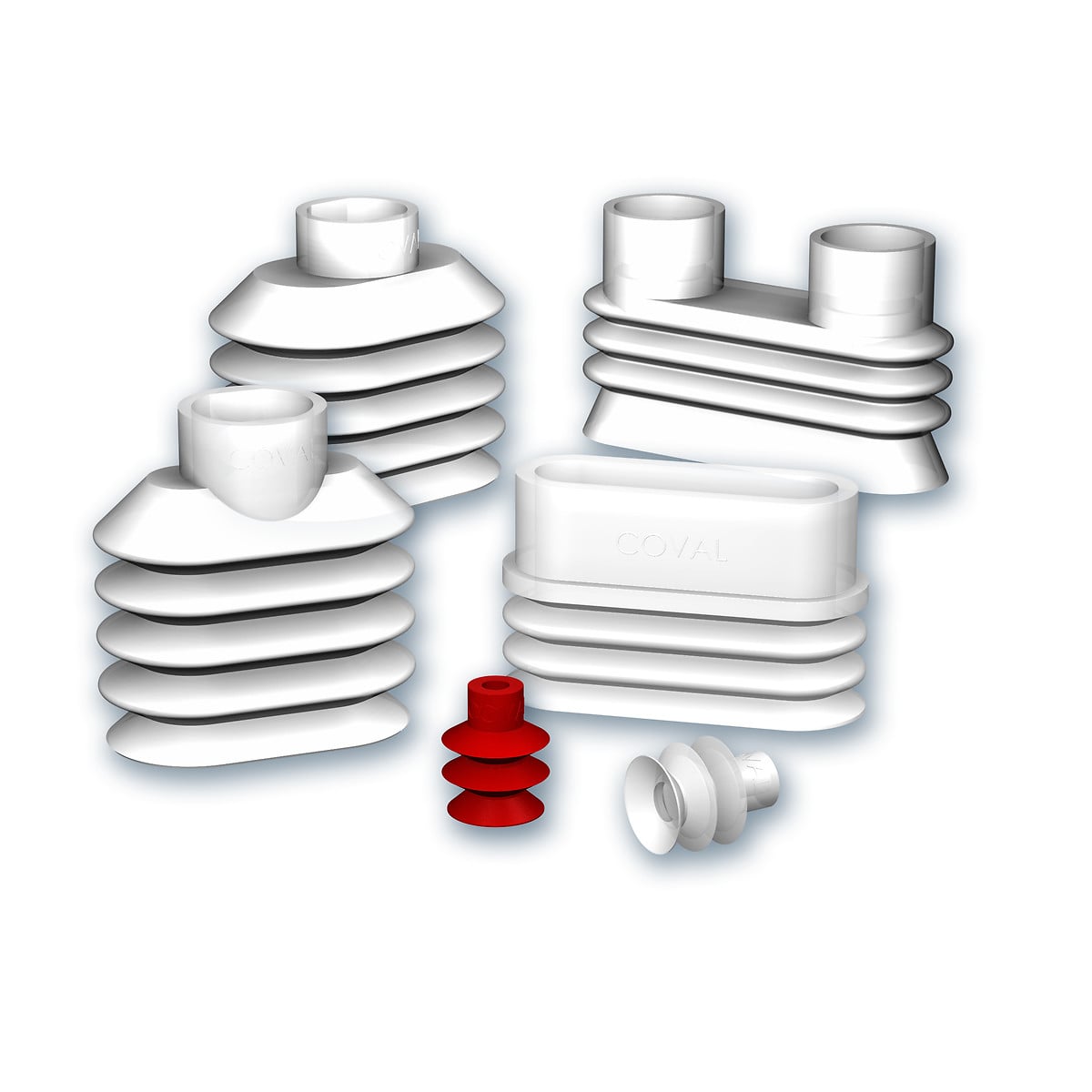

Suction Cups For Bakery Applications, VSD-VSE-VSP

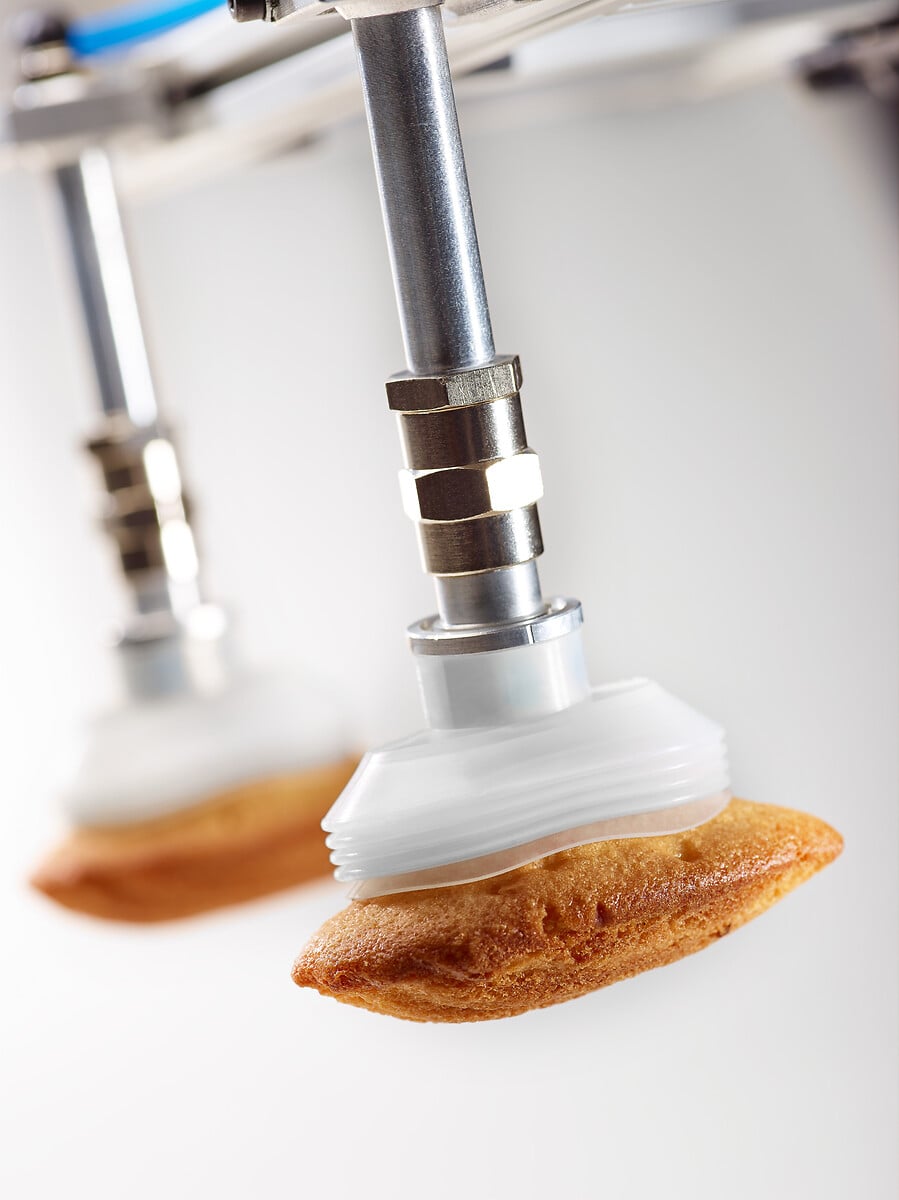

Suction cups specially developed for gripping delicate objects such as cakes (buns, biscuits, etc.). Specific shapes and shore hardness depending on the applications. Food-standard translucent silicone means the suction cups can be used at temperatures between - 40 °C to + 220 °C / -40°F to 428°F
Industry-specific applications
Types of use
Keypoints
- Range specially developed for gripping delicate objects such as cakes (buns, biscuits, etc.)
- Specific shapes and shore A hardness depending on the applications
- Resistance to temperature: - 40 °F to 428 °F

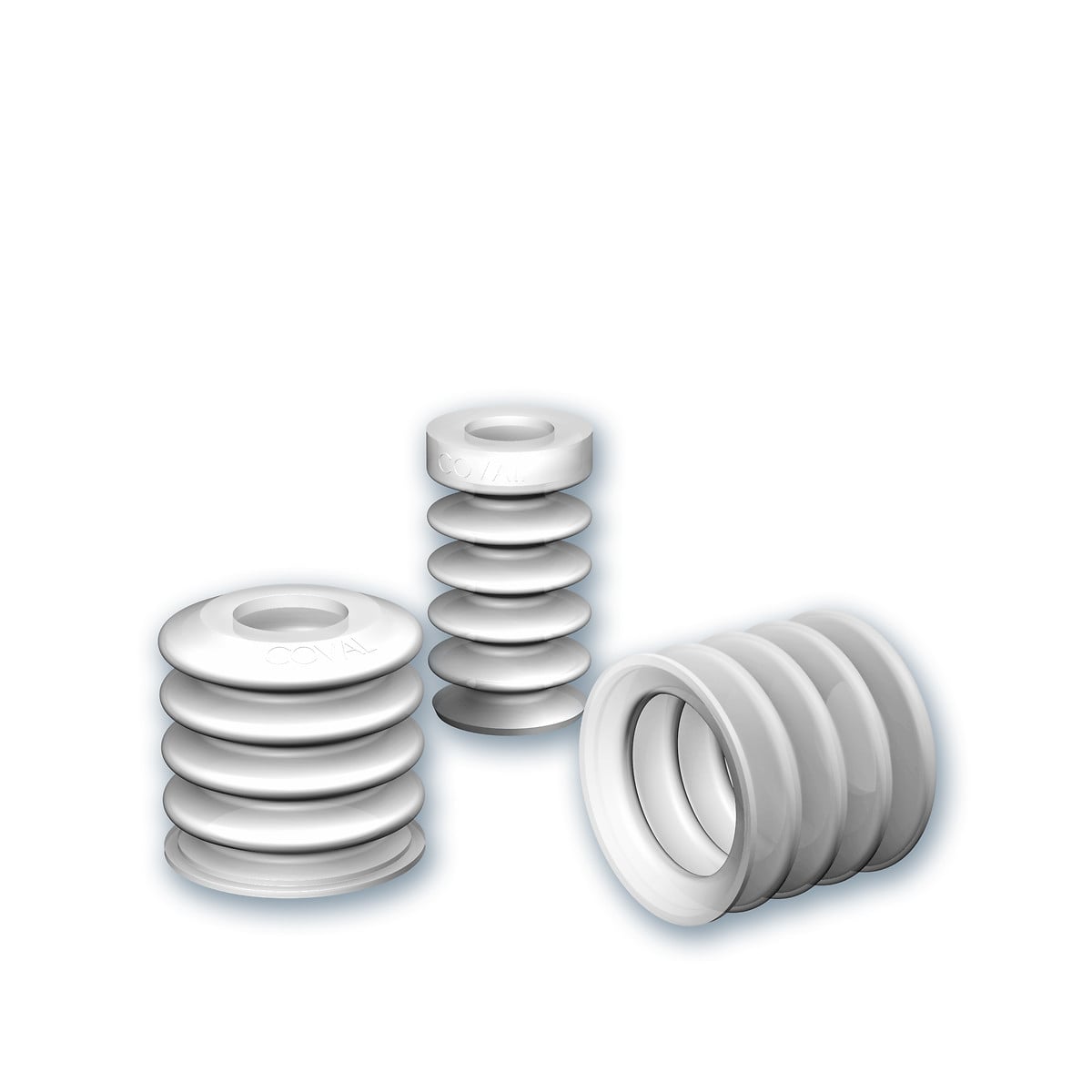

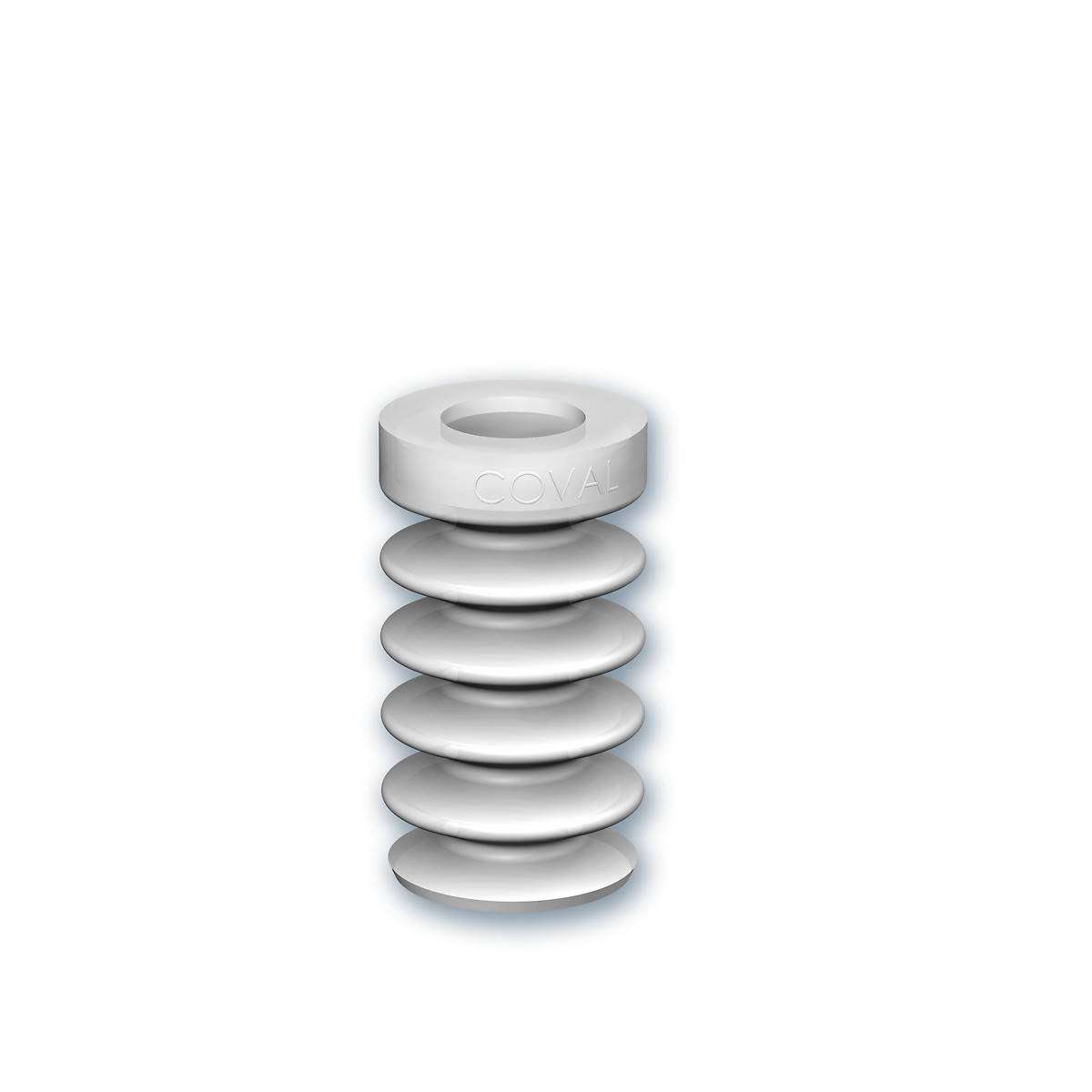

VSD25SI
- Form: 4.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 25
- Stroke | mm: 24
- Suction cup material: Silicone (SI)

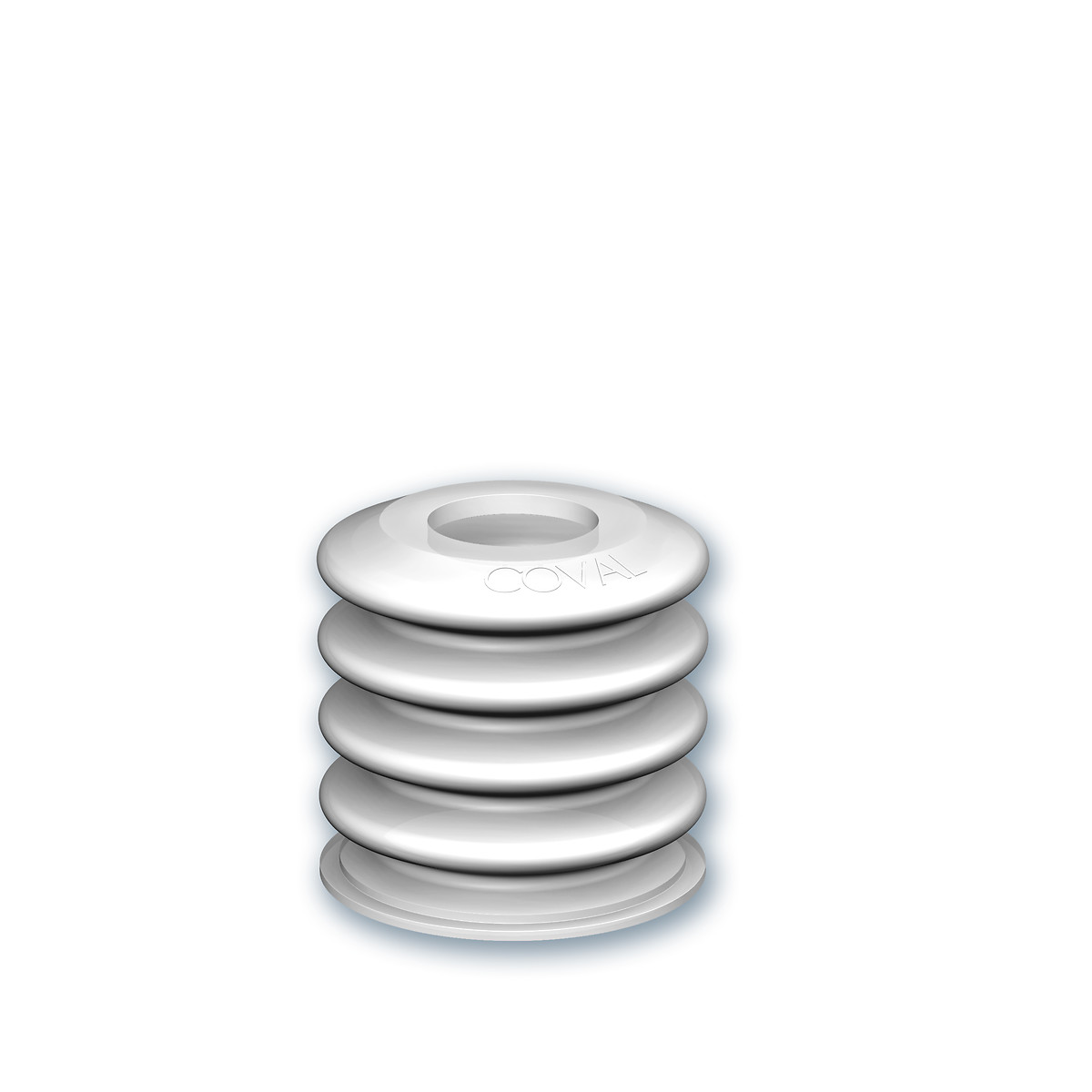

VSD38SI5
- Form: 4.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 38
- Stroke | mm: 21
- Suction cup material: Silicone (SI)

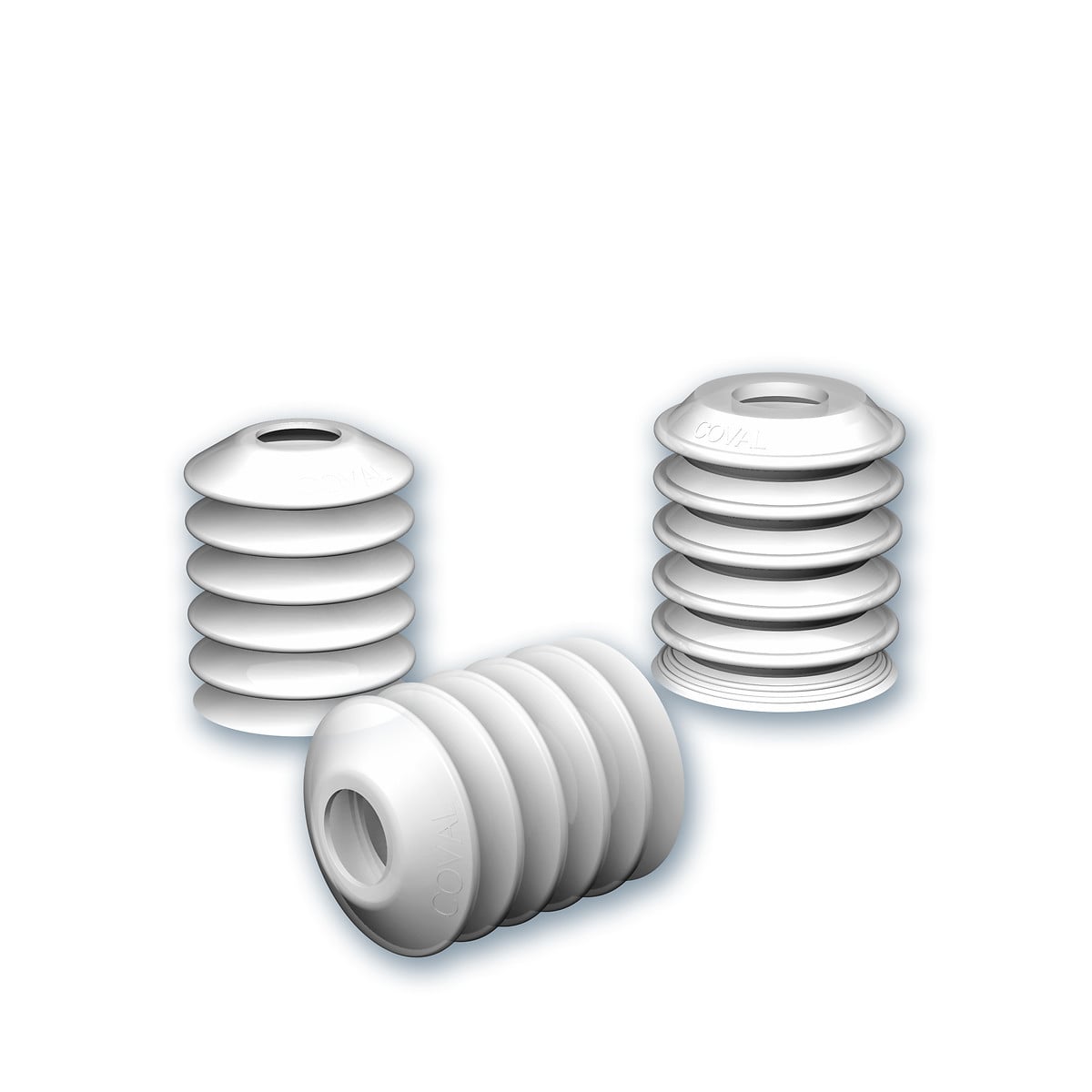

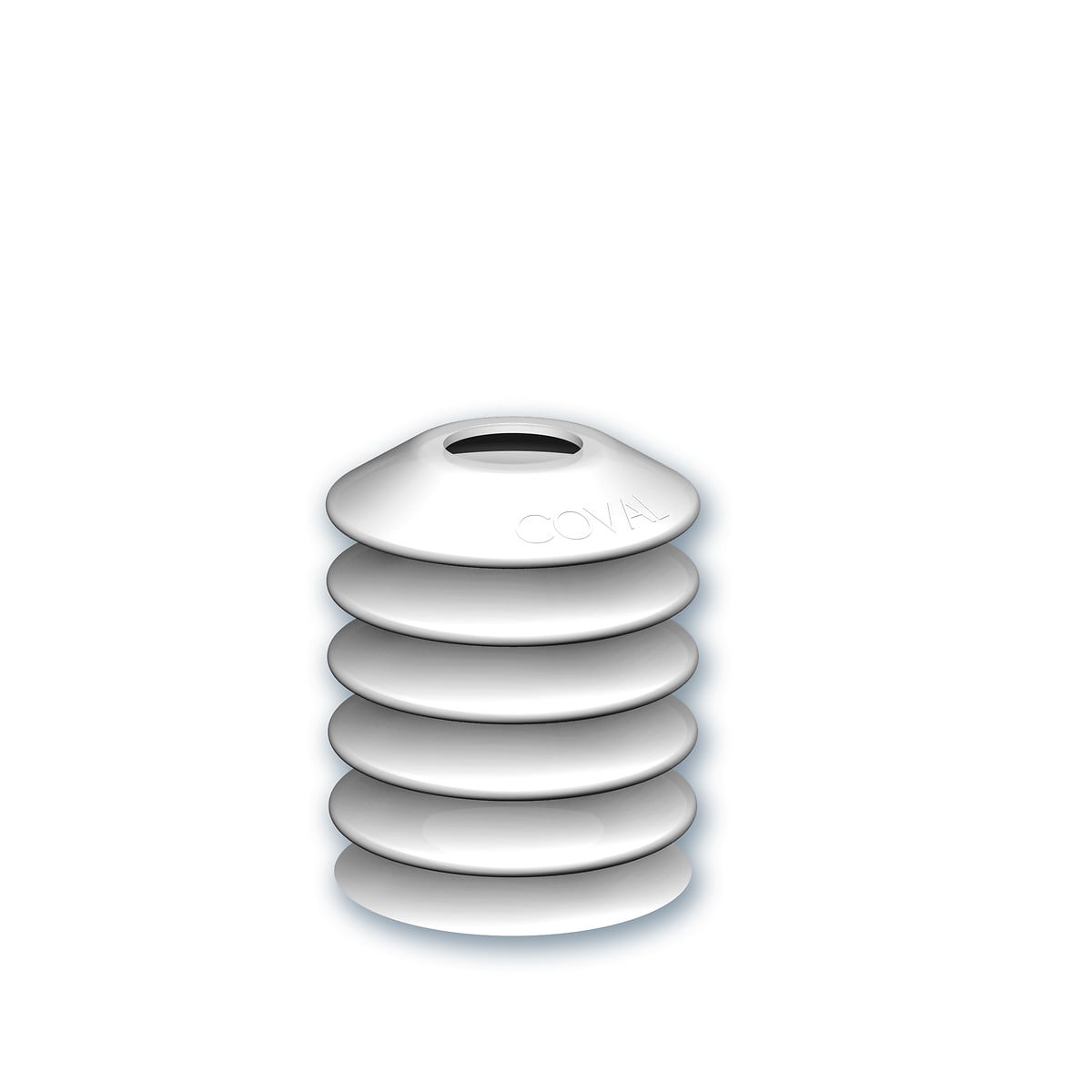

VSE35SI
- Form: 5.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 35
- Stroke | mm: 26
- Suction cup material: Silicone (SI)
VSE35SI3
- Form: 5.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 35
- Stroke | mm: 26
- Suction cup material: Silicone (SI)

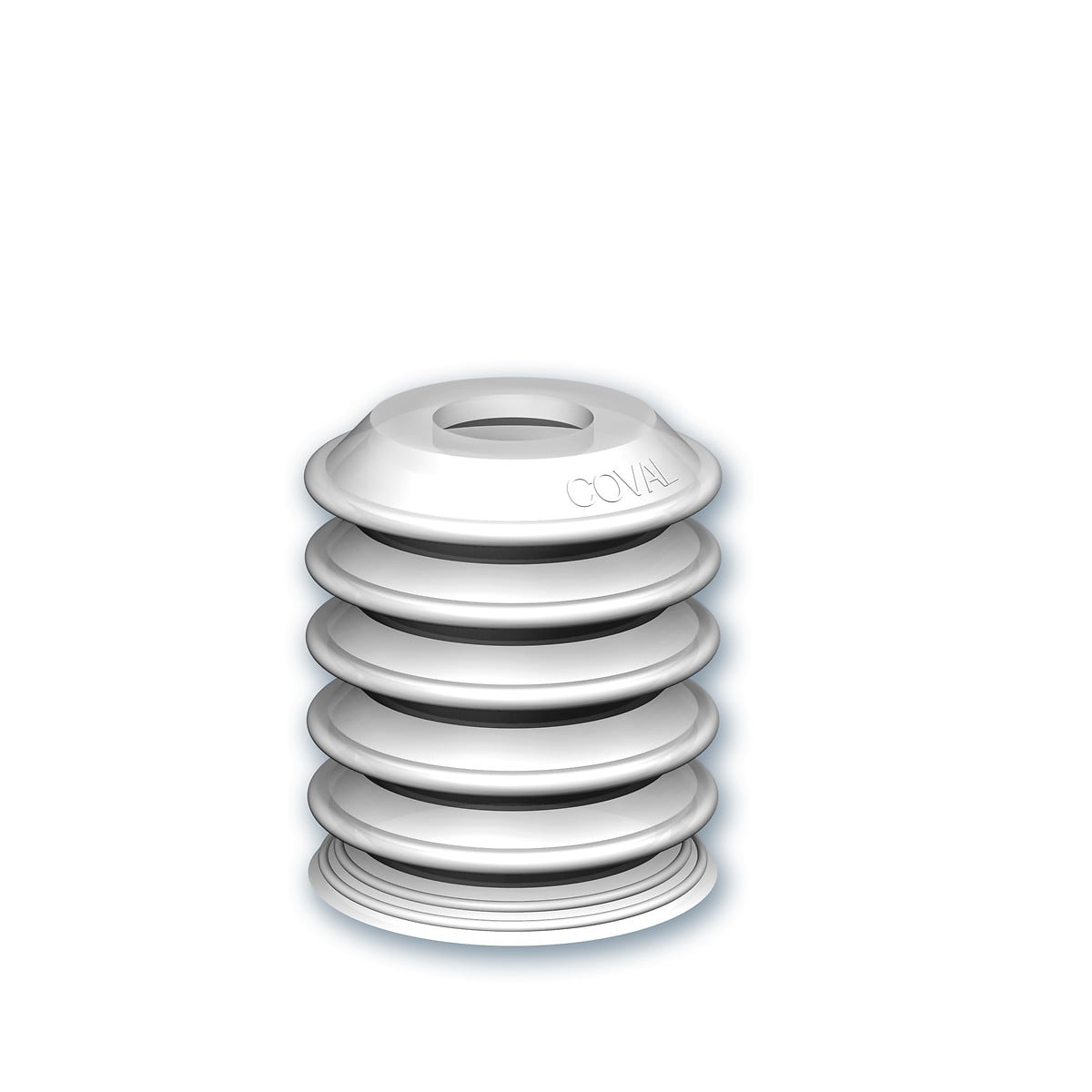

VSE39SI
- Form: 5.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 39
- Stroke | mm: 28
- Suction cup material: Silicone (SI)
VSP14SI3
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 14
- Stroke | mm: 9
- Suction cup material: Silicone (SI)

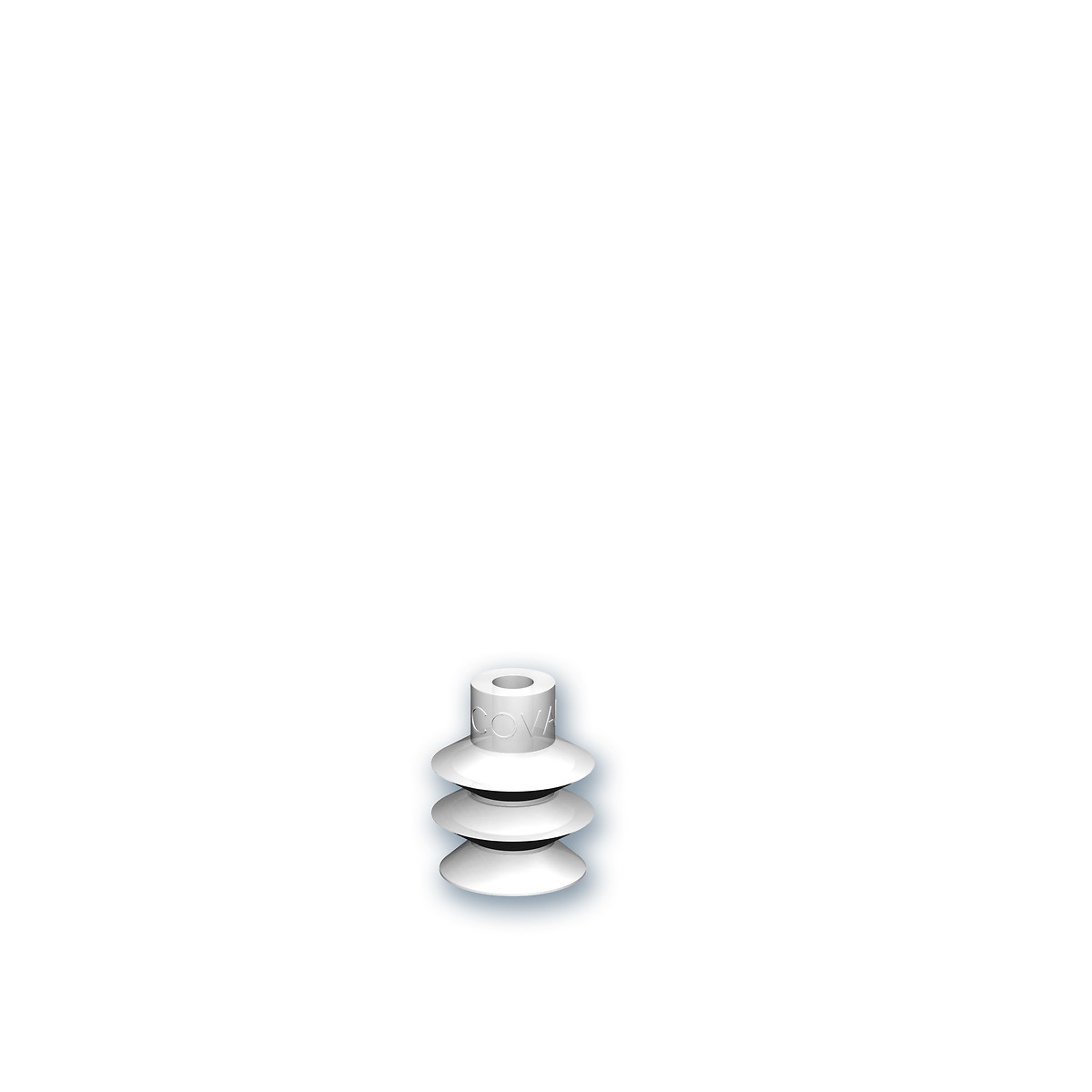

VSP14SIT6
- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 14
- Stroke | mm: 9
- Suction cup material: Silicone (SI)

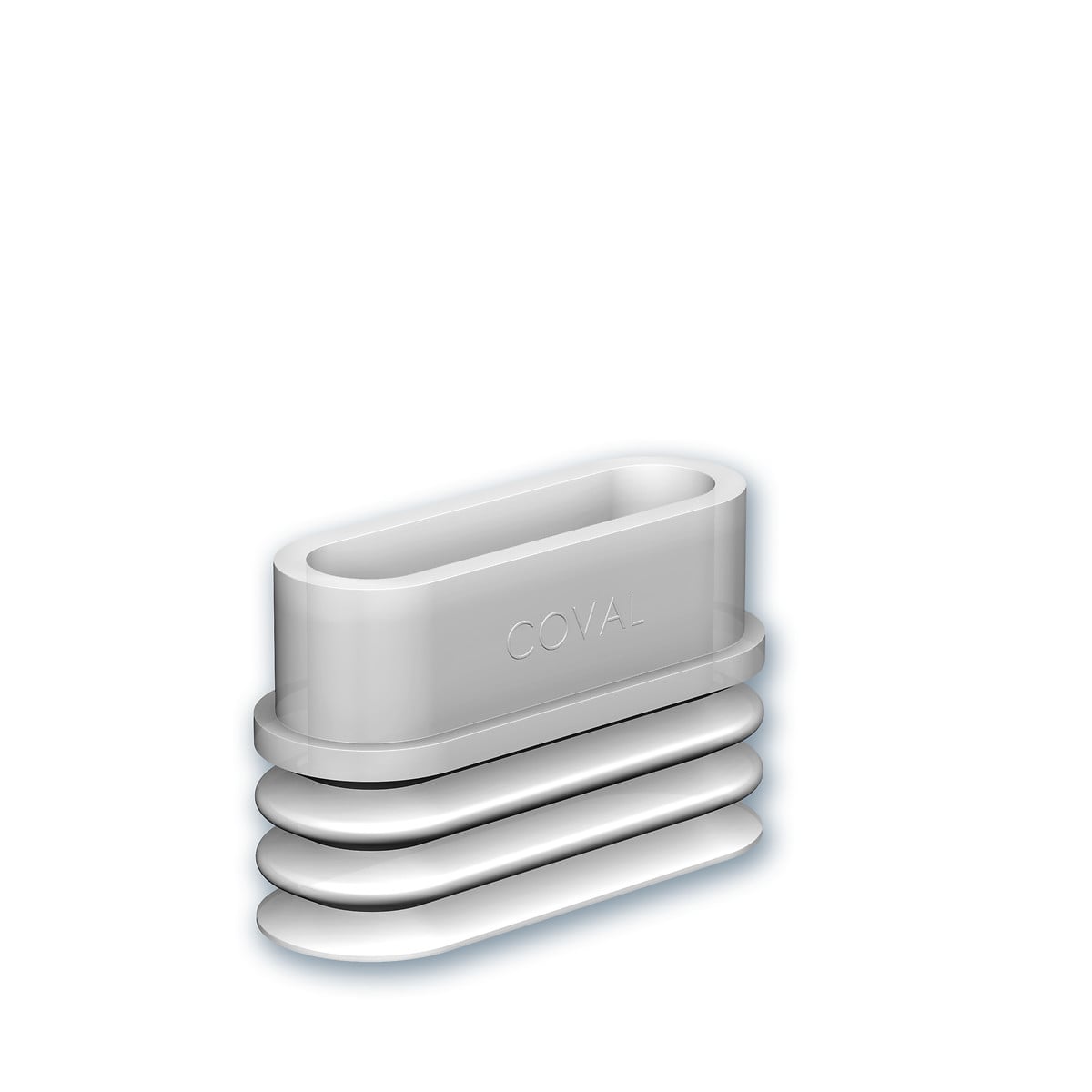

VSP2258SIT5
- Form: 2.5 Bellows
- Type of suction cup: Oblong
- Dimensions | mm: 22x58
- Stroke | mm: 8
- Suction cup material: Silicone (SI)

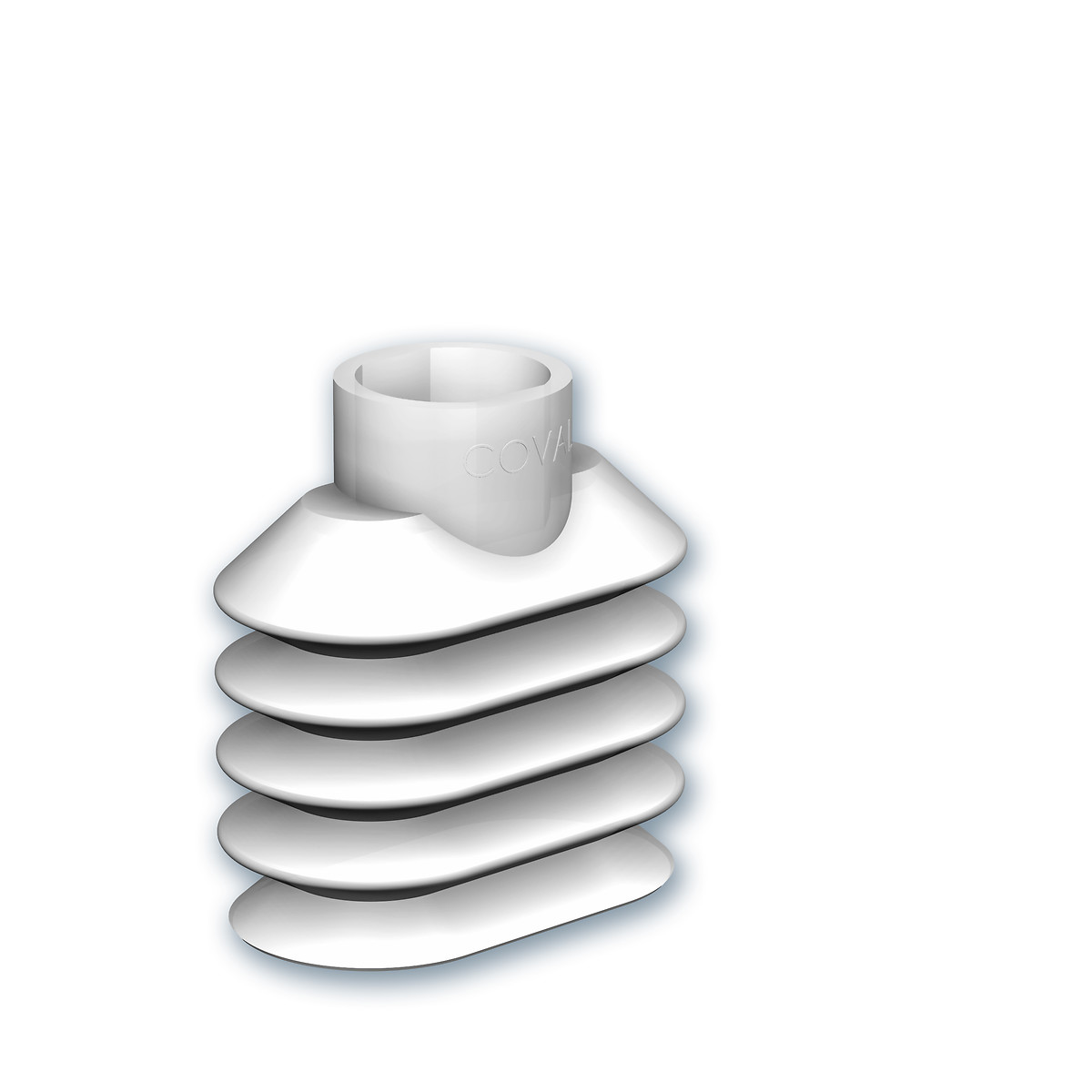

VSP2747SIT3
- Form: 4.5 Bellows
- Type of suction cup: Oblong
- Dimensions | mm: 27x47
- Stroke | mm: 26
- Suction cup material: Silicone (SI)

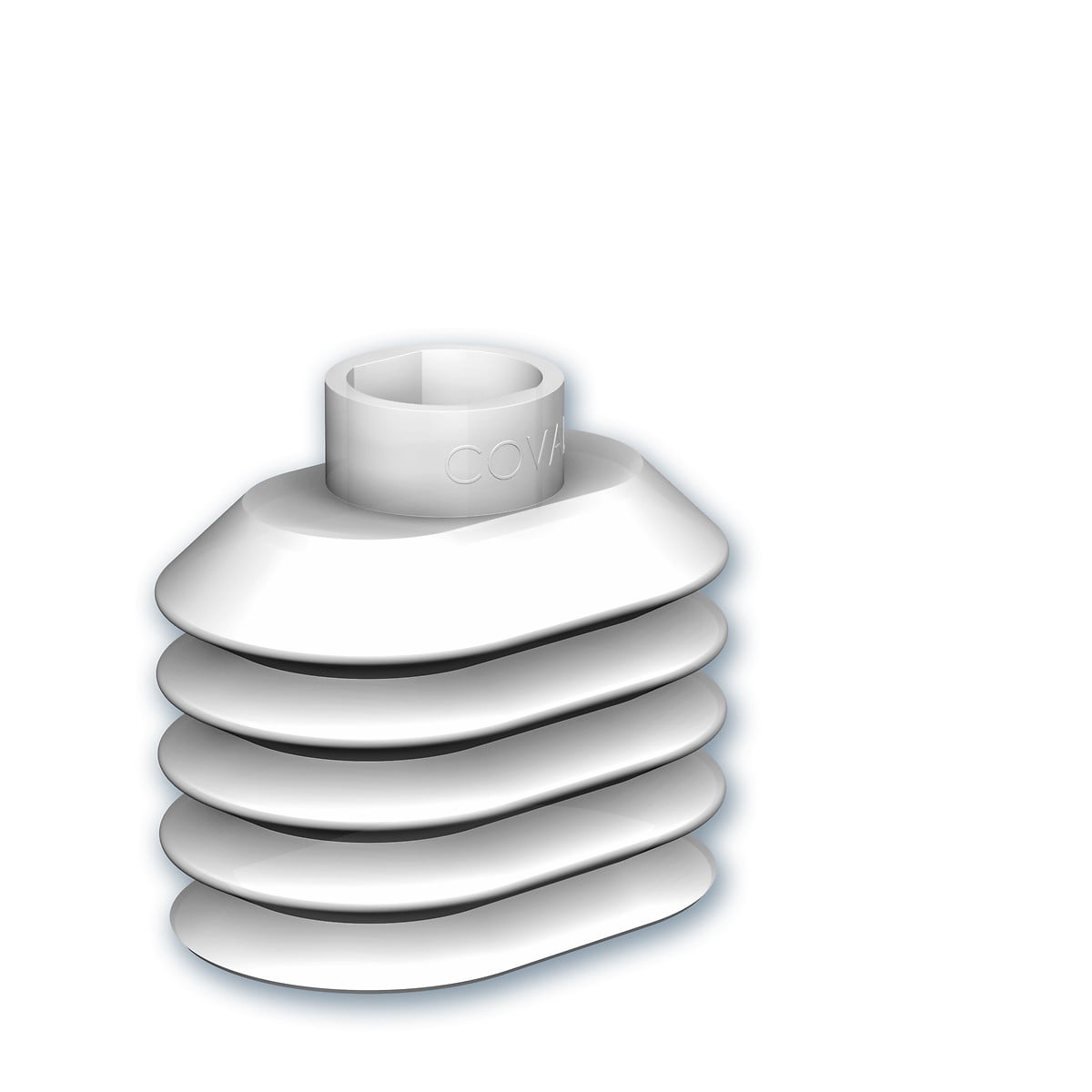

VSP3856SIT5
- Form: 4.5 Bellows
- Type of suction cup: Oblong
- Dimensions | mm: 38x56
- Stroke | mm: 28
- Suction cup material: Silicone (SI)
