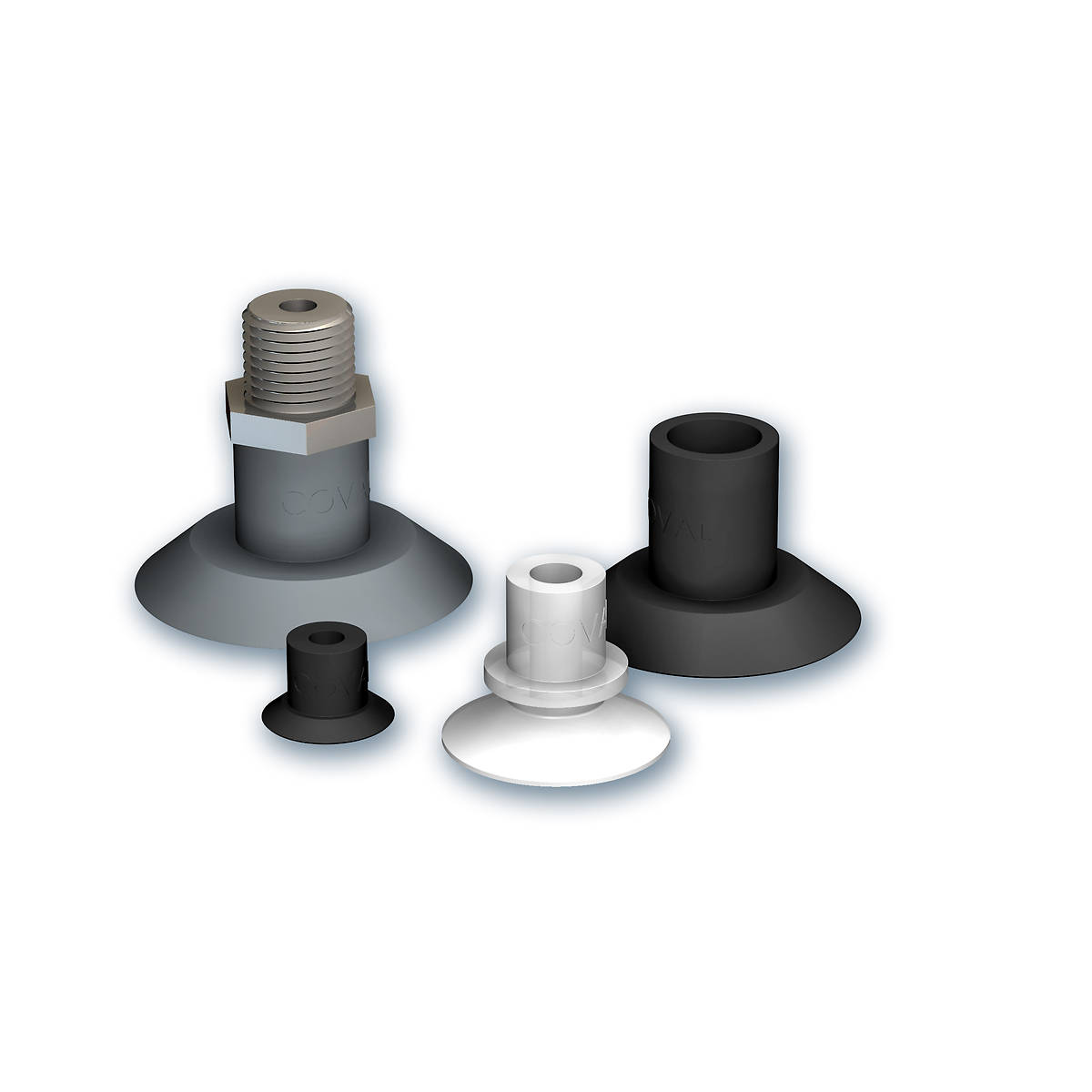

Suction Cups for Paper Applications, VPA series - 1

Suction Cups for Paper Applications, VPA series

The VPA series is a range of suction cups with a very flexible lip used to handle highly flexible materials. These suction cups are specially designed for gripping in applications such as label placement, plastic films and printing. They are mainly produced in natural rubber(NR) to provide resistance to abrasion caused by paper and cardboard or in silicone(SIT5) for food compatibility.
DownloadsShare via email

Industry-specific applications

Types of use

Keypoints

  • The VPA series is a range of suction cups with a very flexible lip used to handle highly flexible materials. These suction cups are specially designed for gripping in applications such as label placement, plastic films and printing.
  • VPA15NR

    VPA15NR

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 15
    • Stroke | mm: 0.8
    • Suction cup material: Natural Rubber (NR)
  • VPA15SIT5

    VPA15SIT5

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 15
    • Stroke | mm: 0.8
    • Suction cup material: Silicone (SI)
  • VPA20NR

    VPA20NR

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 20
    • Stroke | mm: 1.3
    • Suction cup material: Natural Rubber (NR)
  • VPA20SIT5

    VPA20SIT5

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 20
    • Stroke | mm: 1.3
    • Suction cup material: Silicone (SI)
  • VPA25NR

    VPA25NR

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 25
    • Stroke | mm: 1.8
    • Suction cup material: Natural Rubber (NR)
  • VPA25SIT5

    VPA25SIT5

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 25
    • Stroke | mm: 1.8
    • Suction cup material: Silicone (SI)
  • VPA26NR

    VPA26NR

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 26
    • Stroke | mm: 1.9
    • Suction cup material: Natural Rubber (NR)
  • VPA26STN

    VPA26STN

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 26
    • Stroke | mm: 1.9
    • Suction cup material: Siton® (STN)
  • VPA30NBR

    VPA30NBR

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 30
    • Stroke | mm: 2.5
    • Suction cup material: Nitrile (NBR)
  • VPA30NR

    VPA30NR

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 30
    • Stroke | mm: 2.5
    • Suction cup material: Natural Rubber (NR)
