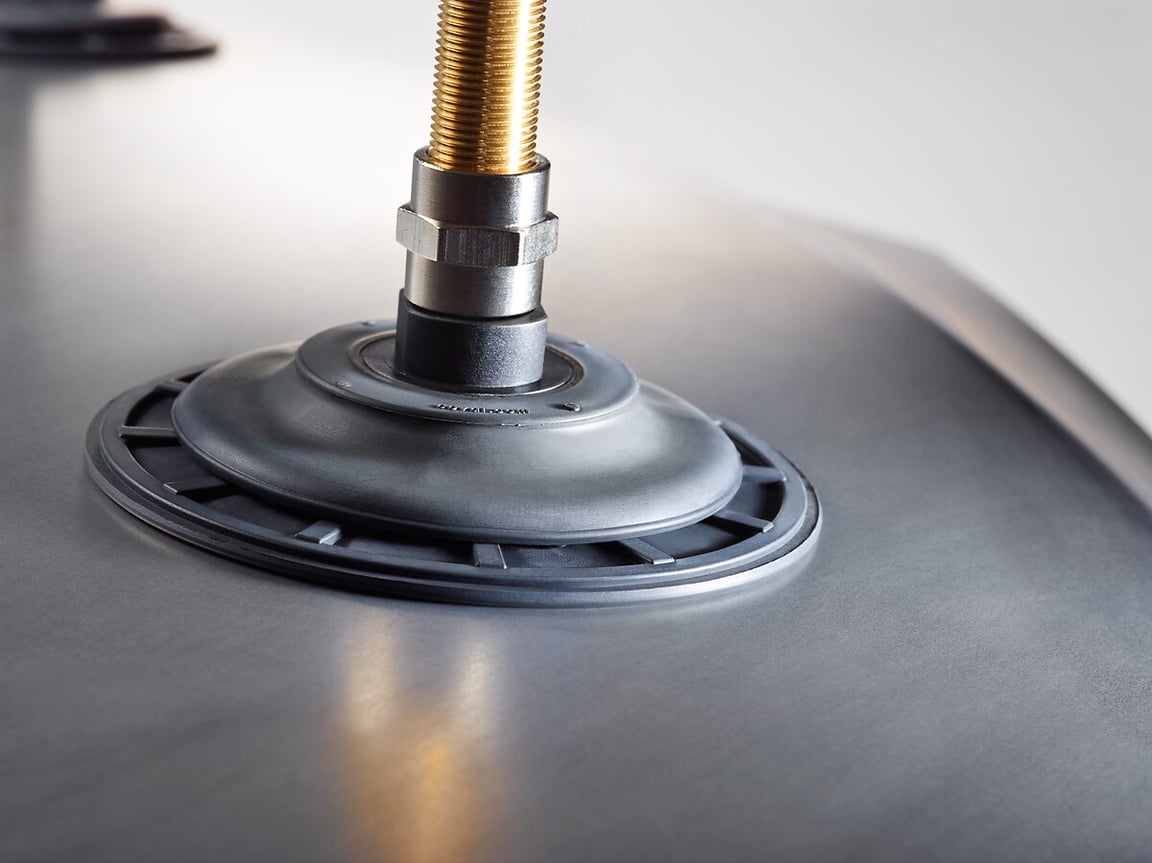

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 2

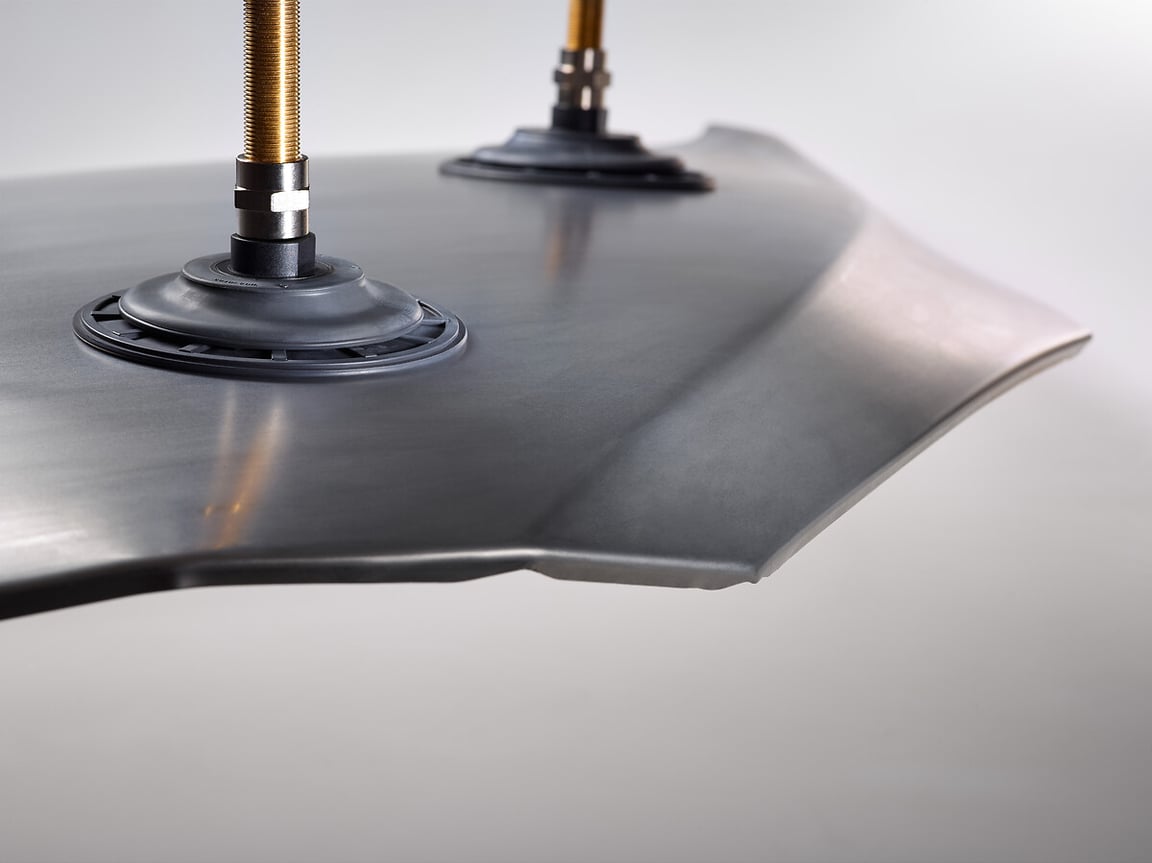

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 3

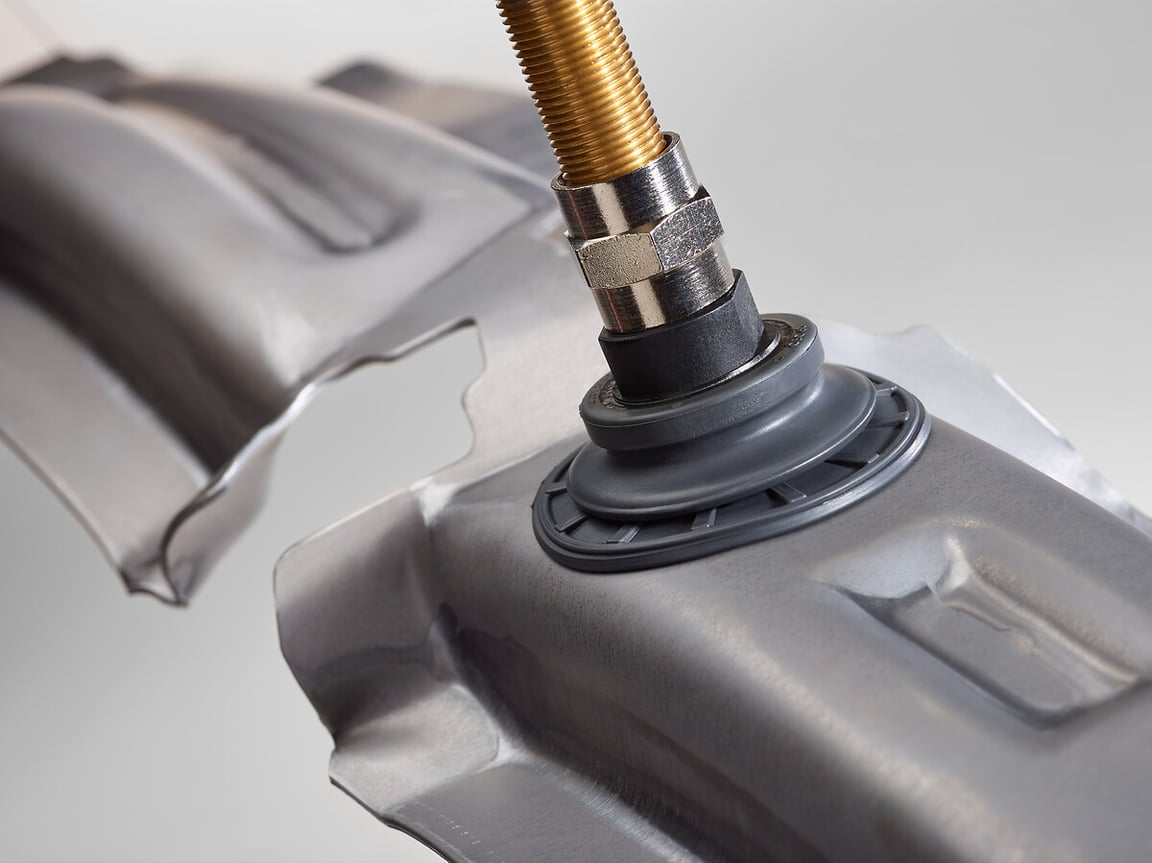

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 4

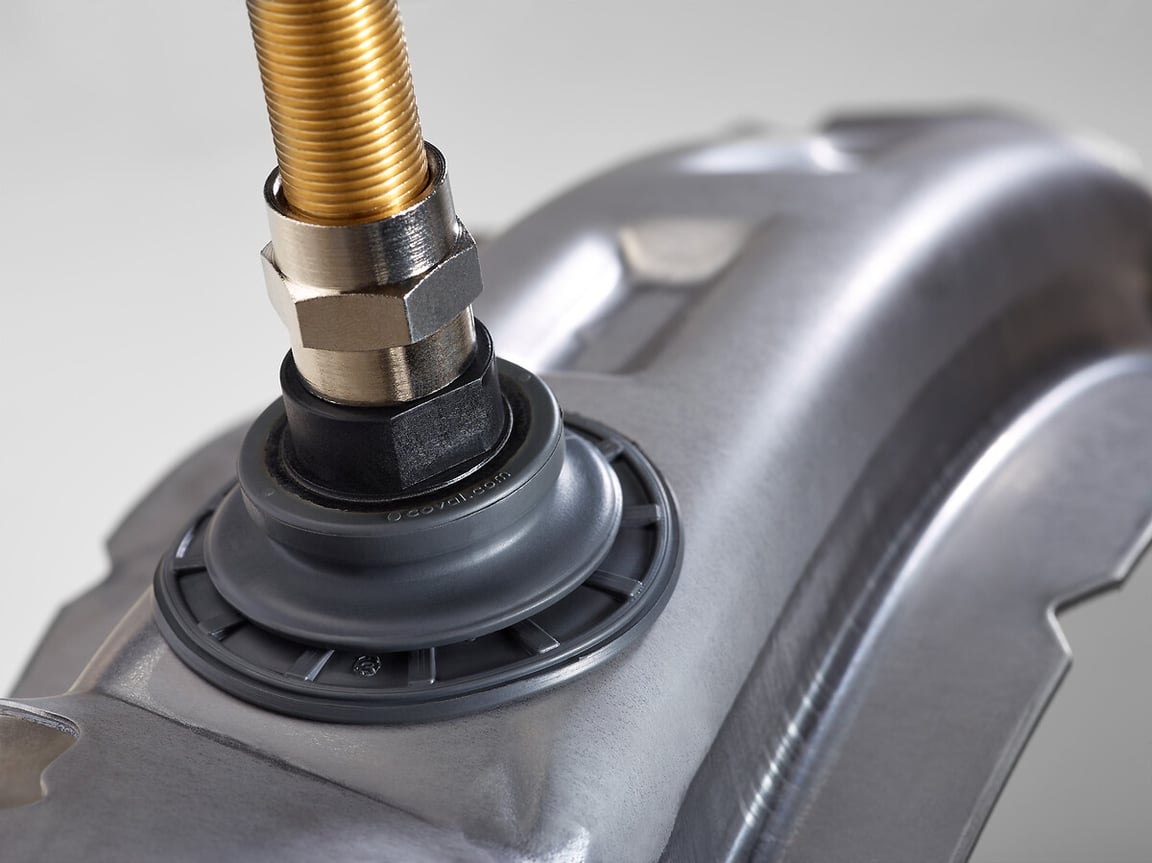

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 5

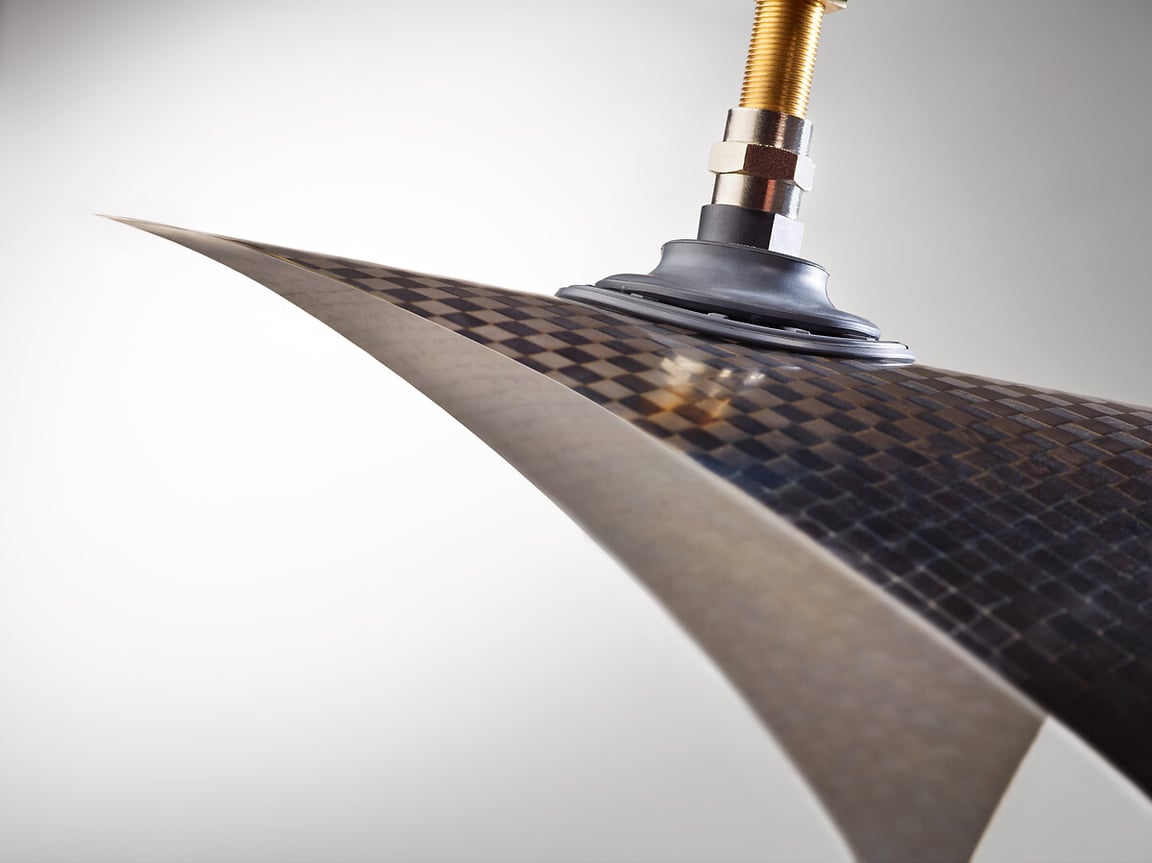

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 6

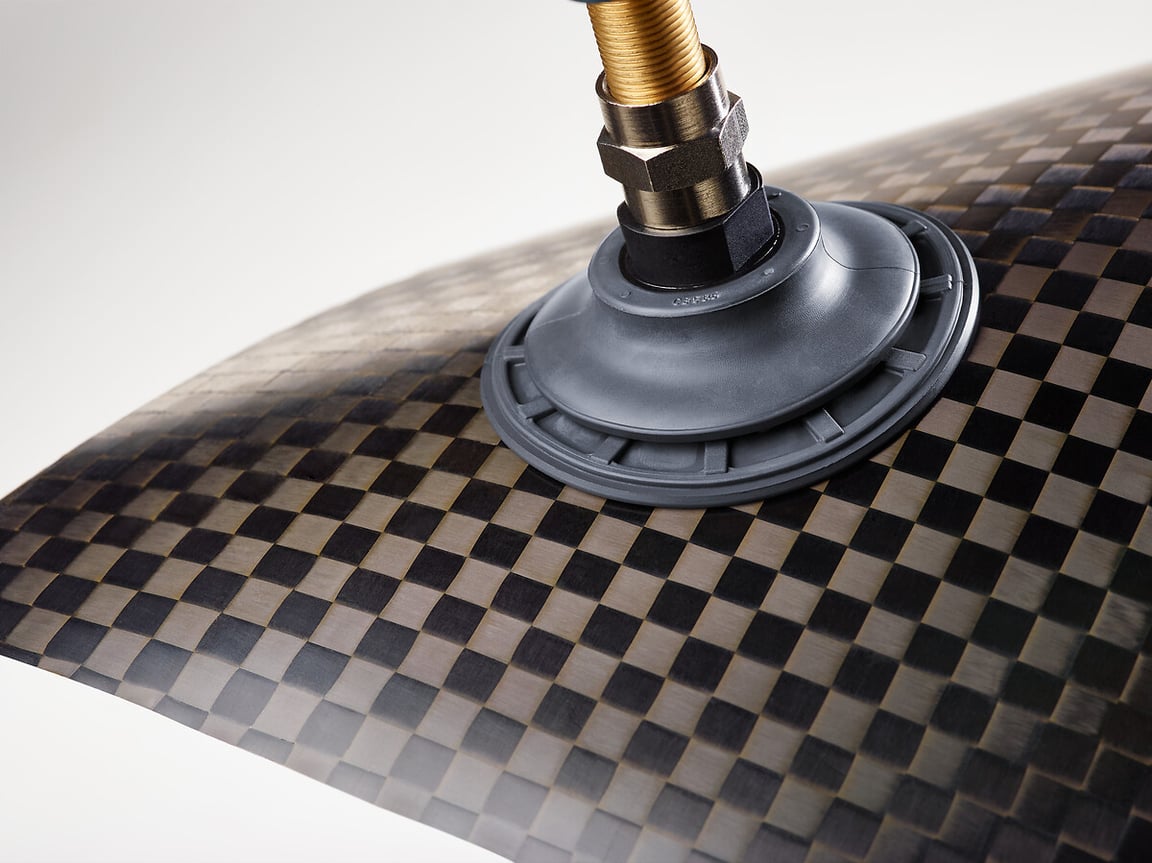

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 7

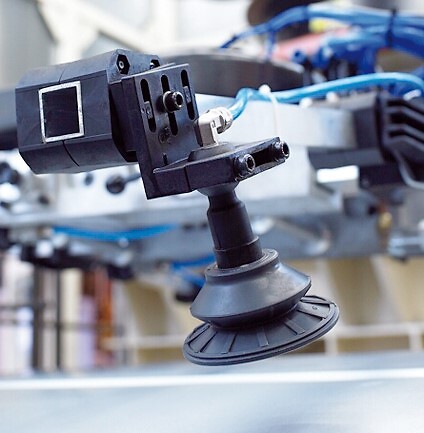

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 8

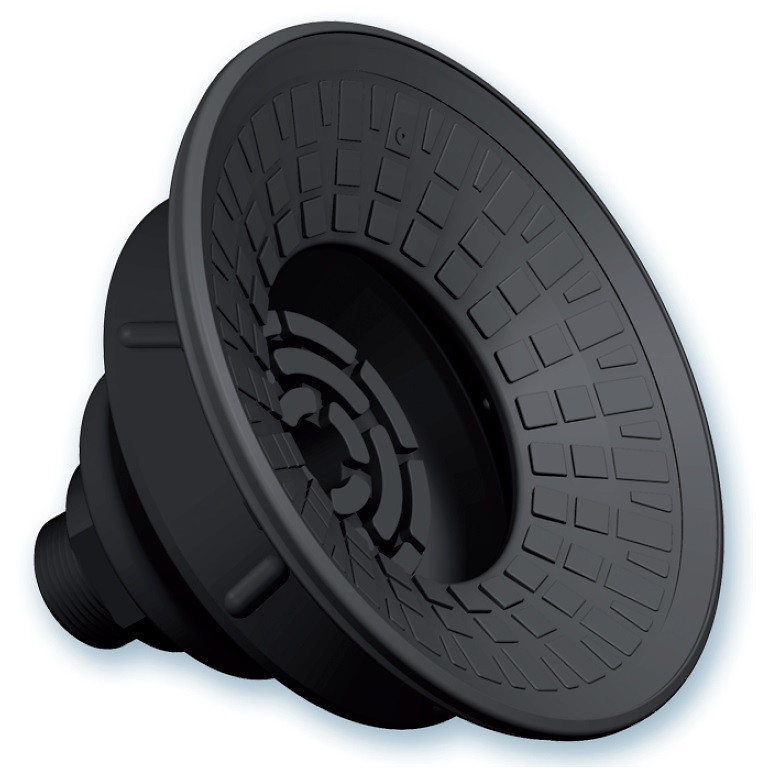

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series - 9

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series

The COVAL CBC series high-performance suction cup range has been designed to meet the requirements of the automotive industry. The improved characteristics of the C series range optimize production tools in all spheres of activity.• A full range of diameters to meet every requirement.• Non-slip cleats ensure optimum positioning on oily sheet metal.• Structured suction cups for gripping thin sheet metal without deforming the piece.• Ideal for automated applications.• Specifically for use in the stamping and welding sectors.
DownloadsShare via email

Industry-specific applications

Types of use

Keypoints

  • Suction Cups with Non-slip cleats
  • Ø 22 to 115 mm
  • Fittings: G3/8"-M, G3/8"-F and square coupling 32
  • Materials: Suction cups Nitrile
  • Fitting: Polyamide or Aluminum
  • CBC22C32

    CBC22C32

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 21.5
    • Stroke | mm: 6
    • Suction cup material: Nitrile (NBR)
    • Fitting: C32
  • CBC22F38G

    CBC22F38G

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 21.5
    • Stroke | mm: 6
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • CBC22F38GA

    CBC22F38GA

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 21.5
    • Stroke | mm: 6
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • CBC22M38G

    CBC22M38G

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 21.5
    • Stroke | mm: 6
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-M
  • CBC22M38GA

    CBC22M38GA

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 21.5
    • Stroke | mm: 6
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-M
  • CBC30C32

    CBC30C32

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 32
    • Stroke | mm: 8
    • Suction cup material: Nitrile (NBR)
    • Fitting: C32
  • CBC30F38G

    CBC30F38G

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 32
    • Stroke | mm: 8
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • CBC30F38GA

    CBC30F38GA

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 32
    • Stroke | mm: 8
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • CBC30M38G

    CBC30M38G

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 32
    • Stroke | mm: 8
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-M
  • CBC30M38GA

    CBC30M38GA

    • Form: 1.5 Bellow
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 32
    • Stroke | mm: 8
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-M
