Steel Suction Cups with Bonded Seal, 5000 - 6000 series - 1

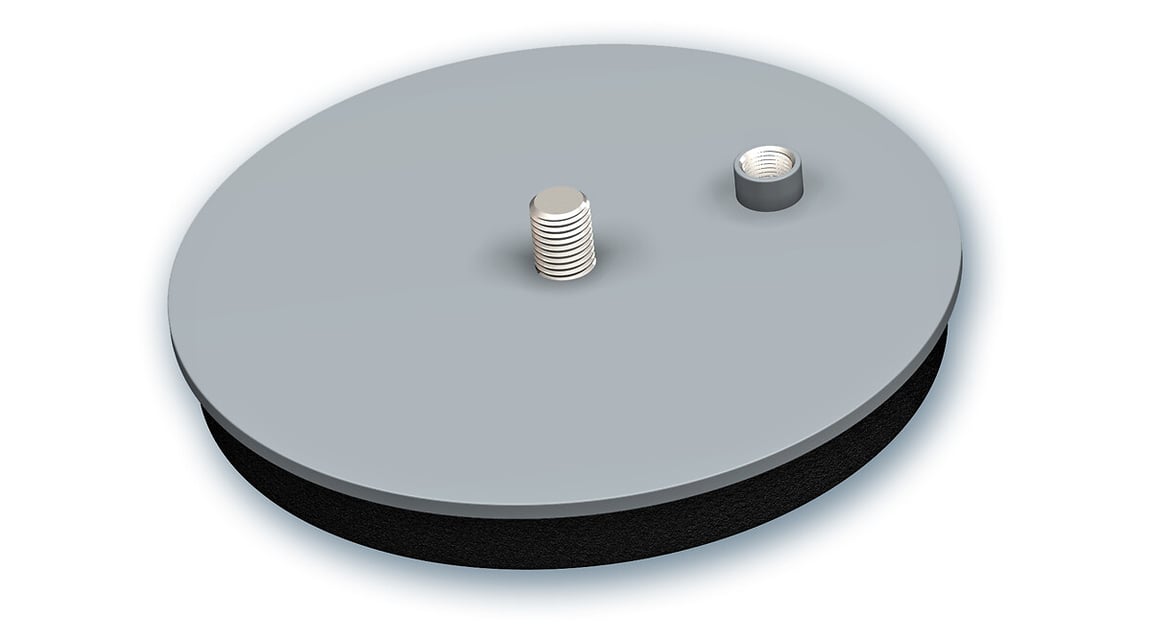

Steel Suction Cups with Bonded Seal, 5000 - 6000 series

For horizontal handling of heavy loads (thick sheet metal) or objects with an uneven surface such as concrete slabs or wood, etc.Advantage: wide choice of shapes and dimensions.
DownloadsShare via email

Industry-specific applications

Types of use

Keypoints

  • For horizontal handling of heavy loads (thick sheet metal) or objects with an uneven surface such as concrete slabs or wood, etc

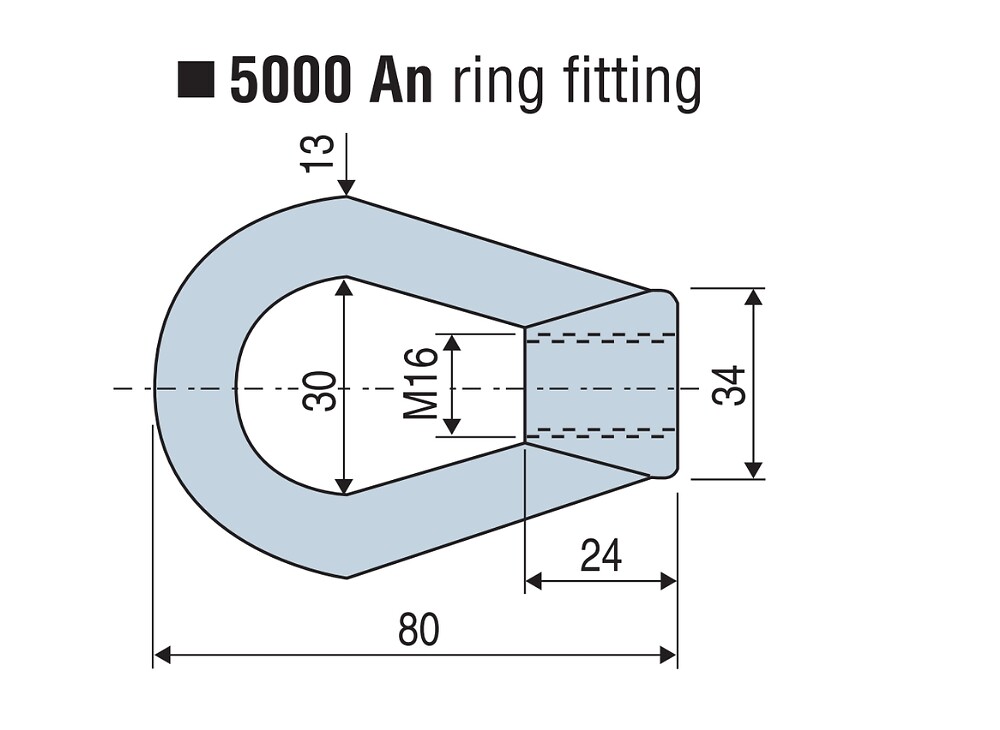

  • 5000AN

    5000AN

  • 5020

    5020

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 150
    • Suction cup material: Nitrile (NBR)
    • Fitting: G1/4"-F
  • 5028

    5028

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 170
    • Suction cup material: Nitrile (NBR)
    • Fitting: G1/4"-F
  • 5035

    5035

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 190
    • Suction cup material: Nitrile (NBR)
    • Fitting: G1/4"-F
  • 5050

    5050

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 210
    • Suction cup material: Nitrile (NBR)
    • Fitting: G1/4"-F
  • 5085

    5085

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 260
    • Suction cup material: Nitrile (NBR)
    • Fitting: G1/4"-F
  • 5150

    5150

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 350
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • 5240

    5240

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 420
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • 5330

    5330

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 500
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
  • 5500

    5500

    • Form: Flat
    • Type of suction cup: Round
    • Diameter (ØA) | mm: 580
    • Suction cup material: Nitrile (NBR)
    • Fitting: G3/8"-F
