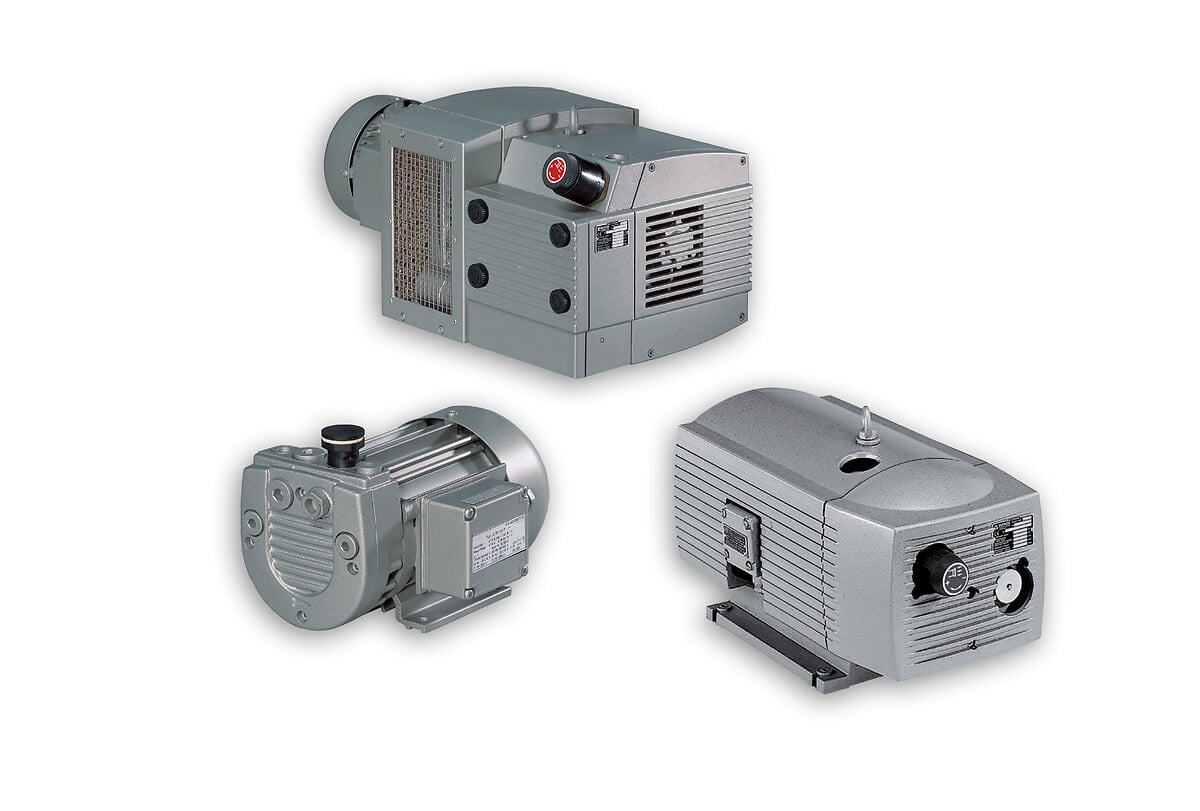

PVS series, Rotary vane vacuum pumps

The electric dry vane vacuum pumps in series PVS are compact and robust. Industry-specific applications.They are equipped with a vacuum filter, vacuum and blow-off control valves. Their functioning is silent and vibration free and they meet a wide variety ofapplications. - Flow rate: up to 112 m3/h- Maximum vacuum:-150 mbar absolute (85% relative vacuum) Available :- 230 V Mono - 230/400 V Tri
DownloadsShare via email

Industry-specific applications

Keypoints

  • Flow rate: up to 112 m3/h
  • Maximum vacuum: -150 mbar absolute (85% relative vacuum)
  • Available: 230 V Mono
  • 230/400 V Tri

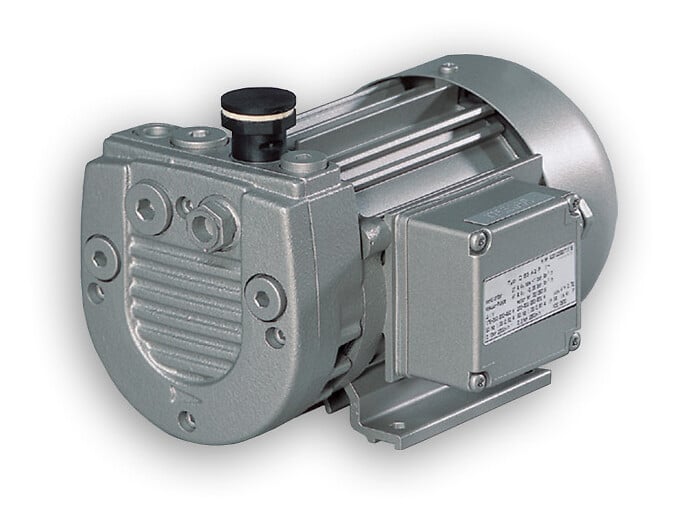

  • PVS4T3

    PVS4T3

    • Flow rate (50 Hz) I ft3/min: 4.1
    • Flow rate (60 Hz) I ft3/min: 4.7
    • Engine power (50 Hz): 0.19
    • Engine power (60 Hz): 0.216
    • Vacuum level | %: 85
  • PVS8M1

    PVS8M1

    • Flow rate (50 Hz) I ft3/min: 8
    • Flow rate (60 Hz) I ft3/min: 9.1
    • Engine power (50 Hz): 0.35
    • Engine power (60 Hz): 0.42
    • Vacuum level | %: 85
  • PVS8T3

    PVS8T3

    • Flow rate (50 Hz) I ft3/min: 8
    • Flow rate (60 Hz) I ft3/min: 9.1
    • Engine power (50 Hz): 0.37
    • Engine power (60 Hz): 0.44
    • Vacuum level | %: 85

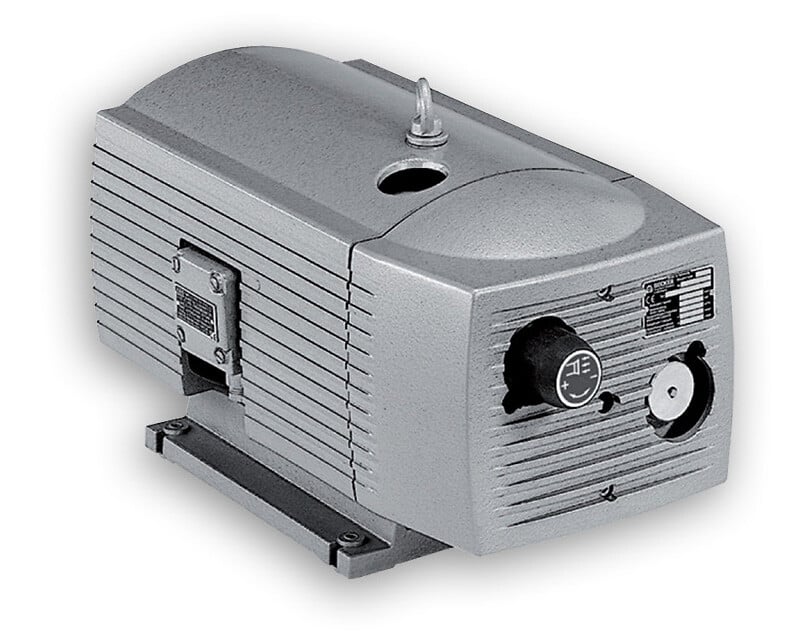

  • PVS10M1

    PVS10M1

    • Flow rate (50 Hz) I ft3/min: 10
    • Flow rate (60 Hz) I ft3/min: 12
    • Engine power (50 Hz): 0.37
    • Engine power (60 Hz): 0.44
    • Vacuum level | %: 85
  • PVS10T3

    PVS10T3

    • Flow rate (50 Hz) I ft3/min: 10
    • Flow rate (60 Hz) I ft3/min: 12
    • Engine power (50 Hz): 0.37
    • Engine power (60 Hz): 0.45
    • Vacuum level | %: 85
  • PVS16M1

    PVS16M1

    • Flow rate (50 Hz) I ft3/min: 16
    • Flow rate (60 Hz) I ft3/min: 19
    • Engine power (50 Hz): 0.55
    • Engine power (60 Hz): 0.66
    • Vacuum level | %: 85
  • PVS16T3

    PVS16T3

    • Flow rate (50 Hz) I ft3/min: 16
    • Flow rate (60 Hz) I ft3/min: 19
    • Engine power (50 Hz): 0.55
    • Engine power (60 Hz): 0.7
    • Vacuum level | %: 85
  • PVS25M1

    PVS25M1

    • Flow rate (50 Hz) I ft3/min: 25
    • Flow rate (60 Hz) I ft3/min: 30
    • Engine power (50 Hz): 0.8
    • Engine power (60 Hz): 1
    • Vacuum level | %: 85
  • PVS25T3

    PVS25T3

    • Flow rate (50 Hz) I ft3/min: 25
    • Flow rate (60 Hz) I ft3/min: 30
    • Engine power (50 Hz): 0.75
    • Engine power (60 Hz): 0.9
    • Vacuum level | %: 85
  • PVS40M1

    PVS40M1

    • Flow rate (50 Hz) I ft3/min: 40
    • Flow rate (60 Hz) I ft3/min: 48
    • Engine power (50 Hz): 1.1
    • Engine power (60 Hz): 1.1
    • Vacuum level | %: 85
