Vacuum Valves, 3 channels, AG series
The 3-channel AG vacuum valves are designed to optimize vacuum networks, offering increased efficiency in various applications. Available in configurations with vacuum or compressed air supplied servos, and in normally open or closed modes, they offer flow rates ranging from 0.9 to 106 CFM and various control voltages, thus meeting diverse industrial needs.
Keypoints
- Connection on the vacuum network
- Electric control
- Voltage: 12 VDC / 24 VDC or 24 VAC / 110 VAC / 220 VAC
- NO or NC for the vacuum or compressed air supplied servo

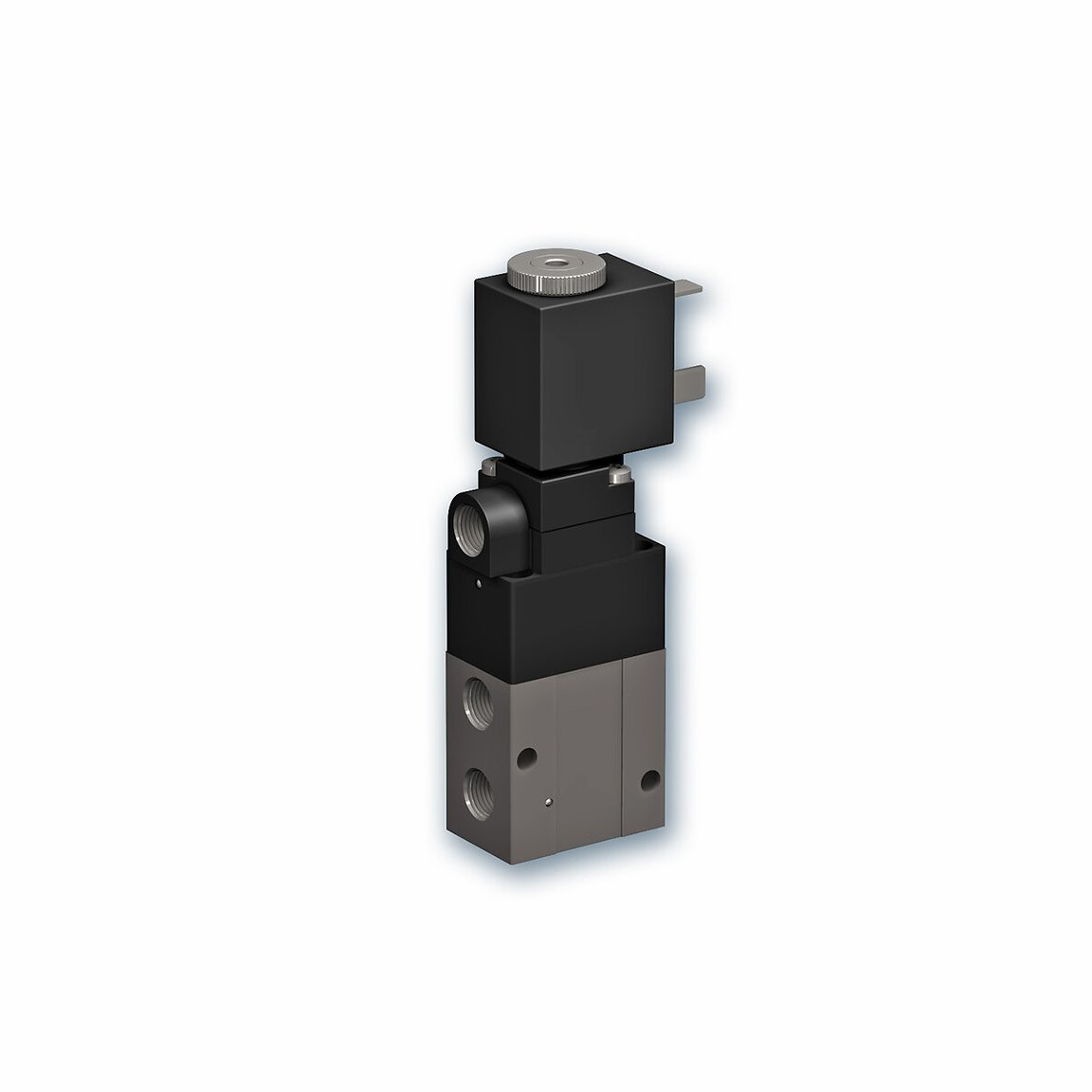

AG3001E1
- Models: NC CA supplied servo, G1/8''-F, 24 VDC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V CC / DC
AG3001E2
- Models: NC CA supplied servo, G1/8''-F, 220 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 220 V AC
AG3001E3
- Models: NC CA supplied servo, G1/8''-F, 24 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V AC
AG3001E4
- Models: NC CA supplied servo, G1/8''-F, 110 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 110 V AC
AG3001E5
- Models: NC CA supplied servo, G1/8''-F, 48 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 48 V AC
AG3001E7
- Models: NC CA supplied servo, G1/8''-F, 12 V DC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 12 V CC / DC
AG3002E1
- Models: NO CA supplied servo, G1/8''-F, 24 VDC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V CC / DC
AG3002E2
- Models: NO CA supplied servo, G1/8''-F, 220 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 220 V AC
AG3002E3
- Models: NO CA supplied servo, G1/8''-F, 24 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V AC
AG3002E4
- Models: NO CA supplied servo, G1/8''-F, 110 V AC
- Flow rate | CFM: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 110 V AC
