Mini Vacuum Switch, PSK series - 1

Mini Vacuum Switch, PSK series

The PSK series adjustable vacuum switches, due to a compact and ultra-light design, enable installation close to the suction cups for reduced reponse times. PSKs are ideal for applications requiring only a simple "object gripped" signal, and offer an economical and effective solution for applications with one vacuum generator per suction cup.Advantages: . Simple installation, plug-in port or thread-in fitting. Compact size: 26 x 10 x 10.4 mm. Weight: 8.3 g
DownloadsShare via email

Industry-specific applications

Keypoints

  • 1 digital output
  • Adjustable vacuum threshold
  • 3 models
  • 4 vacuum fittings: Ø 6mm, G1/8"-M, M5-F, M5-M
  • M8 connection
  • IP40
  • Weight: 8.3 g

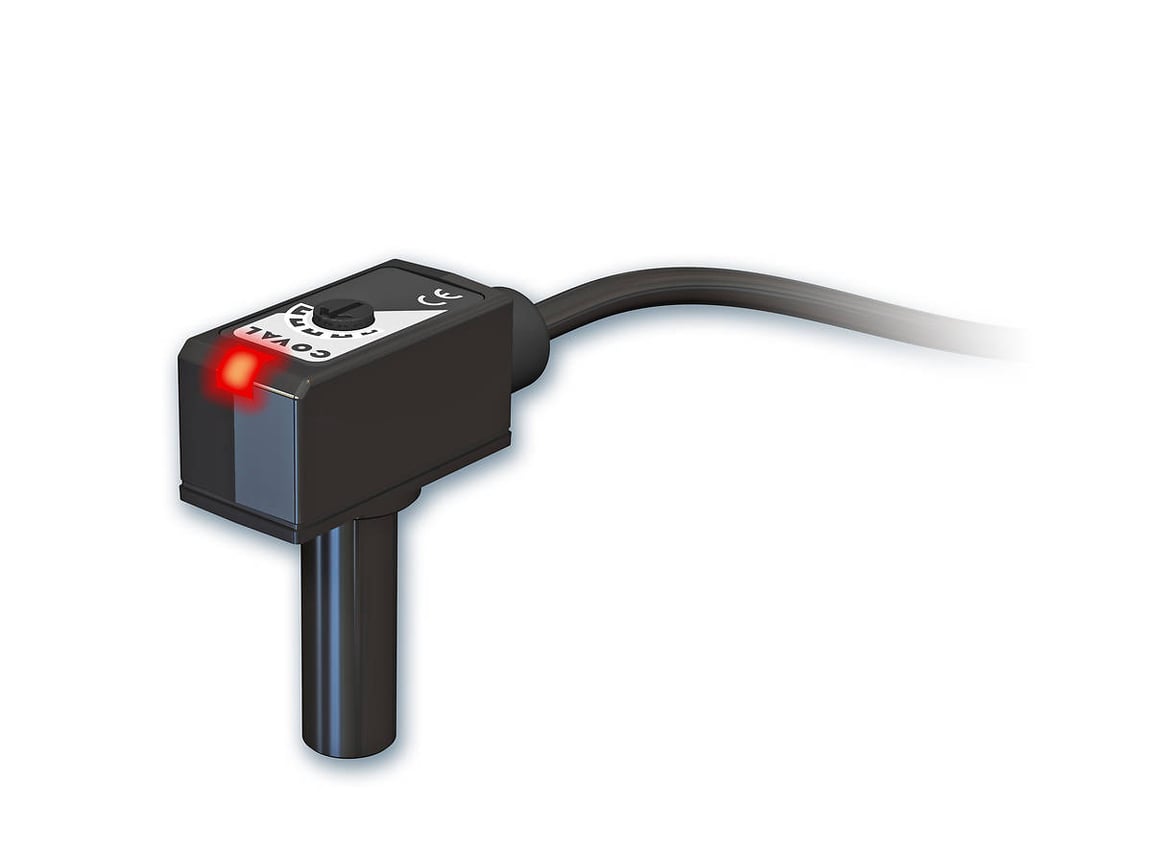

  • PSK100D6M8

    PSK100D6M8

    • Models: 1 PNP contact output
    • Hysteresis: 3% F.S. max
    • Connection: M8 connection 3-pin (Cable L:150 mm)
    • Vacuum connection: Ø 6 mm

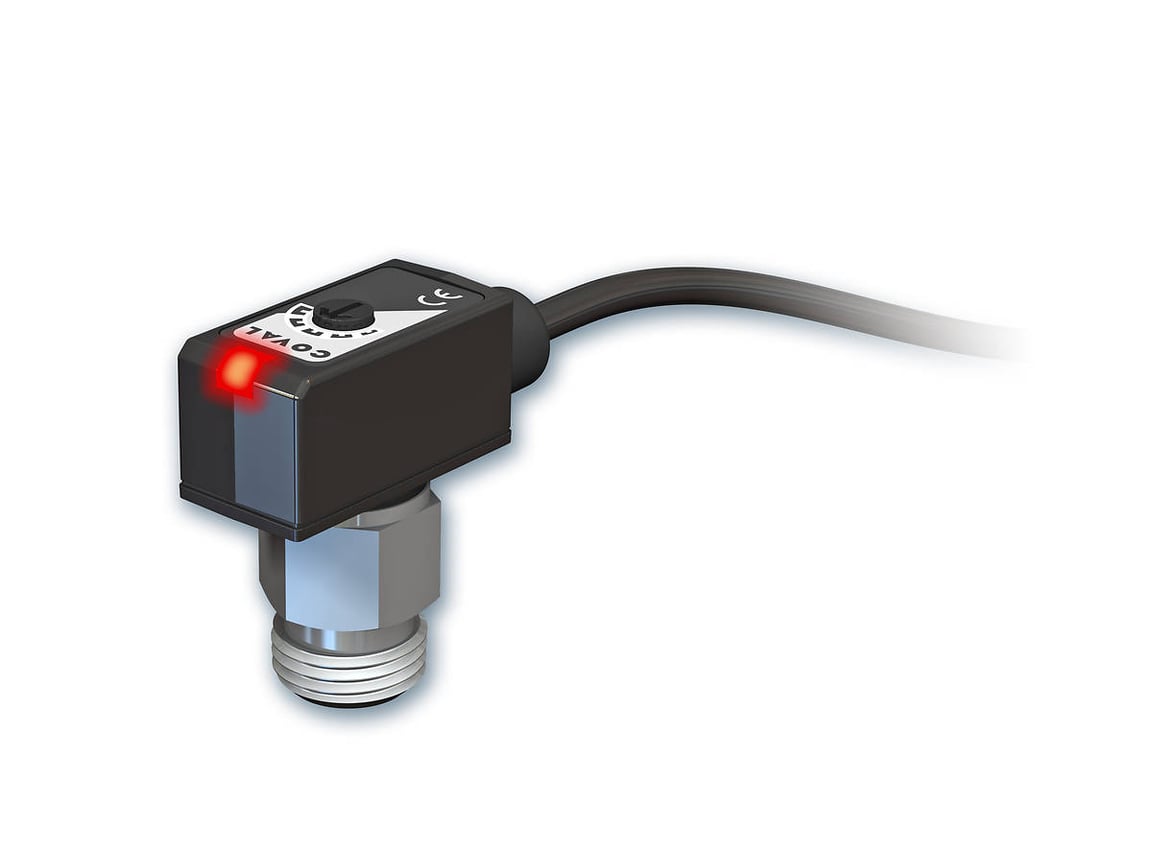

  • PSK100G18M8

    PSK100G18M8

    • Models: 1 PNP contact output
    • Hysteresis: 3% F.S. max
    • Connection: M8 connection 3-pin (Cable L:150 mm)
    • Vacuum connection: G1/8"-M,M5-F

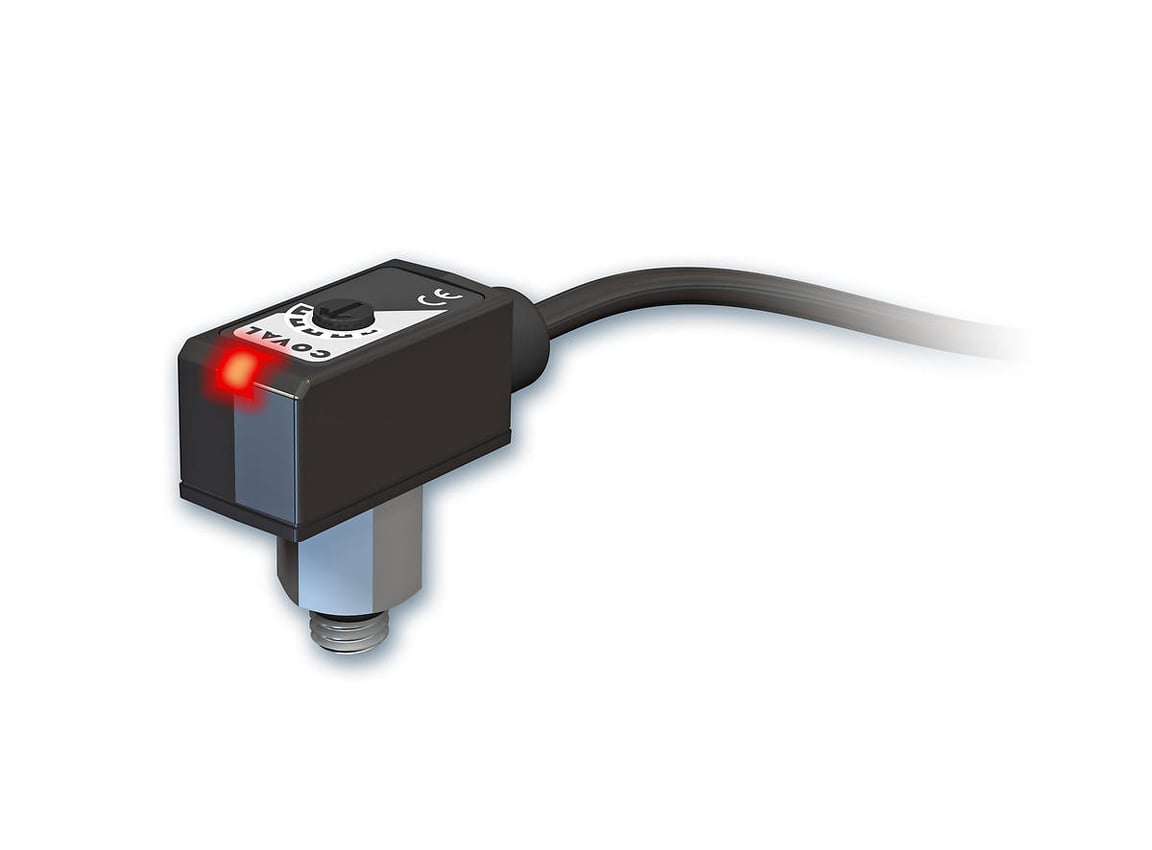

  • PSK100M5M8

    PSK100M5M8

    • Models: 1 PNP contact output
    • Hysteresis: 3% F.S. max
    • Connection: M8 connection 3-pin (Cable L:150 mm)
    • Vacuum connection: M5-M
