Electric Vacuum Switch, PSE100E series - 1

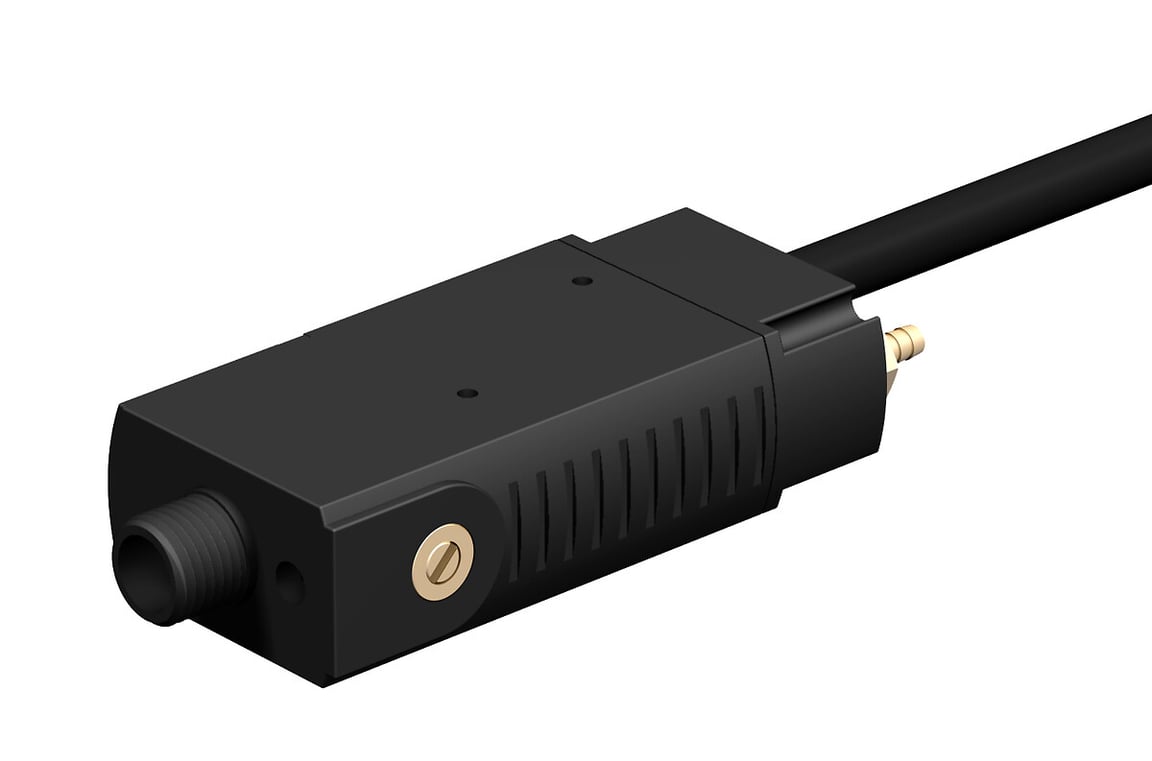

Electric Vacuum Switch, PSE100E series

The PSE100E series vacuum switch with electric output allows the vacuum level in the system to be checked by means of a patented system. . It is adapted to all electrical automated systems. . The choice between the N.O. or N.C. function is made during wiring.Advantages: . Adjustment range -300mb to -850mb. All voltages. NO or NC. Cable or M12 connector outputs
DownloadsShare via email

Industry-specific applications

Keypoints

  • 1 digital output
  • Adjustment range: -300mb to -850mb
  • All voltages
  • 2 vacuum fittings: G1/8"-M, M5-F
  • Cable or M12 connector
  • IP 54
  • Weight: 27 to 165 g
  • PSE100E

    PSE100E

    • Models: 1 contact output
    • Hysteresis: 125 mb
    • Connection: 3 wire PVC cable, length 2 m
    • Vacuum connection: G1/8"-M,M5-F
  • PSE100EC

    PSE100EC

    • Models: 1 contact output
    • Hysteresis: 125 mb
    • Connection: M12 female connector
    • Vacuum connection: G1/8"-M,M5-F
