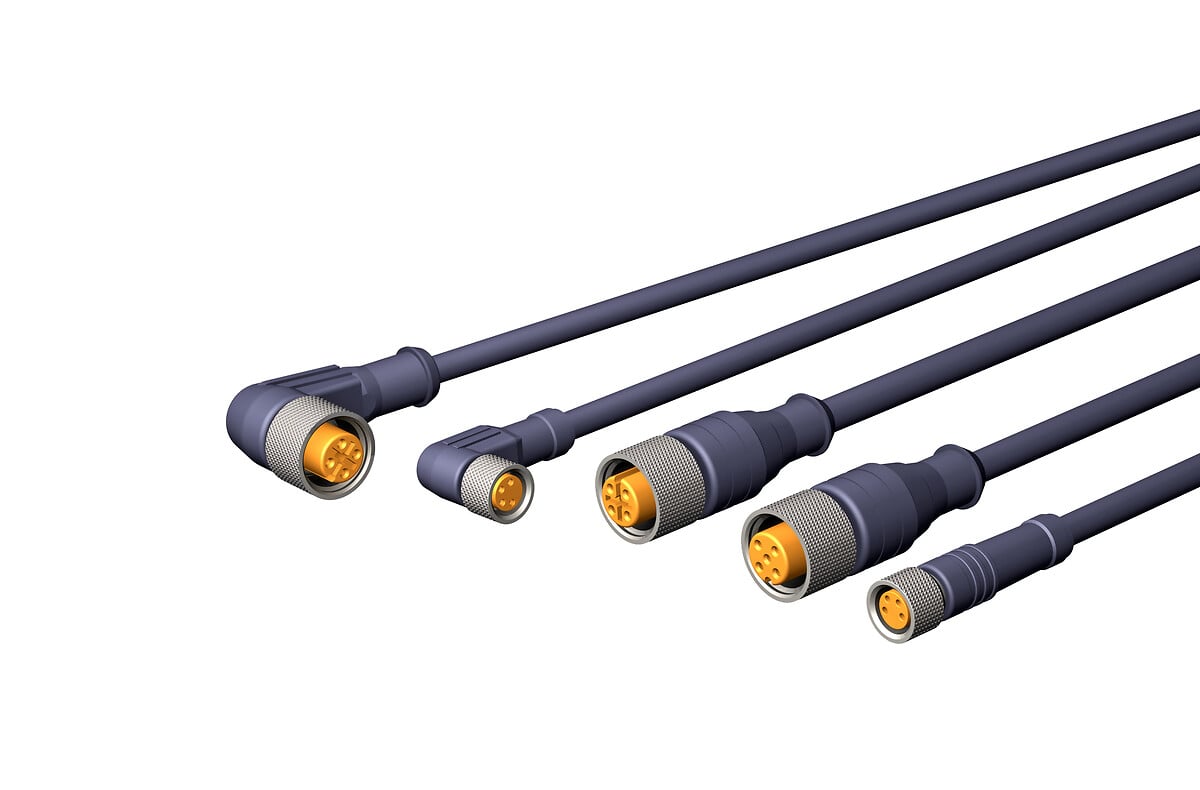

Electrical Connectors, M8 and M12, CD - CC series
M12 connector:. Straight connector, ref. CD M12.. Elbow connector, ref. CC M12.M8 connector:. Straight connector, ref. CD M8.. Elbow connector, ref. CC M8.
Keypoints
- Female screw-type connector
- 4 and 5 poles
- Straight or elbow
- PVC cable
- Protection: IP 65

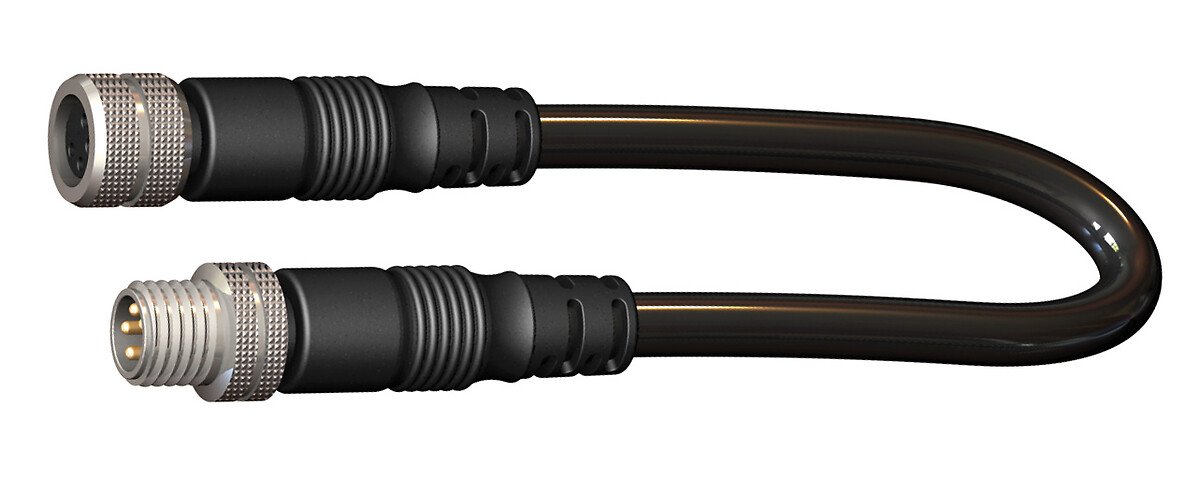

80002303
- Connector orientation: Straight
- Number of conductors: 4
- Connection 1: M8 - Female - A-Coded
- Connection 2: M8 - Male - A-Coded

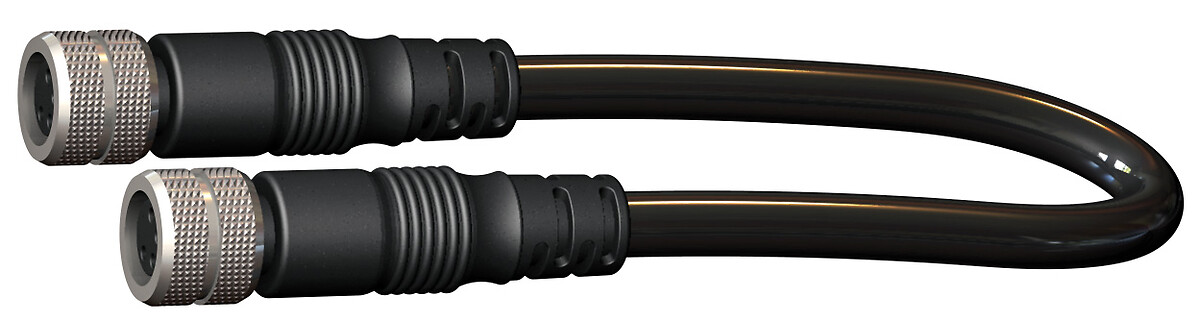

80003053
- Connector orientation: Straight
- Number of conductors: 4
- Connection 1: M8 - Female - A-Coded
- Connection 2: M8 - Female - A-Coded
CCM12
- Connector orientation: Elbow
- Number of conductors: 4
- Connection 1: M12 - Female - A-Coded
- Connection 2: M8 - Female - A-Coded

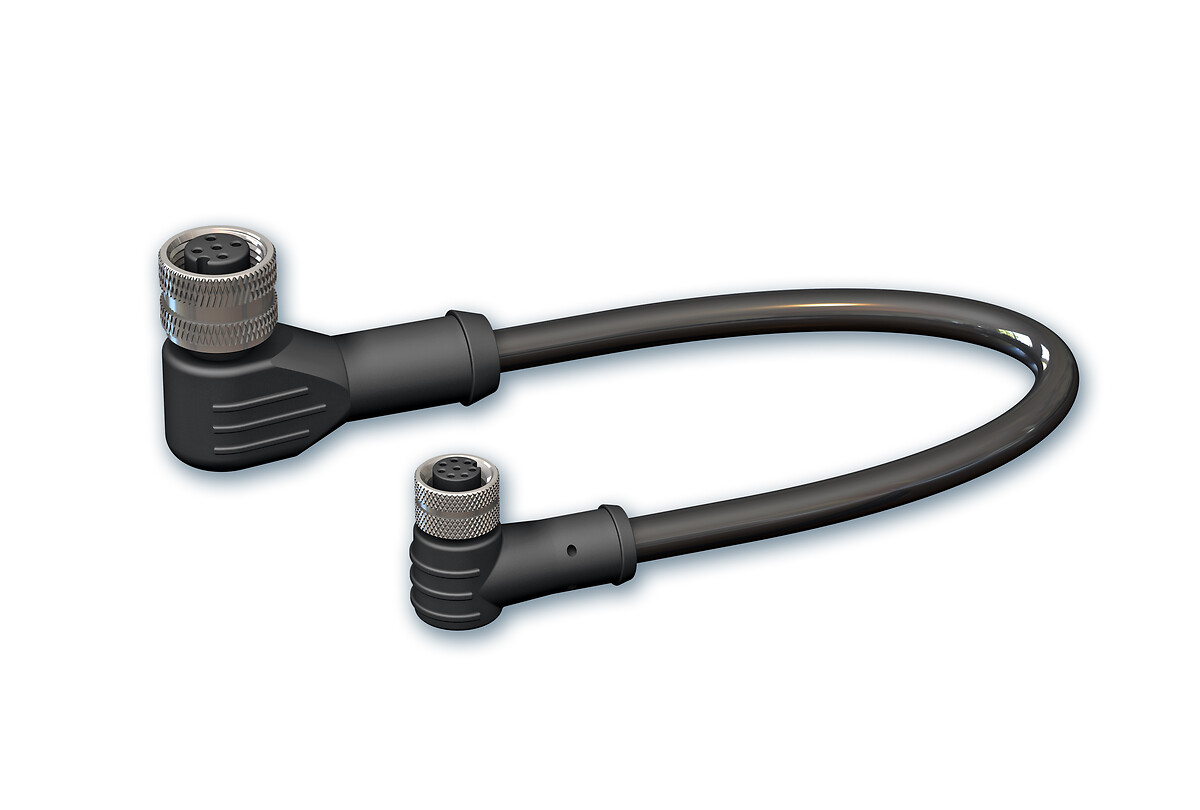

CCM12F5PM8F8PL015C1
- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female
CCM12F5PM8M8PL015C2
- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female
CCM12F5PM8M8PL015C3
- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female
CCM12F5PM8M8PL015C6
- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female
CCM12F5PM8M8PL015C7
- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female
