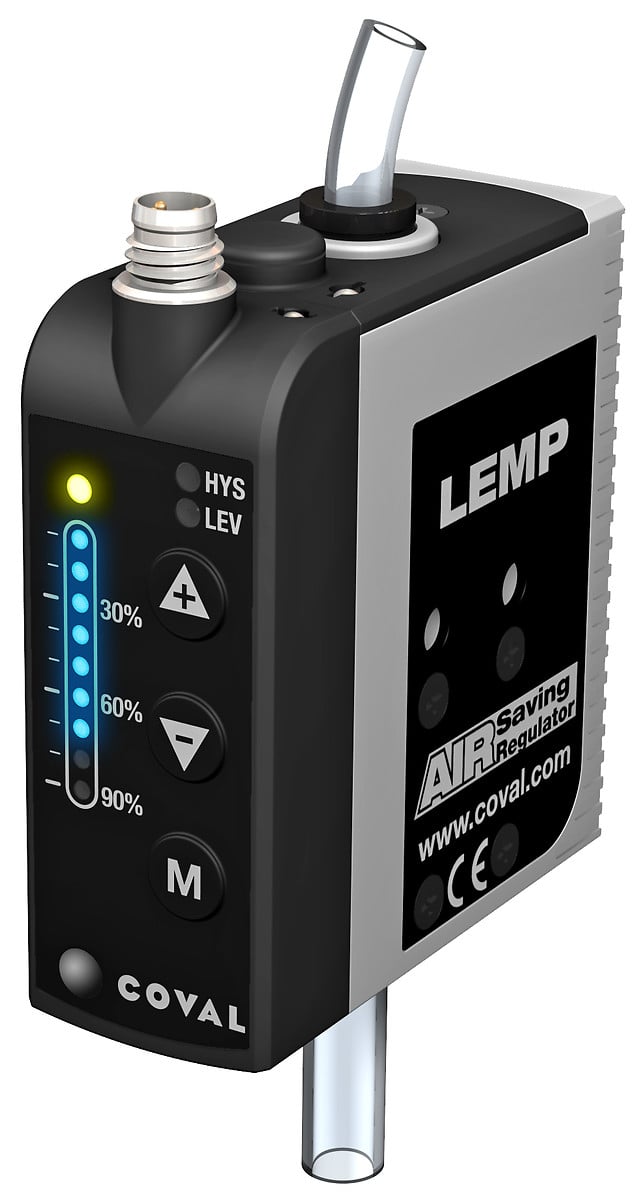

Mini-Vacuum Pumps with ASR, LEMP Series
. Nozzle Ø: 1 ; 1.2 ; 1.4 mm. 2 vacuum levels: 60% et 85%. Suction flow rate: up to 3.25 SCFM. Integrated pressure regulator (ASR). M8 connections- Simplified installation and use thanks to the Plug & Play system- Unmatched compactness: Installation close to suction cups ==> short response times and energy savings.- No clogging, thanks to the through-type silencer.- A LEMP for every need: optional vacuum switch.- Installation: standalone or island assembly.
Industry-specific applications
Keypoints
- Nozzle Ø: 1, 1.2, 1.4 mm
- 2 vacuum levels: 60% et 85%
- Suction flow rate: up to 3.25 SCFM
- Integrated pressure regulator (ASR)
- M8 connections

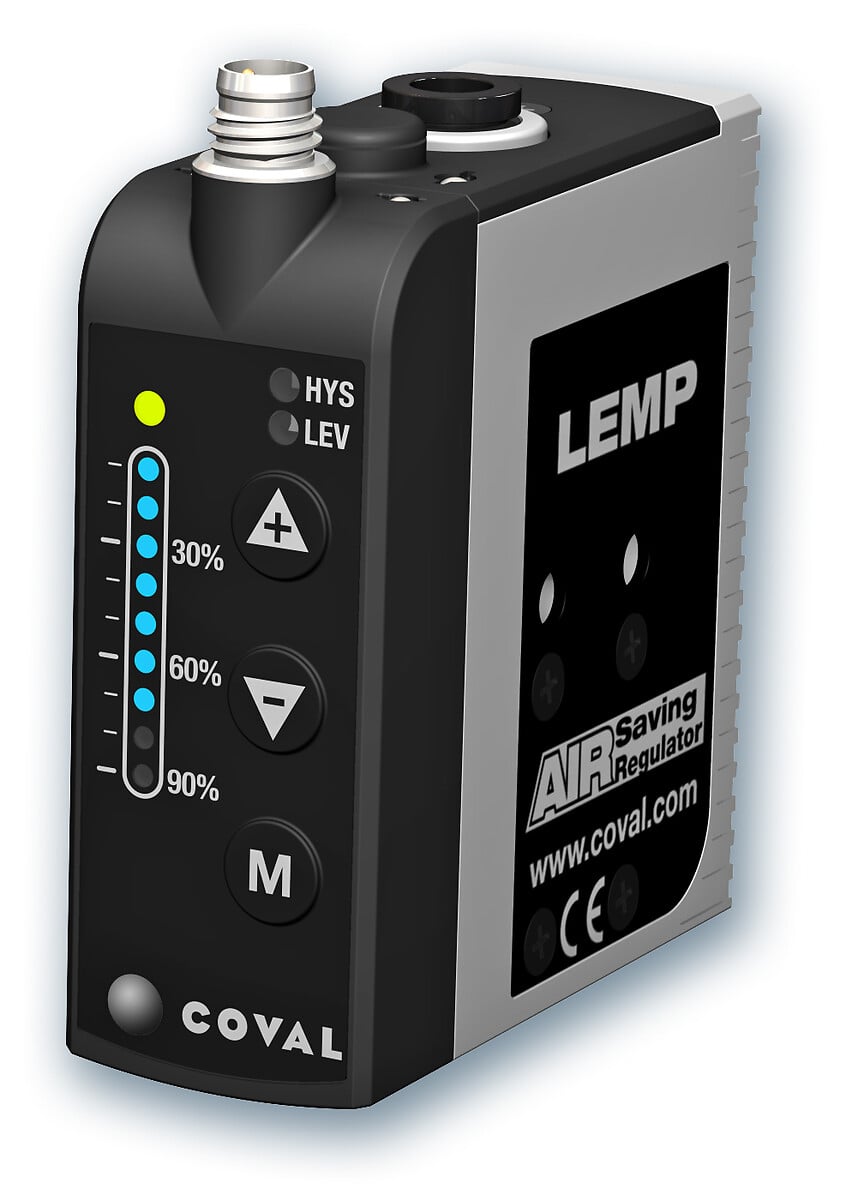

LEMP60X10VA
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Standalone
LEMP60X10VAB
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 1 module

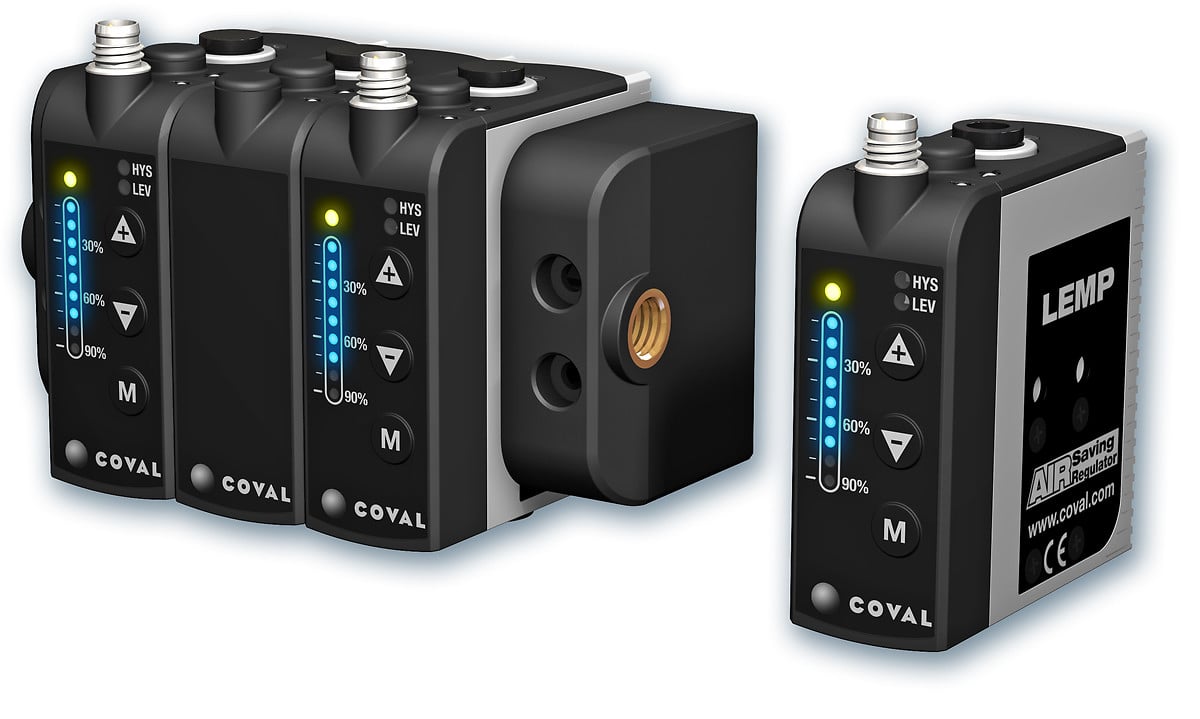

LEMP60X10VAB2
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 2 modules
LEMP60X10VAB3
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 3 modules
LEMP60X10VAB4
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 4 modules
LEMP60X10VAB5
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 5 modules
LEMP60X10VAB6
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 6 modules
LEMP60X10VAB7
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 7 modules
LEMP60X10VAB8
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 8 modules
LEMP60X10VAB9
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 9 modules
