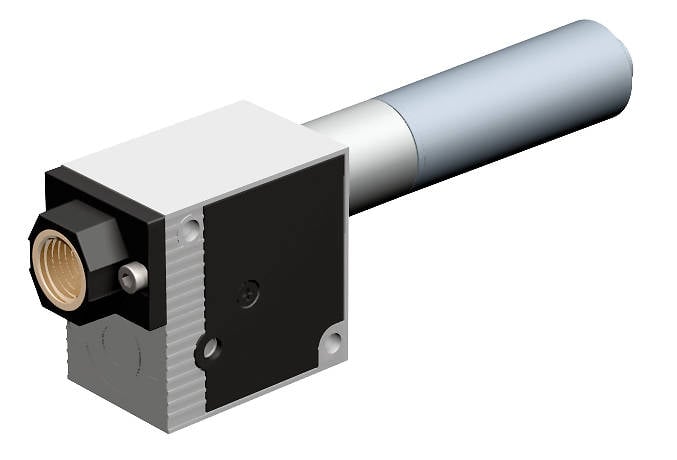

Basic Vacuum Pumps, GVP series
The GVP series vacuum pumps are the simplest in the range. They are available in 5 power levels (evacuation time) and 3 different levels of maximum vacuum:
- Version X: 50% vacuum for very porous products.
- Version T: 75% vacuum for porous products.
- Version N: 85% vacuum for air-tight products.
For the same nozzle diameter, the suction flow rate increases in proportion to the decrease in the maximum vacuum level.
In addition to suction pads, they can also be used for dosing liquid, spraying and tank depressurization.
Keypoints
- Ø Nozzle: 1.2, 1.5, 2, 2.5, 3 mm
- Max. vacuum: 50% - 75% - 85%
- Max. air drawn in: 15.9 SCFM
GVP12N14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 45
- Maximum vacuum | %: 90
- Vacuum connection: G1/2"-F
GVP12NK14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 45
- Maximum vacuum | %: 90
- Exhaust: Through-type silencer
- Vacuum connection: G1/2"-F
GVP12NS14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 45
- Maximum vacuum | %: 90
- Exhaust: Diffuser
- Vacuum connection: G1/2"-F
GVP12T14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 63
- Maximum vacuum | %: 75
- Vacuum connection: G1/2"-F
GVP12TK14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 63
- Maximum vacuum | %: 75
- Exhaust: Through-type silencer
- Vacuum connection: G1/2"-F
GVP12TS14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 63
- Maximum vacuum | %: 75
- Exhaust: Diffuser
- Vacuum connection: G1/2"-F
GVP12X14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 150
- Maximum vacuum | %: 40
- Vacuum connection: G1/2"-F
GVP12XK14
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 150
- Maximum vacuum | %: 40
- Exhaust: Through-type silencer
- Vacuum connection: G1/2"-F
GVP15N14
- Nozzle diameter | mm: 1.5
- Air drawn in | SCFM: 70
- Maximum vacuum | %: 90
- Vacuum connection: G1/2"-F
GVP15NK14
- Nozzle diameter | mm: 1.5
- Air drawn in | SCFM: 70
- Maximum vacuum | %: 90
- Exhaust: Through-type silencer
- Vacuum connection: G1/2"-F
