Vacuum Cartridges, CVP Series

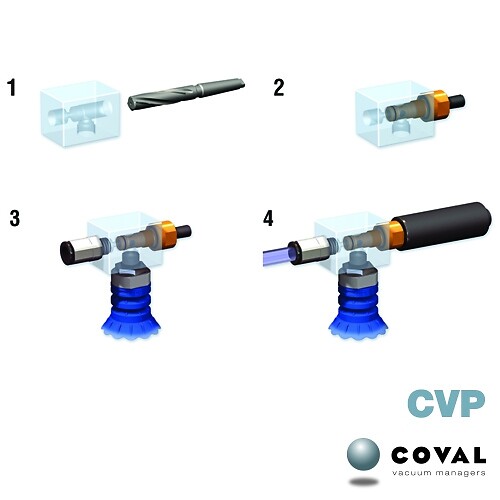

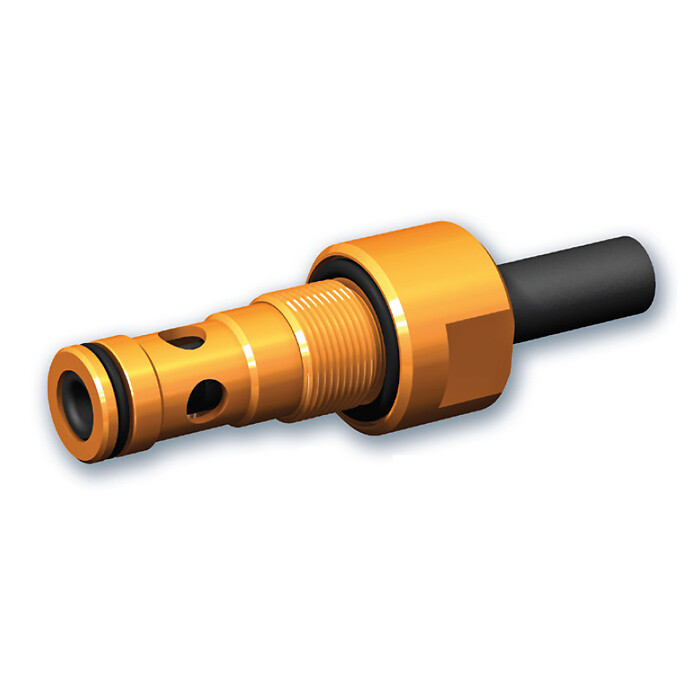

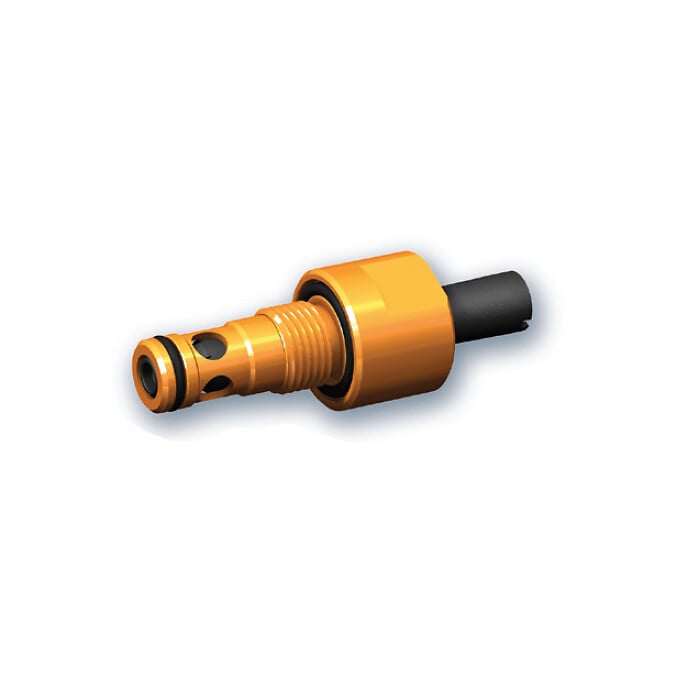

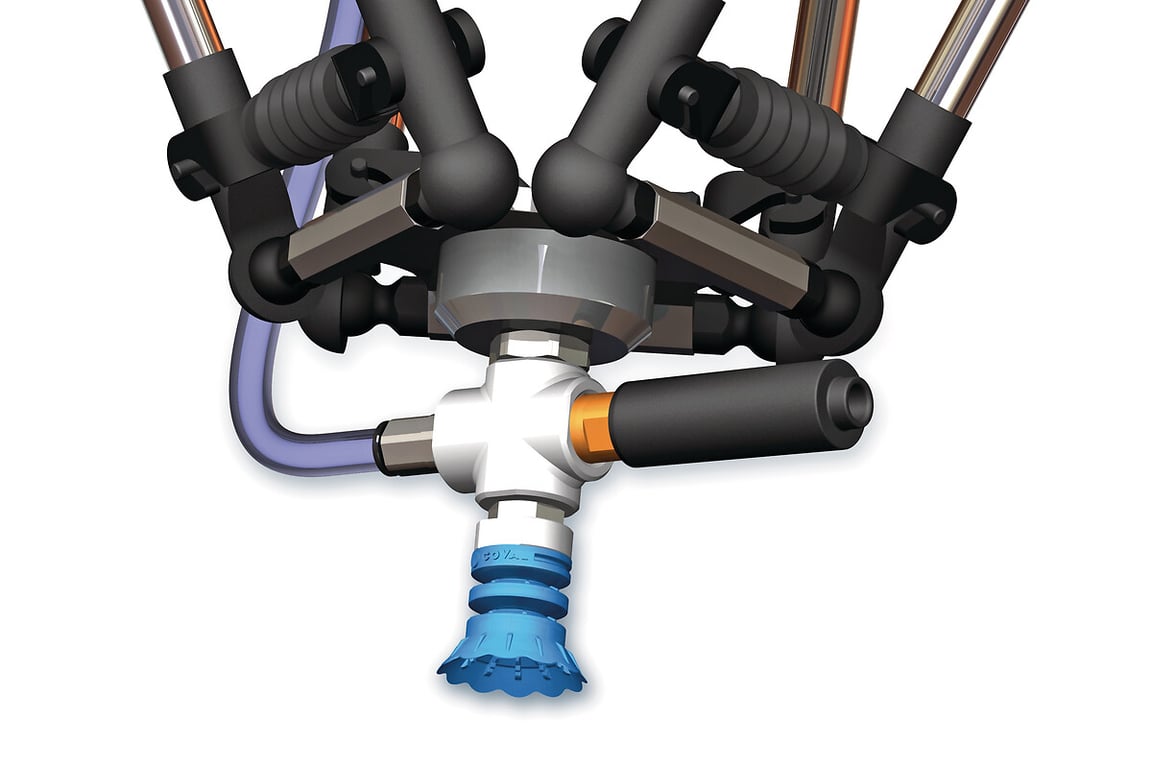

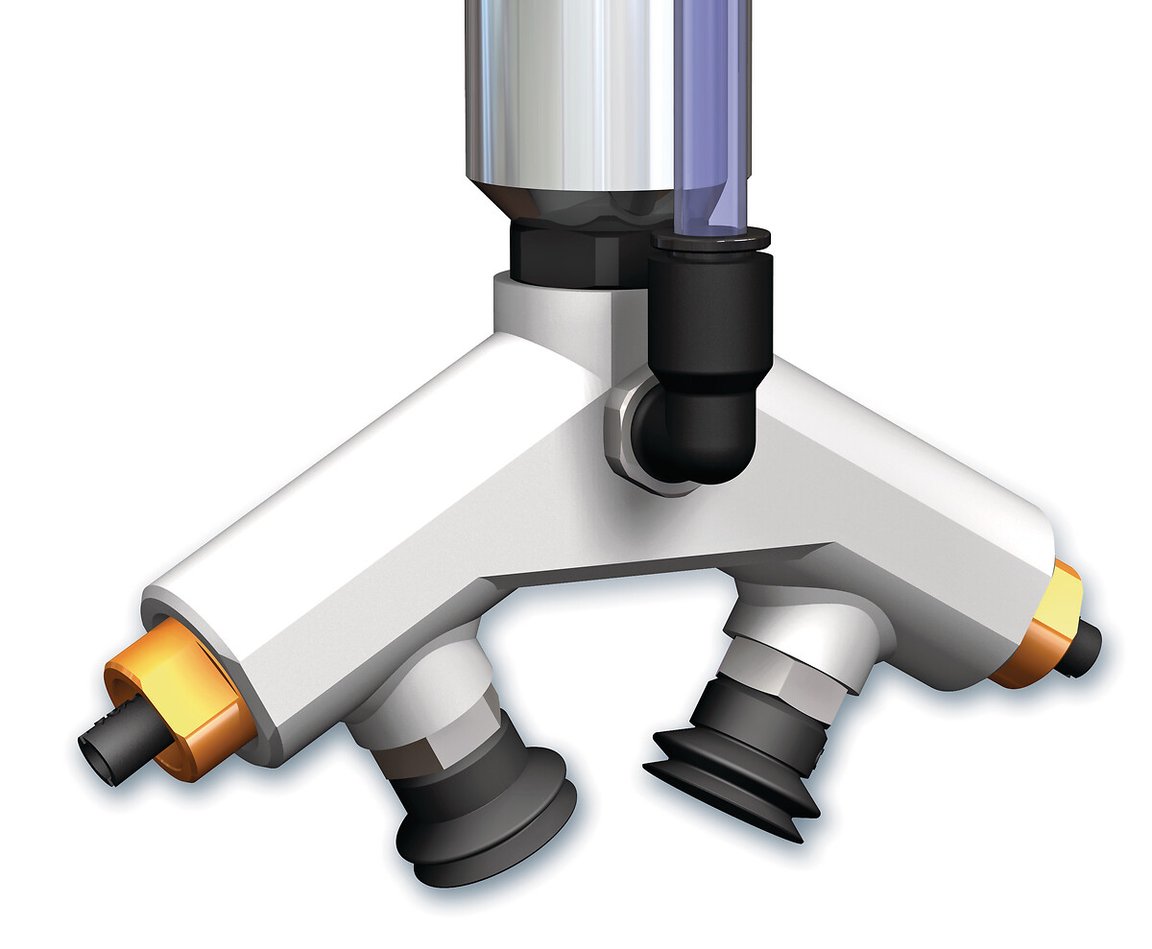

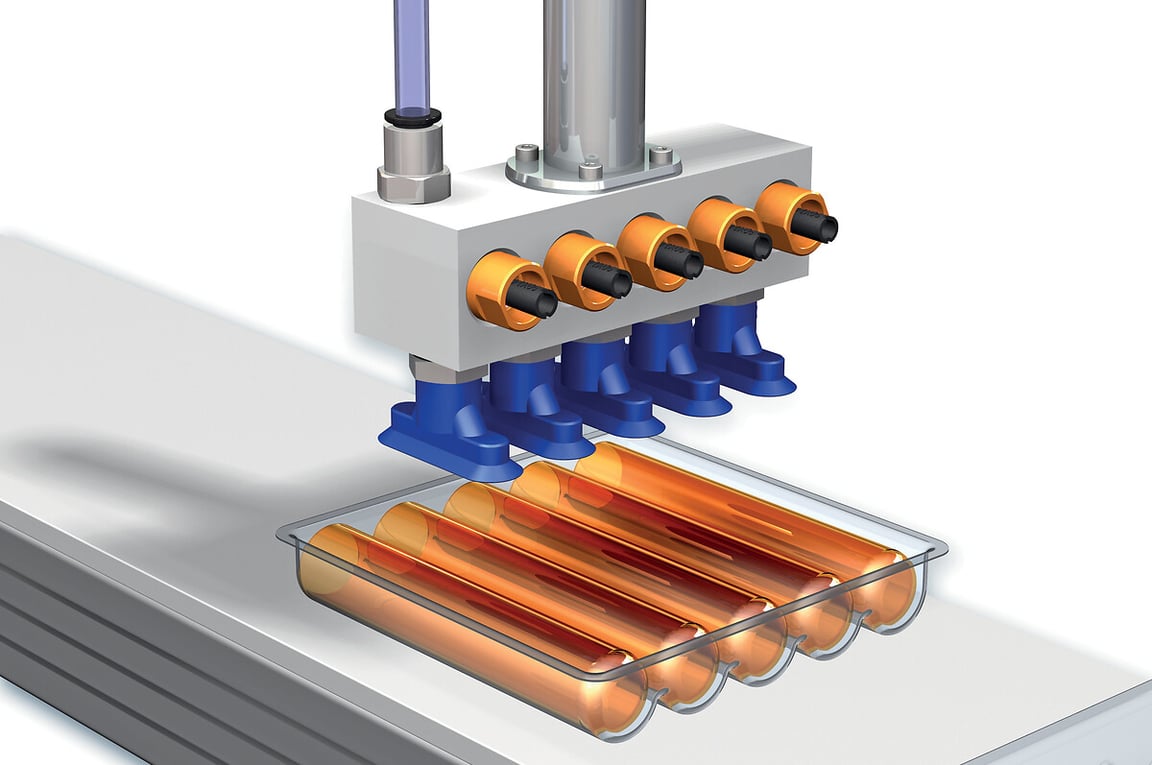

. 2 sizes. Nozzle Ø : 1.2 ; 1.4 ; 1.6 ; 2.2 ; 2.7 mm. Maximum vacuum : 85%. Air drawn in : up to 7.59 SCFM.. Weight between 6 and 23 gOwing to their compact size and light weight, the CVP Series vacuum cartridges can be used to easily install a simple and reliable vacuum generation system as close to the application as possible.They meet the flexibility, customization and performance needs of machine manufacturers and integrators of robotic solutions, who wish to easily design flexible, modular and efficient gripping tools.CVP Series vacuum cartridges are suitable for a broad variety of applications and are available in different sizes and suction capacities:. Size 1: nozzle dia. 1.2, 1.4 and 1.6 mm generating a suction flow rate ranging from 1.45 to 3.18 SCFM. Max. vacuum 85%.. Size 2: nozzle dia. 2.2 and 2.7 mm generating a suction flow rate ranging from 5.65 to 7.59 SCFM. Max. vacuum 85%.
