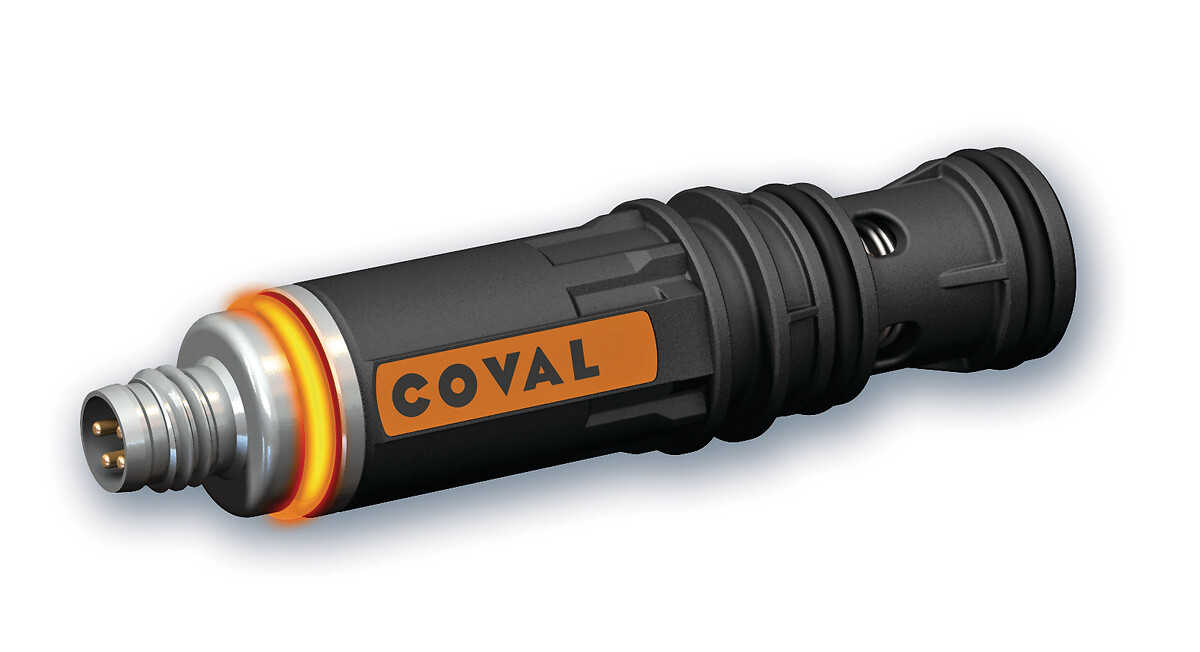

Pilot Control Cartridge, CBP Series

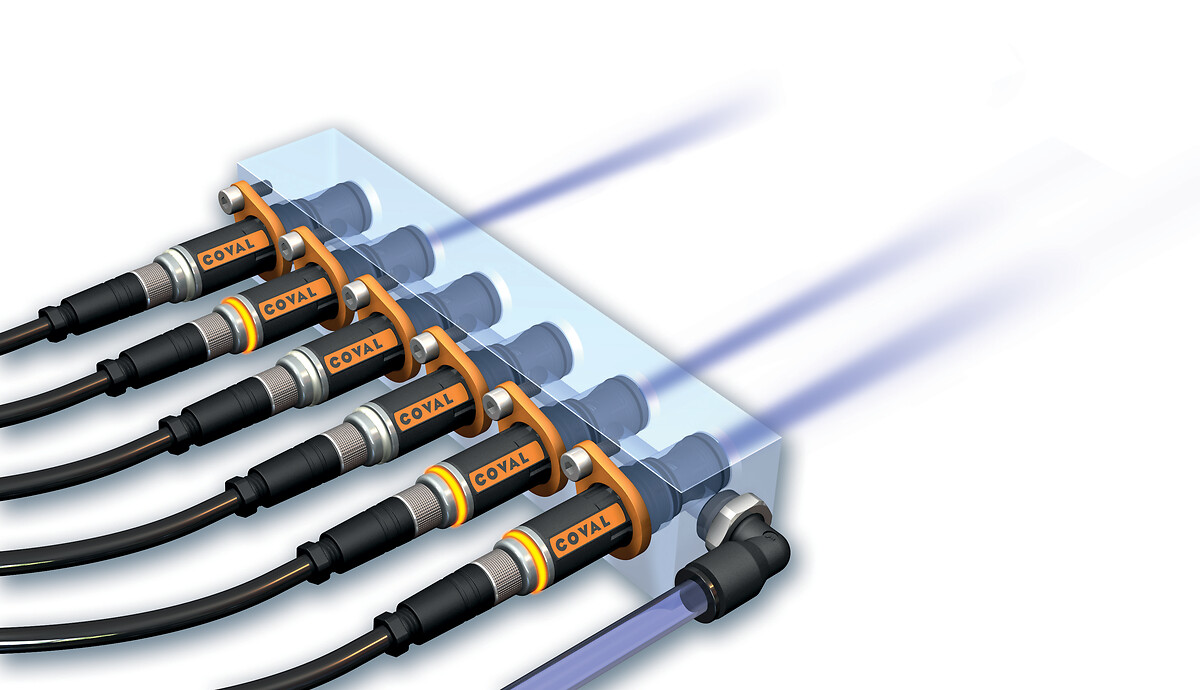

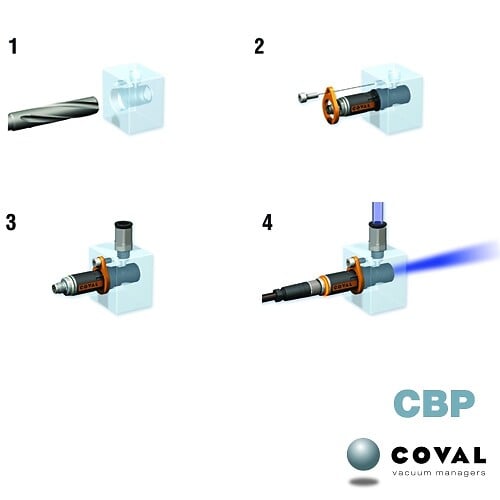

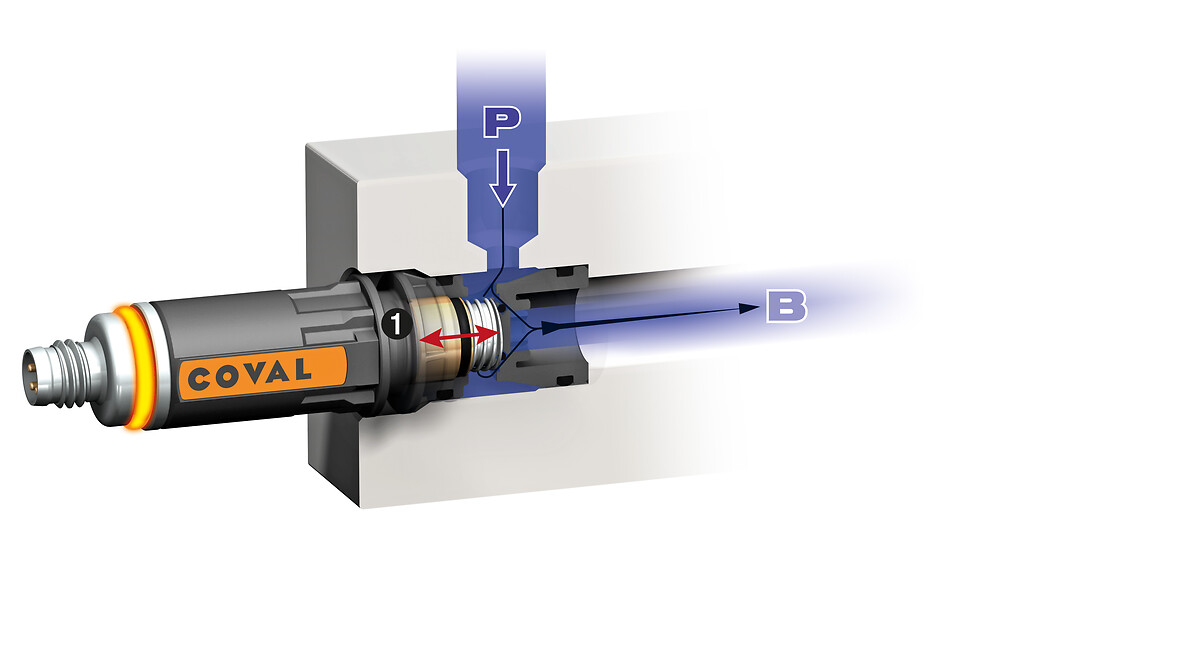

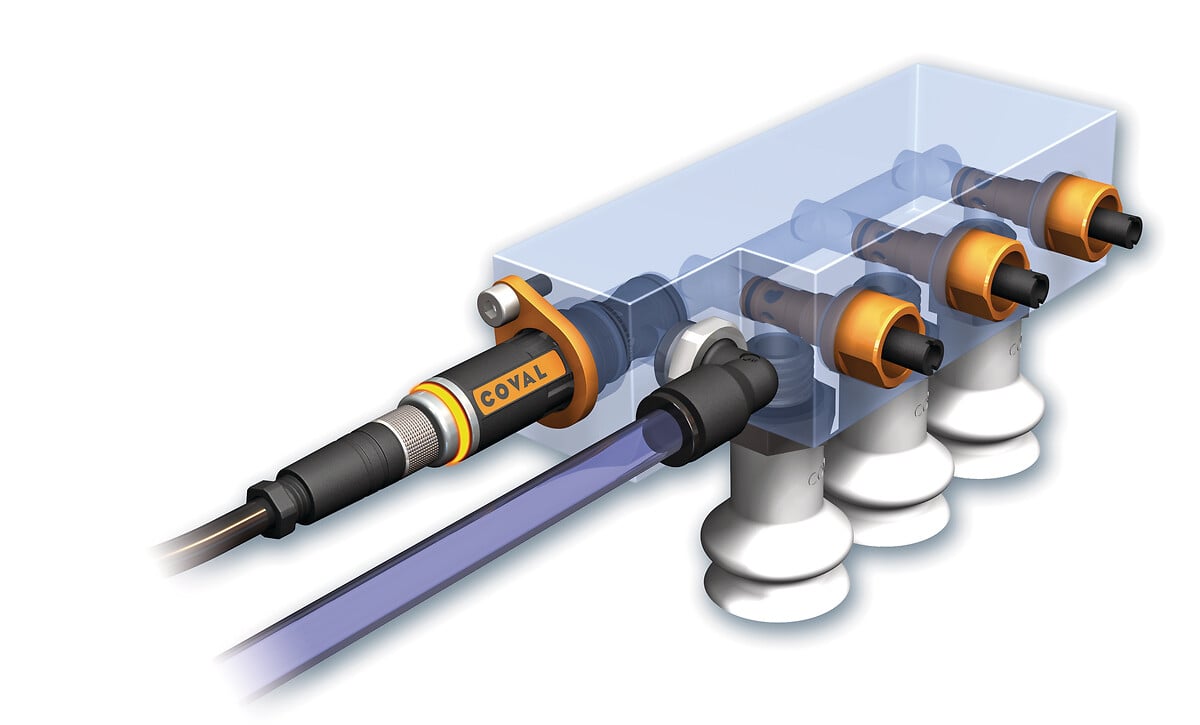

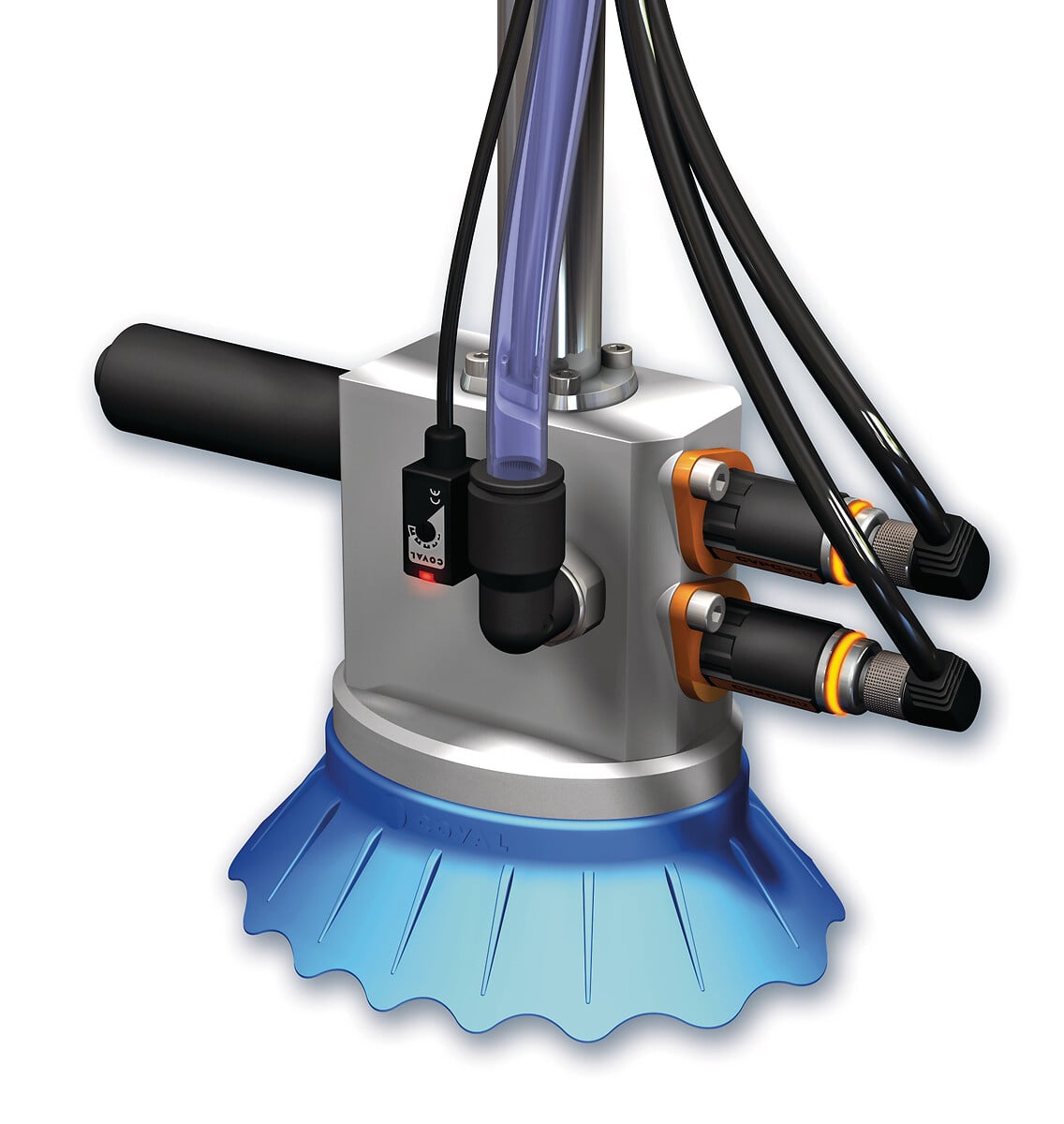

. Pilot solenoid valve. Type 2/2. Nominal flow rate at 6 bar Δp1: 12.5 SCFM. Nominal diameter: 3 mm. M8 connections. Control indicator light. Weight: 18 gBy means of a cylindrical cartridge design and an M8 connector, the CBP series pilot control cartridge easily fulfills the function of a compressed air control valve with an electric controlinstalled as close as possible to where it is needed, and thus meeting the requirements of multiple applications.The CBP Series pilot control cartridge is complementary to the CVPC Series controlled vacuum cartridges for its controlled blow-off function or, when combined with the CVP Series vacuum cartridges, for remote control and/or multi-cartridge control. It is easy to install and meets the needs of machine manufacturers and of integrators of robotic solutions in terms of flexibility and performance.Use cases:. Electro-pneumatic control valve 2/2-way.. Blow-off control valve. Single and multi-cartridge control valve.…
