Heavy-duty in-Line Ejectors, GVR series
The GVR range has been designed for an industrial environment:
- Compact
- Lightweight
- Optimized technical characteristics
- Pollution‑resistant with its through‑type silencer (SILK 18C)
- Easily integrated onto vacuum grippers
- Pass‑through mounting using M10 screws (GVR 09).
Industry-specific applications
Keypoints
- 2 dimensions
- Nozzle Ø: 0.9, 1, 1.2, 1.4 mm
- Maximum vacuum: 85%
- Air drawn in: 2.26 SCFM
- Weight: 45 g

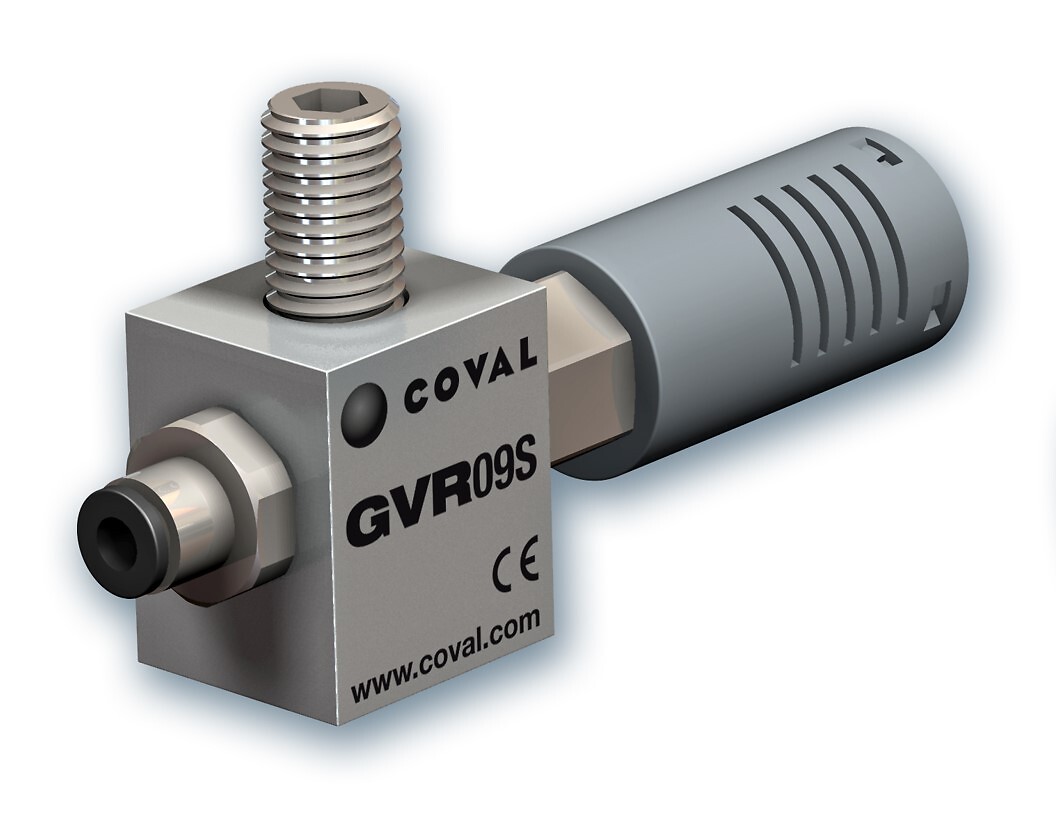

GVR09S
- Nozzle diameter | mm: 0.9
- Air drawn in | SCFM: 21
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F

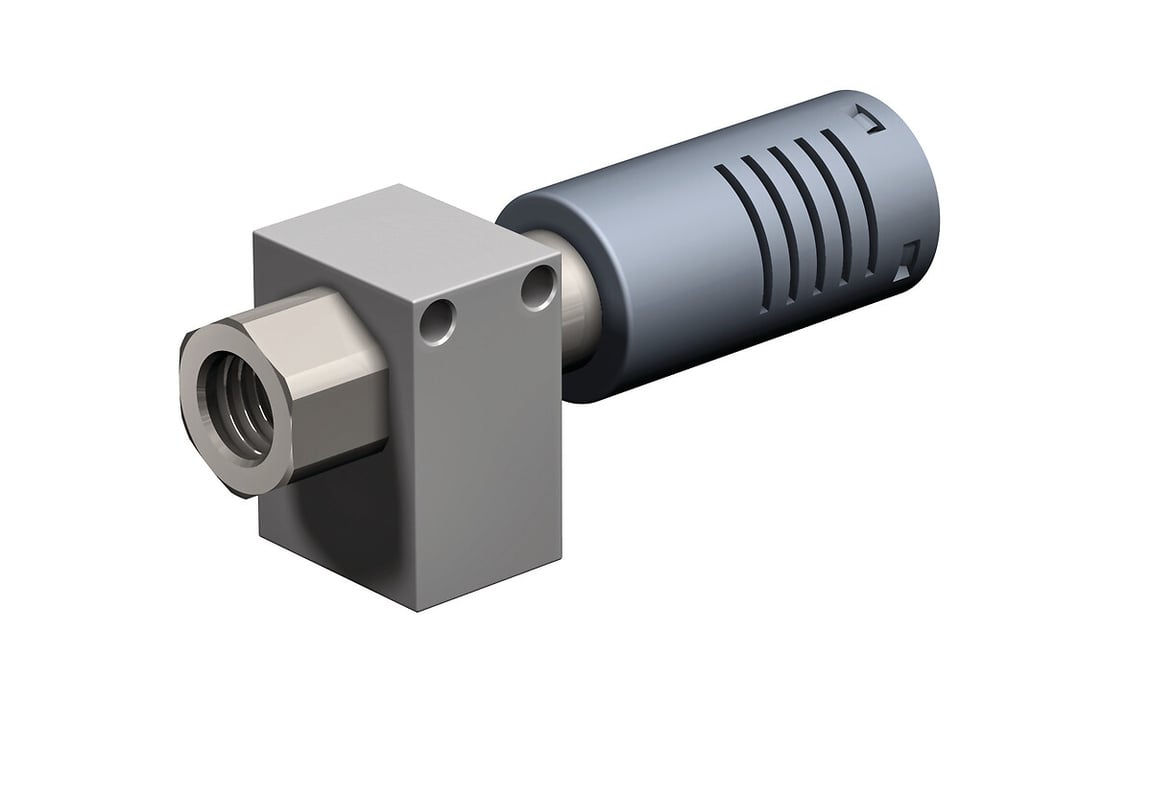

GVR10K
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 27
- Maximum vacuum | %: 85
- Exhaust: Through-type silencer
- Vacuum connection: G1/4"-F
GVR10S
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 27
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F

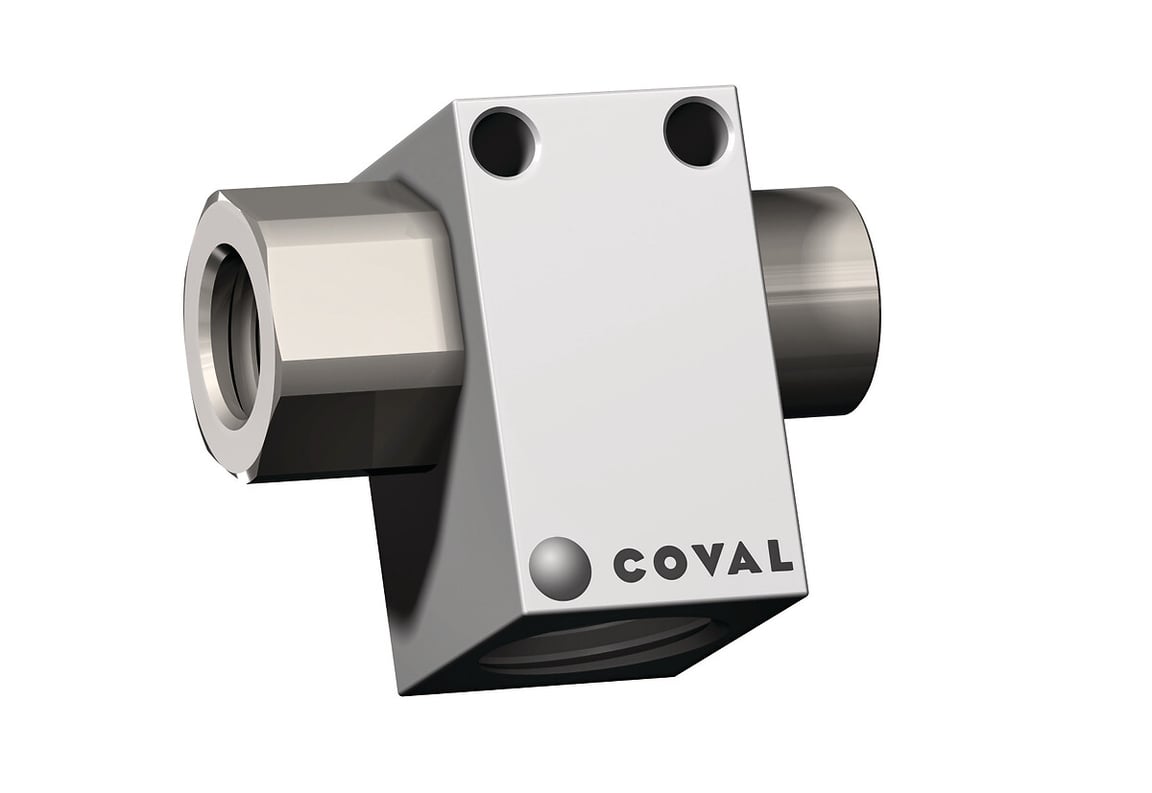

GVR12
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 45
- Maximum vacuum | %: 85
- Vacuum connection: G1/4"-F
GVR12K
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 45
- Maximum vacuum | %: 85
- Exhaust: Through-type silencer
- Vacuum connection: G1/4"-F
GVR12S
- Nozzle diameter | mm: 1.2
- Air drawn in | SCFM: 45
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F
GVR14
- Nozzle diameter | mm: 1.4
- Air drawn in | SCFM: 64
- Maximum vacuum | %: 85
- Vacuum connection: G1/4"-F
GVR14K
- Nozzle diameter | mm: 1.4
- Air drawn in | SCFM: 64
- Maximum vacuum | %: 85
- Exhaust: Through-type silencer
- Vacuum connection: G1/4"-F
GVR14S
- Nozzle diameter | mm: 1.4
- Air drawn in | SCFM: 64
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F
