Controlled Vacuum Cartridges CVPC series

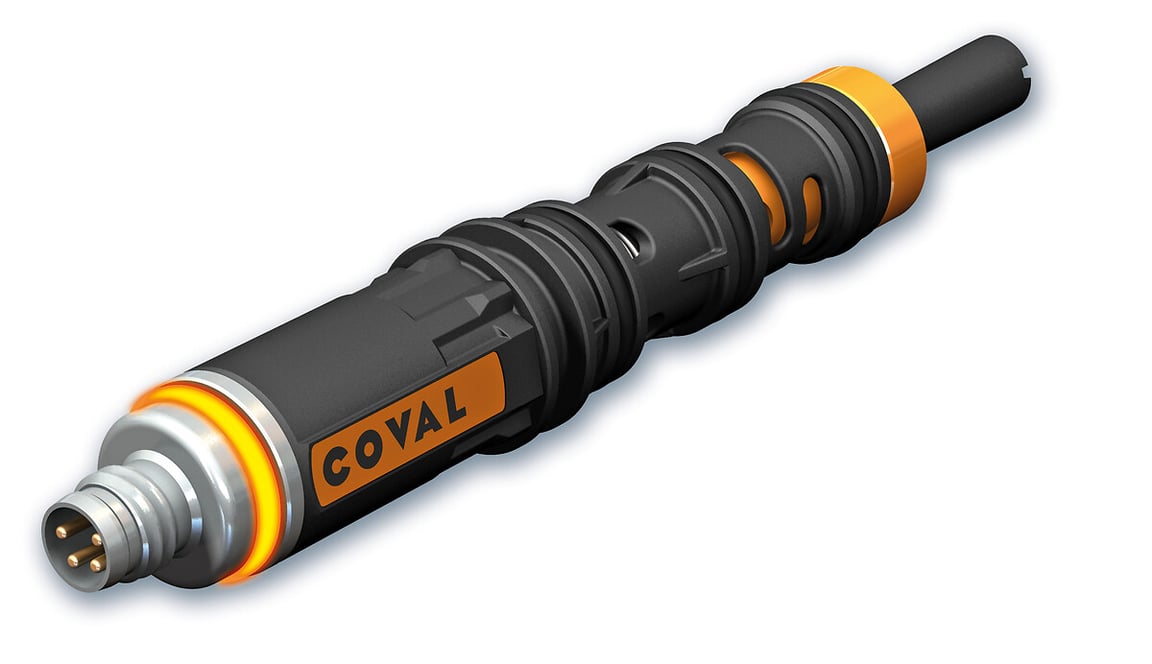

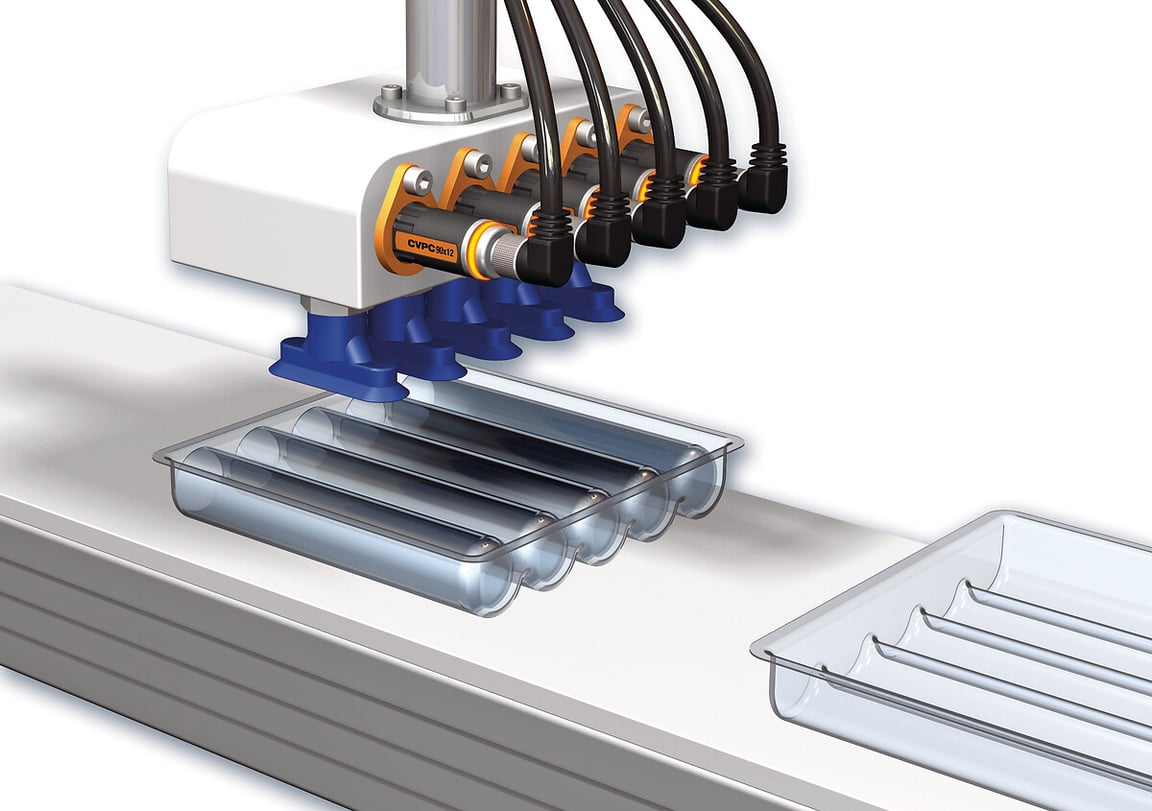

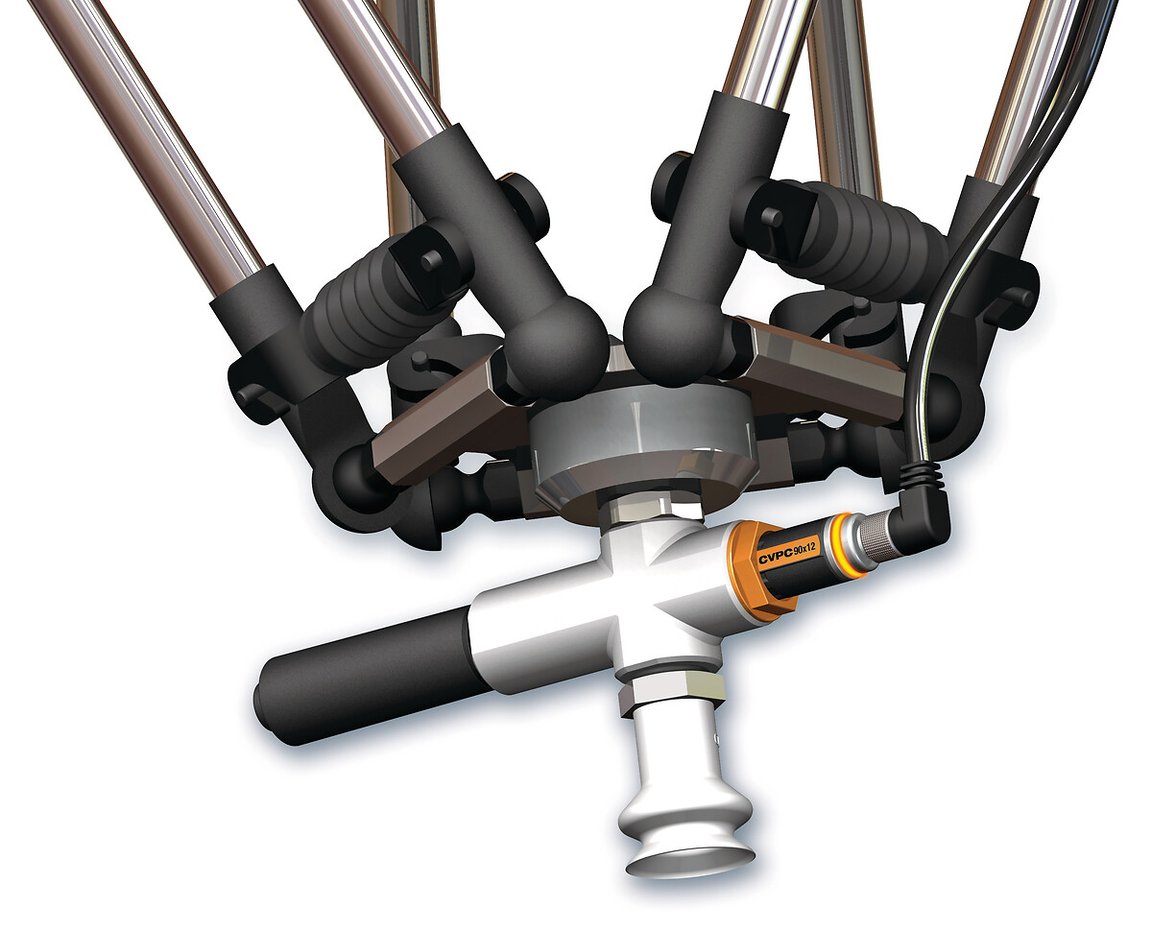

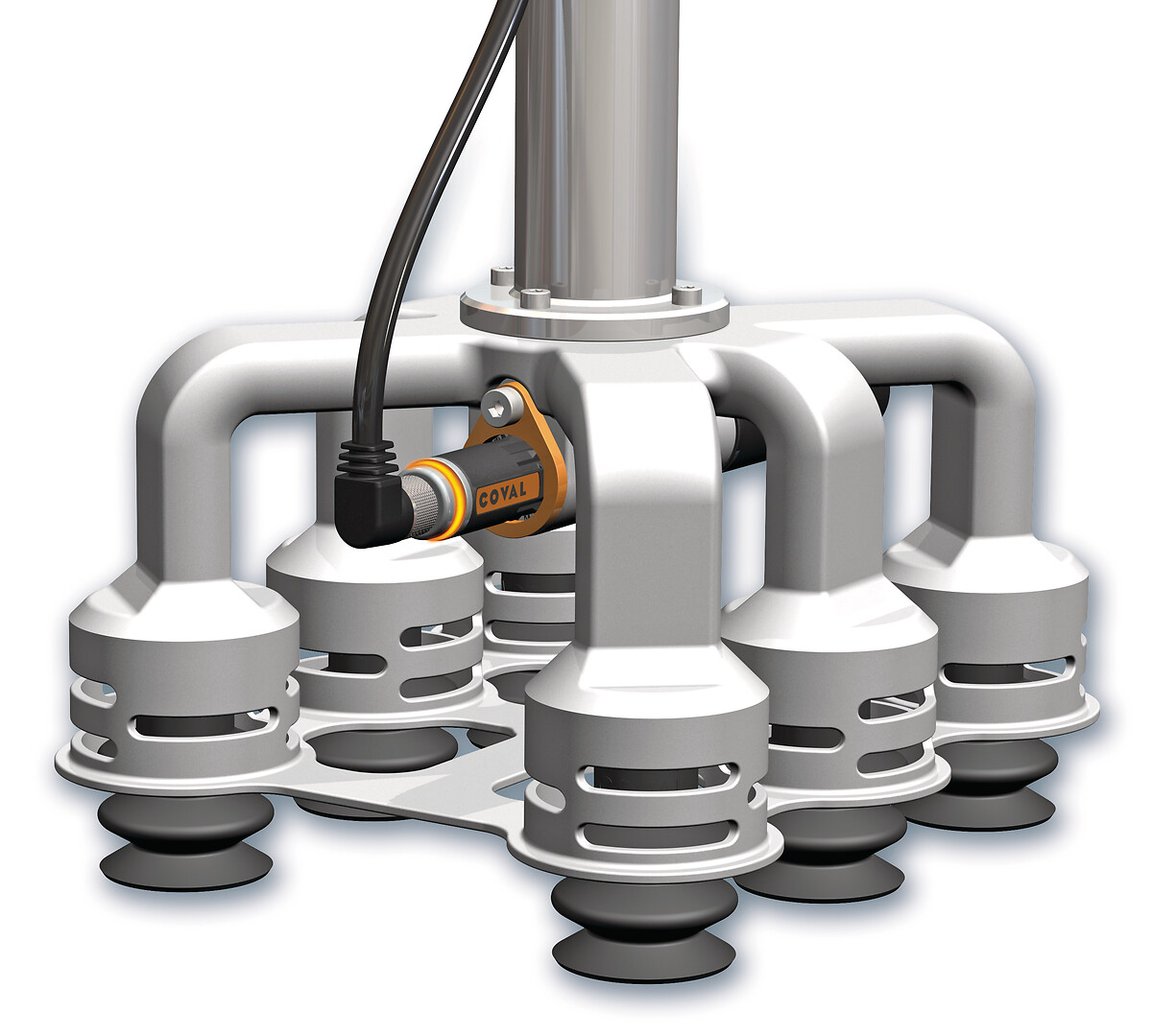

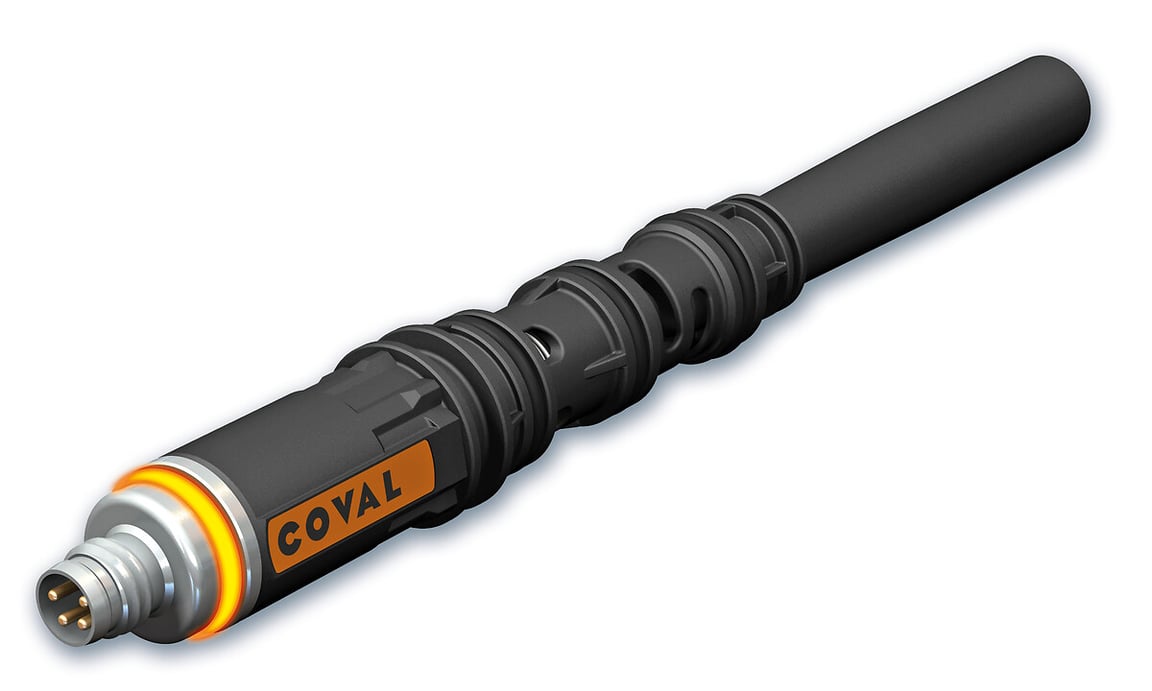

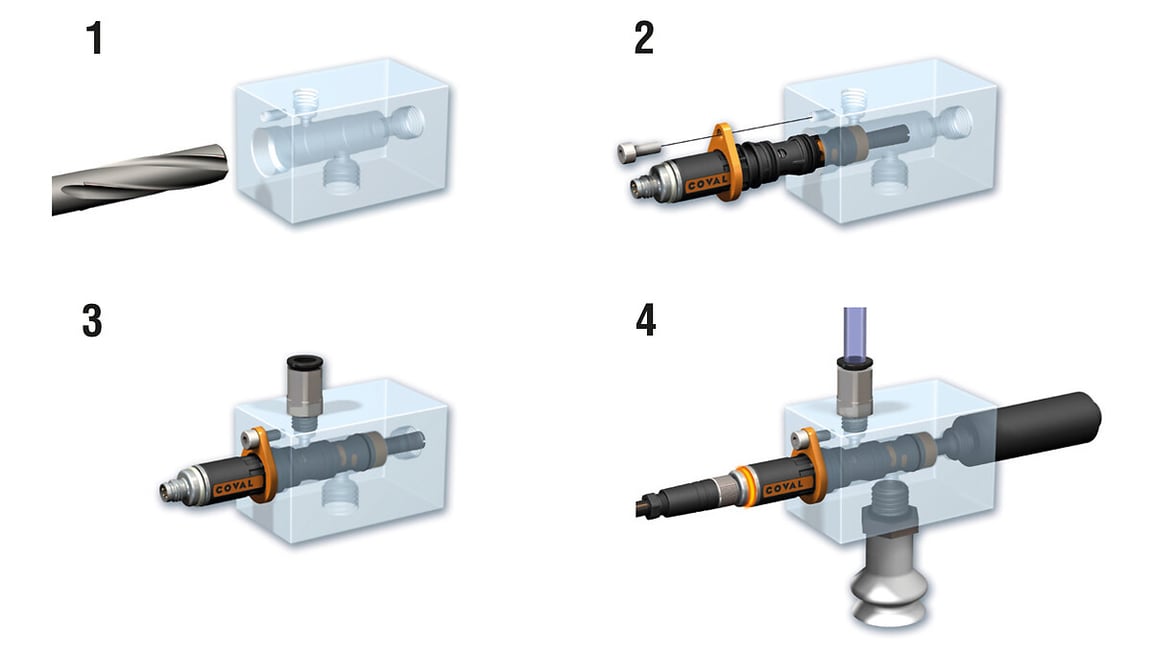

. 2 sizes. Nozzle Ø : 1.2 ; 1.4 ; 1.6 ; 2.2 ; 2.7 mm. Maximum vacuum : 85%. Air drawn in : up to 7.59 SCFM. M8 connections. Weight: 22 gThe ultra-compact and light CVPC Series controlled vacuum cartridges are used to effortlessly install a vacuum generation systemequipped with an electric control, as close to the corresponding application as possible. They perfectly meet the flexibility, customizationand performance needs of machine manufacturers and integrators of robotic solutions, who want to easily design flexible, modular and efficient gripping tools.CVPC Series controlled vacuum cartridges are suitable for a broad variety of applications and are available in different sizes and suction capacities:. Size 1: nozzle dia. 1.2, 1.4 and 1.6 mm generating a suction flow rate ranging from 1.45 to 3.18 SCFM. Max. vacuum 85%.. Size 2: nozzle dia. 2.2 and 2.7 mm generating a suction flow rate ranging from 5.65 to 7.59 SCFM. Max. vacuum 85%.
