Mini Vacuum Pumps with Communication IO-Link, LEMAX IO
LEMAX IO is an IO-Link communicating mini vacuum pump that integrates technologies developed by COVAL to combine productivity, efficiency and energy savings. It offers a wide range of uses: packaging, robotics and plastics processing.
LEMAX IO integrates ASC (Air Saving Control) technology, delivering energy savings ranging from 75 to 99 % depending on the application.
- Integrated vacuum regulation: reduced consumption and noise level.
- ASC analyzes the application and adapts to airtight or porous parts to optimize operation and energy consumption.
Industry-specific applications
Keypoints
- Nozzle Ø: 1, 1.2, 1.4 mm
- Vacuum level: 85%
- Suction flow rate: up to 70 Nl/min
- Integrated pressure regulator (ASR)
- Auto regulated vacuum (ASC)
- IO-Link
LEMAXIO90X10SC14
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Standalone
LEMAXIO90X10SC14B
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: For island

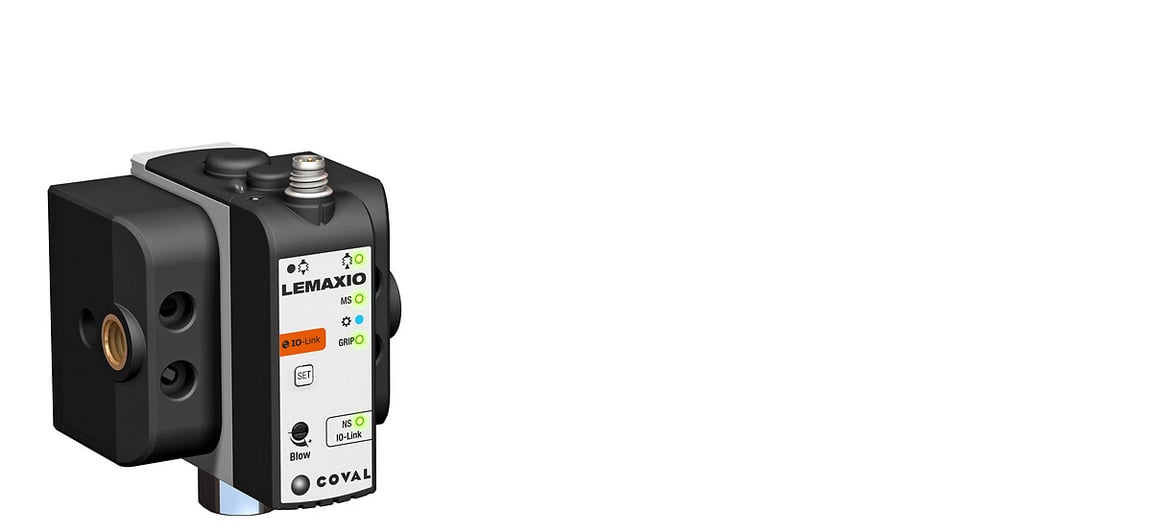

LEMAXIO90X10SC14B1
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 1 module

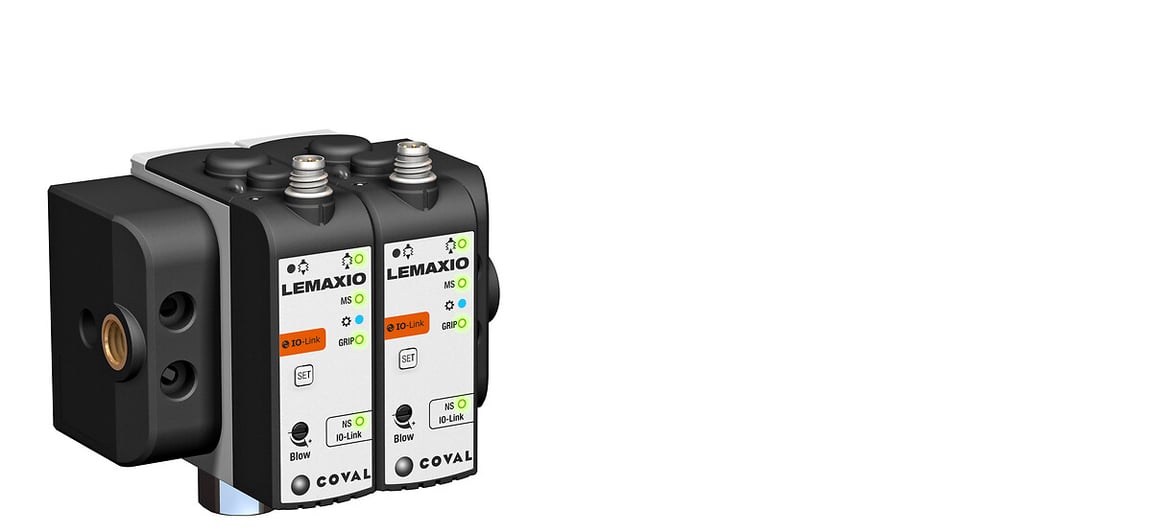

LEMAXIO90X10SC14B2
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 2 modules

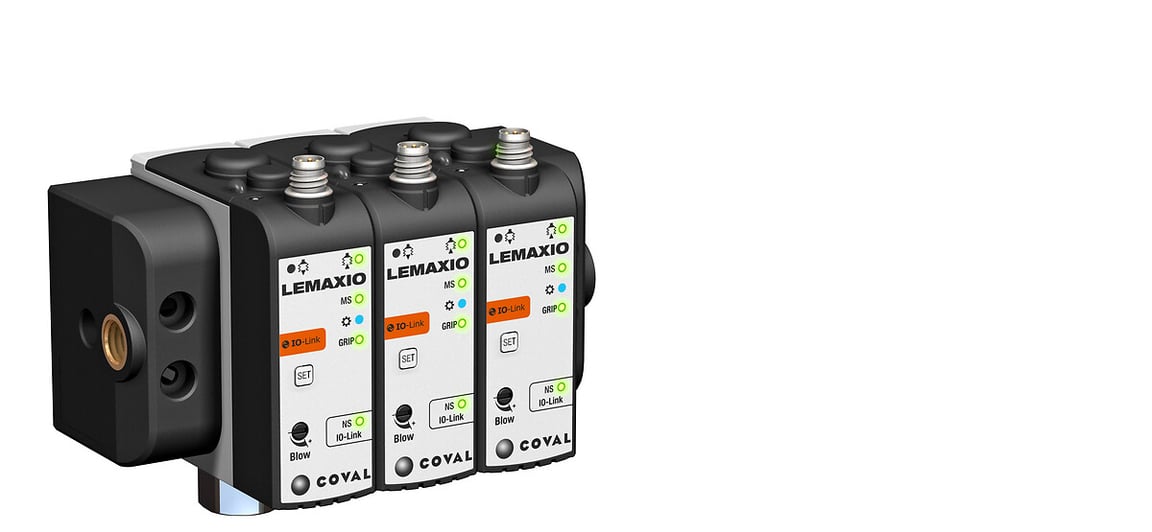

LEMAXIO90X10SC14B3
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 3 modules

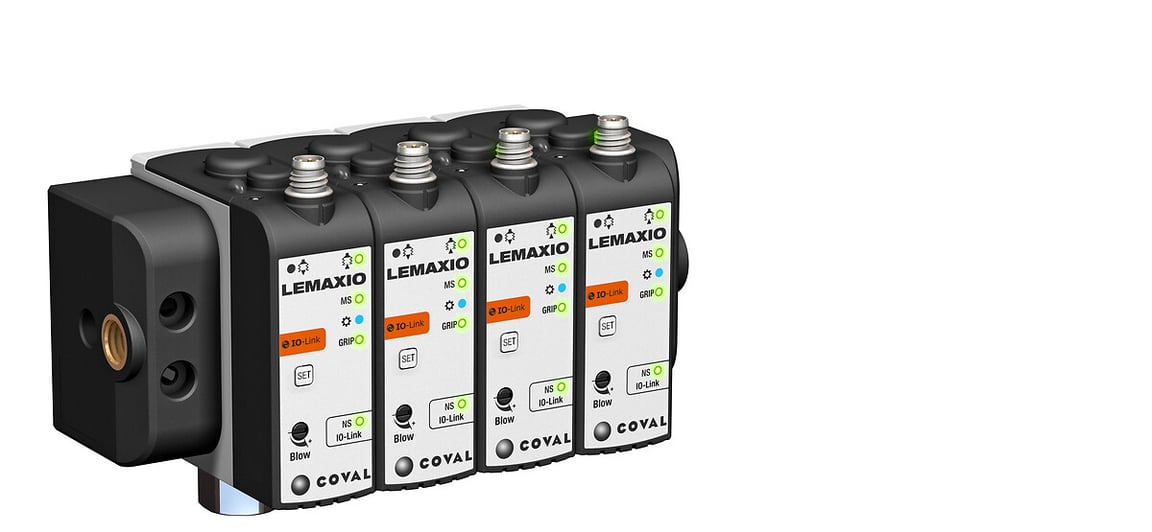

LEMAXIO90X10SC14B4
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 4 modules

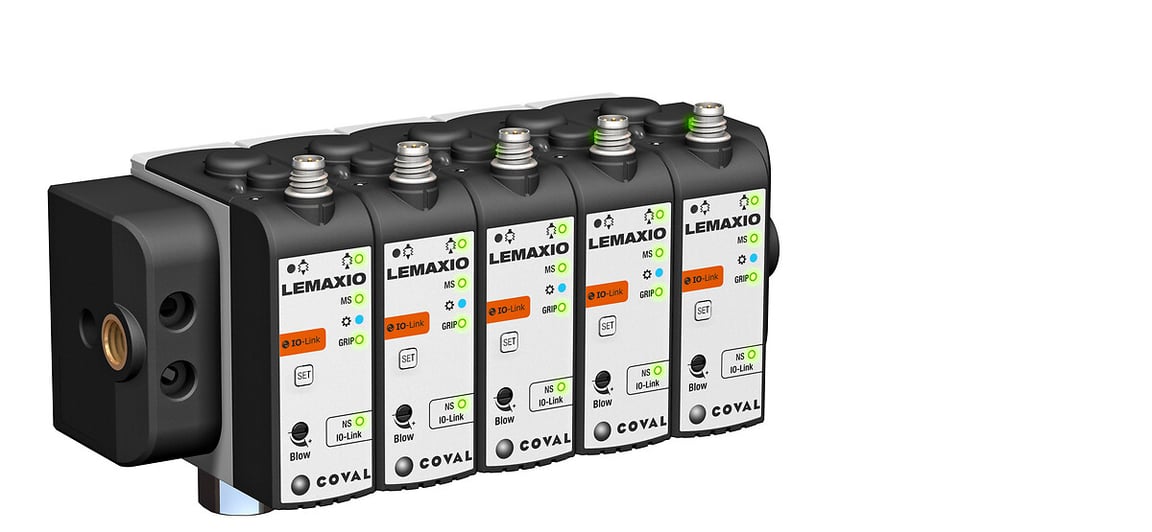

LEMAXIO90X10SC14B5
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 5 modules

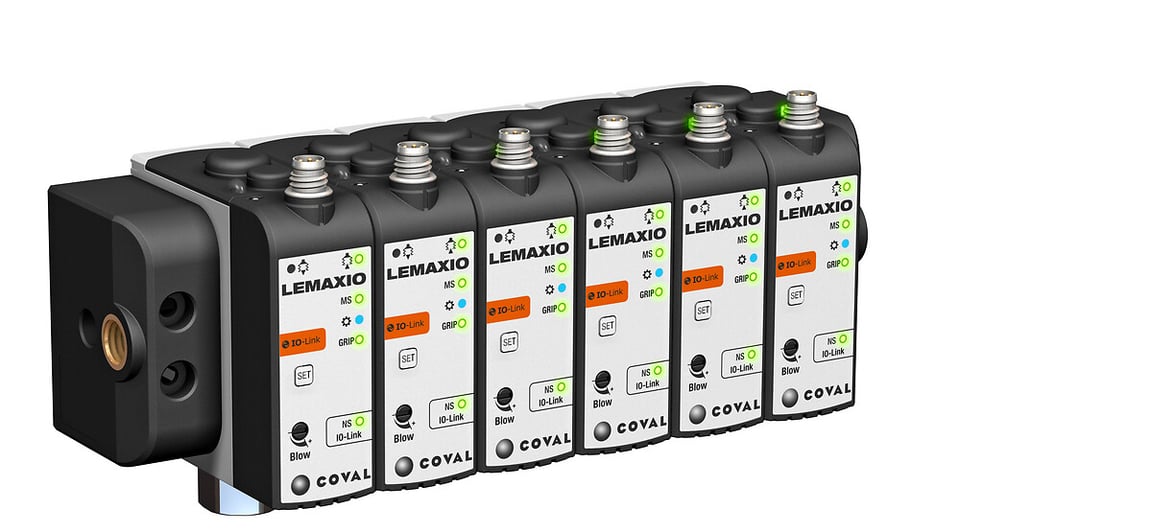

LEMAXIO90X10SC14B6
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 6 modules

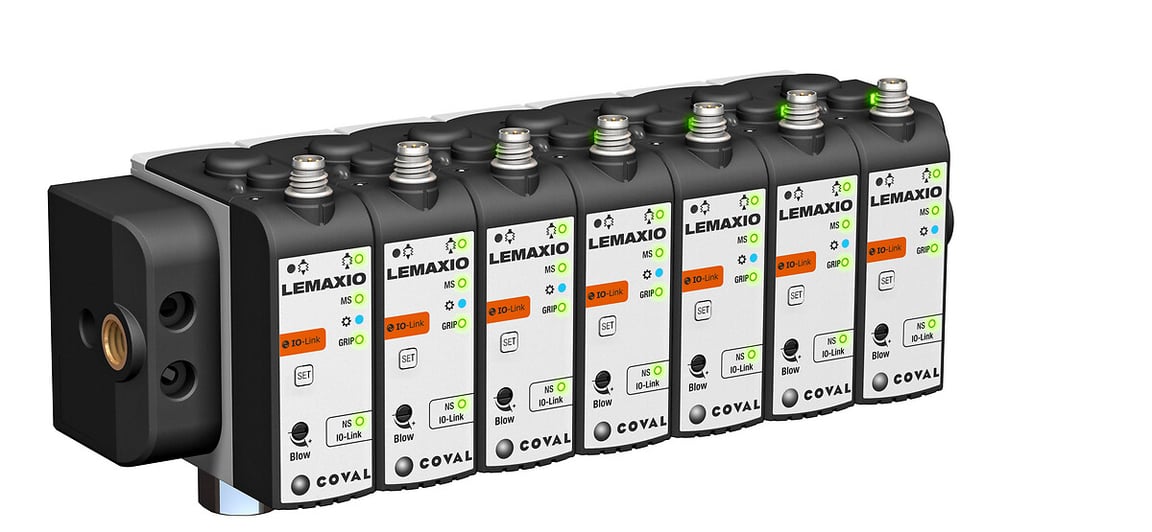

LEMAXIO90X10SC14B7
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 7 modules

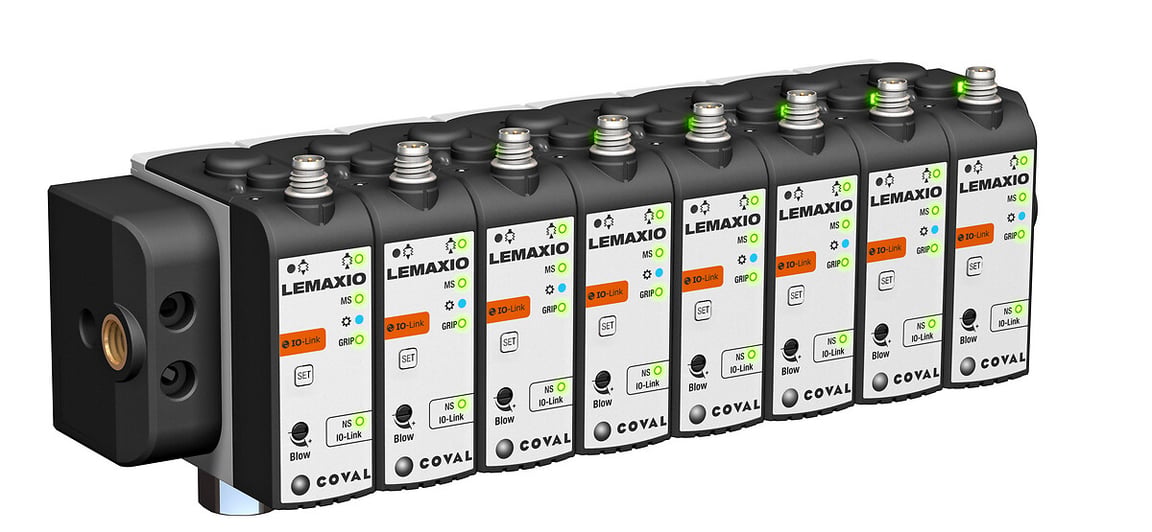

LEMAXIO90X10SC14B8
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 8 modules
