Integrated Mini-vacuum Pumps with ASR (Air Saving Regulator), LEM series

LEM series vacuum pumps (ASR technology) are connected to the network via a single M8 connector and integrate all functions (solenoid valves, pressure regulator, vacuum gauge). Twice as fast as traditional multi-stage technology, they enable the user to save 50 % on compressed air costs while reducing the noise level by 30 dBA.

DownloadsShare via email

Industry-specific applications

Keypoints

  • Nozzle Ø: 1, 1.2, 1.4 mm
  • 2 vacuum levels: 60% and 85%
  • Suction flow rate: up to 3.25 SCFM
  • Integrated pressure regulator (ASR)
  • M8 connections
  • LEM60X10RVA

    LEM60X10RVA

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Standalone
  • LEM60X10RVAB

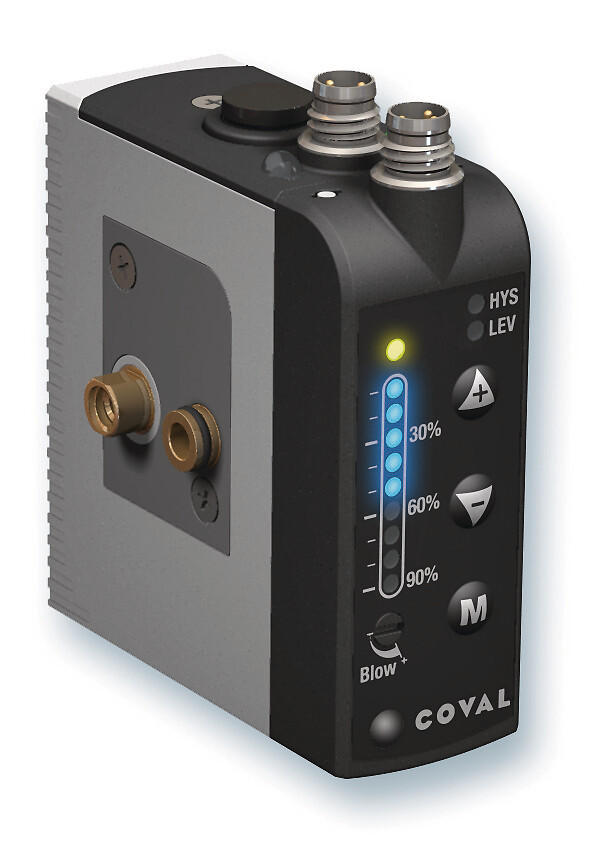

    LEM60X10RVAB

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 1 module
  • LEM60X10RVAB2

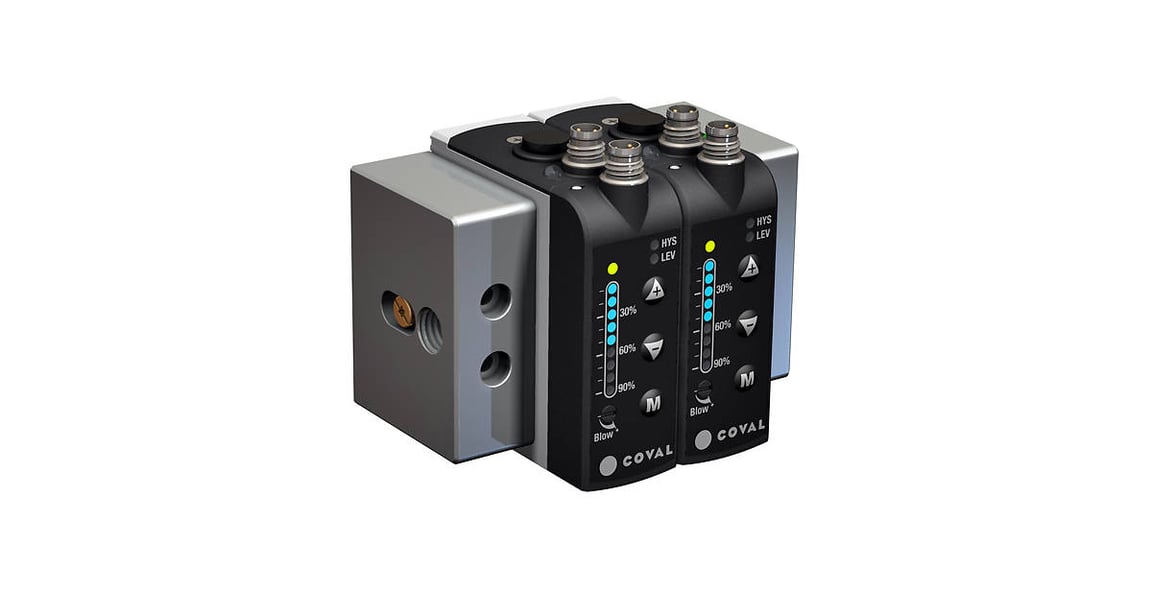

    LEM60X10RVAB2

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 2 modules
  • LEM60X10RVAB3

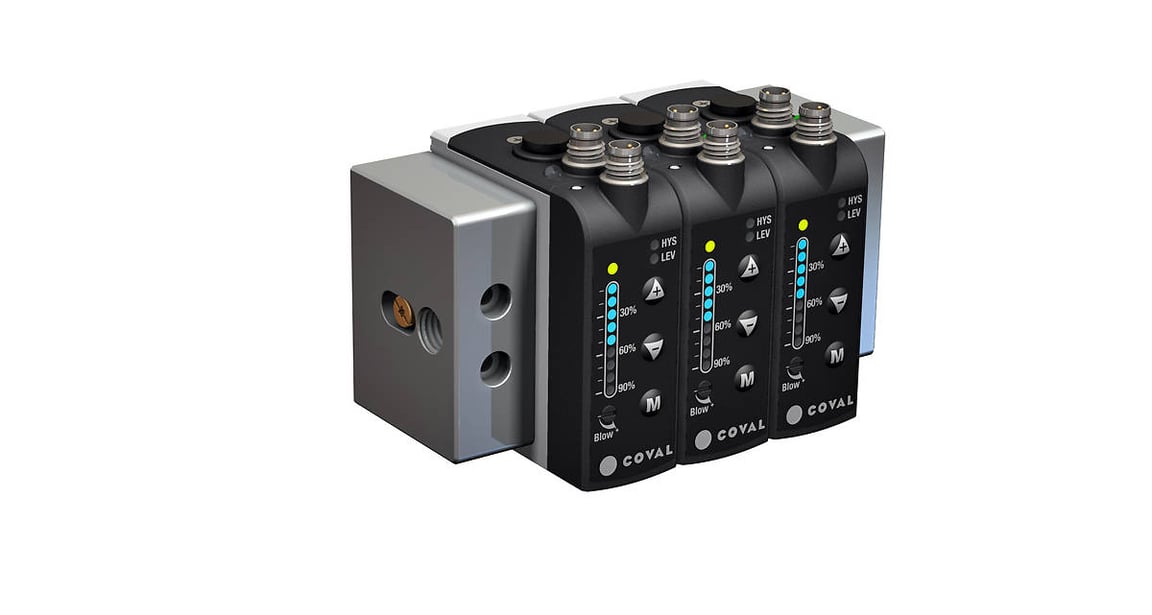

    LEM60X10RVAB3

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 3 modules
  • LEM60X10RVAB4

    LEM60X10RVAB4

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 4 modules
  • LEM60X10RVAB5

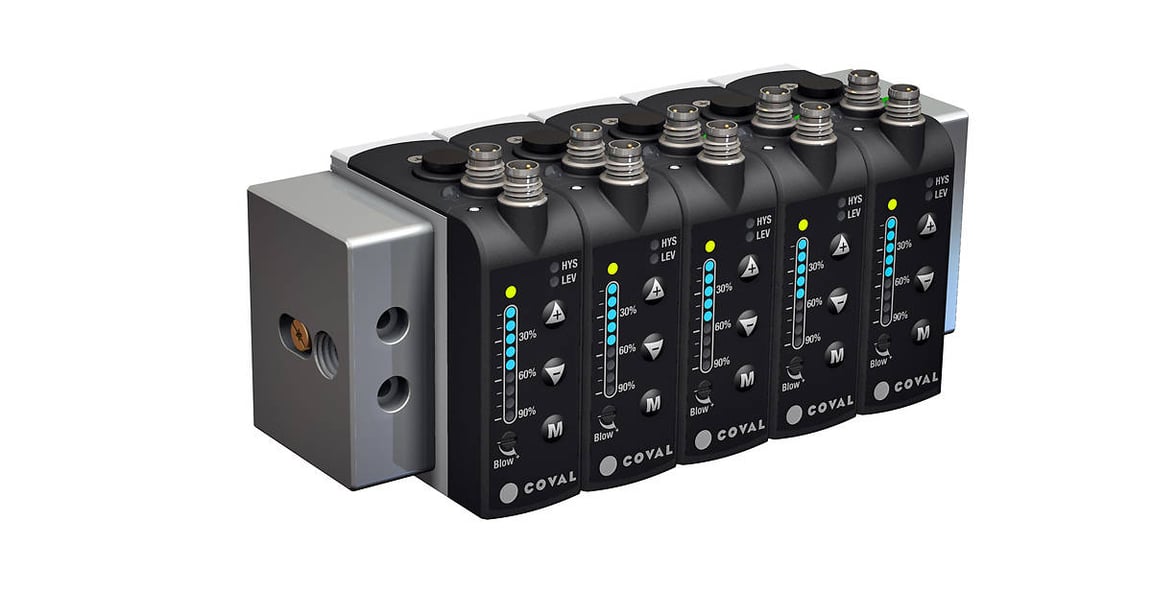

    LEM60X10RVAB5

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 5 modules
  • LEM60X10RVAB6

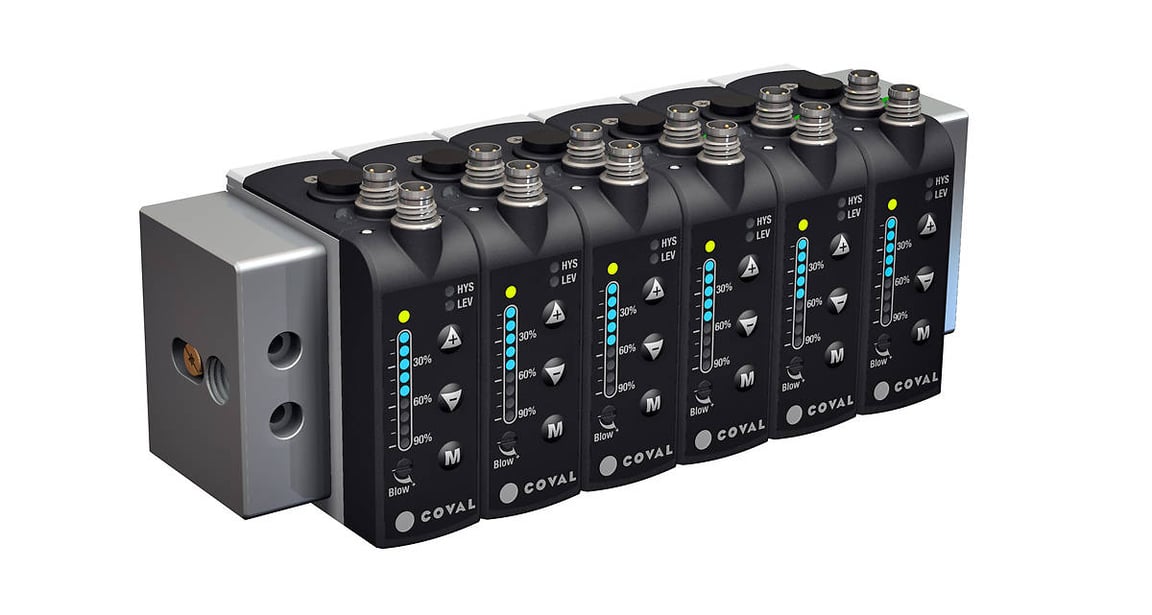

    LEM60X10RVAB6

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 6 modules
  • LEM60X10RVAB7

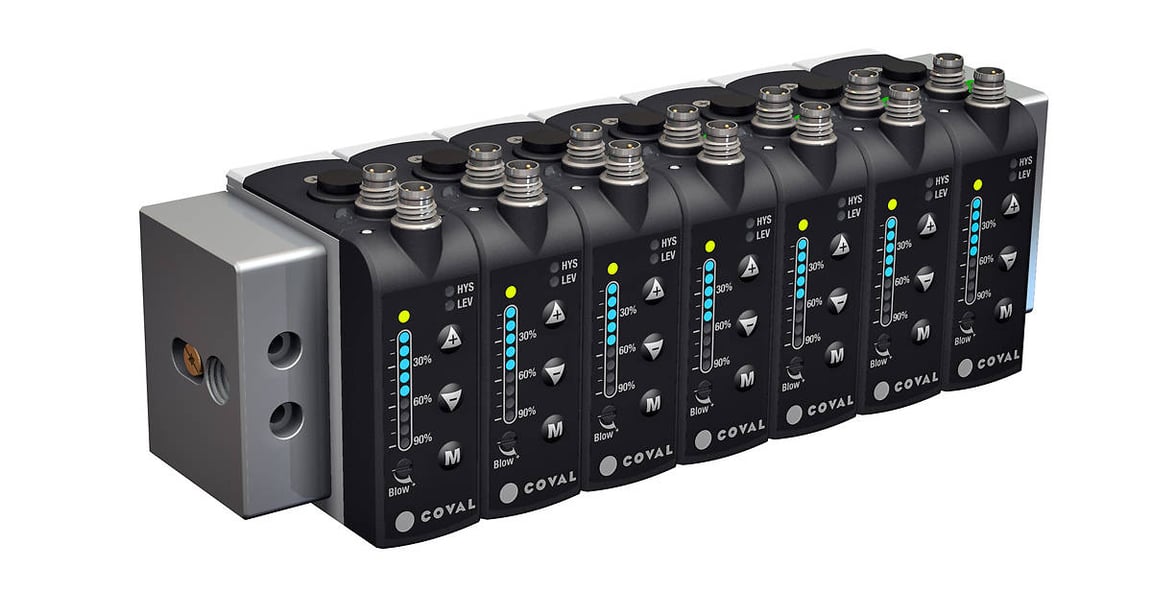

    LEM60X10RVAB7

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 7 modules
  • LEM60X10RVAB8

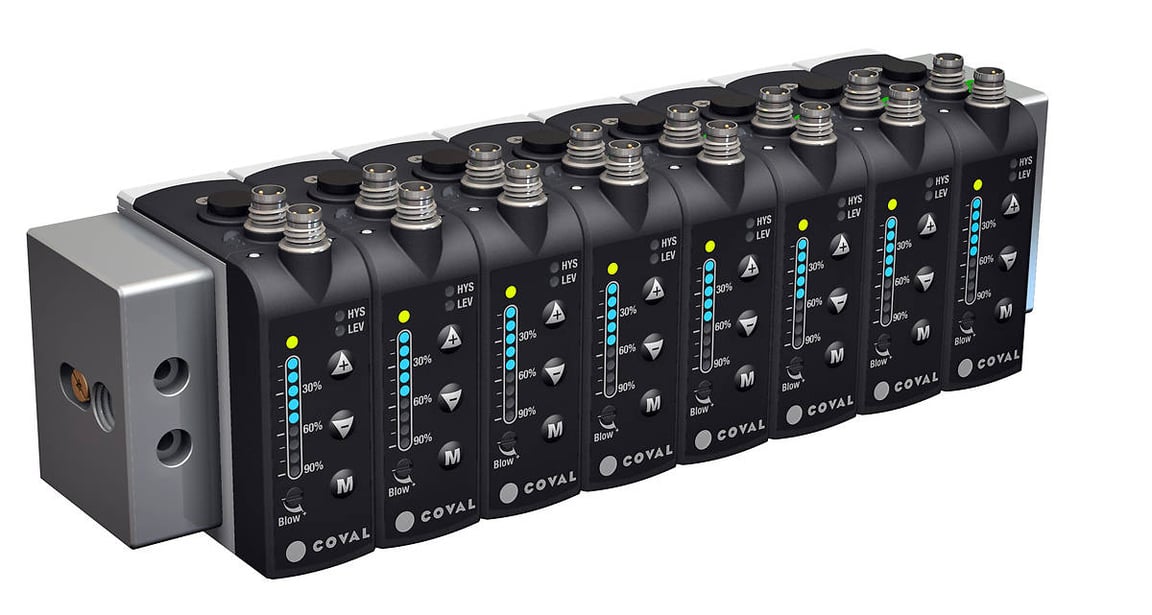

    LEM60X10RVAB8

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 8 modules
  • LEM60X10RVAB9

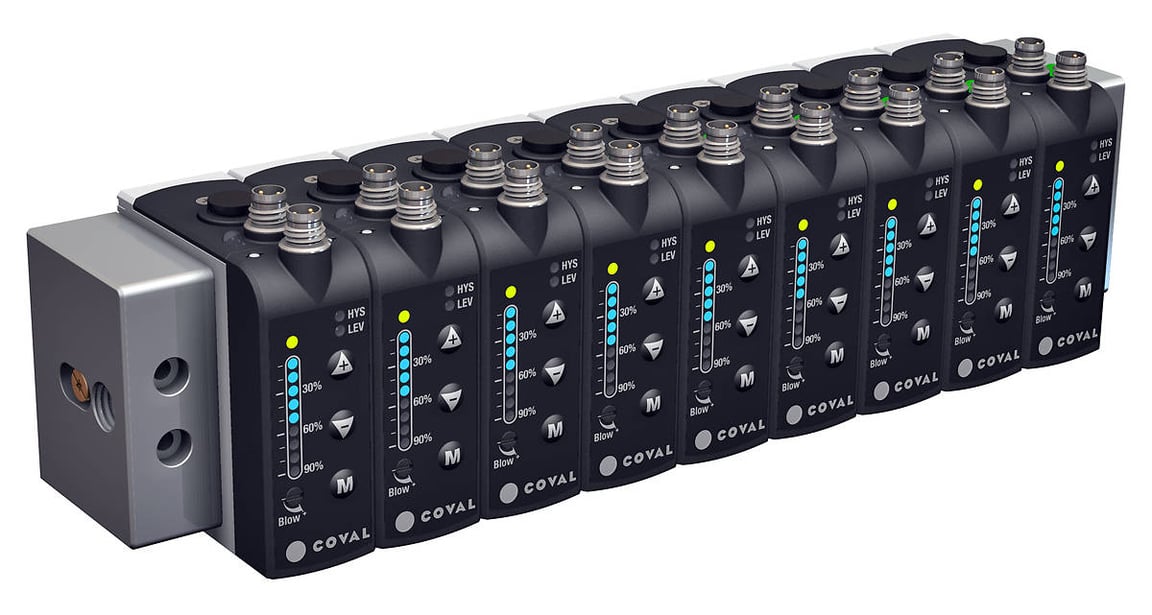

    LEM60X10RVAB9

    • Nozzle diameter | mm: 1
    • Air drawn in | SCFM: 38
    • Maximum vacuum | %: 60
    • Generator control: Vacuum NC
    • Electrical connection: 1 x M8 4-pin
    • Exhaust: Through-type silencer
    • Island Assembly Available: Bank of 9 modules
