"Integrated Mini-vacuum Pumps with ""ASC"" (Air Saving Control), LEMAX series"

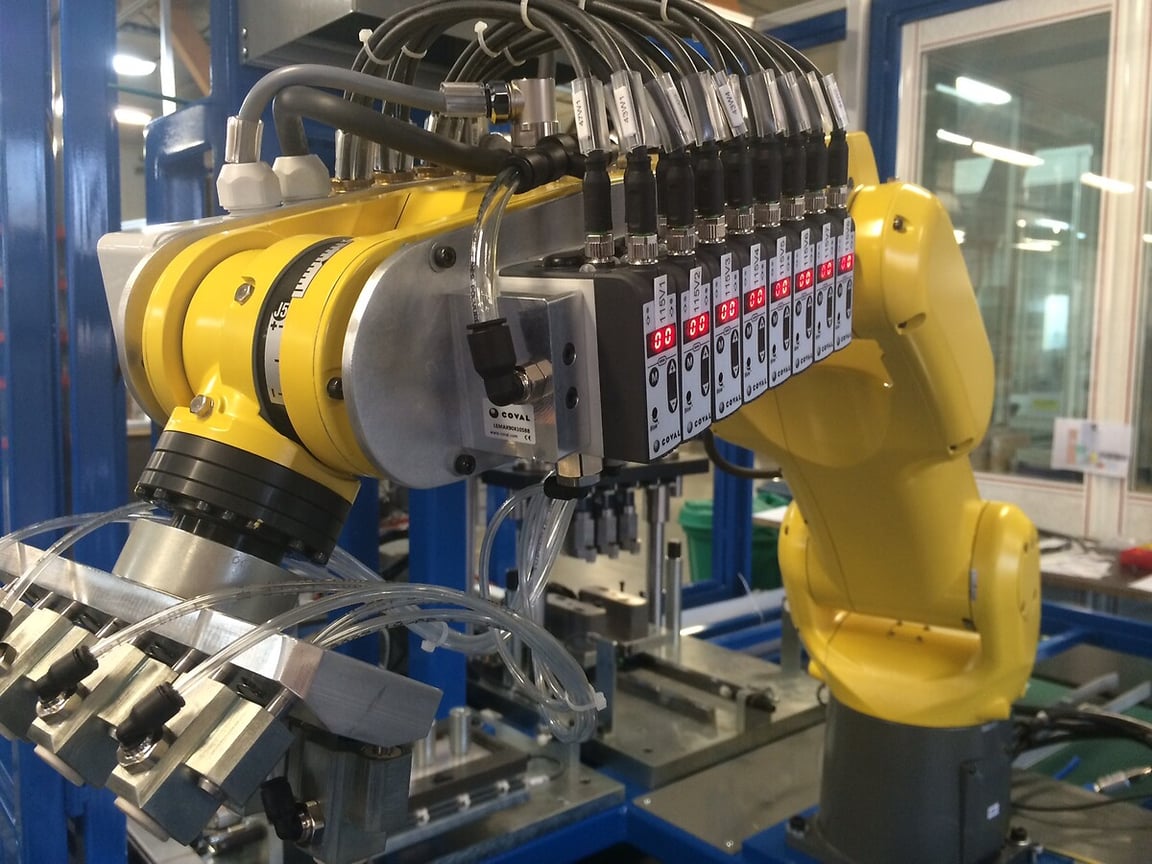

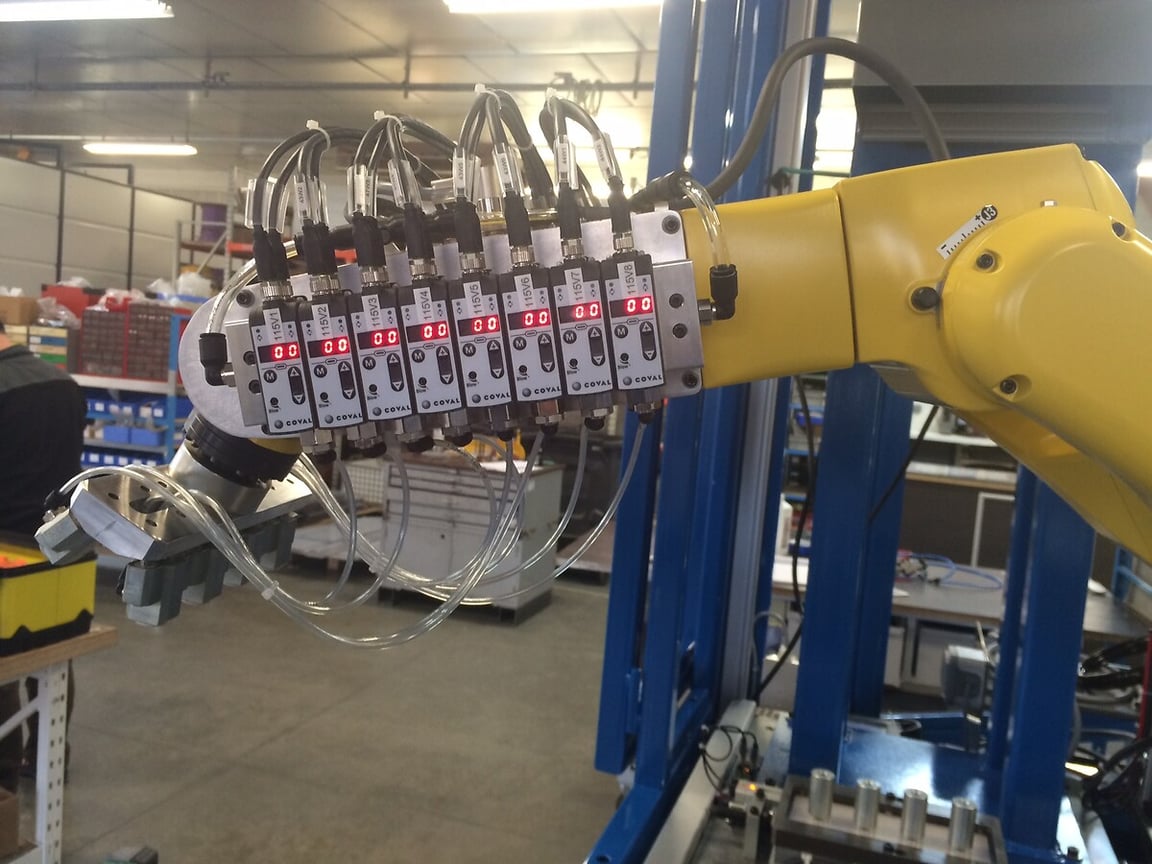

LEMAX is a vacuum pump integrating technologies developed by COVAL to combine productivity, efficiency and energy savings. It offers a wide range of uses: packaging, robotics and plastics processing.
LEMAX integrates ASC (Air Saving Control) technology, which delivers energy savings ranging from 75 to 99 % depending on the application.
ASC acts to limit energy consumption at two levels:
- Integrated vacuum regulation: reduced consumption and noise level.
- ASC analyzes the application and adapts to airtight or porous parts to optimize operation and energy consumption.
Industry-specific applications
Keypoints
- Nozzle Ø: 1, 1.2, 1.4 mm
- Vacuum level: 85%
- Suction flow rate: up to 2.47 SCFM
- Integrated pressure regulator (ASR)
- Auto regulated vacuum (ASC)
- M8 connections
LEMAX90X10S
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Standalone

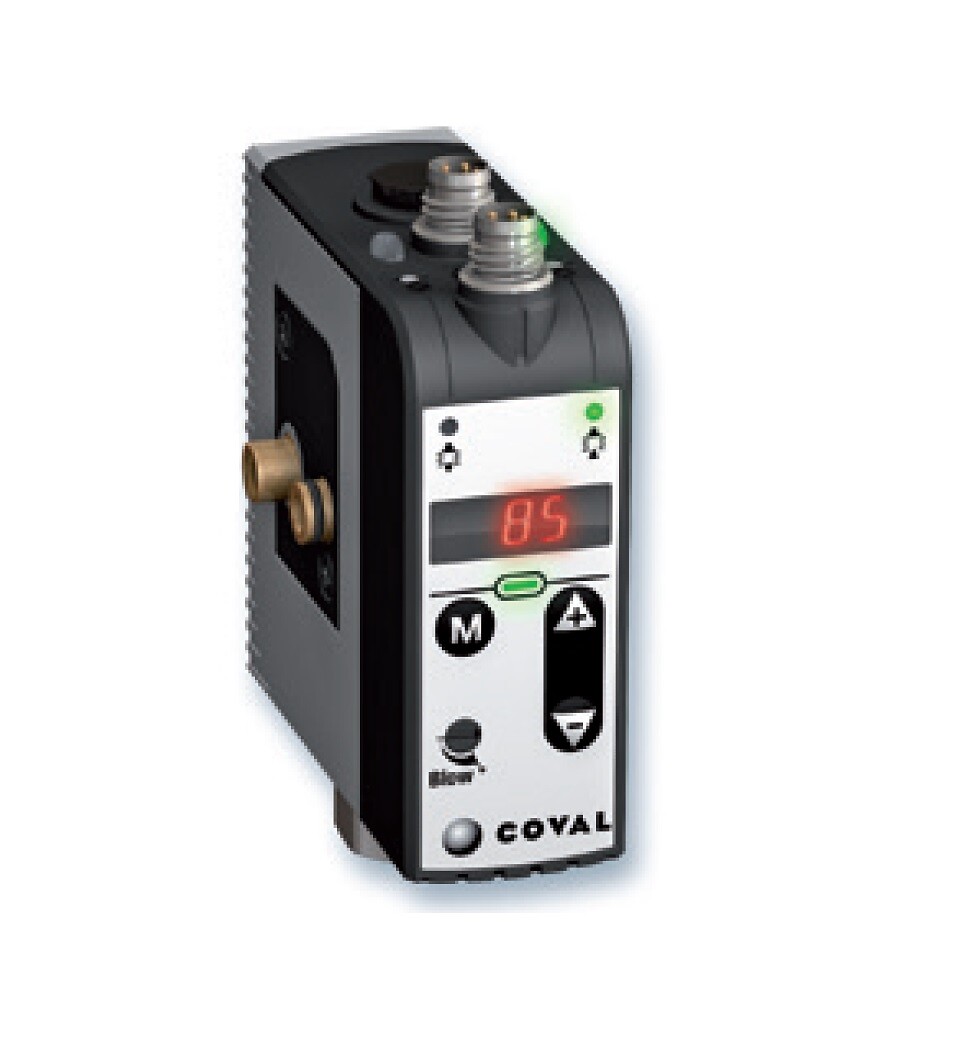

LEMAX90X10SB
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 1 module

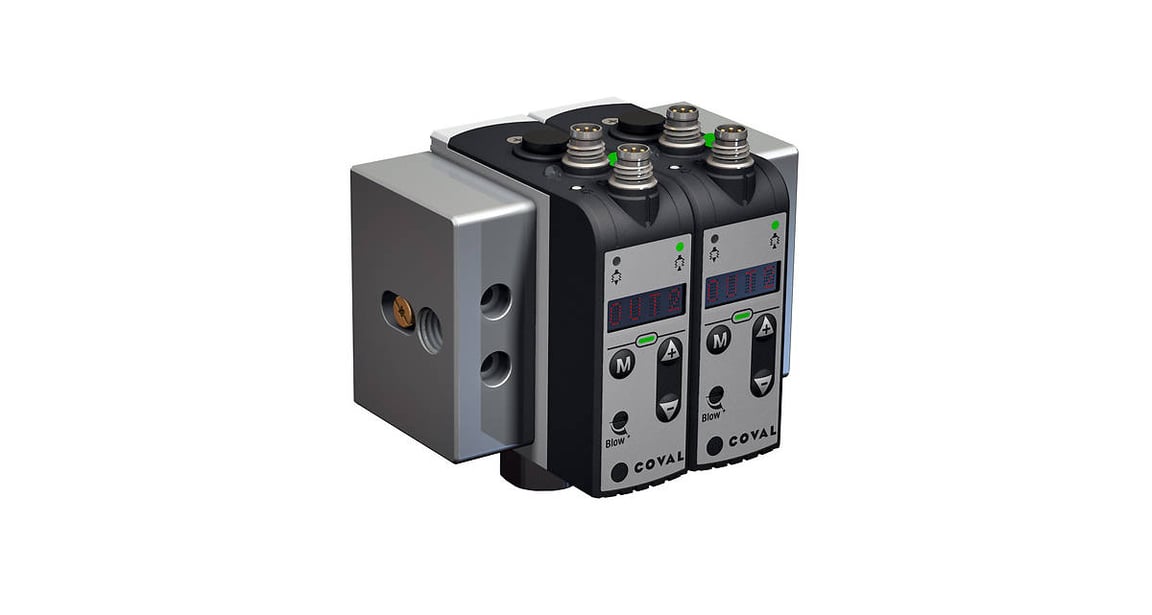

LEMAX90X10SB2
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 2 modules

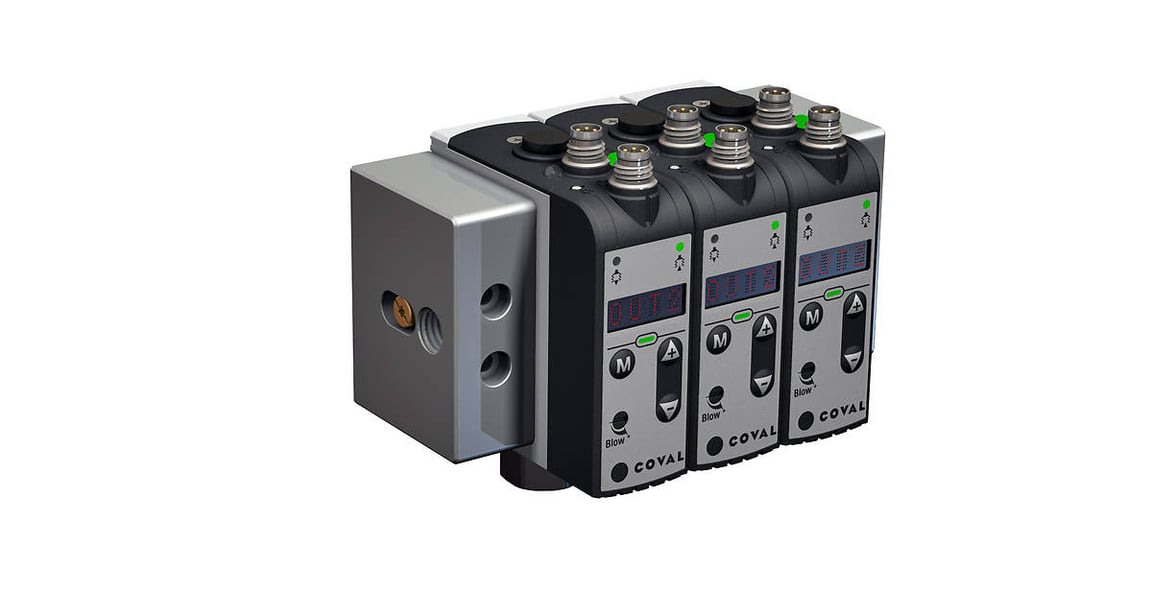

LEMAX90X10SB3
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 3 modules

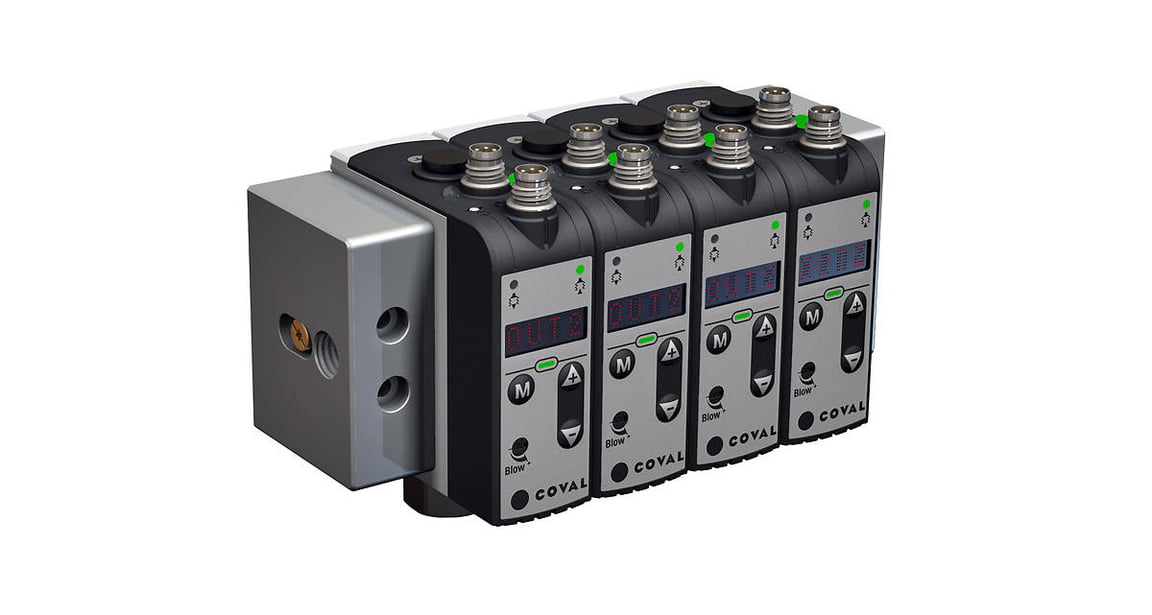

LEMAX90X10SB4
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 4 modules
LEMAX90X10SB5
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 5 modules

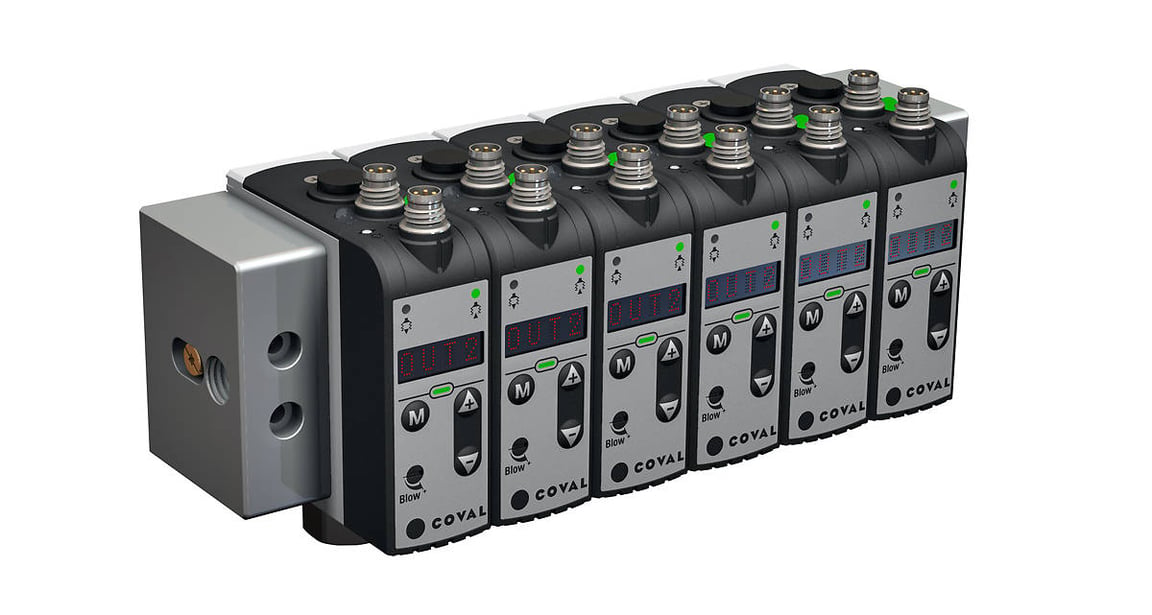

LEMAX90X10SB6
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 6 modules

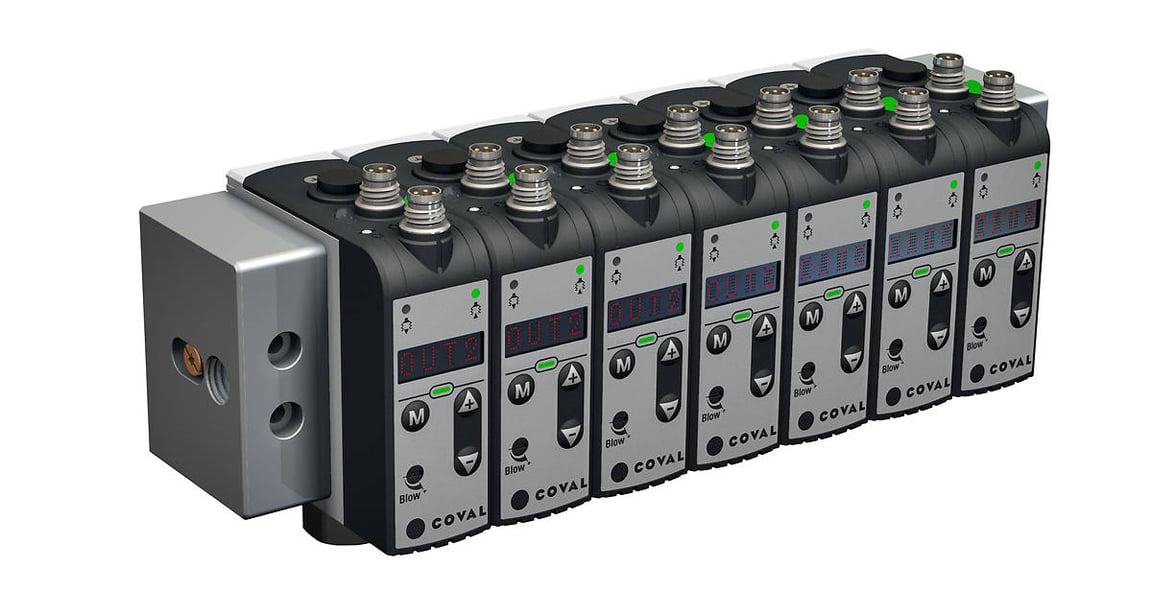

LEMAX90X10SB7
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 7 modules

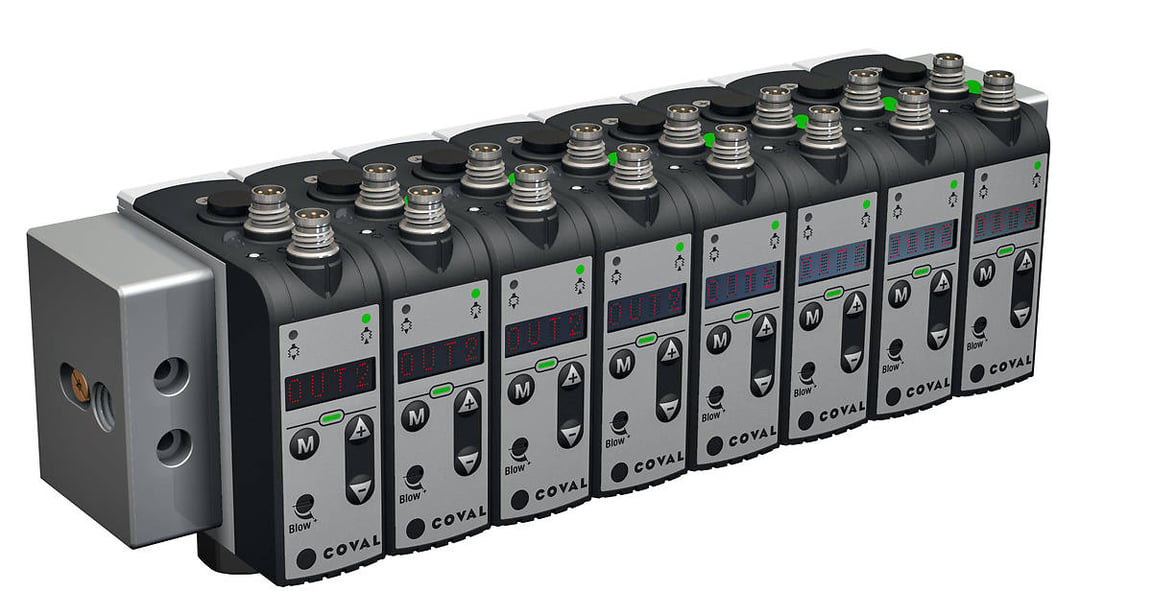

LEMAX90X10SB8
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 8 modules

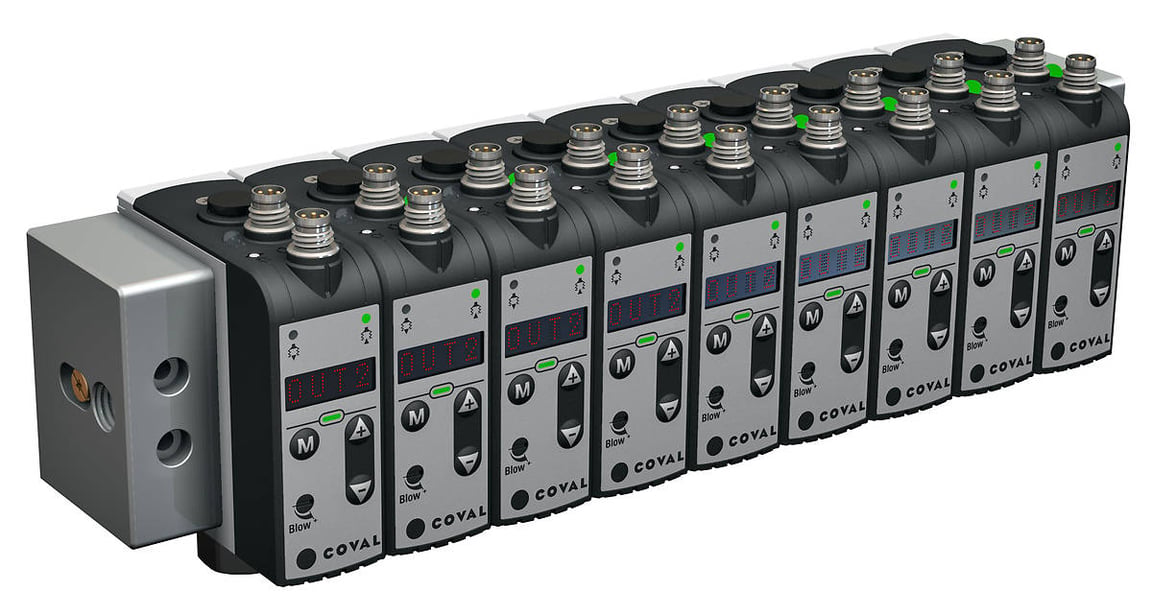

LEMAX90X10SB9
- Nozzle diameter | mm: 1
- Air drawn in | SCFM: 29
- Maximum vacuum | %: 90
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 9 modules
