Compact, High Flow Vacuum Pump with "ASC" (Air Saving Control) LEMAX+ series

LEMAX+ Series, compact, high flow vacuum pumps integrate ASC (Air Saving Control) technology that allows up to 90 % energy savings. They are specifically designed for gripping airtight or semi‑airtight products.

For gripping porous products or those with a rough surface, it is recommended to use the LEM+ Series.

DownloadsShare via email

Industry-specific applications

Keypoints

  • Nozzle Ø: 2, 2.5 mm
  • Vacuum levels: 85%
  • Suction flow rate: up to 7.06 SCFM
  • Integrated pressure regulator (ASR)
  • Auto regulated vacuum (ASC)
  • M12 connections

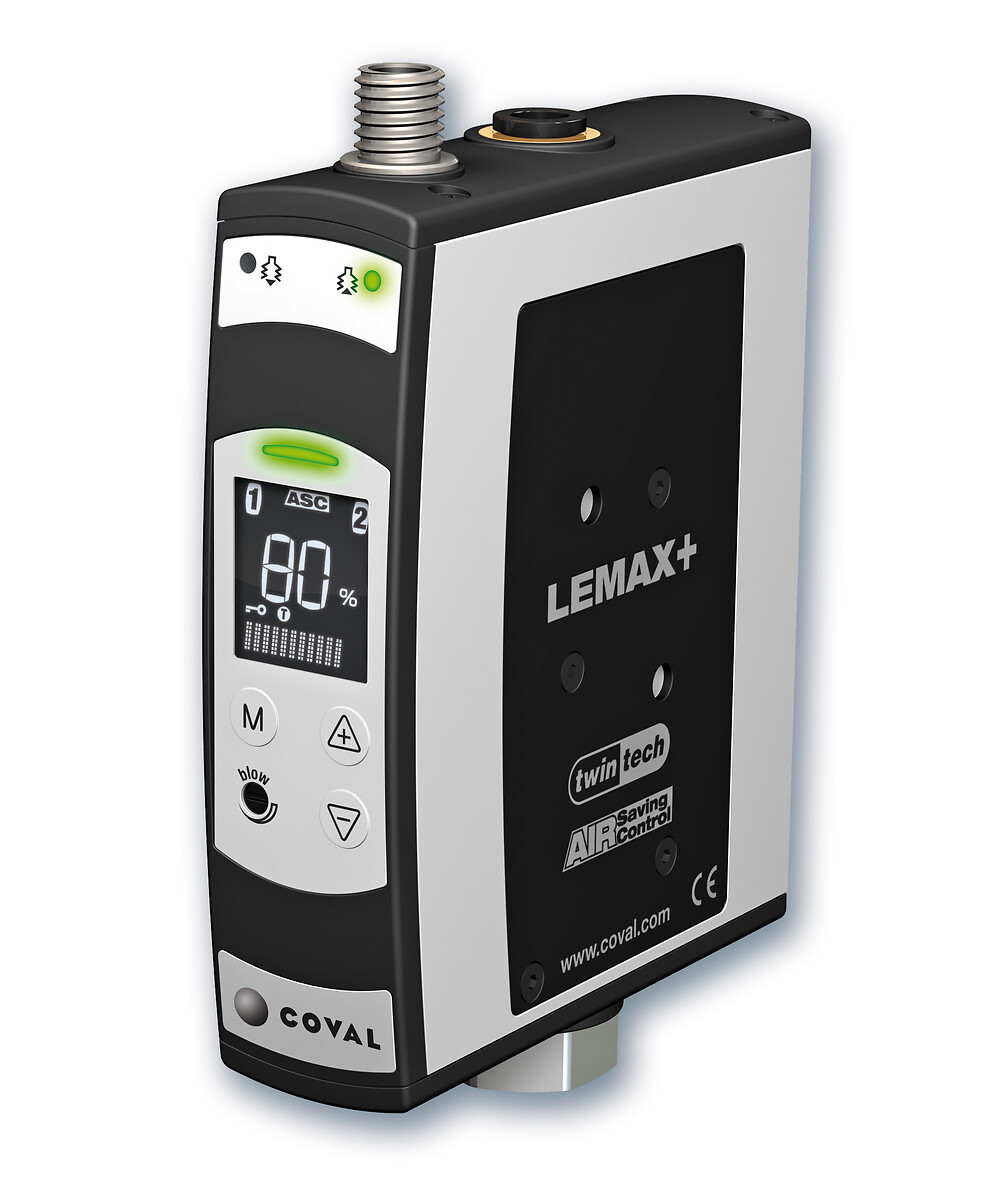

  • LEMAX90X20SC15PG1

    LEMAX90X20SC15PG1

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NC/ Blow-off NC
    • Blow-off type: Standard and automatic blow-off
    • Electrical connection: 1 x M12 5-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20SC15PG1F

    LEMAX90X20SC15PG1F

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NC/ Blow-off NC
    • Blow-off type: Powerful blow-off
    • Electrical connection: 1 x M12 5-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20SC24PG1

    LEMAX90X20SC24PG1

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NC/ Blow-off NC
    • Blow-off type: Standard and automatic blow-off
    • Electrical connection: 2 x M12 4-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20SC24PG1F

    LEMAX90X20SC24PG1F

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NC/ Blow-off NC
    • Blow-off type: Powerful blow-off
    • Electrical connection: 2 x M12 4-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20VC15PG1

    LEMAX90X20VC15PG1

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NO/ Blow-off NC
    • Blow-off type: Standard and automatic blow-off
    • Electrical connection: 1 x M12 5-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20VC15PG1F

    LEMAX90X20VC15PG1F

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NO/ Blow-off NC
    • Blow-off type: Powerful blow-off
    • Electrical connection: 1 x M12 5-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20VC24PG1

    LEMAX90X20VC24PG1

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NO/ Blow-off NC
    • Blow-off type: Standard and automatic blow-off
    • Electrical connection: 2 x M12 4-pin
    • Exhaust: Through-type silencer
  • LEMAX90X20VC24PG1F

    LEMAX90X20VC24PG1F

    • Nozzle diameter | mm: 2
    • Air drawn in | SCFM: 125
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NO/ Blow-off NC
    • Blow-off type: Powerful blow-off
    • Electrical connection: 2 x M12 4-pin
    • Exhaust: Through-type silencer
  • LEMAX90X25SC15PG1

    LEMAX90X25SC15PG1

    • Nozzle diameter | mm: 2.5
    • Air drawn in | SCFM: 200
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NC/ Blow-off NC
    • Blow-off type: Standard and automatic blow-off
    • Electrical connection: 1 x M12 5-pin
    • Exhaust: Through-type silencer
  • LEMAX90X25SC15PG1F

    LEMAX90X25SC15PG1F

    • Nozzle diameter | mm: 2.5
    • Air drawn in | SCFM: 200
    • Maximum vacuum | %: 85
    • Generator control: Vacuum NC/ Blow-off NC
    • Blow-off type: Powerful blow-off
    • Electrical connection: 1 x M12 5-pin
    • Exhaust: Through-type silencer
