Electrical Connectors, M8 and M12, CD - CC series
M12 connector:
- Straight connector, ref. CD M12.
- Elbow connector, ref. CC M12.
M8 connector:
- Straight connector, ref. CD M8.
- Elbow connector, ref. CC M8.
Keypoints
- Female screw-type connector
- 4 and 5 poles
- Straight or elbow
- PVC cable
- Protection: IP 65

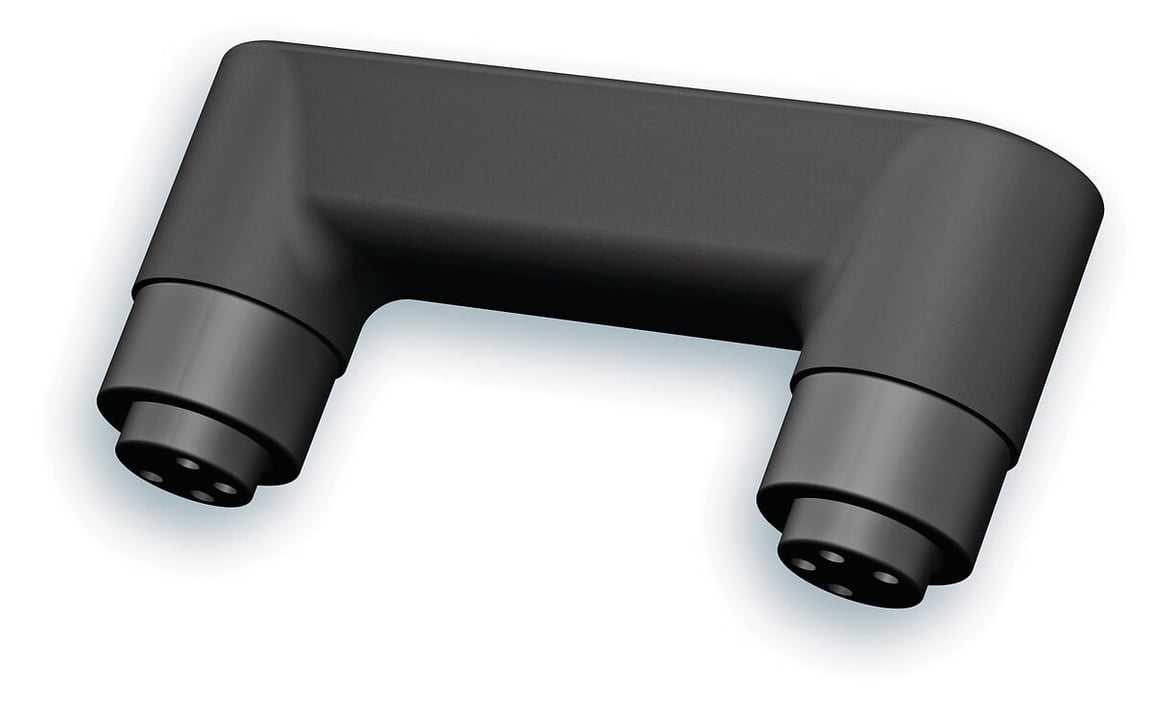

80001231
LEMCOM CONNECTING BRIDGE- Connector orientation: Elbow
- Number of conductors: 4
- Connection 1: M8/M8

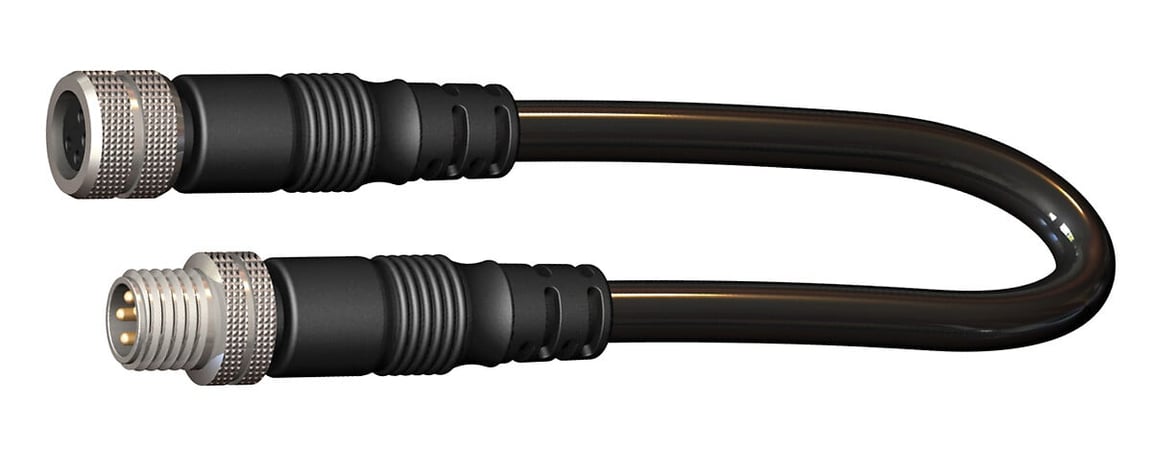

80002303
M8-M8 TERMINATION 120 OHMS - 8.5 INCHES. 4 FIBERS- Connector orientation: Straight
- Number of conductors: 4
- Connection 1: M8 - Female - A-Coded
- Connection 2: M8 - Male - A-Coded

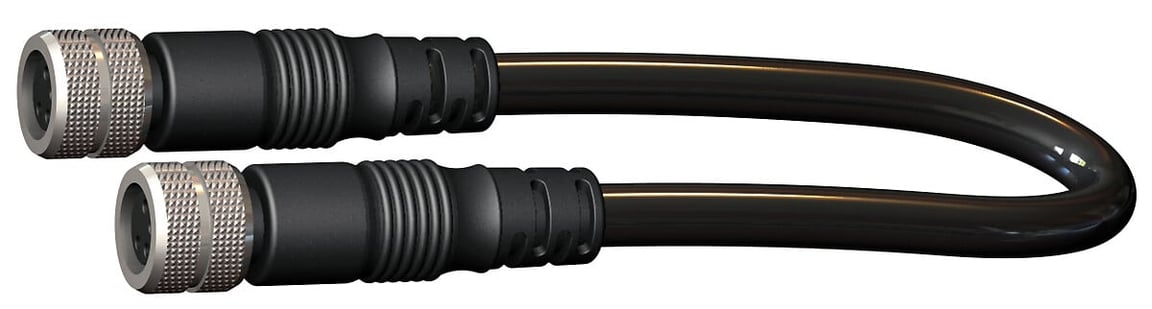

80003053
ETHERNET CABLE M8 FEM-M8 FEM 1M DAISY CHAIN- Connector orientation: Straight
- Number of conductors: 4
- Connection 1: M8 - Female - A-Coded
- Connection 2: M8 - Female - A-Coded

CCM8
ELBOWED CONNECTOR M8 4P PVC 2 M- Connector orientation: Elbow
- Number of conductors: 4
- Connection 1: M8 - Female - A-Coded

CCM12
ELBOWED CONNECTOR M12 4P PVC 2 M- Connector orientation: Elbow
- Number of conductors: 4
- Connection 1: M12 - Female - A-Coded
- Connection 2: M8 - Female - A-Coded

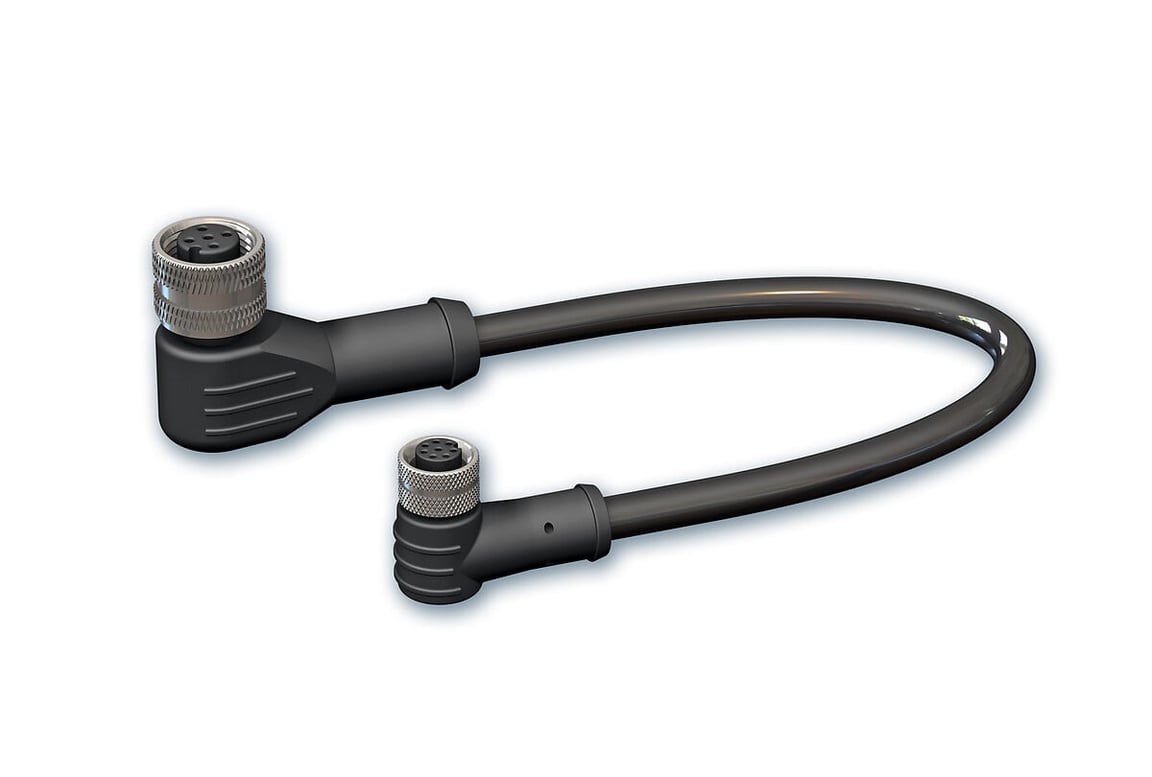

CCM12F5PM8F8PL015C1
ELBOWED CONNEC M12 FEMALE 5P-M8 FEMALE 8P-PUR 180 MM-C1 VERSION- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female

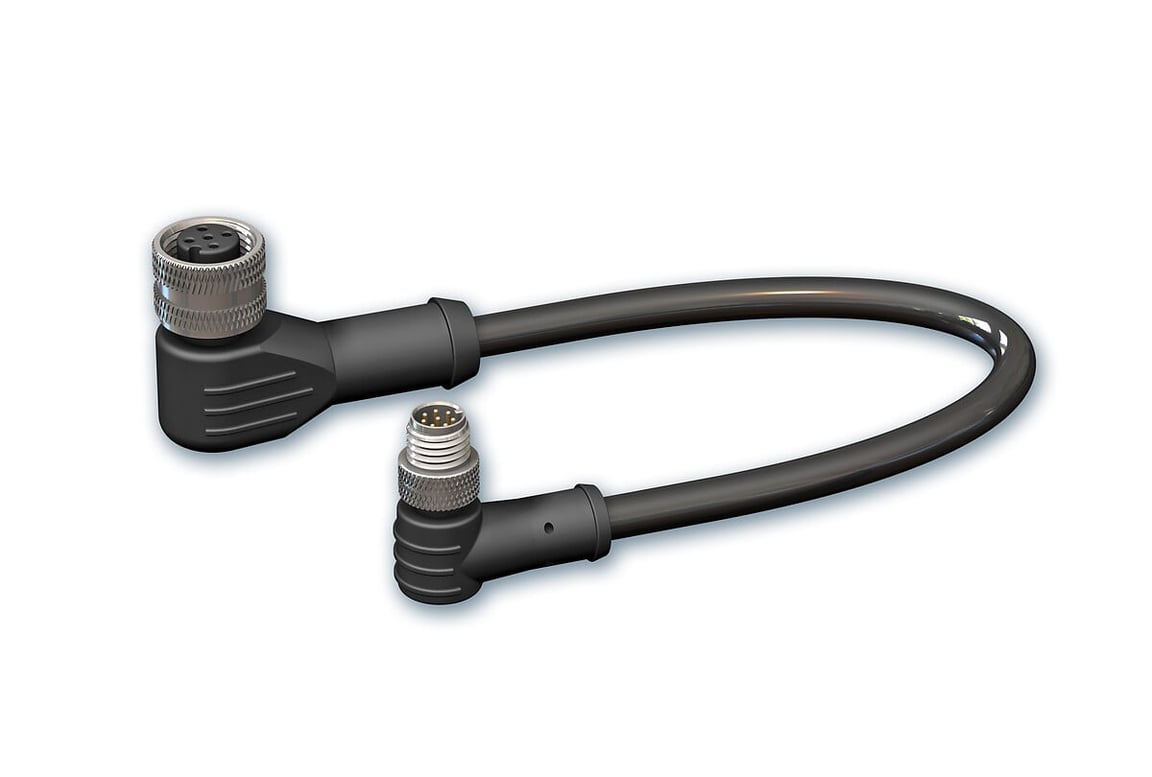

CCM12F5PM8M8PL015C2
ELBOWED CONNEC M12 FEMALE 5P-M8 MALE 8P-PUR 180 MM-C2 VERSION- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female

CCM12F5PM8M8PL015C3
ELBOWED CONNEC M12 FEMALE 5P-M8 MALE 8P-PUR 180 MM-C3 VERSION- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female

CCM12F5PM8M8PL015C6
ELBOWED CONNEC M12 FEMALE 5P-M8 MALE 8P-PUR 180 MM-C6 VERSION- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female

CCM12F5PM8M8PL015C7
ELBOWED CONNEC M12 FEMALE 5P-M8 MALE 8P-PUR 180 MM-C7 VERSION- Connector orientation: Elbow
- Number of conductors: 8
- Connection 1: M12 - Female
- Connection 2: M8 - Female
