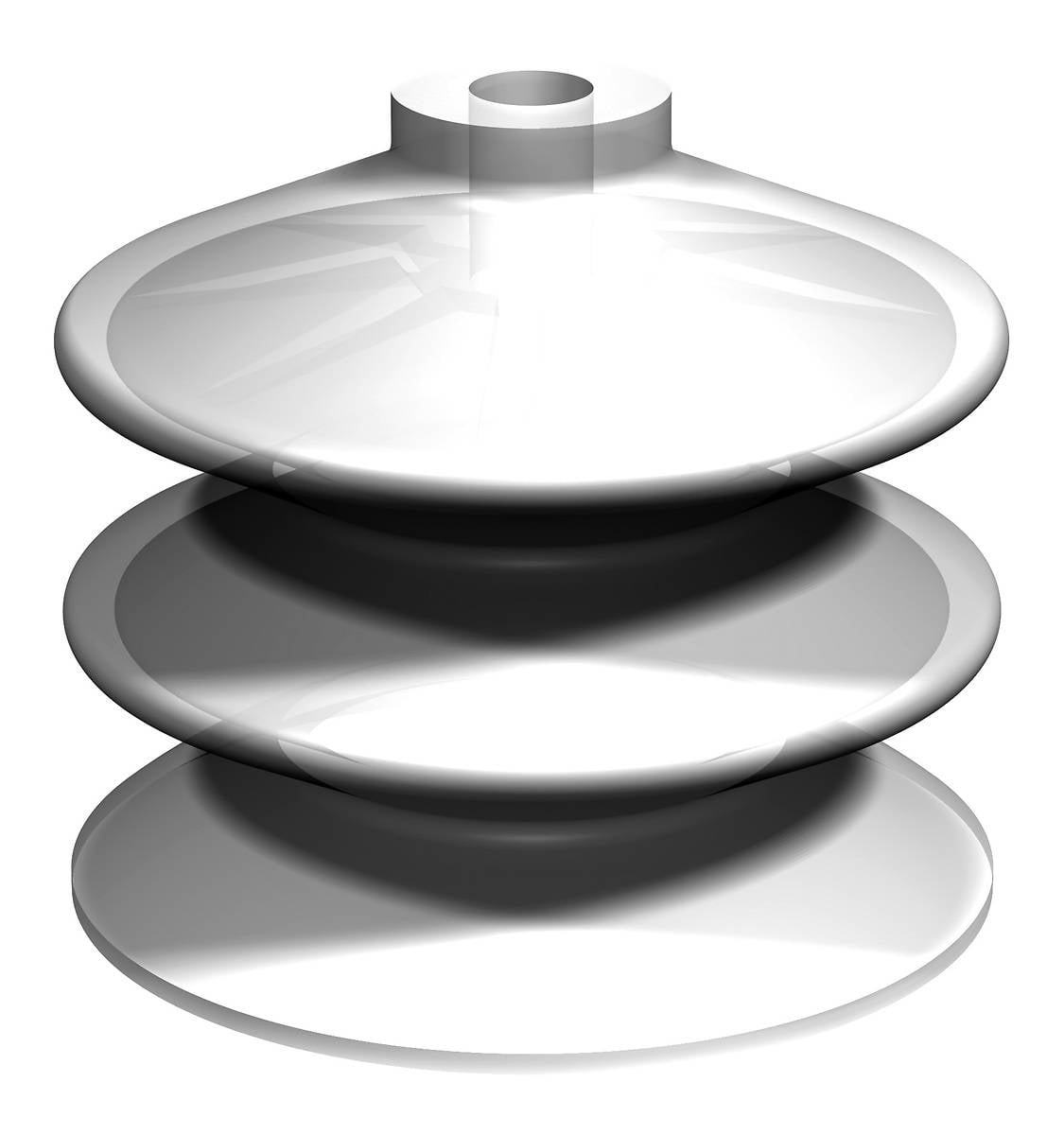

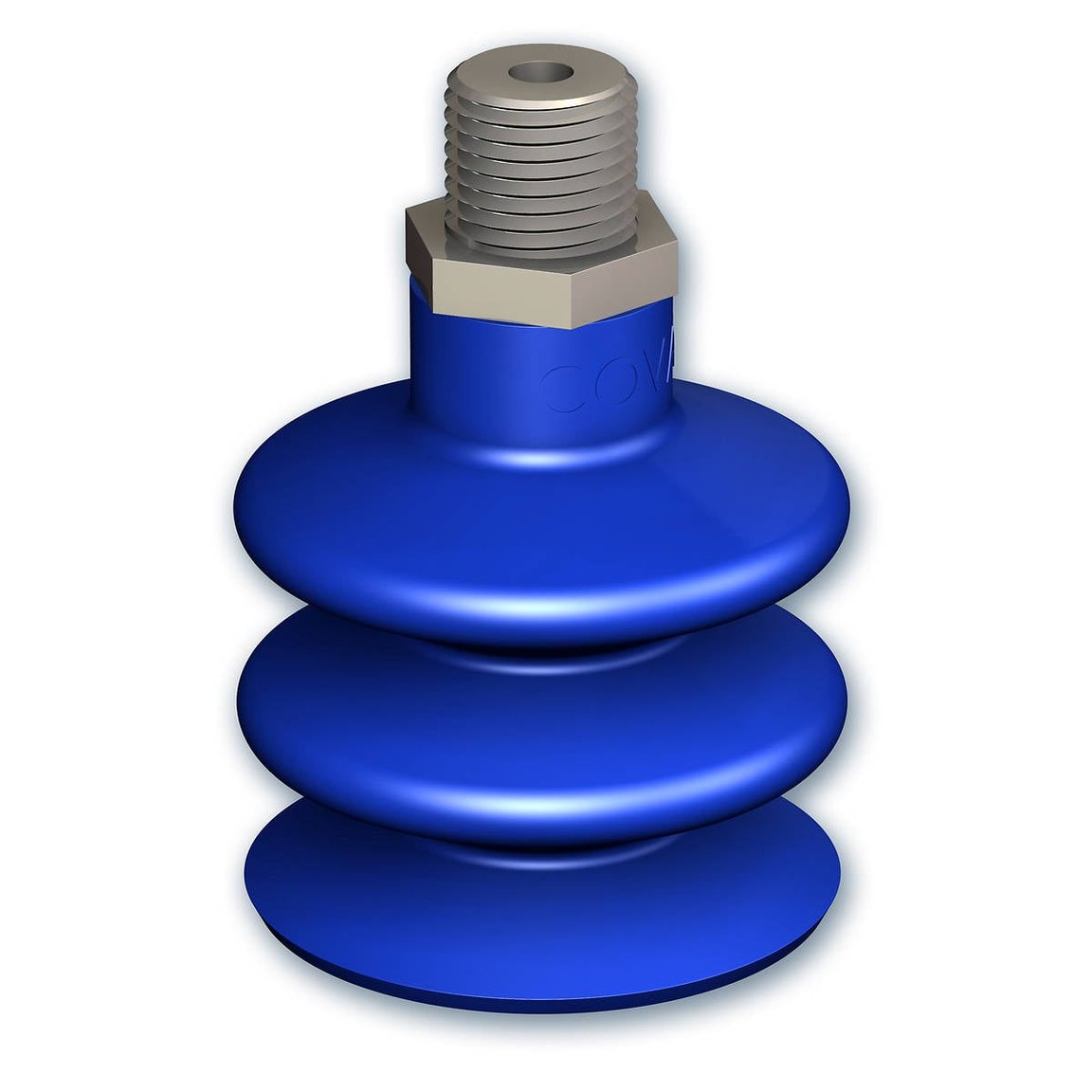

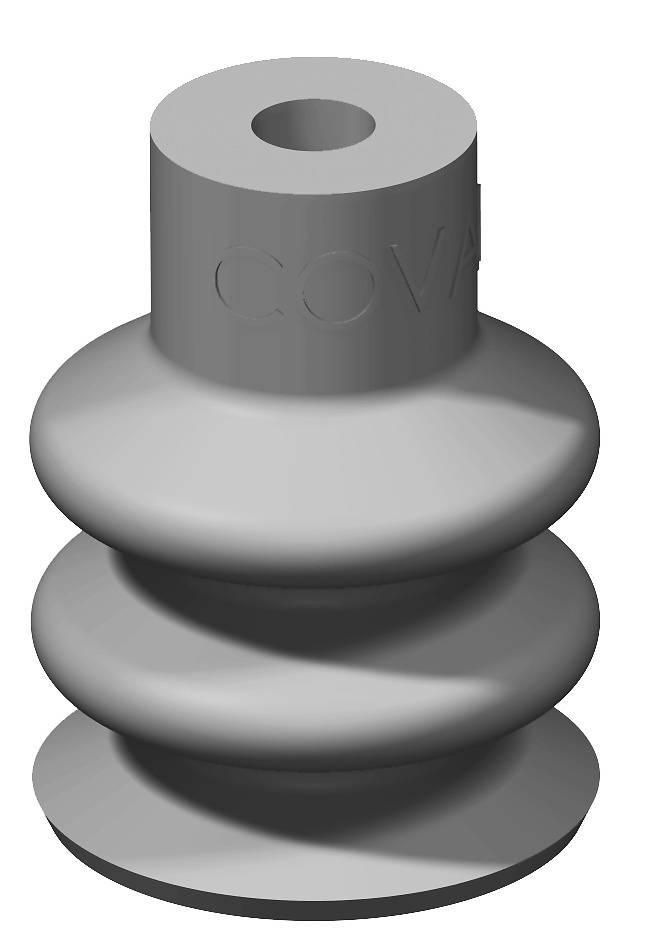

Suction Cups with 2,5 Bellows Ø 5 to 88 mm, VS series

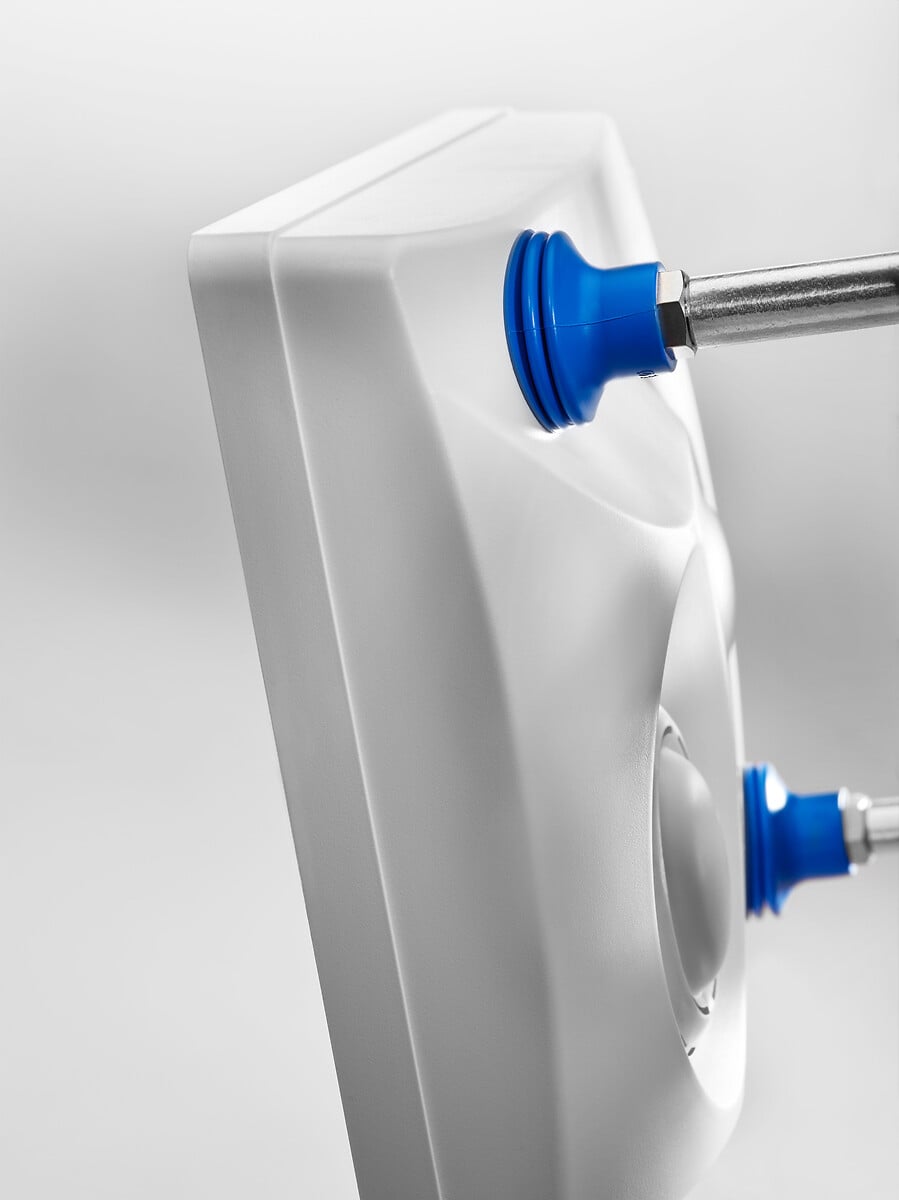

VS series suction cups with bellows are recommended for gripping products on different planes (large deflection) - thus replacing spring systems - and for gripping spherical or cylindrical objects at an angle (ball-joint effect).
- Large deflection (stroke)
- Flexibility
The possible «suction cup+fitting» combinations are available on the documentation to download here.
Industry-specific applications
Types of use
Keypoints

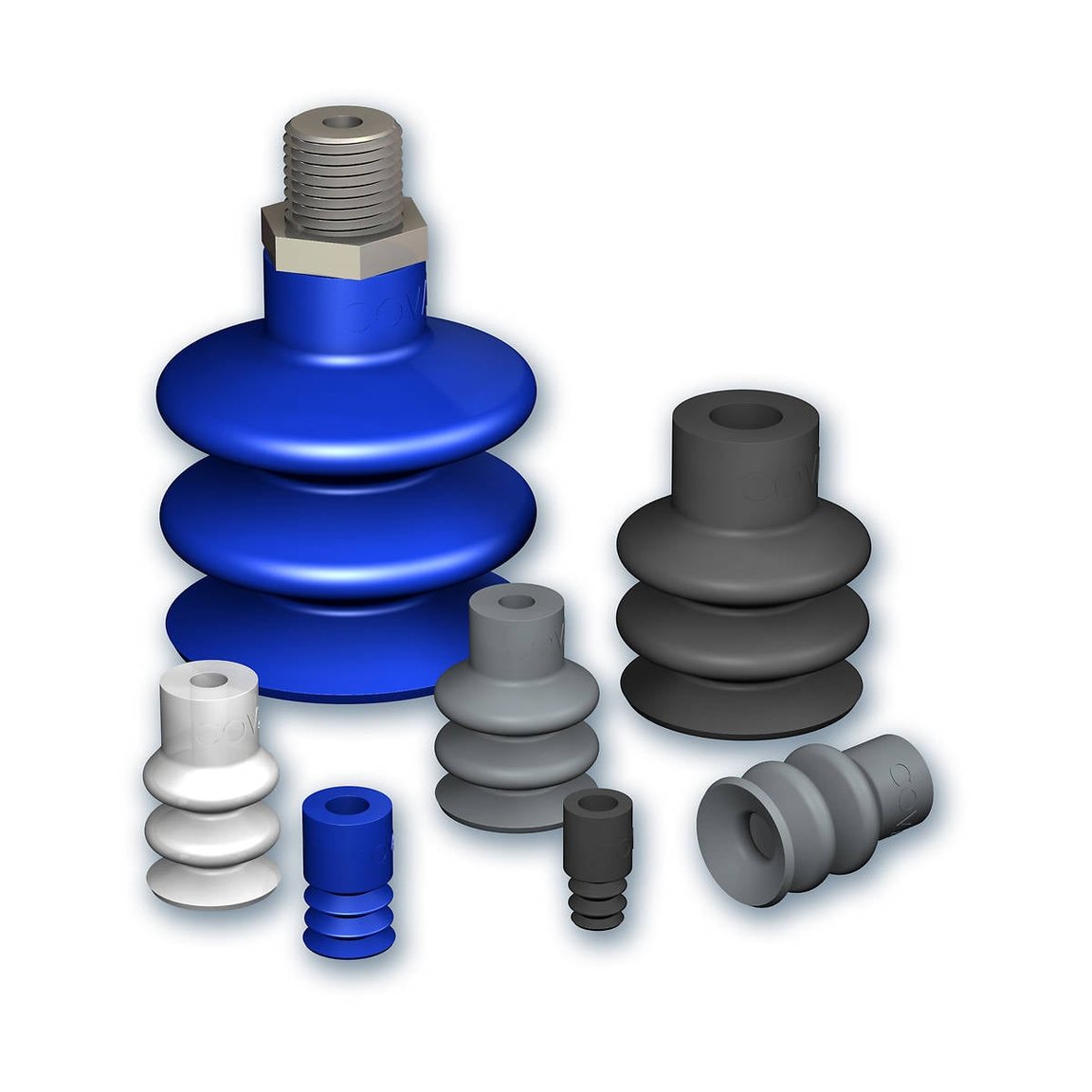

- Ø 5 to 88 mm
- 4 standard materials
VS5NBR
SUCTION CUP 2.5 B DIA 5 NITRILE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 5
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS5SIT5
SUCTION CUP 2.5 B DIA 5 SILICONE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 5
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
VS5STN
SUCTION CUP 2.5 B DIA 5 SITON- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 5
- Stroke | mm: 3
- Suction cup material: Siton® (STN)
VS6NBR
SUCTION CUP 2.5 B DIA 6 NITRILE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 6
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS6SIT5
SUCTION CUP 2.5 B DIA 6 SILICONE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 6
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
VS7NBR
SUCTION CUP 2.5 B DIA 7 NITRILE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 7
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS7SIT5
SUCTION CUP 2.5 B DIA 7 SILICONE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 7
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
VS7STN
SUCTION CUP 2.5 B DIA 7 SITON- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 7
- Stroke | mm: 3
- Suction cup material: Siton® (STN)
VS9NBR
SUCTION CUP 2.5 B DIA 9 NITRILE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 9
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VS9NR
SUCTION CUP 2.5 B DIA 9 NITRILE- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 9
- Stroke | mm: 3
- Suction cup material: Natural Rubber (NR)
