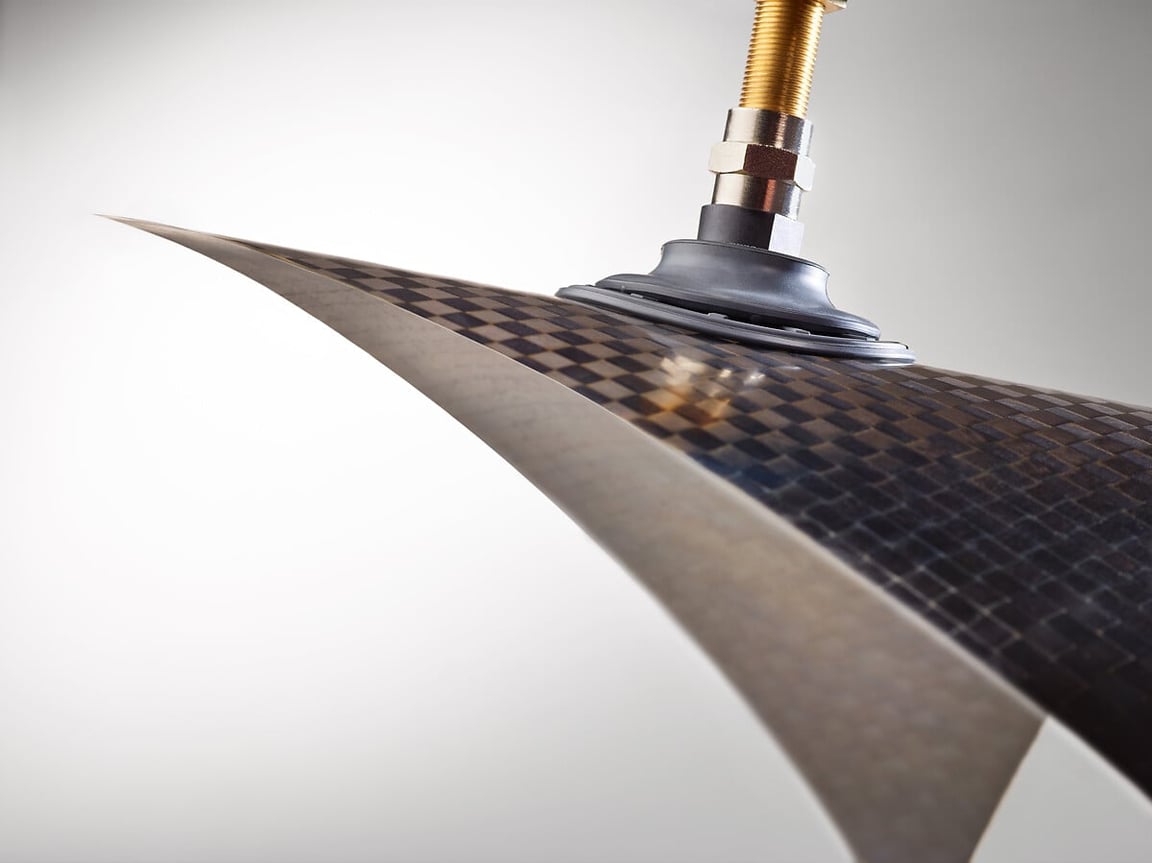

Suction Cups with 1.5 Bellows Ø 22 to 125 mm, CBC series
The COVAL CBC series high-performance suction cup range has been designed to meet the requirements of the automotive industry. The improved characteristics of the C series range optimize production tools in all spheres of activity.
- A full range of diameters to meet every requirement.

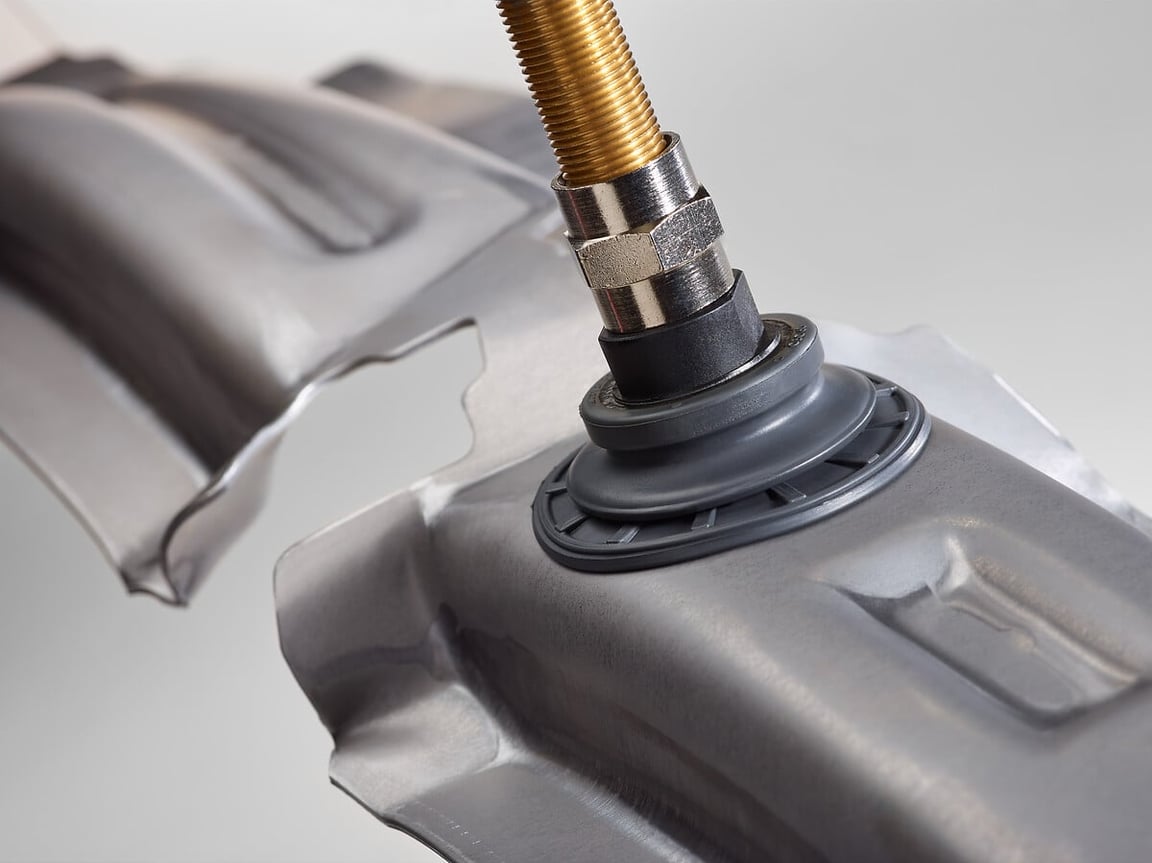

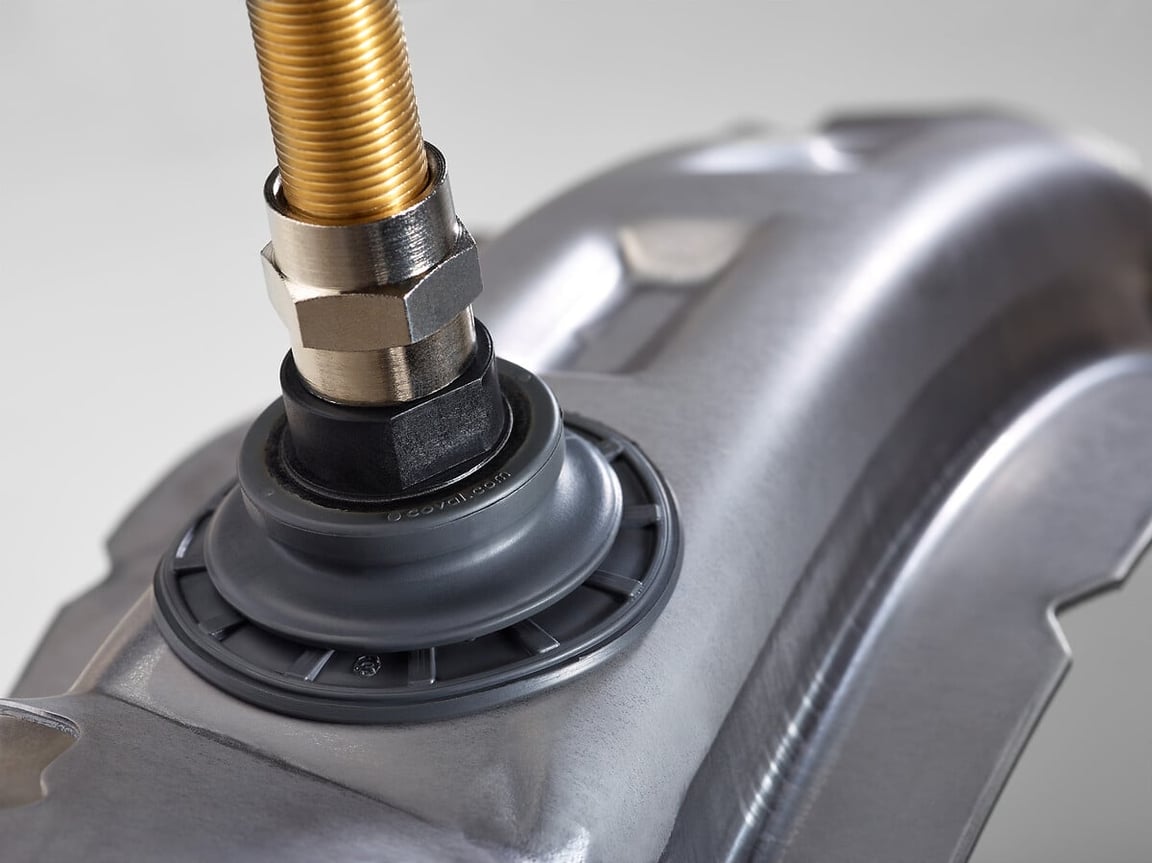

- Non-slip cleats ensure optimum positioning on oily sheet metal.

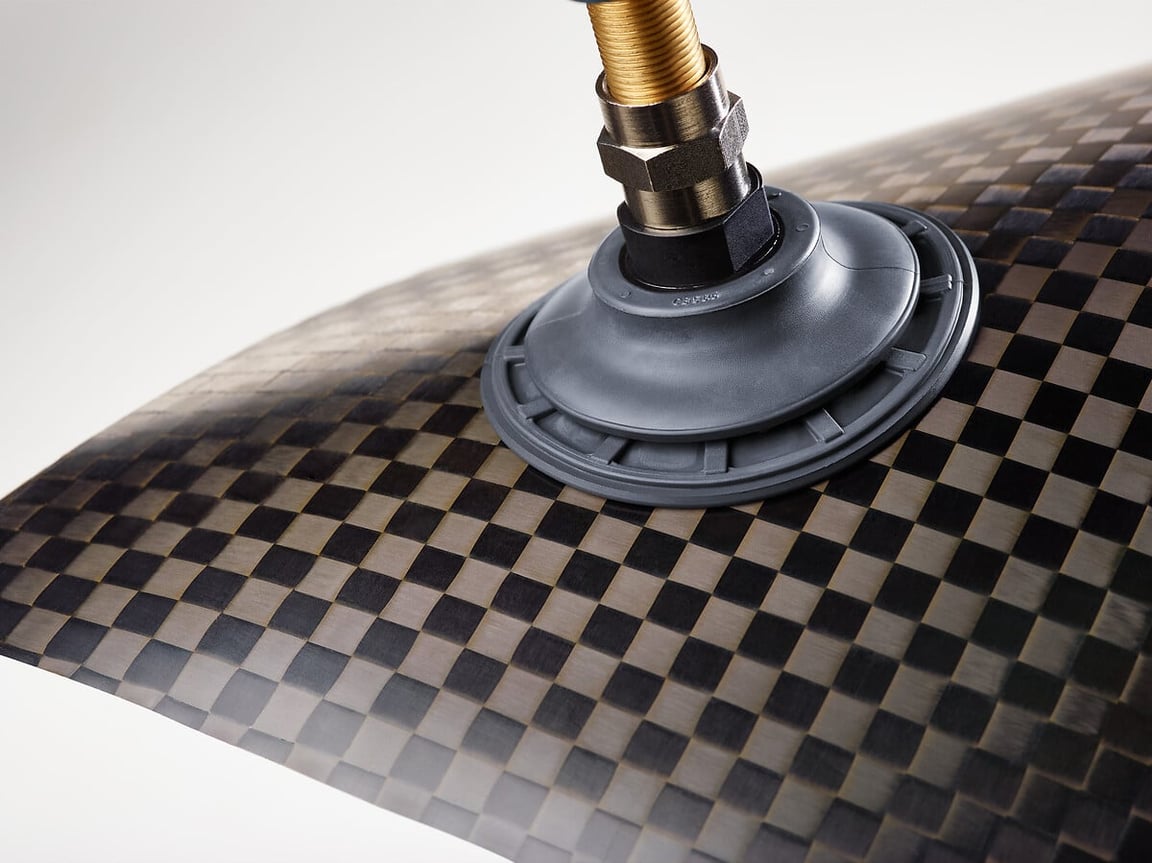

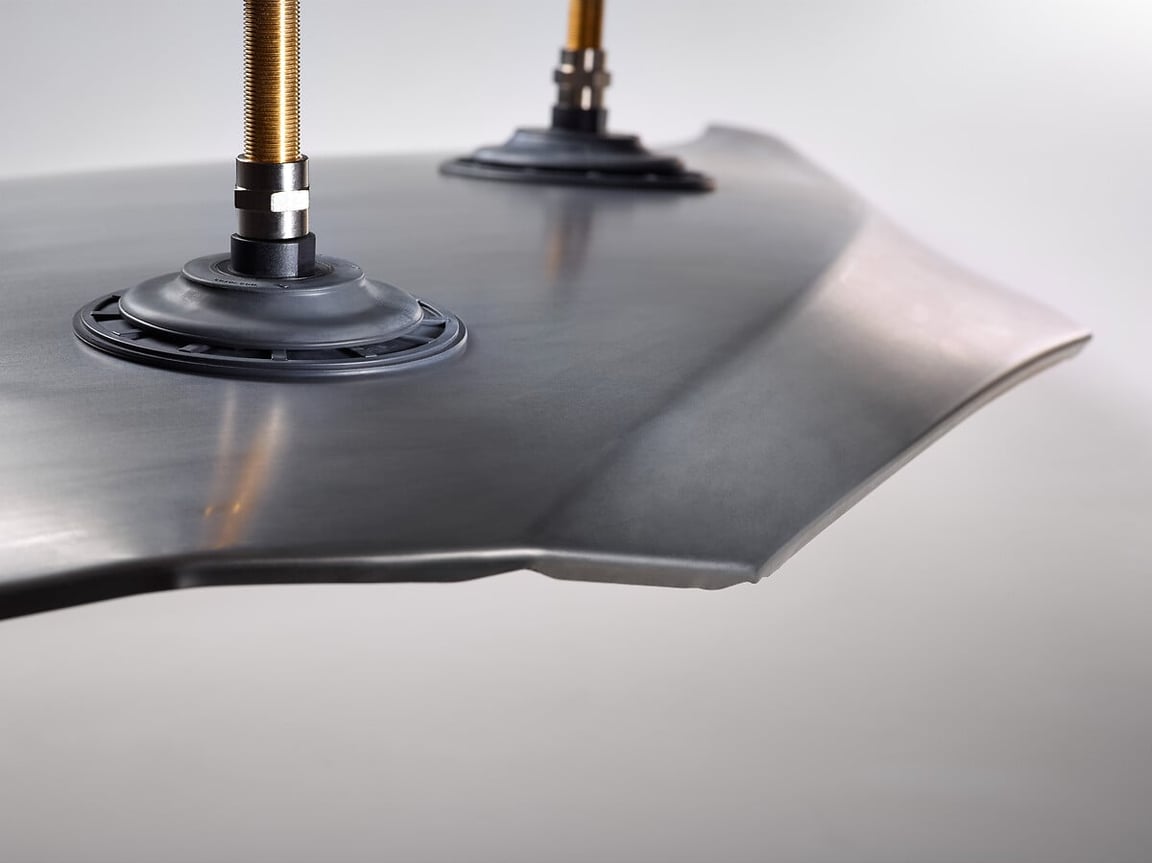

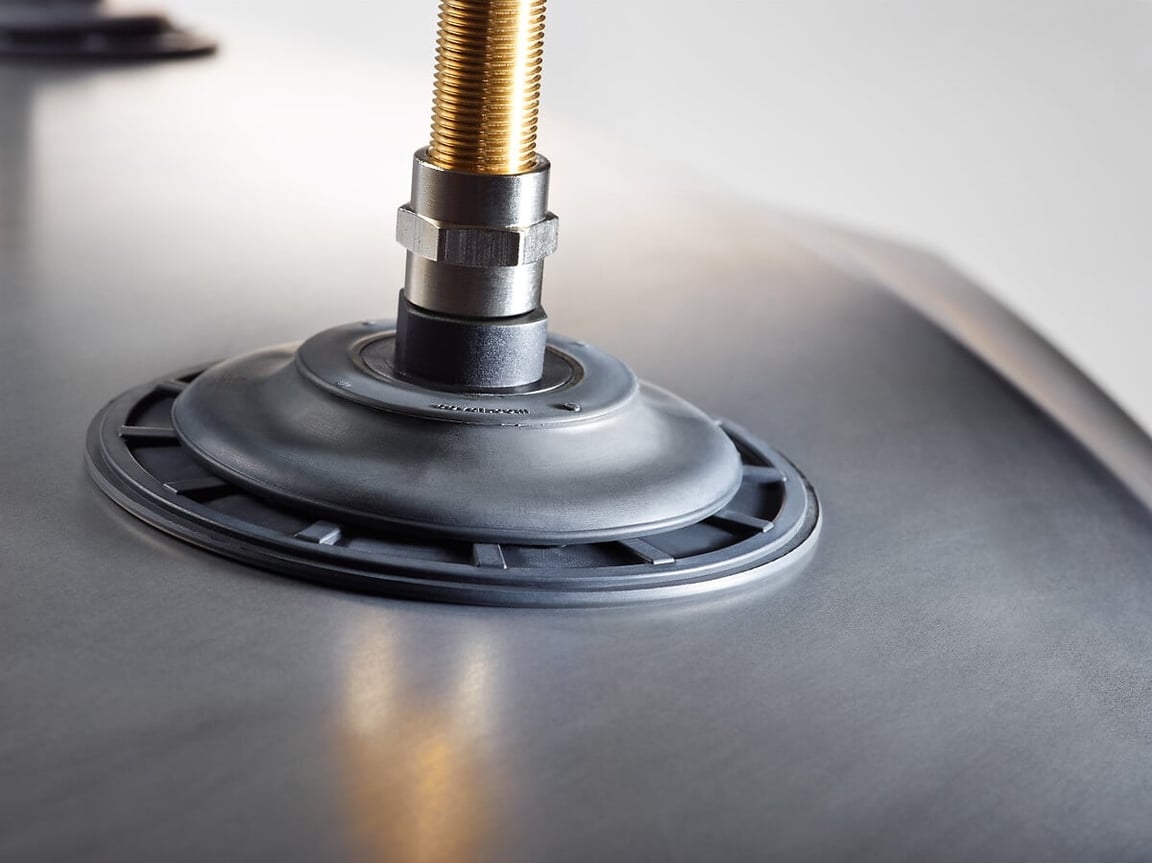

- Structured suction cups for gripping thin sheet metal without deforming the piece.
- Ideal for automated applications.

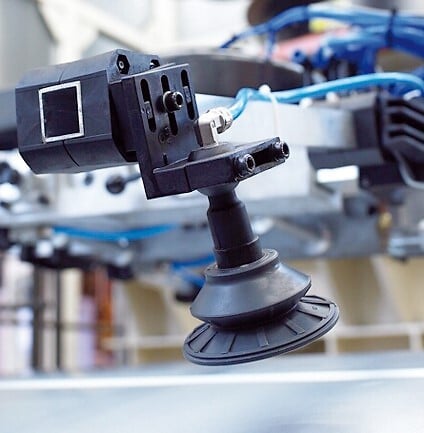

- Specifically for use in the stamping and welding sectors.
Industry-specific applications
Types of use
Keypoints

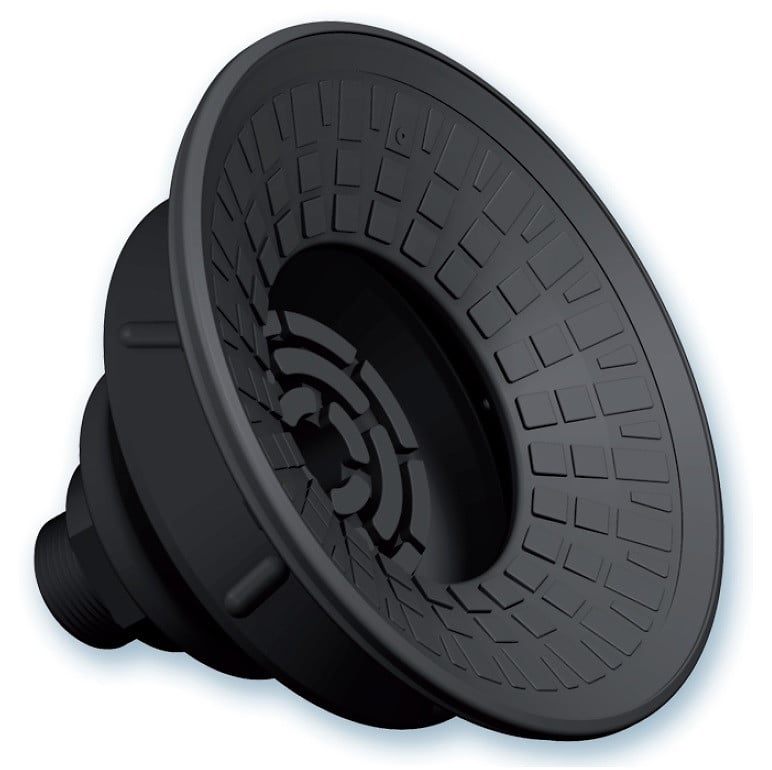

- Suction Cups with Non-slip cleats
- Ø 22 to 115 mm
- Fittings: G3/8"-M, G3/8"-F and square coupling 32
- Materials: Suction cups Nitrile
- Fitting: Polyamide or Aluminum

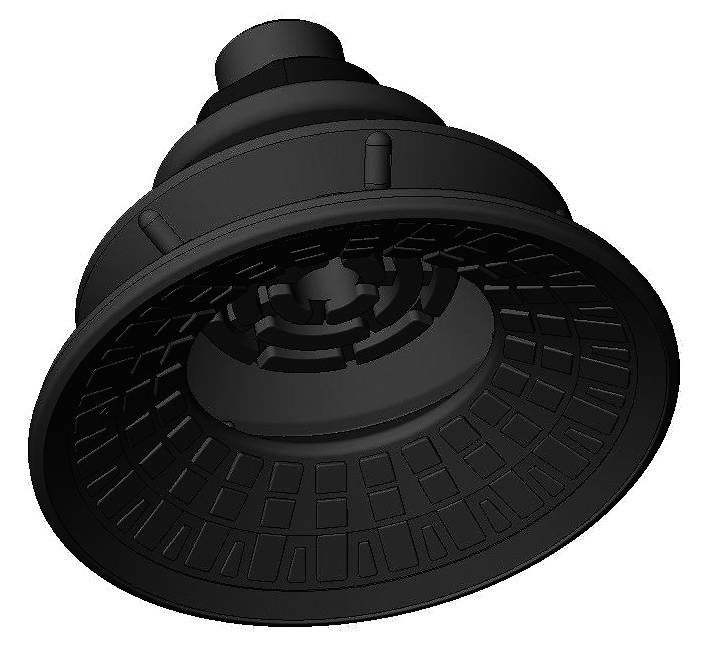

CBC22C32
SUCTION CUP 1.5 BELLOWS DIA 22 NITRILE SQUARE COUPLING- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 21.5
- Stroke | mm: 6
- Suction cup material: Nitrile (NBR)
- Fitting: C32
CBC22F38G
SUCTION CUP 1.5 BELLOWS DIA 22 NITRILE FEM 3/8G- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 21.5
- Stroke | mm: 6
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-F
CBC22F38GA
SUCTION CUP 1.5 BELLOWS DIA 22 NITRILE 3/8G ALUMINUM FEMALE- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 21.5
- Stroke | mm: 6
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-F
CBC22M38G
SUCTION CUP 1.5 BELLOWS DIA 22 NITRILE MALE 3/8G- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 21.5
- Stroke | mm: 6
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-M
CBC22M38GA
SUCTION CUP 1.5 BELLOWS DIA 22 NITRILE 3/8G ALUMINUM MALE- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 21.5
- Stroke | mm: 6
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-M
CBC30C32
SUCTION CUP 1.5 BELLOWS DIA 30 NITRILE SQUARE COUPLING- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 8
- Suction cup material: Nitrile (NBR)
- Fitting: C32
CBC30F38G
SUCTION CUP 1.5 BELLOWS DIA 30 NITRILE FEM 3/8G- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 8
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-F
CBC30F38GA
SUCTION CUP 1.5 BELLOWS DIA 30 NITRILE 3/8G ALUMINUM FEMALE- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 8
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-F
CBC30M38G
SUCTION CUP 1.5 BELLOWS DIA 30 NITRILE MALE 3/8G- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 8
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-M
CBC30M38GA
SUCTION CUP 1.5 BELLOWS DIA 30 NITRILE 3/8G ALUMINUM MALE- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 8
- Suction cup material: Nitrile (NBR)
- Fitting: G3/8"-M
