Long Stroke Suction Cups, VSD series
Long stroke suction cups (4.5 and 5.5 bellows) are specially recommended for handling spherical or cylindrical objects or which require compensation for varying heights.
The possible «suction cup+fitting» combinations are available on the documentation to download here.
Industry-specific applications
Types of use
Keypoints
- Long stroke suction cups (4.5 and 5.5 bellows) are specially recommended for handling spherical or cylindrical objects or which require compensation for varying heights.

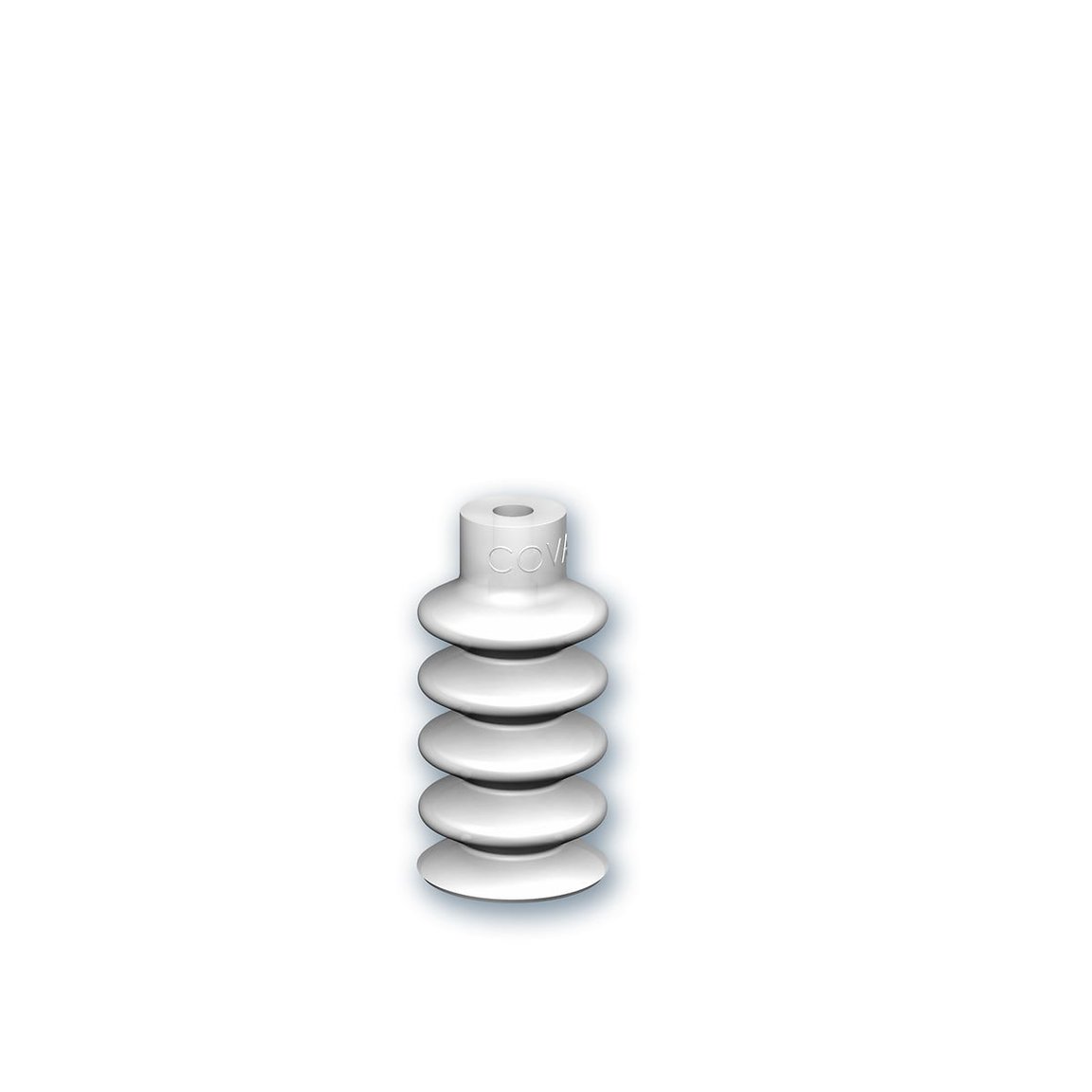

VSD18SIT5
SUCTION CUP 4.5 B DIA 18 SILICONE- Form: 4.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 17.5
- Stroke | mm: 18
- Suction cup material: Silicone (SI)

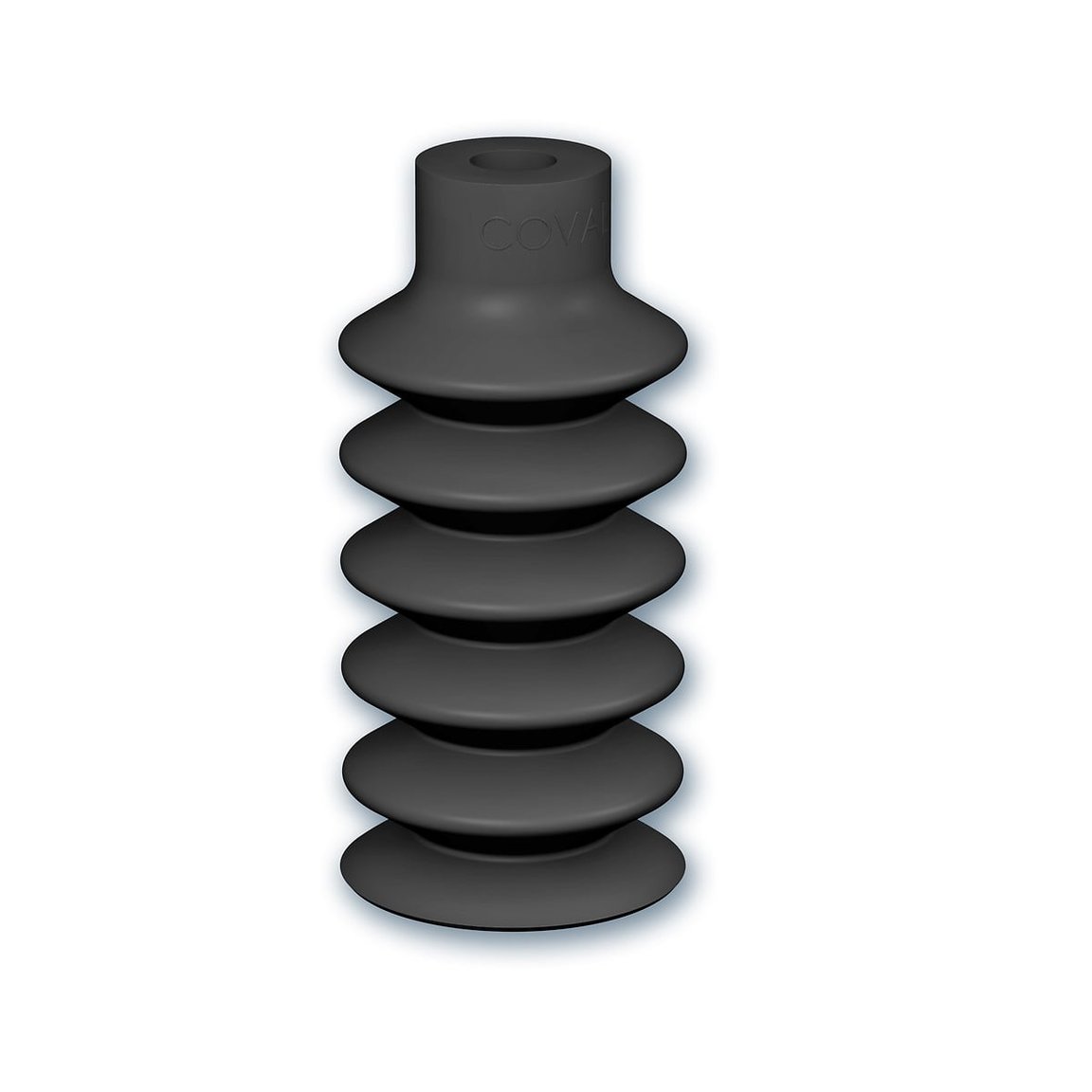

VSD32NBR
SUCTION CUP 4.5 B DIA 32 NITRILE- Form: 5.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 34
- Suction cup material: Nitrile (NBR)

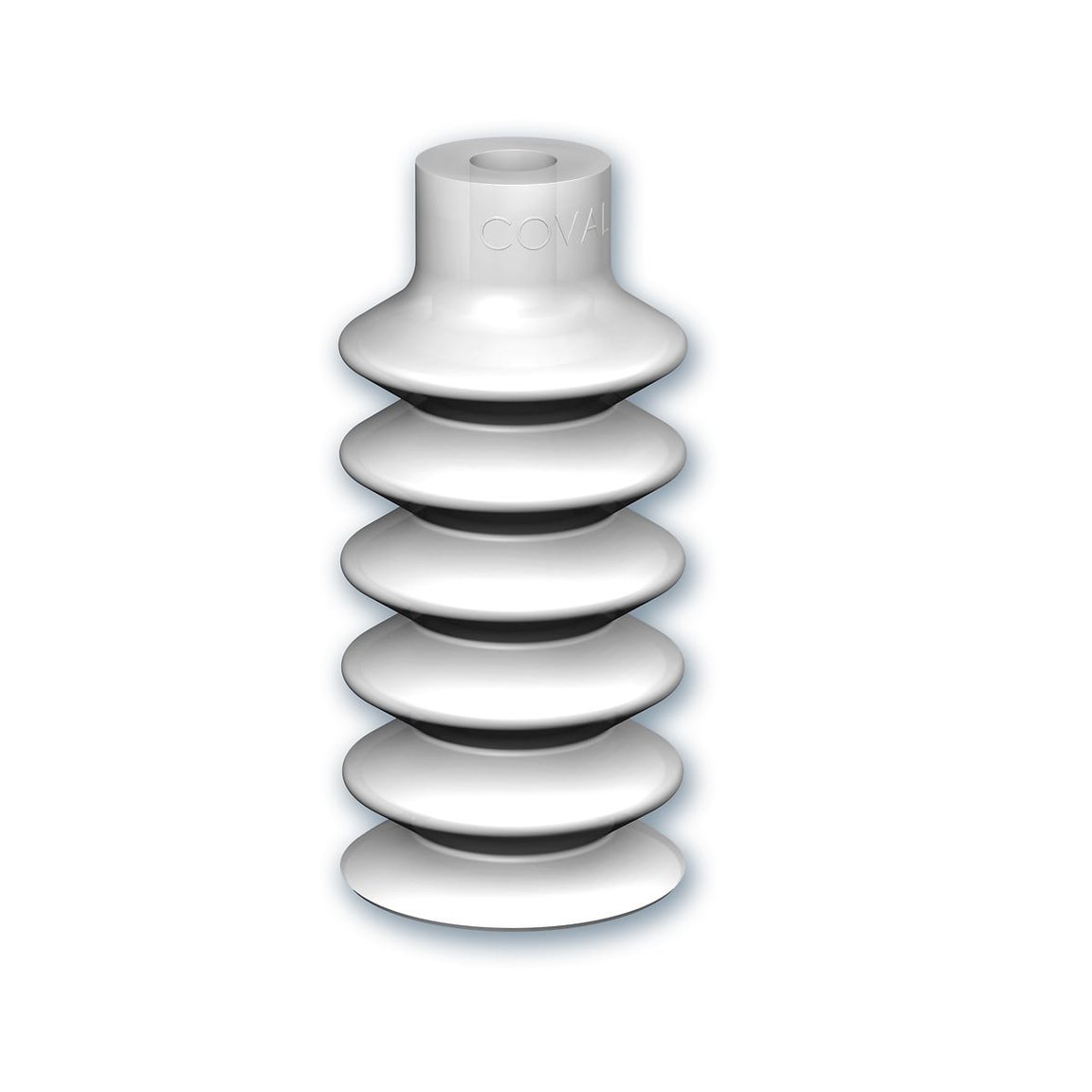

VSD32SIT3
SUCTION CUP 5.5 B DIA 32 SILICONE 35-SHORE- Form: 5.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 32
- Stroke | mm: 34
- Suction cup material: Silicone (SI)

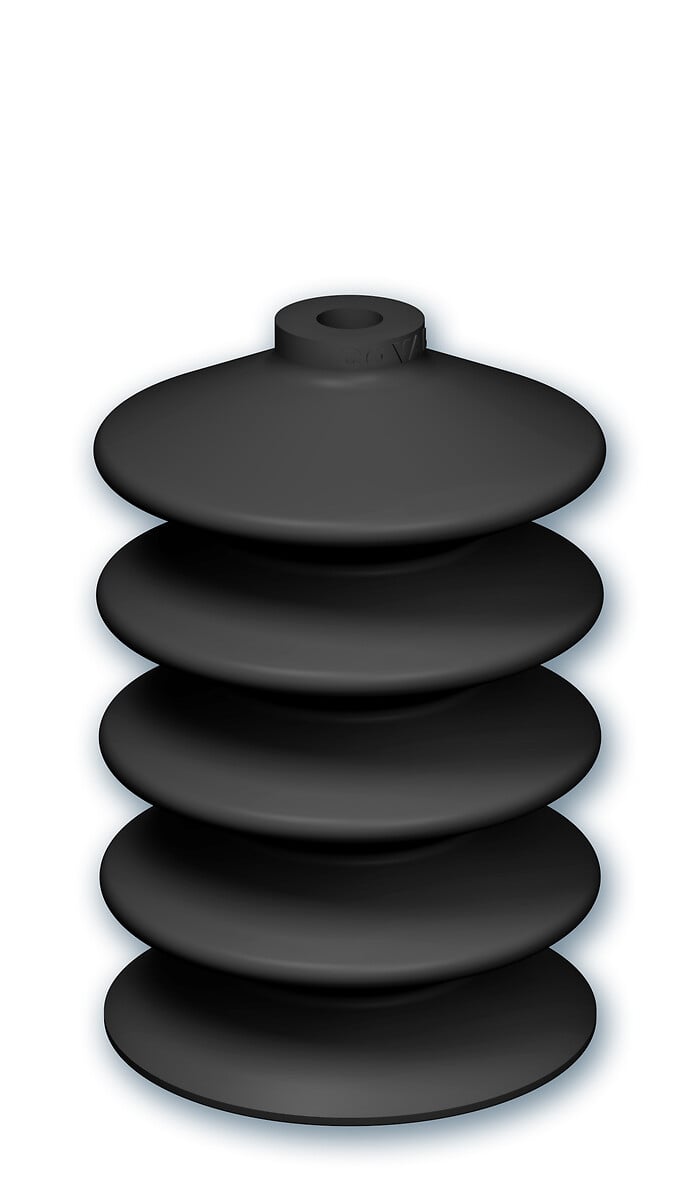

VSD62NBR
SUCTION CUP 4.5 BELLOW DIA 62 NITRILE 60 SH- Form: 4.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 62
- Stroke | mm: 55
- Suction cup material: Nitrile (NBR)
