Vacuum Valves, 3 channels, AG series
The 3-channel AG vacuum valves are designed to optimize vacuum networks, offering increased efficiency in various applications. Available in configurations with vacuum or compressed air supplied servos, and in normally open or closed modes, they offer flow rates ranging from 1.5 to 180 m³/h and various control voltages, thus meeting diverse industrial needs.
Keypoints
- Connection on the vacuum network
- Electric control
- Voltage: 12 VDC / 24 VDC or 24 VAC / 110 VAC / 220 VAC
- NO or NC for the vacuum or compressed air supplied servo

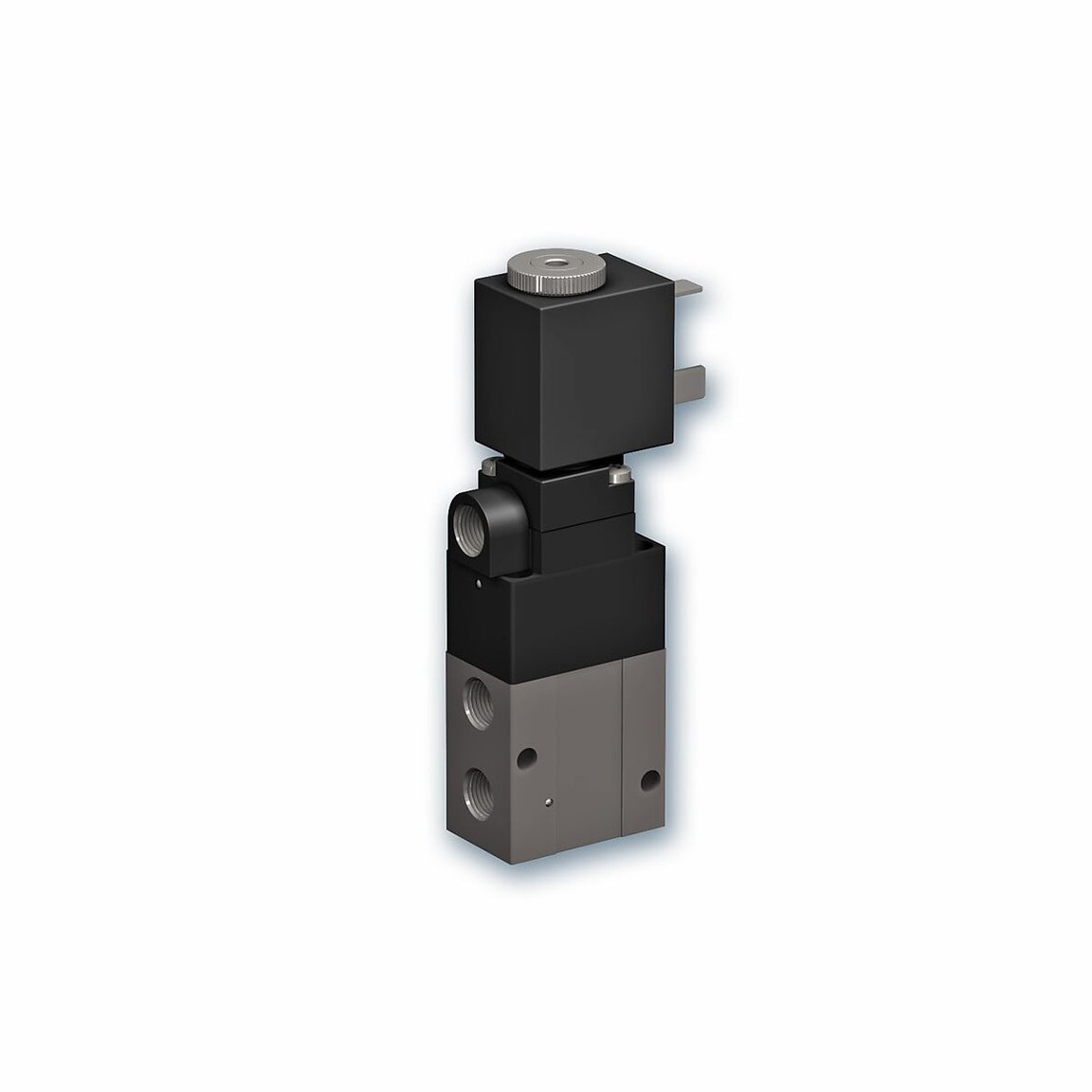

AG3001E1
3-CHANNEL VACUUM VALVE NC CA SUPPLIED SERVO G1/8'' 24 VDC- Models: NC CA supplied servo, G1/8''-F, 24 VDC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V CC / DC
AG3001E2
3-CHANNEL VACUUM VALVE NC CA SUPPLIED SERVO G1/8'' 220 VAC- Models: NC CA supplied servo, G1/8''-F, 220 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 220 V AC
AG3001E3
3-CHANNEL VACUUM VALVE NC CA SUPPLIED SERVO G1/8'' 24 VAC- Models: NC CA supplied servo, G1/8''-F, 24 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V AC
AG3001E4
3-CHANNEL VACUUM VALVE NC CA SUPPLIED SERVO G1/8'' 110 VAC- Models: NC CA supplied servo, G1/8''-F, 110 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 110 V AC
AG3001E5
3-CHANNEL VACUUM VALVE NC CA SUPPLIED SERVO G1/8'' 48 VAC- Models: NC CA supplied servo, G1/8''-F, 48 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 48 V AC
AG3001E7
3-CHANNEL VACUUM VALVE NC CA SUPPLIED SERVO G1/8'' 12 VDC- Models: NC CA supplied servo, G1/8''-F, 12 V DC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 12 V CC / DC
AG3002E1
3-CHANNEL VACUUM VALVE NO CA SUPPLIED SERVO G1/8'' 24 VDC- Models: NO CA supplied servo, G1/8''-F, 24 VDC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V CC / DC
AG3002E2
3-CHANNEL VACUUM VALVE NO CA SUPPLIED SERVO G1/8'' 220 VAC- Models: NO CA supplied servo, G1/8''-F, 220 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 220 V AC
AG3002E3
3-CHANNEL VACUUM VALVE NO CA SUPPLIED SERVO G1/8'' 24 VAC- Models: NO CA supplied servo, G1/8''-F, 24 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 24 V AC
AG3002E4
3-CHANNEL VACUUM VALVE NO CA SUPPLIED SERVO G1/8'' 110 VAC- Models: NO CA supplied servo, G1/8''-F, 110 V AC
- Flow rate | m3/h: 1.5
- Nominal diameter | mm: 5.5
- Power supply voltage: 110 V AC
