Mini Vacuum Switch, PSK series
The PSK series adjustable vacuum switches, due to a compact and ultra-light design, enable installation close to the suction cups for reduced response times.
PSKs are ideal for applications requiring only a simple "object gripped" signal, and offer an economical and effective solution for applications with one vacuum generator per suction cup.
Advantages:
- Simple installation, plug-in port or thread-in fitting
- Compact size: 26 x 10 x 10.4 mm
- Weight: 8.3 g
Industry-specific applications
Keypoints
- 1 digital output
- Adjustable vacuum threshold
- 3 models
- 4 vacuum fittings: Ø 6mm, G1/8"-M, M5-F, M5-M
- M8 connection
- IP40
- Weight: 8.3 g

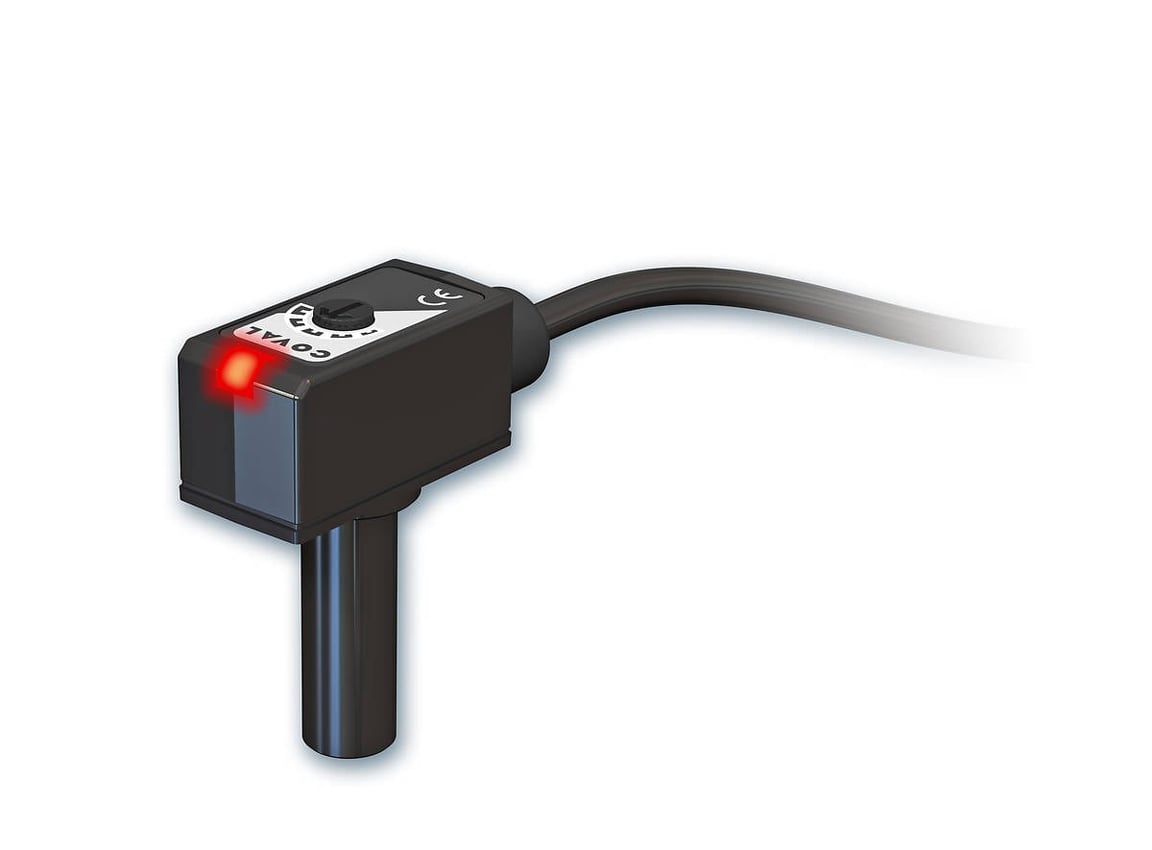

PSK100D6M8
PRESSURE SWITCH PNP M8 - D6- Models: 1 PNP contact output
- Hysteresis: 3% F.S. max
- Connection: M8 connection 3-pin (Cable L:150 mm)
- Vacuum connection: Ø 6 mm

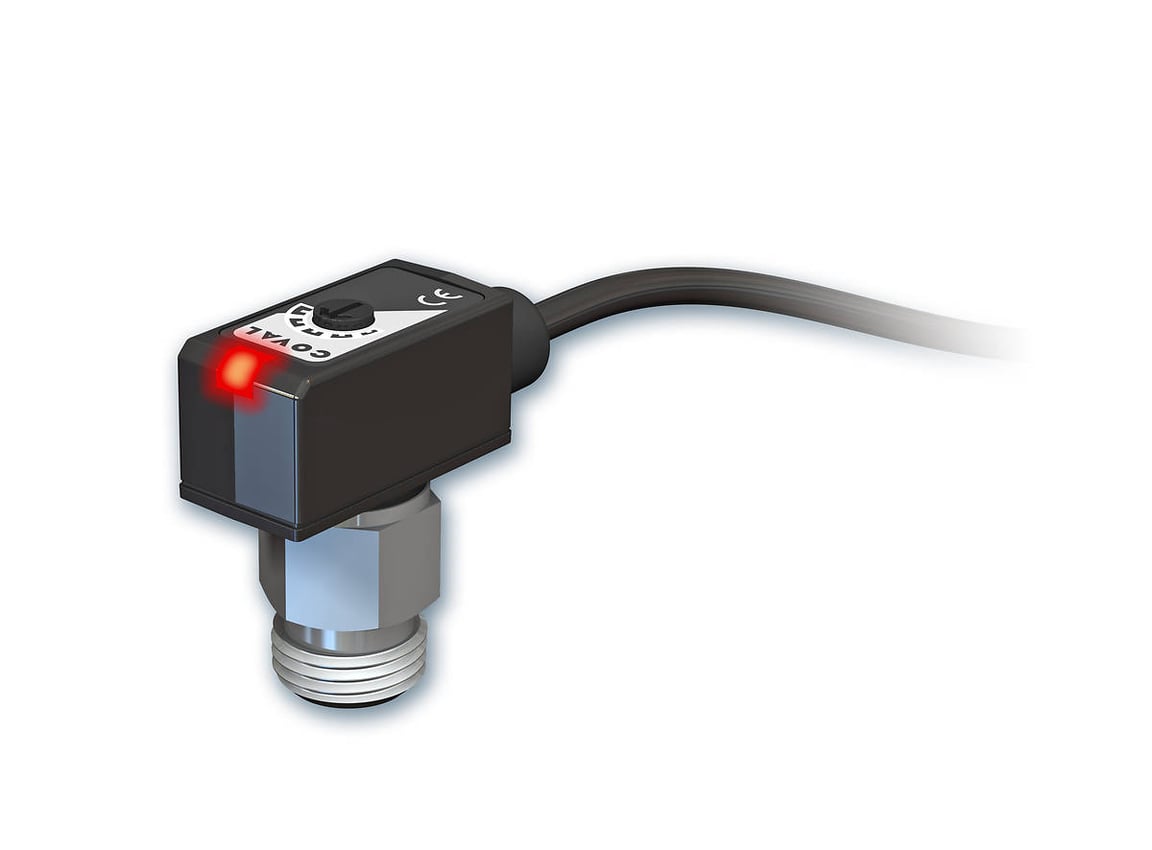

PSK100G18M8
PRESSURE SWITCH PNP M8 - G1/8- Models: 1 PNP contact output
- Hysteresis: 3% F.S. max
- Connection: M8 connection 3-pin (Cable L:150 mm)
- Vacuum connection: G1/8"-M,M5-F

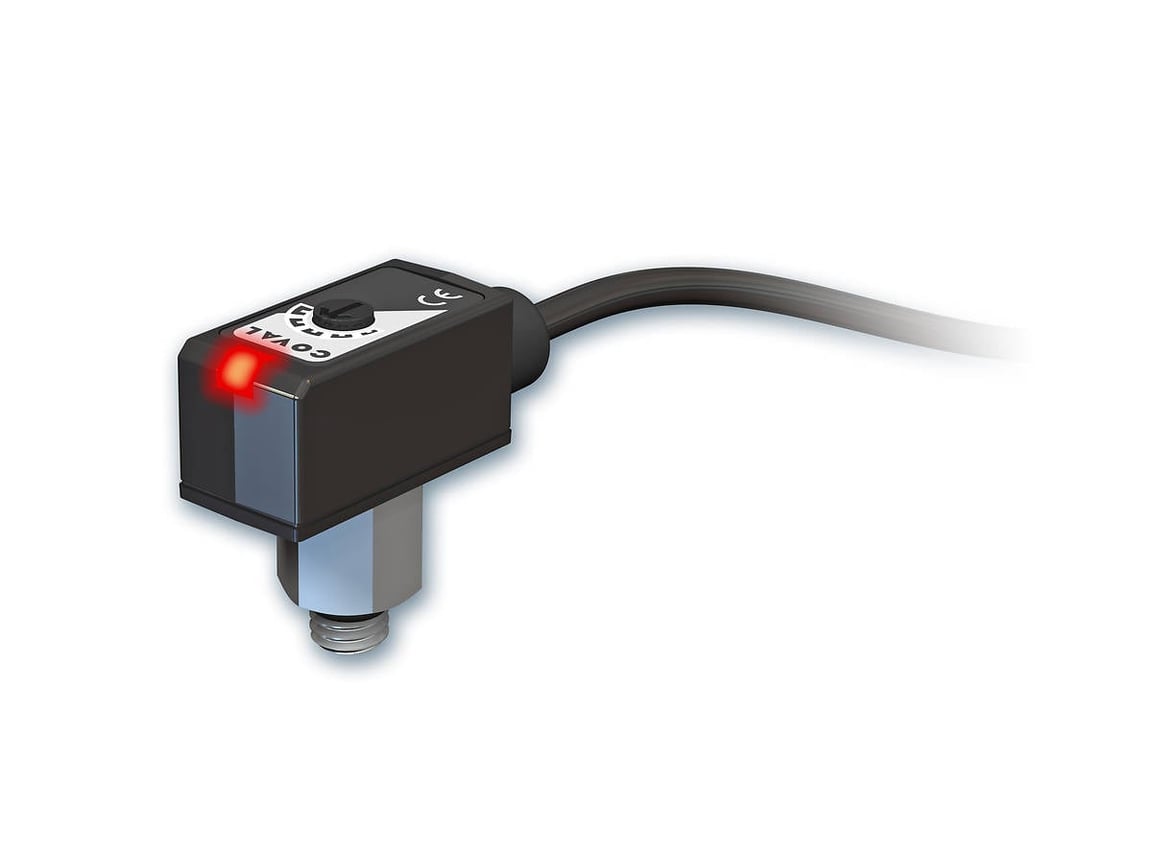

PSK100M5M8
PRESSURE SWITCH PNP M8 - M5- Models: 1 PNP contact output
- Hysteresis: 3% F.S. max
- Connection: M8 connection 3-pin (Cable L:150 mm)
- Vacuum connection: M5-M
