Electric Vacuum Switch, PSE100E series
The PSE100E series vacuum switch with electric output allows the vacuum level in the system to be checked by means of a patented system.
It is adapted to all electrical automated systems.
The choice between the N.O. or N.C. function is made during wiring.
Industry-specific applications
Keypoints
- 1 digital output
- Adjustment range: -300mb to -850mb
- All voltages
- 2 vacuum fittings: G1/8"-M, M5-F
- Cable or M12 connector
- IP 54
- Weight: 27 to 165 g

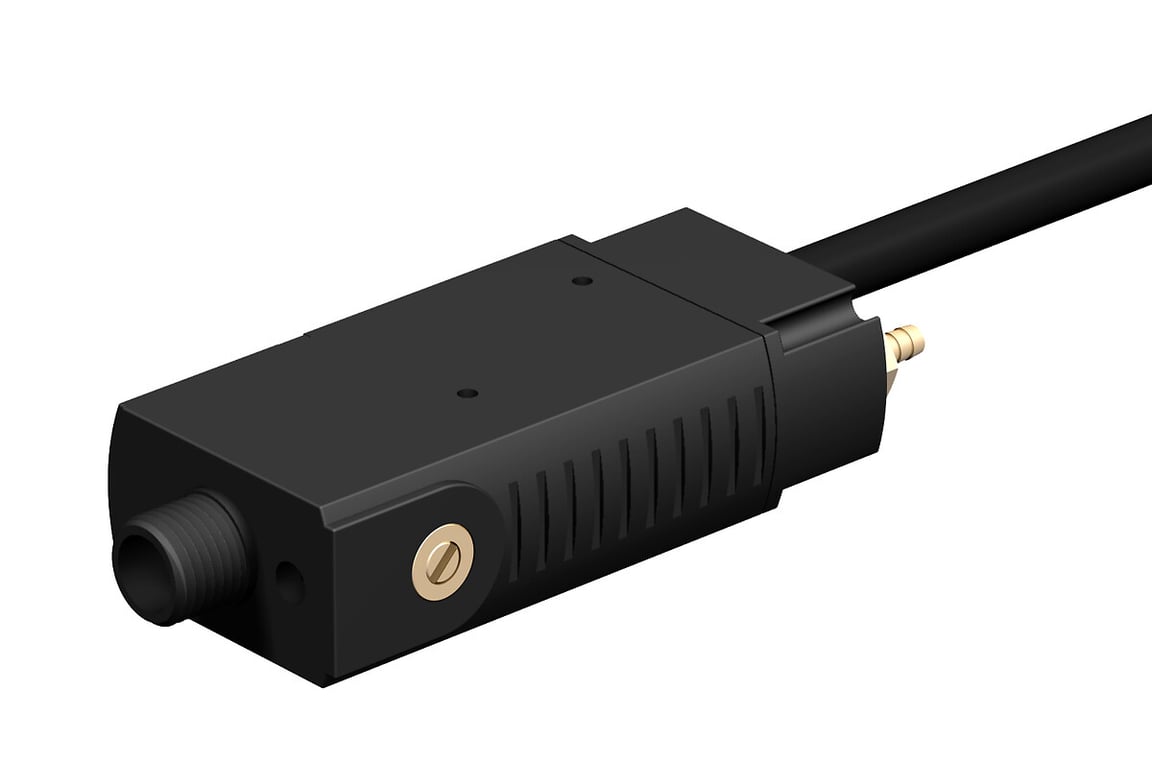

PSE100E
ELEC.MECH. VACUUM SWITCH WIRE- Models: 1 contact output
- Hysteresis: 125 mb
- Connection: 3 wire PVC cable, length 2 m
- Vacuum connection: G1/8"-M,M5-F
PSE100EC
ELEC.MECH. VACUUM SWITCH M12- Models: 1 contact output
- Hysteresis: 125 mb
- Connection: M12 female connector
- Vacuum connection: G1/8"-M,M5-F
