Easy Clean Vacuum Pumps, GVEC Series
The “Easy Clean” GVEC series vacuum pumps have been designed to meet the needs of vacuum handling applications in industries whose production requires frequent cleaning, particularly in the food-processing sector.
Material:
Body and mixer: POM-C
Nozzle: 316L stainless steel
Seal: EPDM
Industry-specific applications
Keypoints
- Ø Nozzle: 1.5, 2.5, 3 mm
- Max. vacuum: 75%
- Max. air drawn in: 330 Nl/min
- Plastic (POM-C) and Inox (316L) conception
Advantages
- Plastic and stainless steel materials: meet the requirements of splash zones, are resistant to cleaning agents and corrosion
- Compact and light design: installation as close as possible to suction cups to improve the evacuation times and production rate
- Easy disassembly: quick and precise cleaning

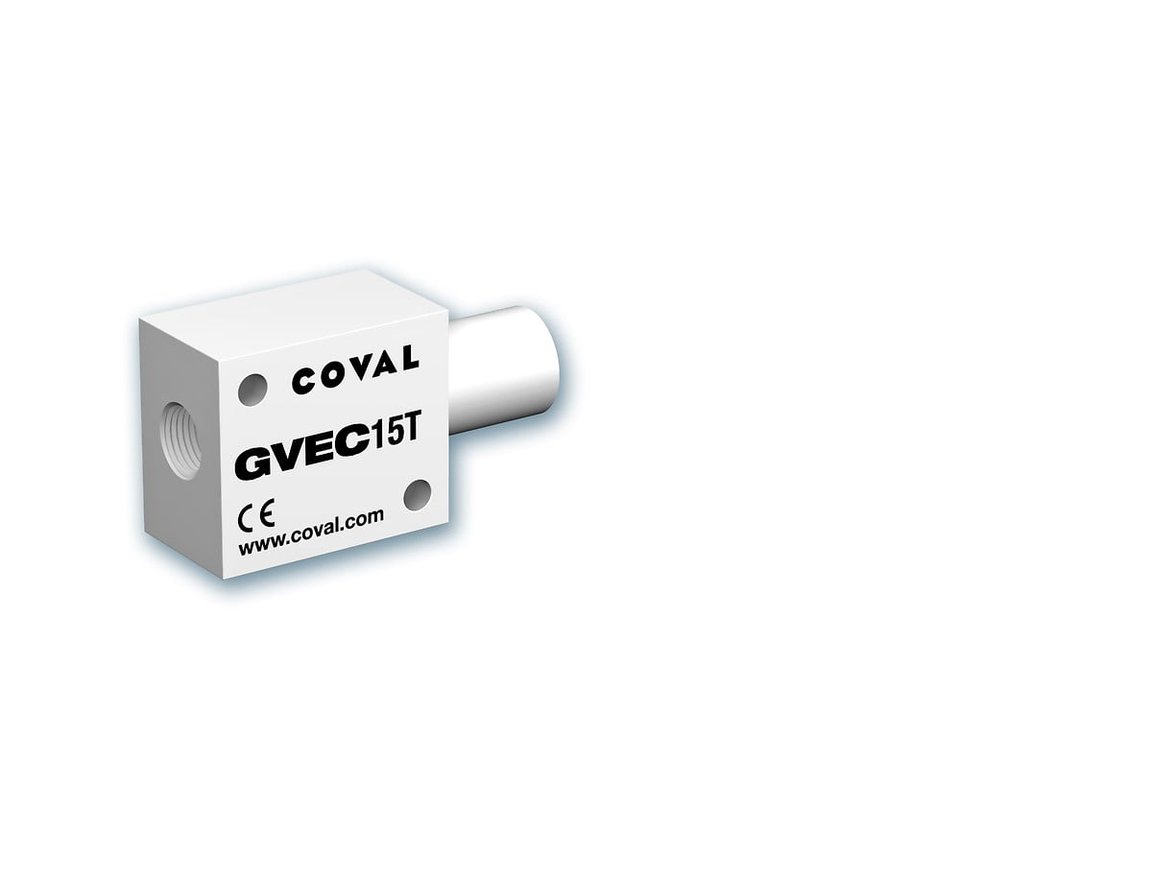

GVEC15T18
EASY CLEAN VACUUM PUMP VACUUM MAX 75% N DIA1.5 MM- Nozzle diameter | mm: 1.5
- Air drawn in | Nl/min: 95
- Maximum vacuum | %: 75
- Vacuum connection: G1/4"-F

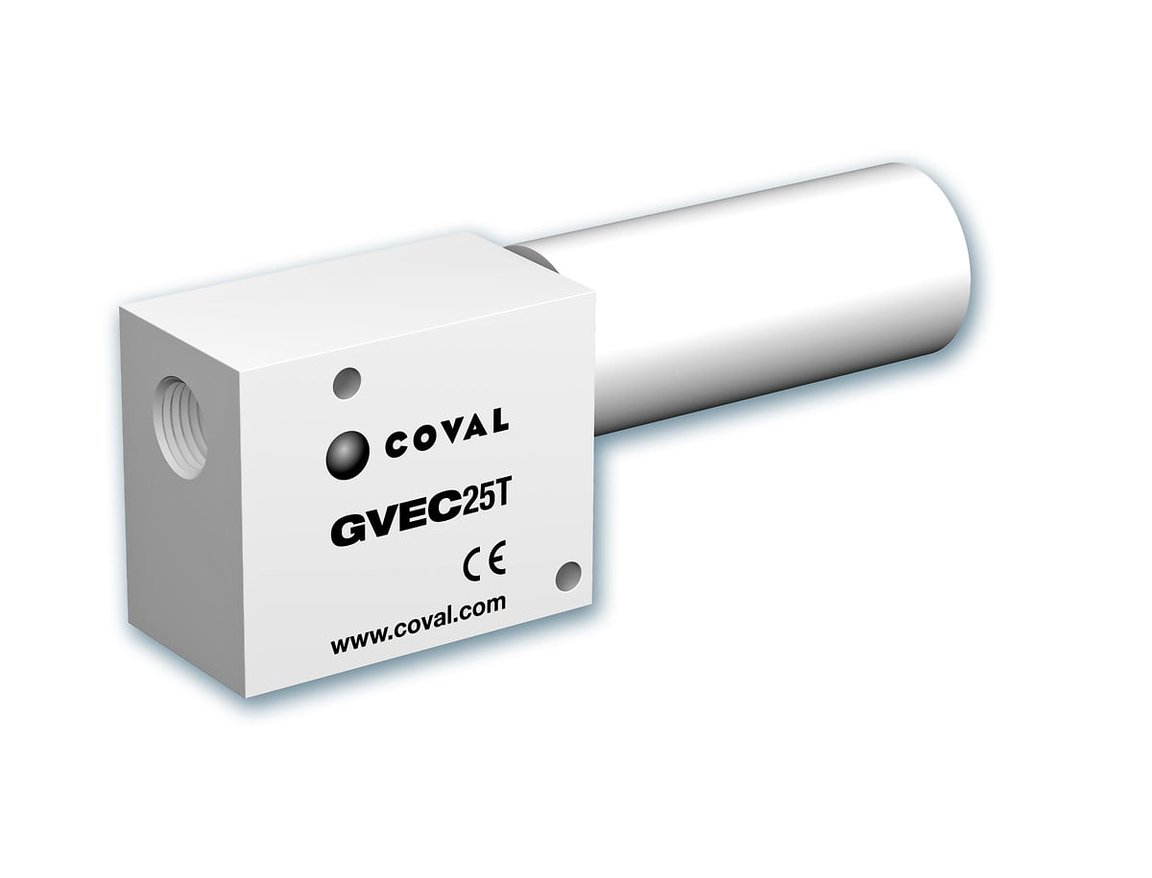

GVEC25T14
EASY CLEAN VACUUM PUMP VACUUM MAX 75% N DIA2.5 MM- Nozzle diameter | mm: 2.5
- Air drawn in | Nl/min: 240
- Maximum vacuum | %: 75
- Vacuum connection: G1/2"-F

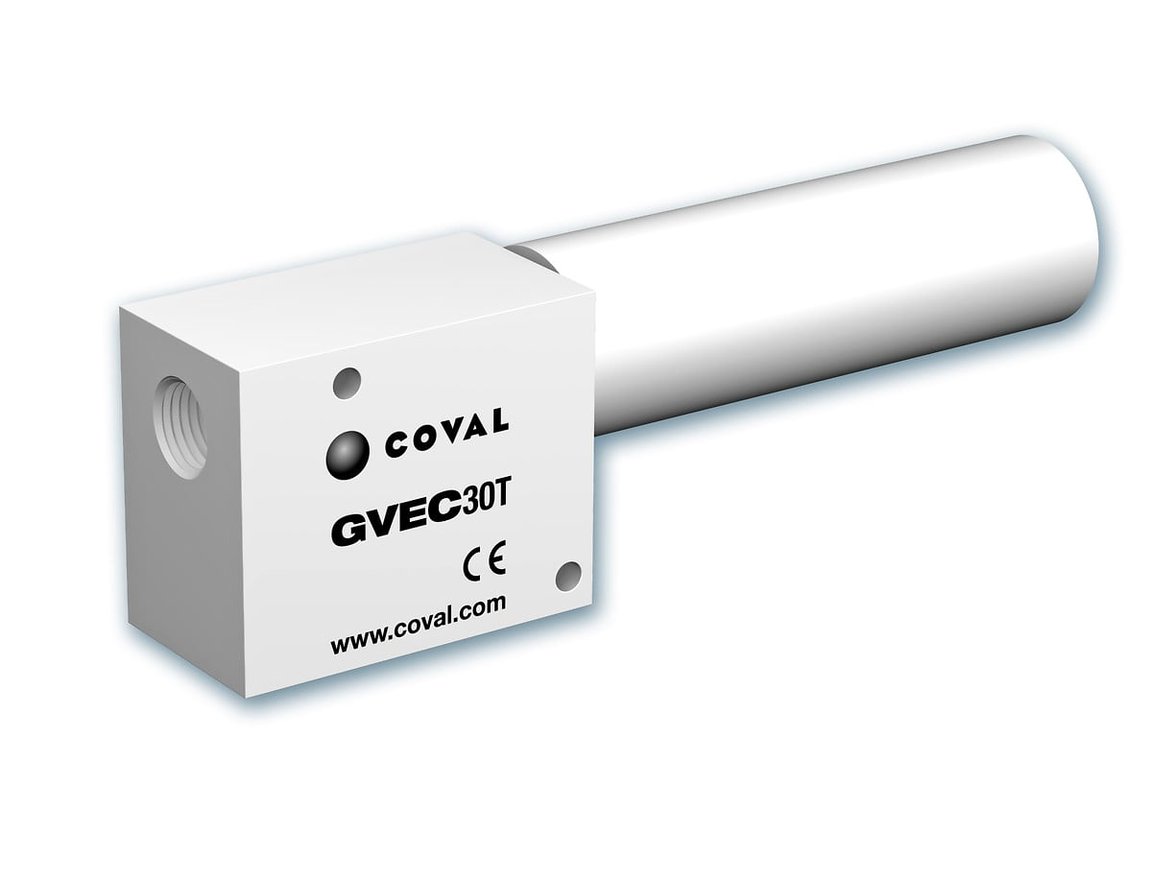

GVEC30T14
EASY CLEAN VACUUM PUMP VACUUM MAX 75% N DIA3.0 MM- Nozzle diameter | mm: 3
- Air drawn in | Nl/min: 330
- Maximum vacuum | %: 75
- Vacuum connection: G1/2"-F
