Pilot Control Cartridge, CBP Series

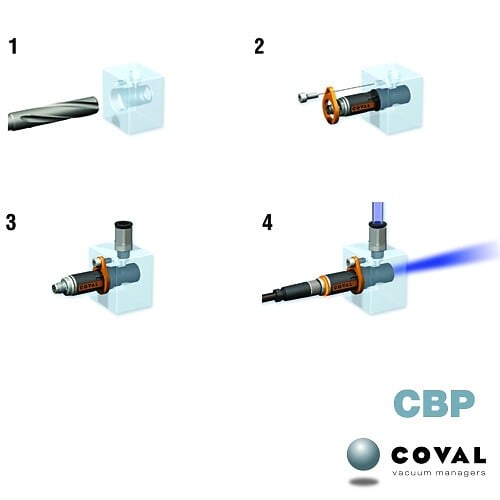

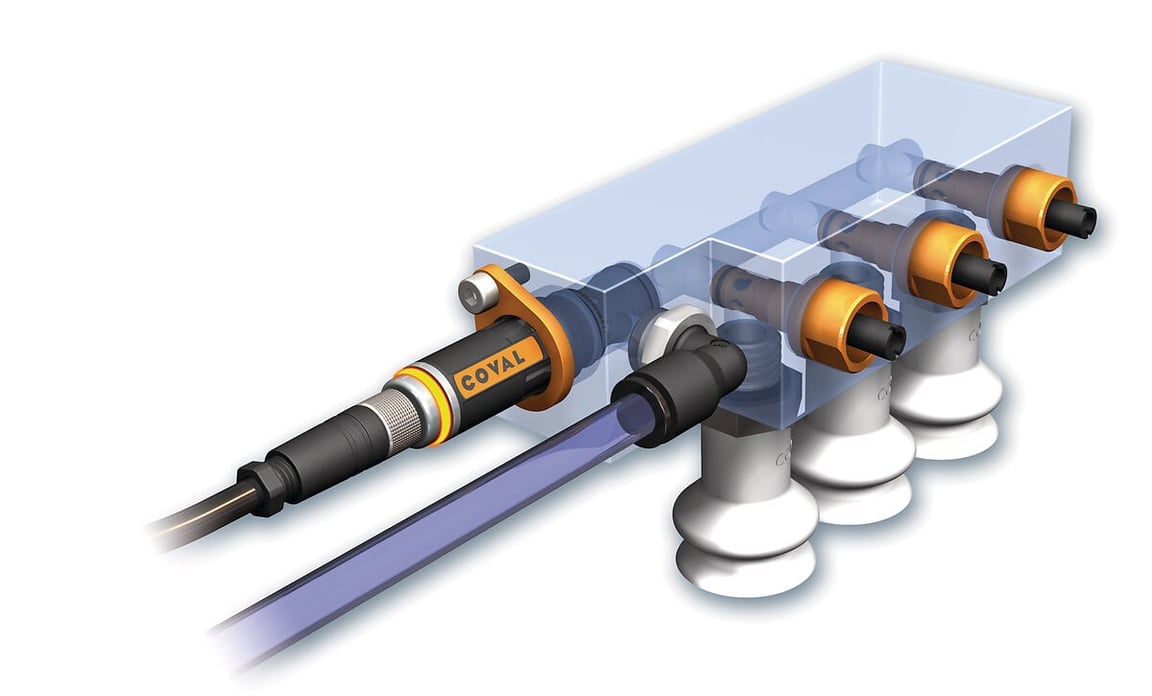

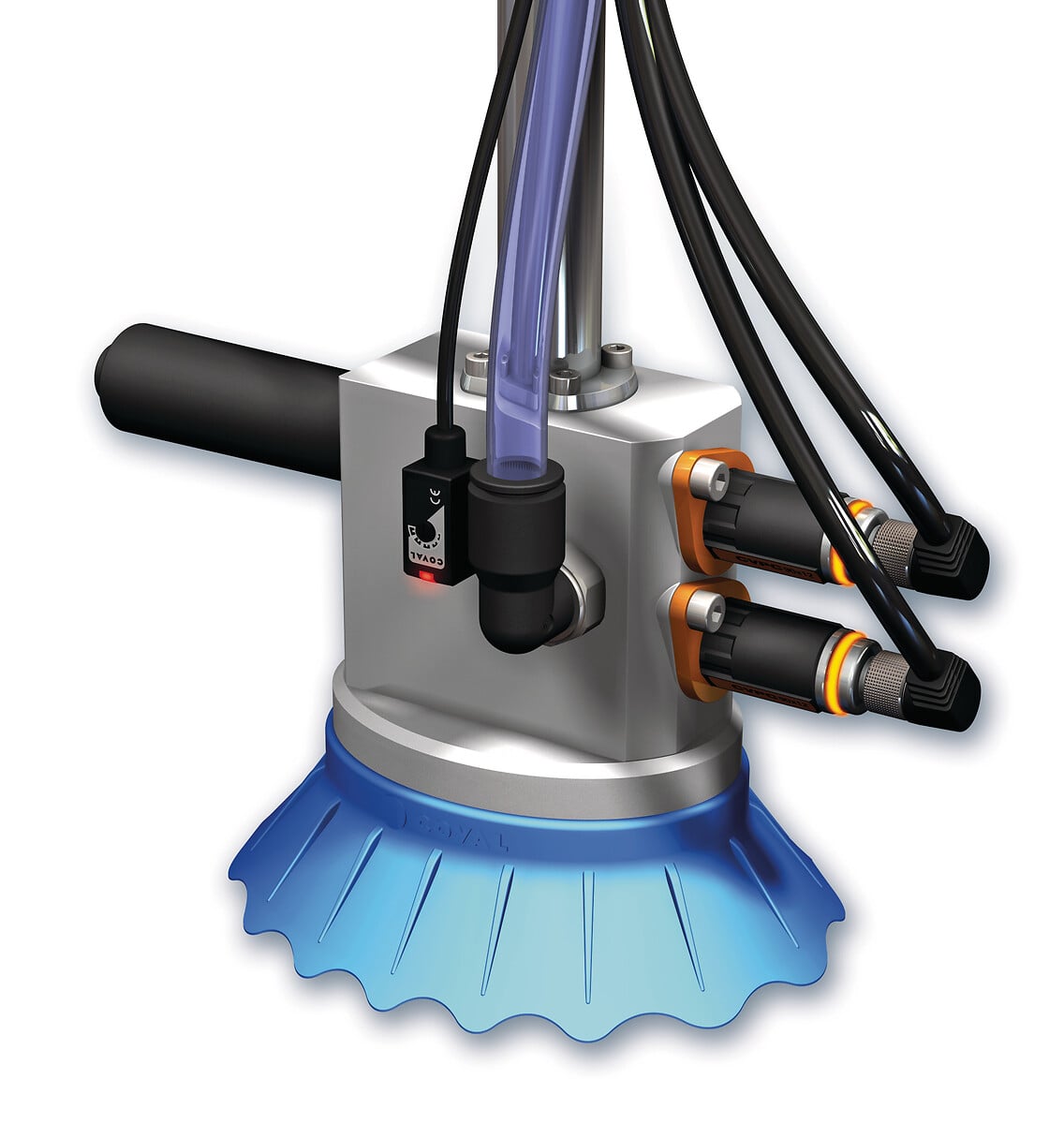

The CBP Series pilot control cartridge is complementary to the CVPC Series controlled vacuum cartridges for its controlled blow-off function or, when combined with the CVP Series vacuum cartridges, for remote control and/or multi-cartridge control. It is easy to install and meets the needs of machine manufacturers and of integrators of robotic solutions in terms of flexibility and performance.
Use cases:

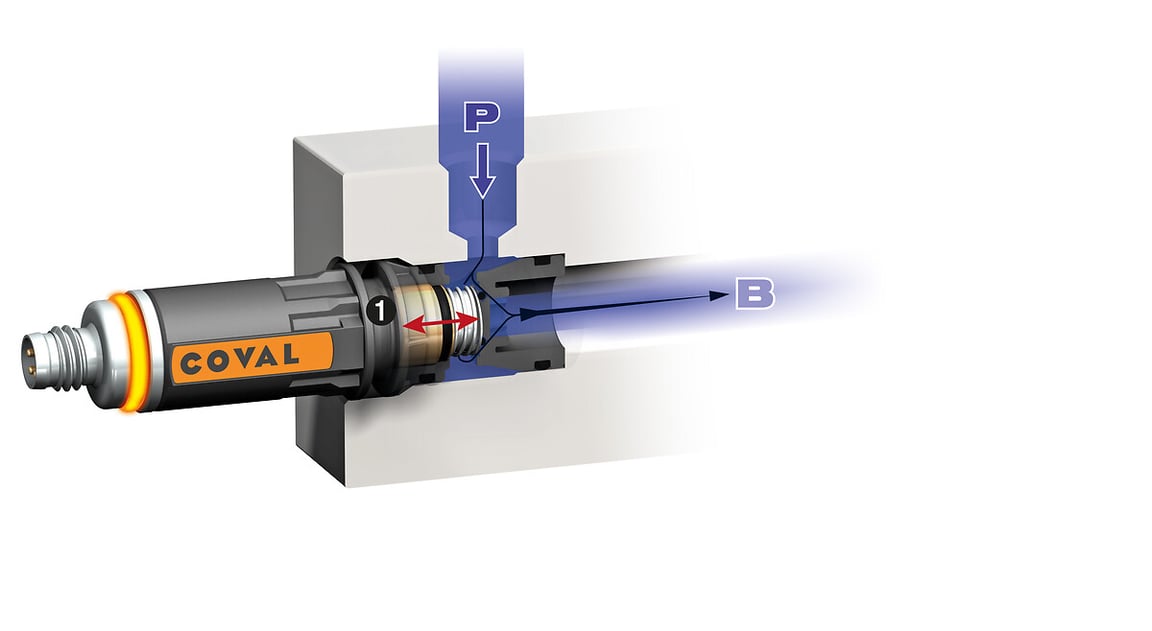

- Electro-pneumatic control valve 2/2-way
- Blow-off control valve

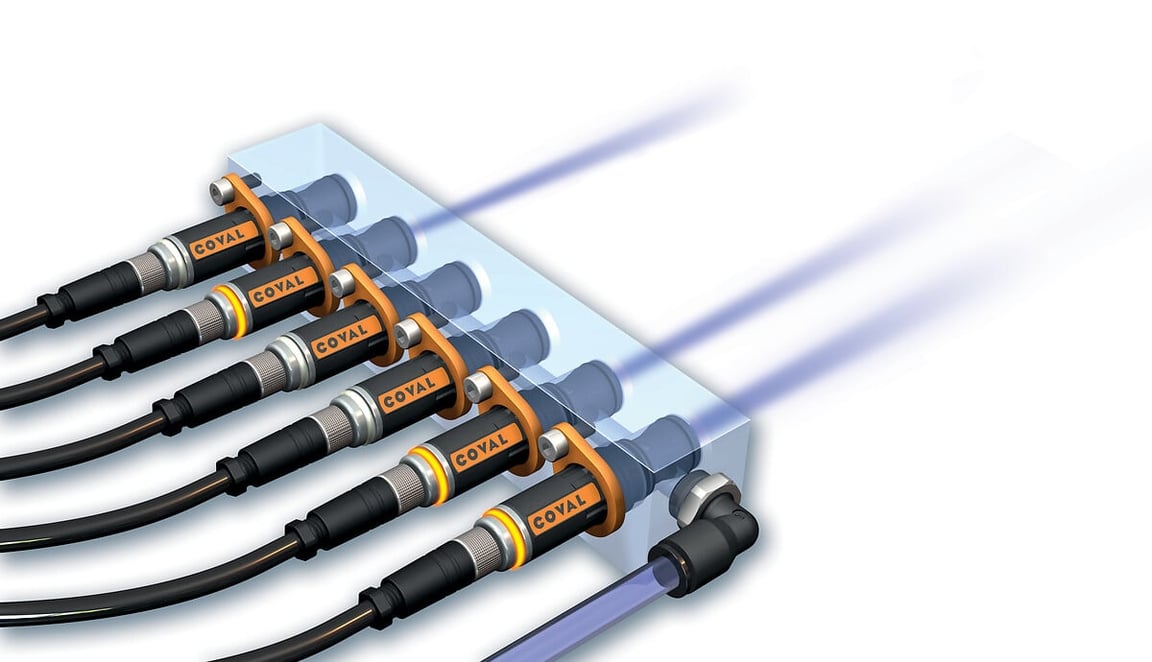

- Single and multi-cartridge control valve
Industry-specific applications
Keypoints
- Pilot solenoid valve
- Type 2/2
- Nominal flow rate at 6 bar Δp1: 355 Nl/min
- Nominal diameter: 3 mm
- M8 connections
- Control indicator light
- Weight: 18 g
CBP300
CBP SERIES ELECTROPNEUMATIC CARTRIDGE FLOW 300 NL/MIN- Nominal diameter | mm: 3
- Type: 2/2
- Nominal flow rate | Nl/min: 355
- Electrical connection: 1 x M8 4-pin
- Control voltage | V DC: 24
