Heavy-duty in-Line Ejectors, GVR series
The GVR range has been designed for an industrial environment:
- Compact
- Lightweight
- Optimized technical characteristics
- Pollution‑resistant with its through‑type silencer (SILK 18C)
- Easily integrated onto vacuum grippers
- Pass‑through mounting using M10 screws (GVR 09).
Industry-specific applications
Keypoints
- 2 dimensions
- Nozzle Ø: 0.9, 1, 1.2, 1.4 mm
- Maximum vacuum: 85%
- Air drawn in: 64 Nl/min
- Weight: 45 g

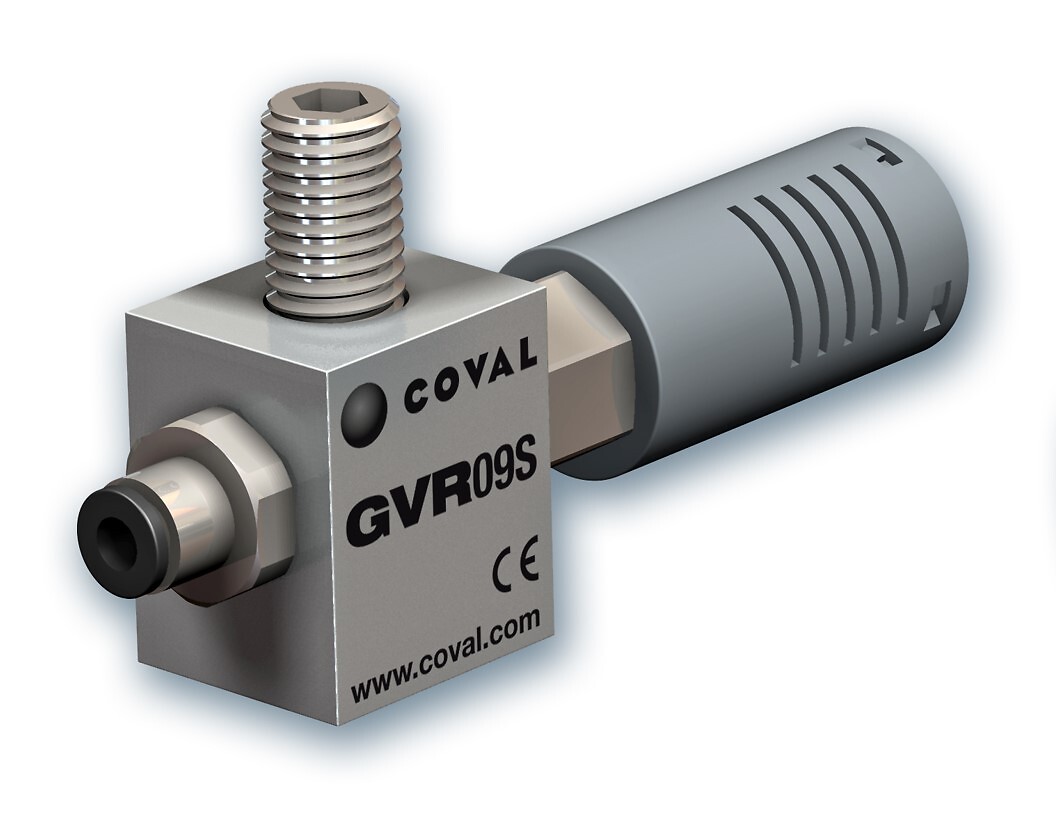

GVR09S
MICRO EJECTOR NOZZLE 0.9 V85%- Nozzle diameter | mm: 0.9
- Air drawn in | Nl/min: 21
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F
GVR10
MICRO EJECTOR NOZZLE 1.0 V85%- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 27
- Maximum vacuum | %: 85
- Vacuum connection: G1/4"-F

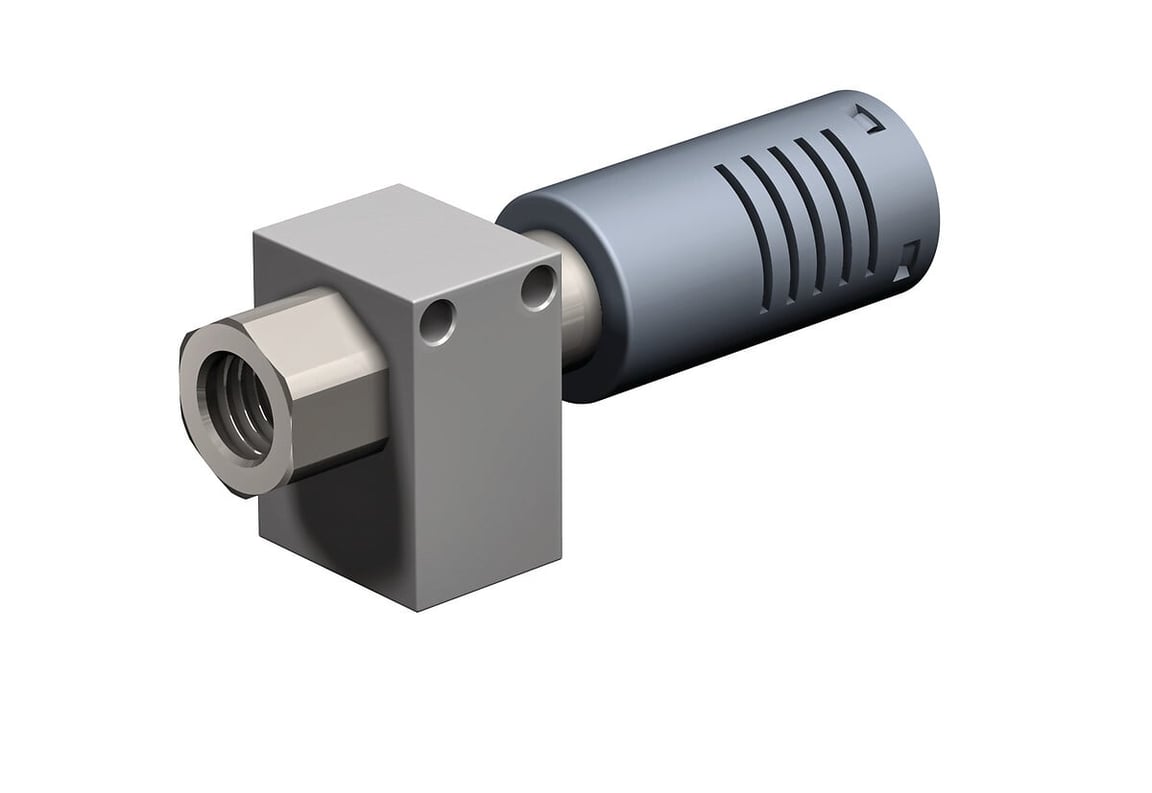

GVR10K
MICRO EJECTOR NOZZLE 1.0 V85%- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 27
- Maximum vacuum | %: 85
- Exhaust: Through-type silencer
- Vacuum connection: G1/4"-F
GVR10S
MICRO EJECTOR NOZZLE 1.2 V85%- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 27
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F
GVR12
MICRO EJECTOR NOZZLE 1.2 V85% W.O SIL- Nozzle diameter | mm: 1.2
- Air drawn in | Nl/min: 45
- Maximum vacuum | %: 85
- Vacuum connection: G1/4"-F
GVR12K
MICRO EJECTOR NOZZLE 1.2 V85%- Nozzle diameter | mm: 1.2
- Air drawn in | Nl/min: 45
- Maximum vacuum | %: 85
- Exhaust: Through-type silencer
- Vacuum connection: G1/4"-F
GVR12S
MICRO EJECTOR NOZZLE 1.2 V85% SIL- Nozzle diameter | mm: 1.2
- Air drawn in | Nl/min: 45
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F
GVR14
MICRO EJECTOR NOZZLE 1.4 V85%- Nozzle diameter | mm: 1.4
- Air drawn in | Nl/min: 64
- Maximum vacuum | %: 85
- Vacuum connection: G1/4"-F
GVR14K
MICRO EJECTOR NOZZLE 1.4 V85%- Nozzle diameter | mm: 1.4
- Air drawn in | Nl/min: 64
- Maximum vacuum | %: 85
- Exhaust: Through-type silencer
- Vacuum connection: G1/4"-F
GVR14S
MICRO EJECTOR NOZZLE 1.4 V85%- Nozzle diameter | mm: 1.4
- Air drawn in | Nl/min: 64
- Maximum vacuum | %: 85
- Exhaust: Diffuser
- Vacuum connection: G1/4"-F
