Controlled Vacuum Cartridges CVPC series

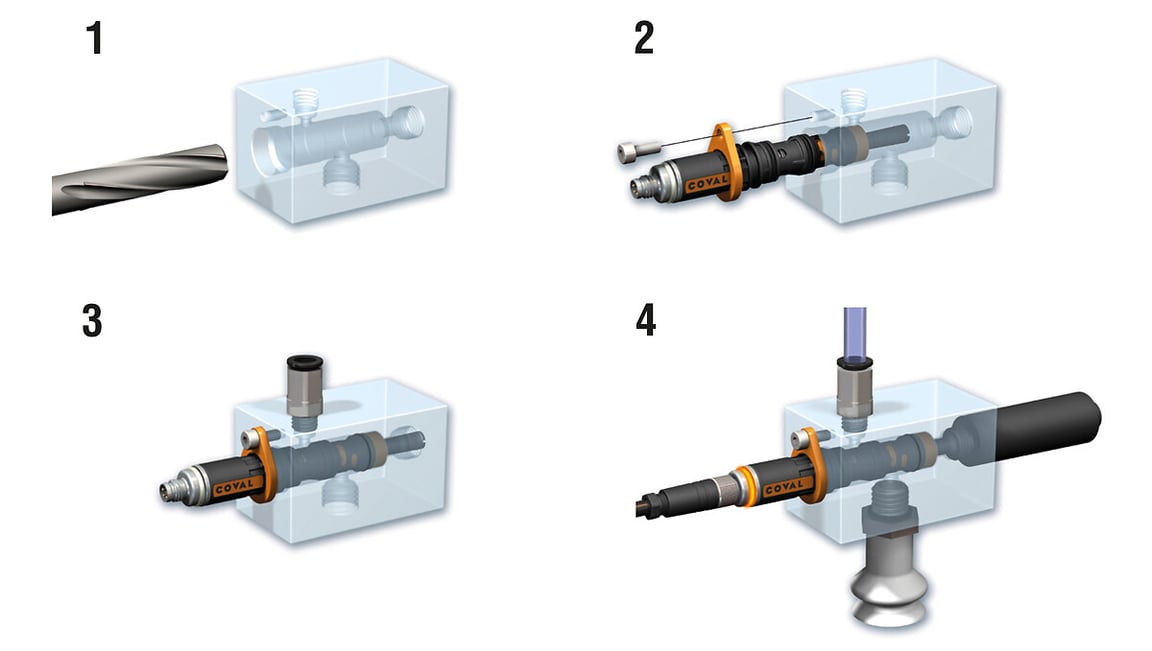

The ultra-compact and light CVPC Series controlled vacuum cartridges are used to effortlessly install a vacuum generation system equipped with an electric control, as close to the corresponding application as possible.
They perfectly meet the flexibility, customization and performance needs of machine manufacturers and integrators of robotic solutions, who want to easily design flexible, modular and efficient gripping tools.
CVPC Series controlled vacuum cartridges are suitable for a broad variety of applications and are available in different sizes and suction capacities:

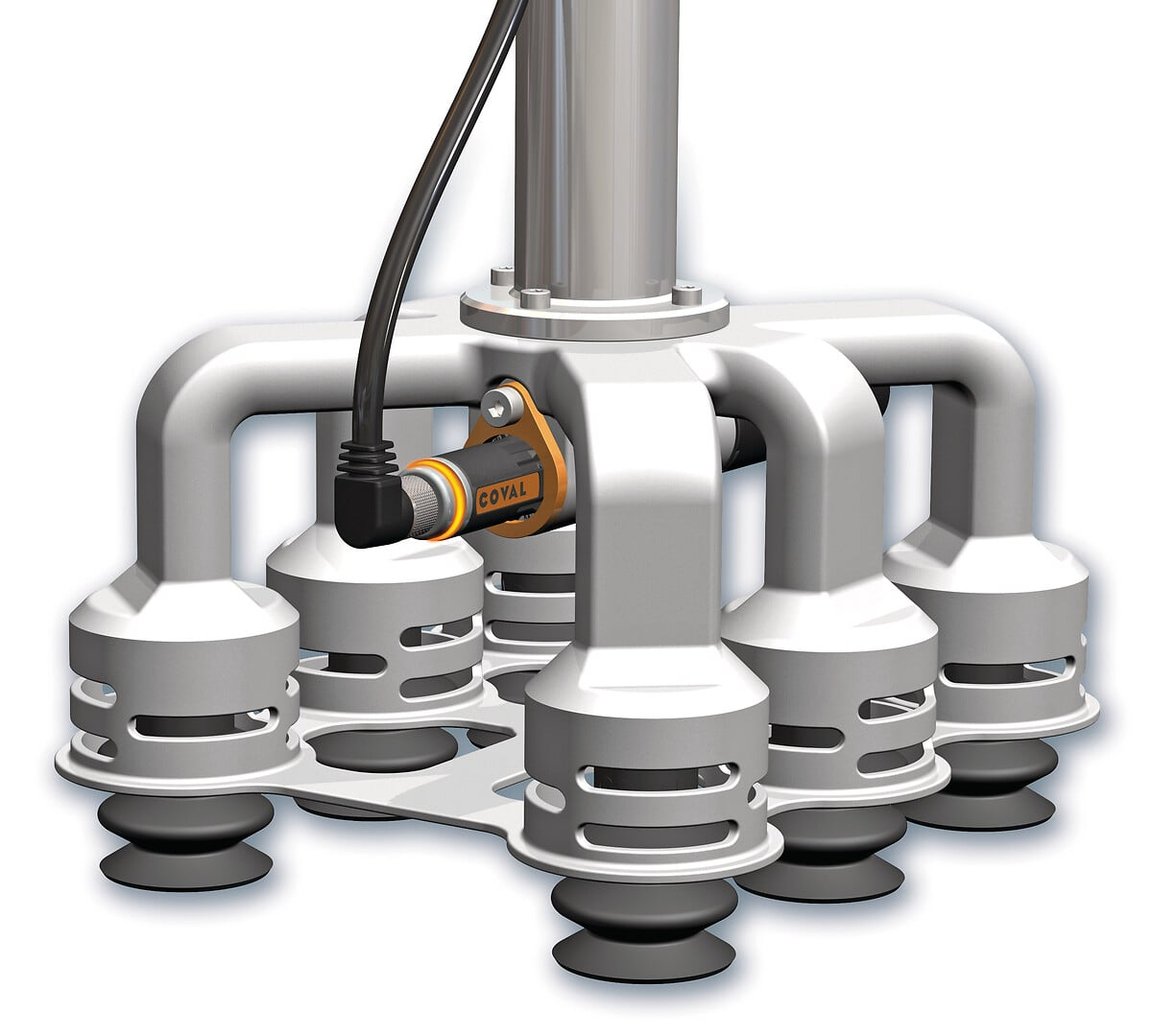

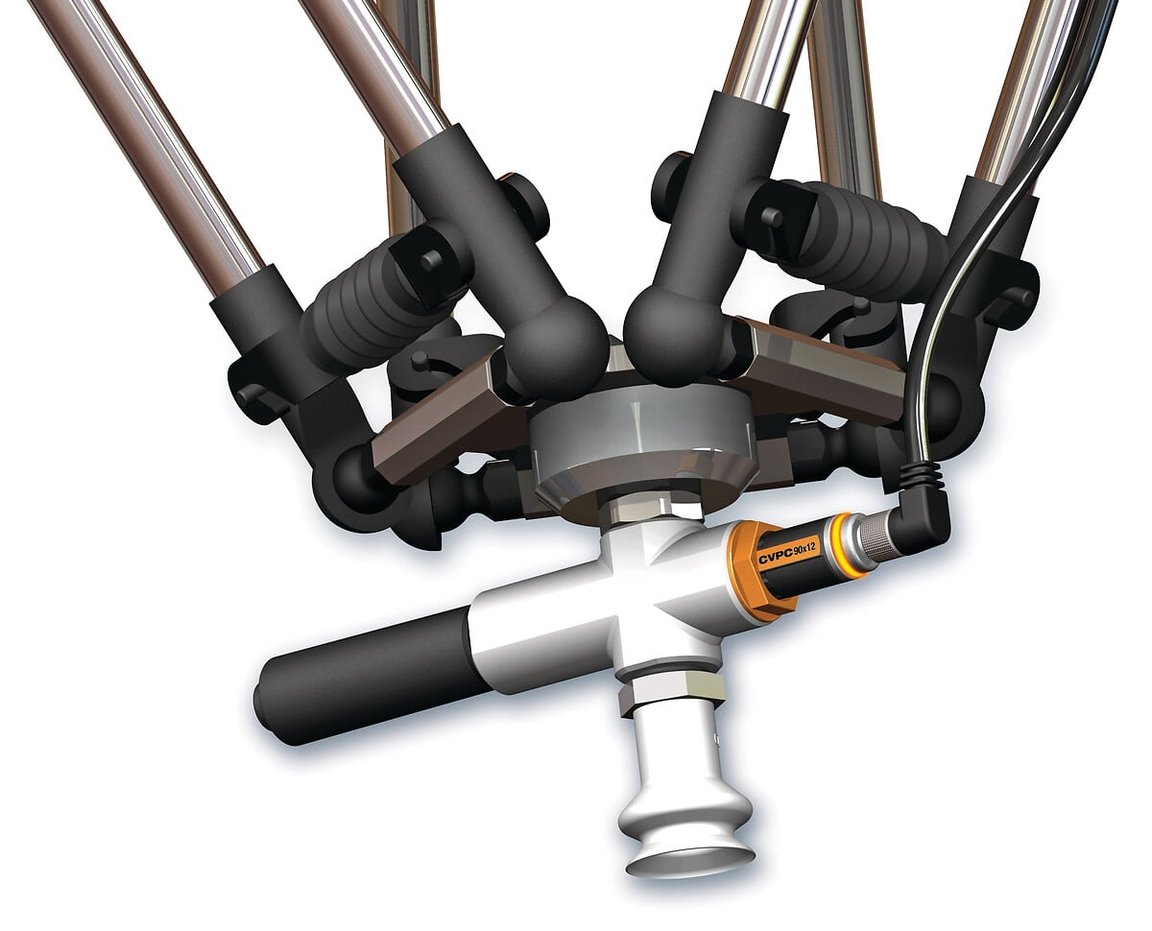

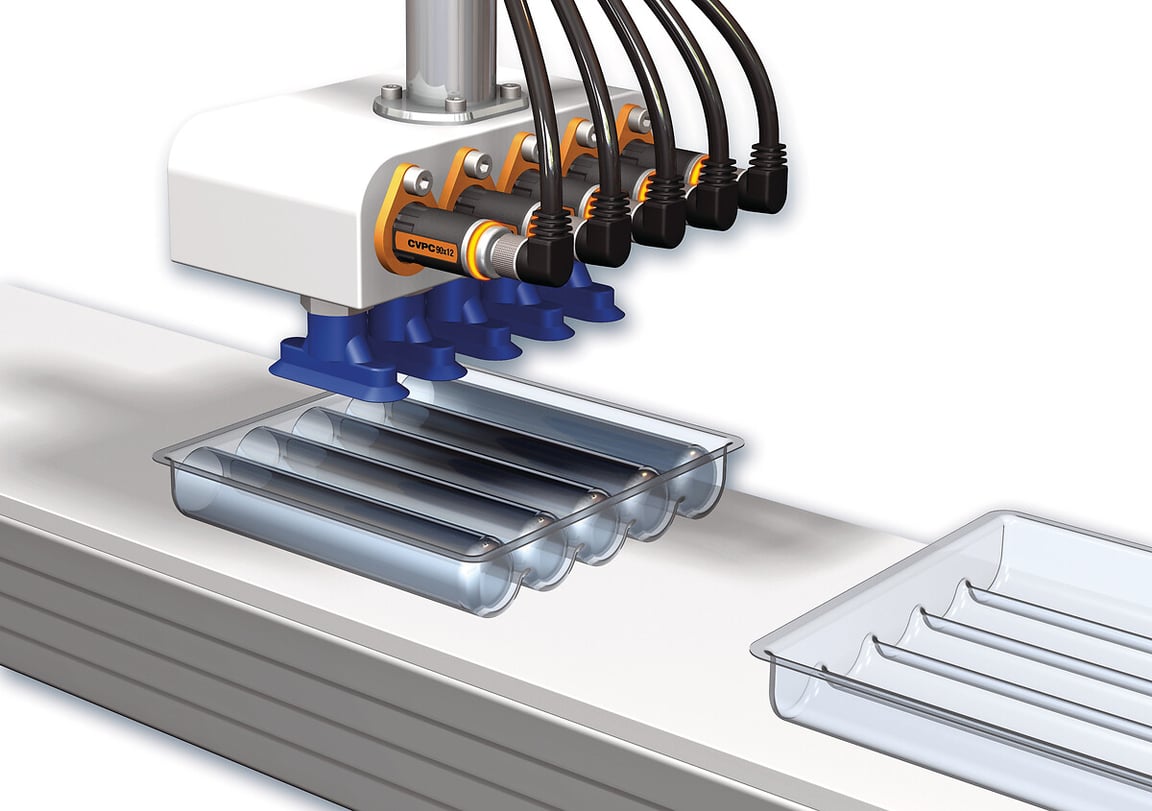

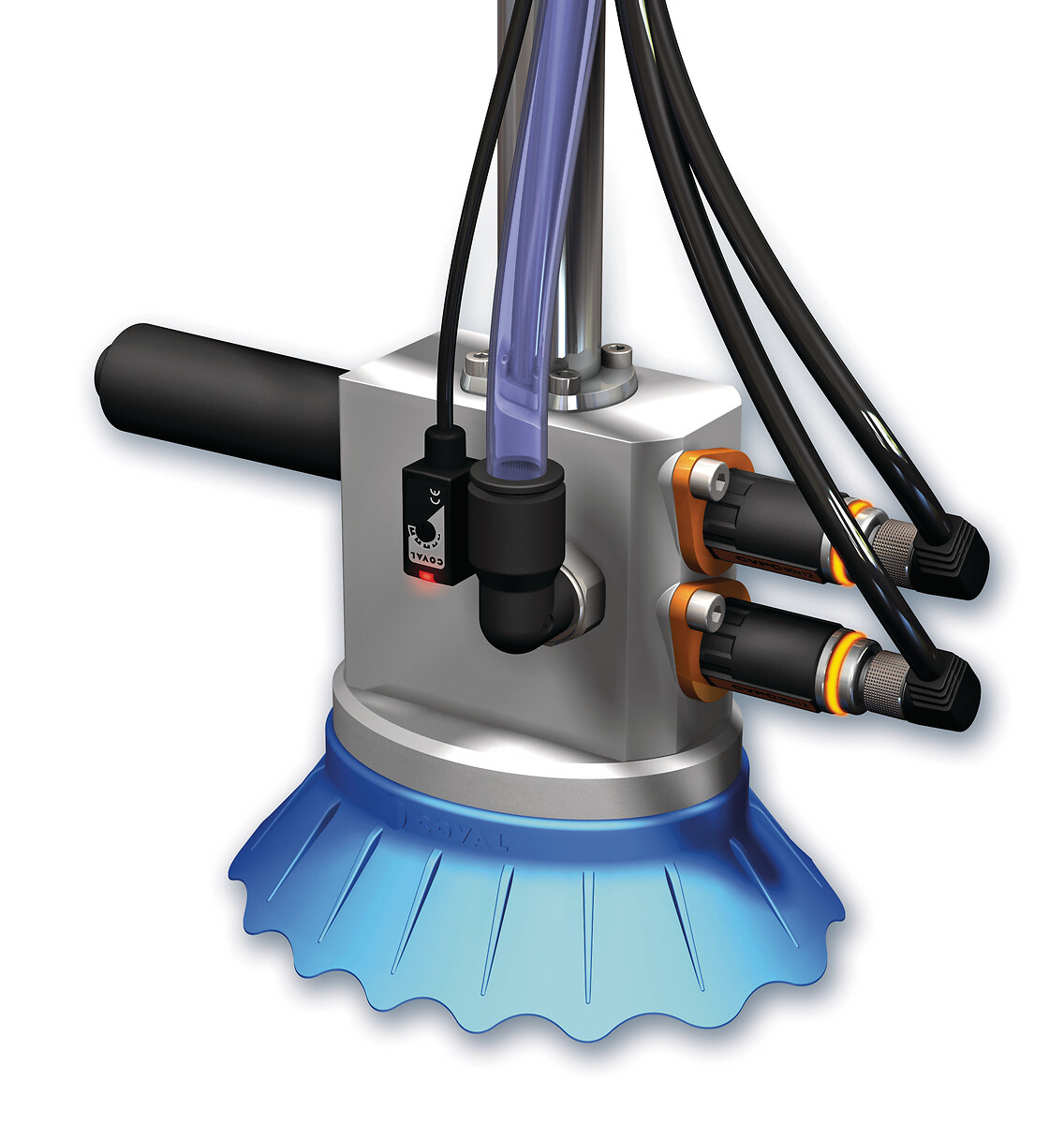

Industry-specific applications
Keypoints
- 2 sizes
- Nozzle Ø: 1.2, 1.4, 1.6, 2.2, 2.7 mm
- Maximum vacuum: 85%
- Air drawn in: up to 215 Nl/min
- M8 connections
- Weight: 22 g

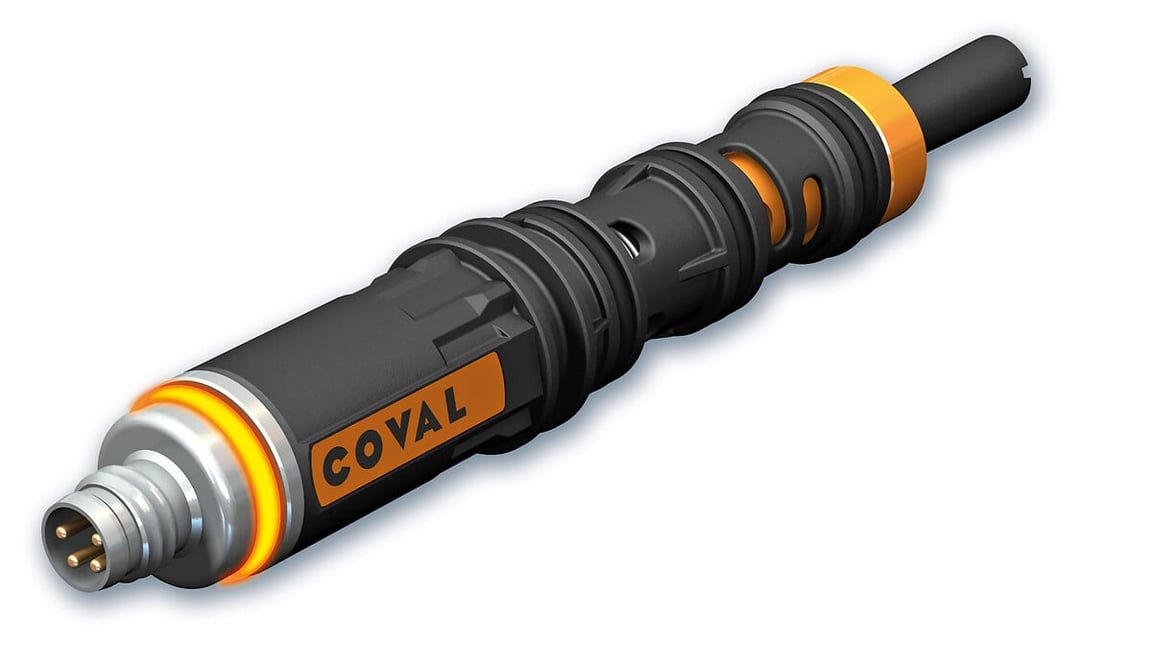

CVPC90X12
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 1.2 MM- Nozzle diameter | mm: 1.2
- Air drawn in | Nl/min: 41
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
CVPC90X12K
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 1.2 MM- Nozzle diameter | mm: 1.2
- Air drawn in | Nl/min: 41
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
CVPC90X14
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 1.4 MM- Nozzle diameter | mm: 1.4
- Air drawn in | Nl/min: 70
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
CVPC90X14K
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 1.4 MM- Nozzle diameter | mm: 1.4
- Air drawn in | Nl/min: 70
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
CVPC90X16
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 1.6 MM- Nozzle diameter | mm: 1.6
- Air drawn in | Nl/min: 90
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
CVPC90X16K
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 1.6 MM- Nozzle diameter | mm: 1.6
- Air drawn in | Nl/min: 90
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer

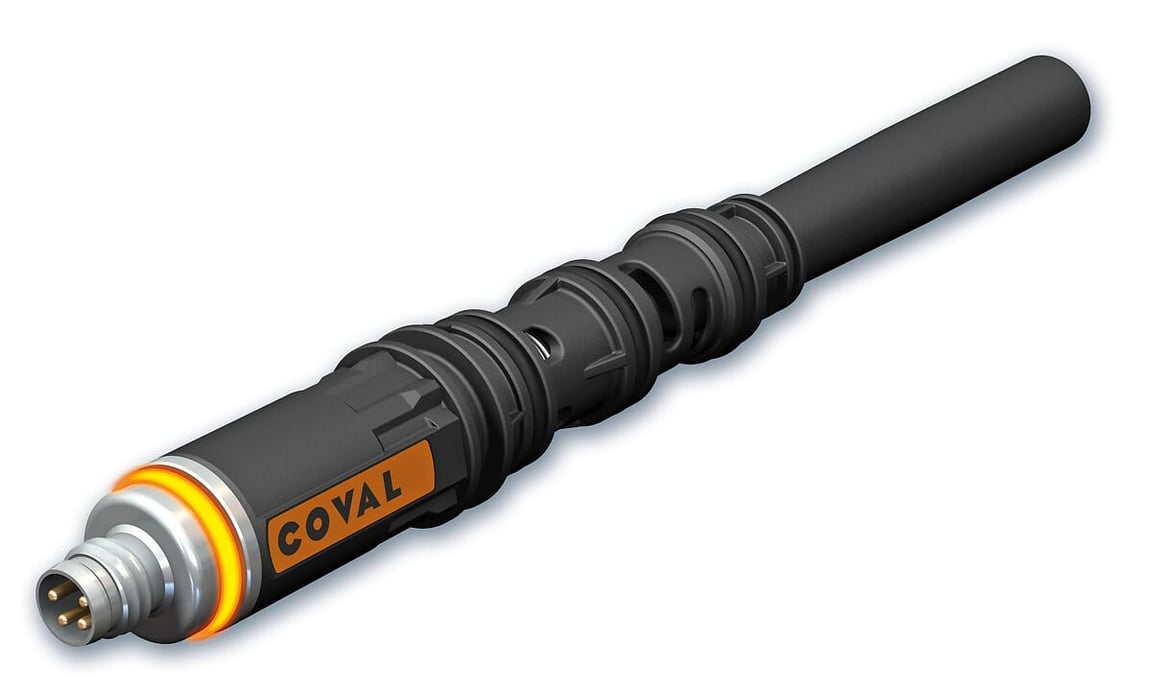

CVPC90X22
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 2.2 MM- Nozzle diameter | mm: 2.2
- Air drawn in | Nl/min: 160
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
CVPC90X22K
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 2.2 MM- Nozzle diameter | mm: 2.2
- Air drawn in | Nl/min: 160
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
CVPC90X27
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 2.7 MM- Nozzle diameter | mm: 2.7
- Air drawn in | Nl/min: 215
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
CVPC90X27K
CVP SERIES CONTROLLED VACUUM CARTRIDGE 85% MAX VACUUM 2.7 MM- Nozzle diameter | mm: 2.7
- Air drawn in | Nl/min: 215
- Maximum vacuum | %: 85
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
