Mini multi-stage vacuum pump without control, CMSM_NVO_
COVAL's multi-stage mini vacuum pumps CMSM__NVO combine performance, robustness and modularity.
Equipped with a multi-stage venturi system, the CMSM__NVO vacuum pumps ensure powerful suction flows and high consumption/performance efficiency, promoting energy savings.
The modular design of the CMSM__NVO enables to target interventions on each of its elements, reducing both costs and response times.
Industry-specific applications
Keypoints
- 2 models: 15,30
- Maximum vacuum: 80%
- Suction flow rate: up to 550 Nl/min
- Multi-stage technology
- 2 exhaust configurations

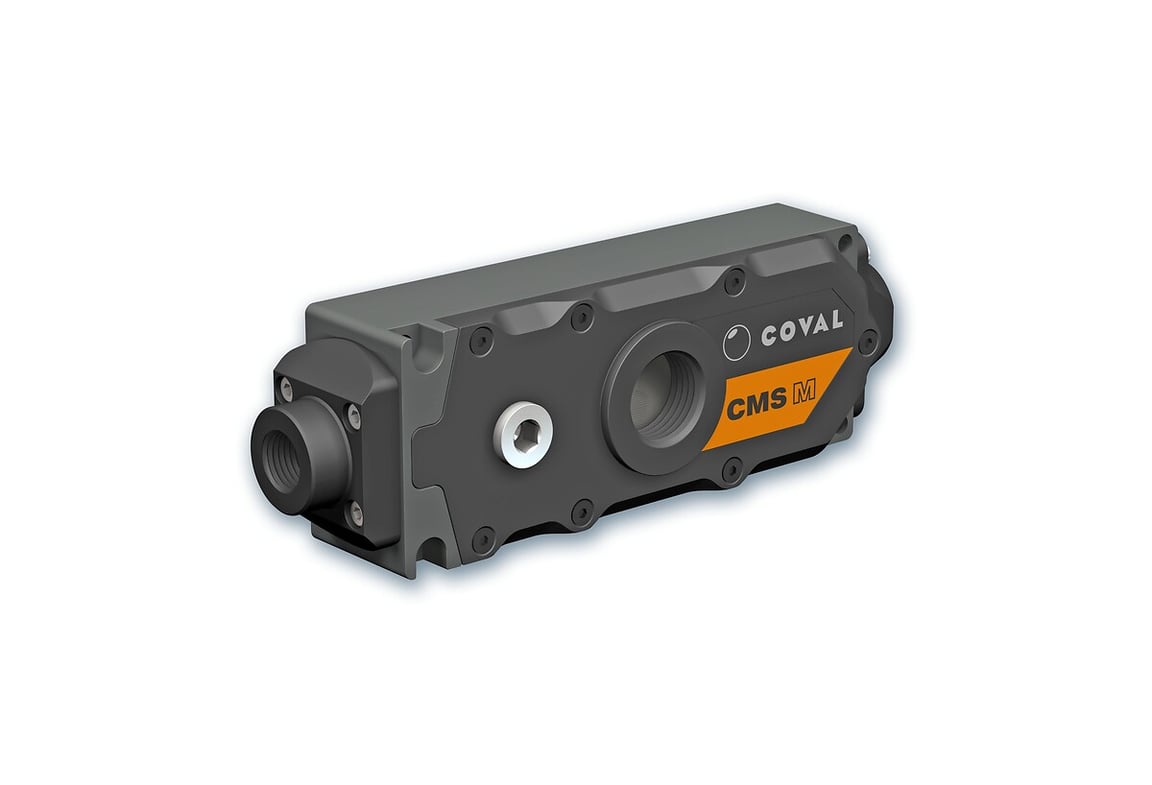

CMSM90X15NVOG2E
CMSM MULTI-STAGE MINI VACUUM PUMP WITHOUT CONTROL VALVE WITH EXHAUST COLLECTOR- Air drawn in | Nl/min: 300
- Maximum vacuum | %: 80
- Exhaust: Collector exhaust
CMSM90X15NVOG2K
CMSM MULTI-STAGE MINI VACUUM PUMP WITHOUT CONTROL VALVE WITH THROUGH-TYPE SILENCER- Air drawn in | Nl/min: 300
- Maximum vacuum | %: 80
- Exhaust: Through-type silencer
CMSM90X30NVOG2E
CMSM MULTI-STAGE MINI VACUUM PUMP WITHOUT CONTROL VALVE WITH EXHAUST COLLECTOR- Air drawn in | Nl/min: 550
- Maximum vacuum | %: 80
- Exhaust: Collector exhaust
CMSM90X30NVOG2K
CMSM MULTI-STAGE MINI VACUUM PUMP WITHOUT CONTROL VALVE WITH THROUGH-TYPE SILENCER- Air drawn in | Nl/min: 550
- Maximum vacuum | %: 80
- Exhaust: Through-type silencer
