Mini multi-stage vacuum pump with control, CMSM_SVO/VVO_
COVAL's multi-stage mini vacuum pumps CMSM__SVO/VVO combine performance, robustness and modularity.
Equipped with a multi-stage venturi system, the CMSM__SVO/VVO vacuum pumps ensure powerful suction flows and high consumption/performance efficiency, promoting energy savings.
The modular design of the CMSM__SVO/VVO enables to target interventions on each of its elements, reducing both costs and response times.
Industry-specific applications
Keypoints
- 2 models: 15,30
- Maximum vacuum: 80%
- Suction flow rate: up to 550 Nl/min
- Multi-stage technology
- With vacuum and blow-off control
- Vacuum control: NC, NO
- 2 exhaust configurations
CMSM90X15SVOC14PG2E
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH COLLECTOR EXHAUST- Air drawn in | Nl/min: 300
- Maximum vacuum | %: 80
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Collector exhaust

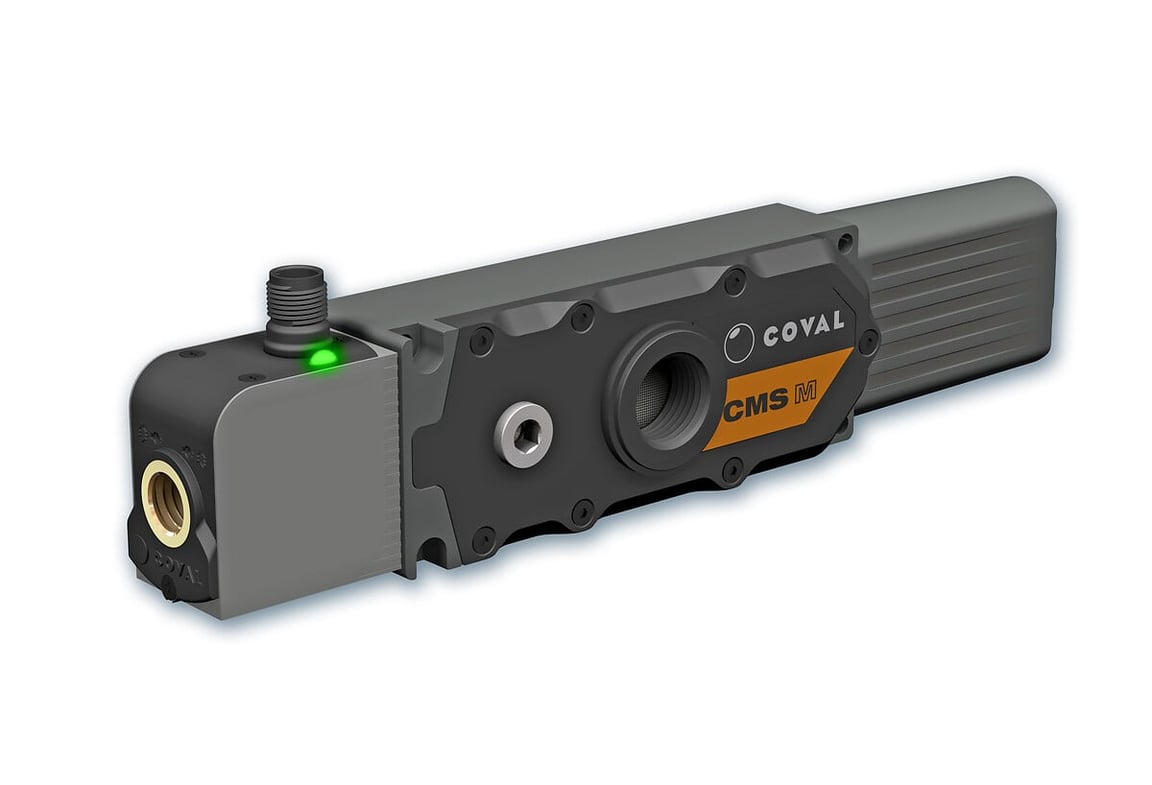

CMSM90X15SVOC14PG2K
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH THROUGH-TYPE SILENCER- Air drawn in | Nl/min: 300
- Maximum vacuum | %: 80
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer

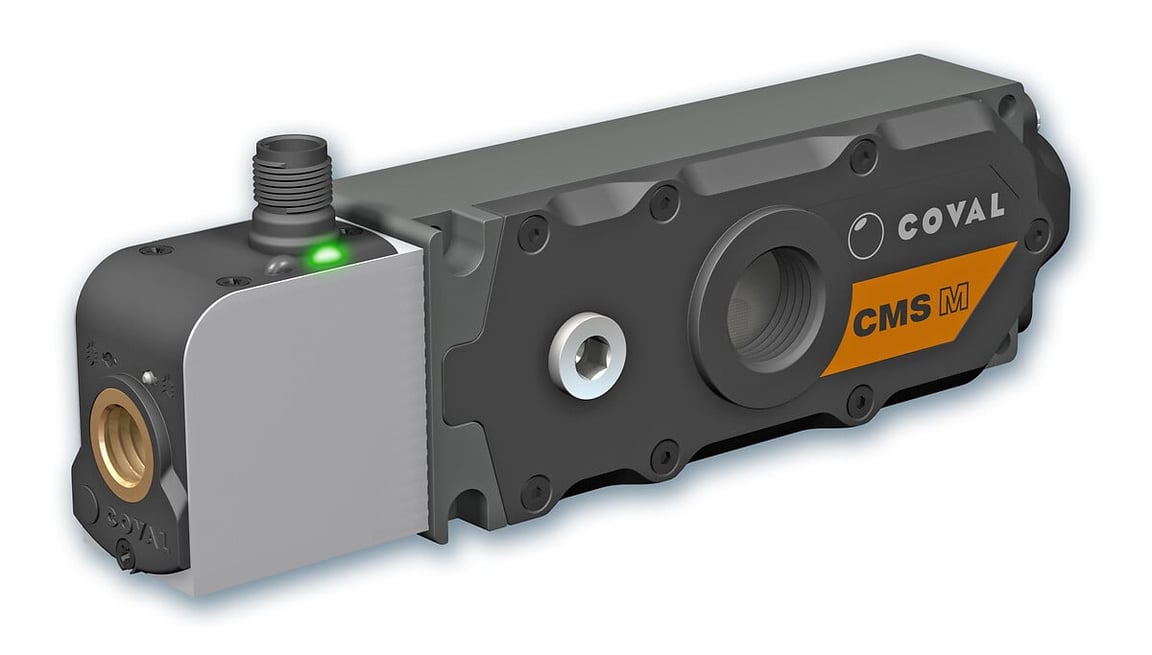

CMSM90X15VVOC14PG2E
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH EXHAUST COLLECTOR- Air drawn in | Nl/min: 300
- Maximum vacuum | %: 80
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Collector exhaust
CMSM90X15VVOC14PG2K
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH THROUGH-TYPE SILENCER- Air drawn in | Nl/min: 300
- Maximum vacuum | %: 80
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer
CMSM90X30SVOC14PG2E
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH EXHAUST COLLECTOR- Air drawn in | Nl/min: 550
- Maximum vacuum | %: 80
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Collector exhaust
CMSM90X30SVOC14PG2K
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH THROUGH-TYPE SILENCER- Air drawn in | Nl/min: 550
- Maximum vacuum | %: 80
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer
CMSM90X30VVOC14PG2E
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH EXHAUST COLLECTOR- Air drawn in | Nl/min: 550
- Maximum vacuum | %: 80
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Collector exhaust
CMSM90X30VVOC14PG2K
CMSM CONTROLLED MULTI-STAGE MINI VACUUM PUMP WITH THROUGH-TYPE SILENCER- Air drawn in | Nl/min: 550
- Maximum vacuum | %: 80
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer
