Integrated Mini-vacuum Pumps with ASR (Air Saving Regulator), LEM series
LEM series vacuum pumps (ASR technology) are connected to the network via a single M8 connector and integrate all functions (solenoid valves, pressure regulator, vacuum gauge). Twice as fast as traditional multi-stage technology, they enable the user to save 50 % on compressed air costs while reducing the noise level by 30 dBA.
Industry-specific applications
Keypoints
- Nozzle Ø: 1, 1.2, 1.4 mm
- 2 vacuum levels: 60% and 85%
- Suction flow rate: up to 92 Nl/min
- Integrated pressure regulator (ASR)
- M8 connections
LEM60X10RVA
LEM VACUUM PUMP 60% NOZZLE D1.0- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Standalone

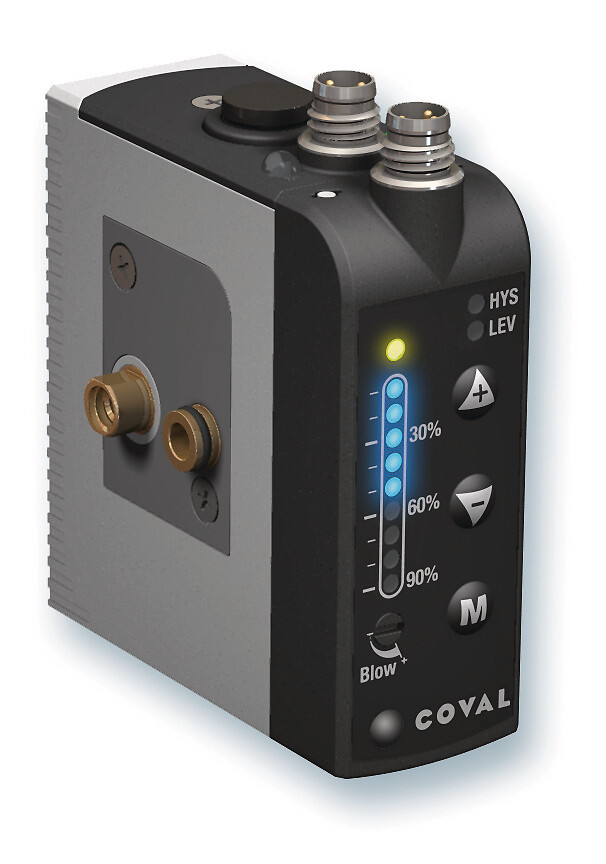

LEM60X10RVAB
LEM VACUUM PUMP 60% NOZZLE D1.0 FOR BANK- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 1 module

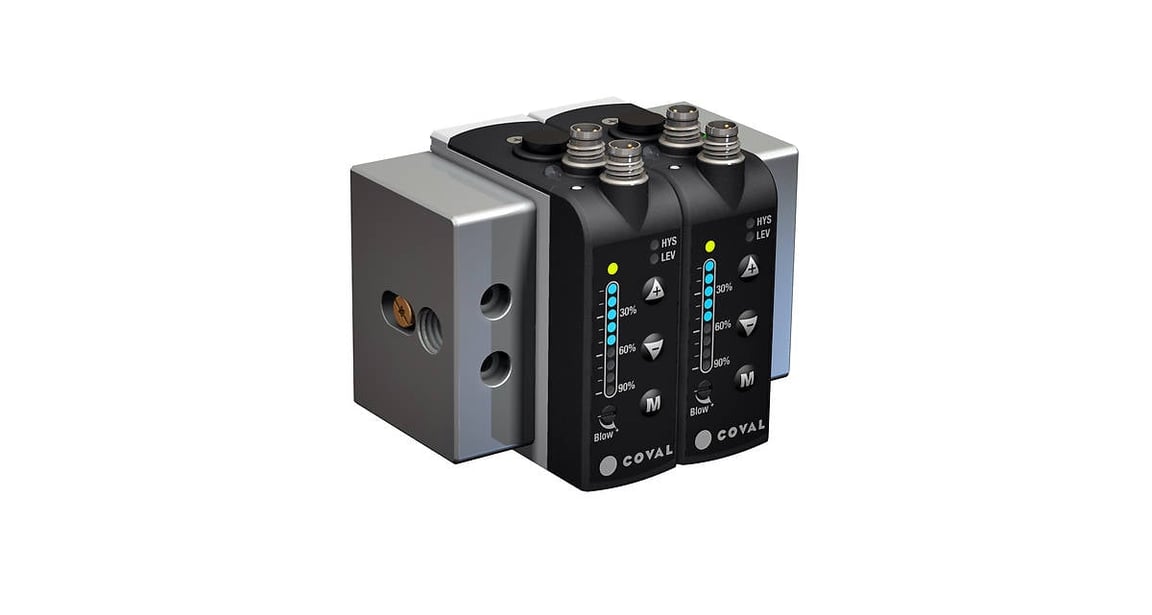

LEM60X10RVAB2
BANK OF 2 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 2 modules

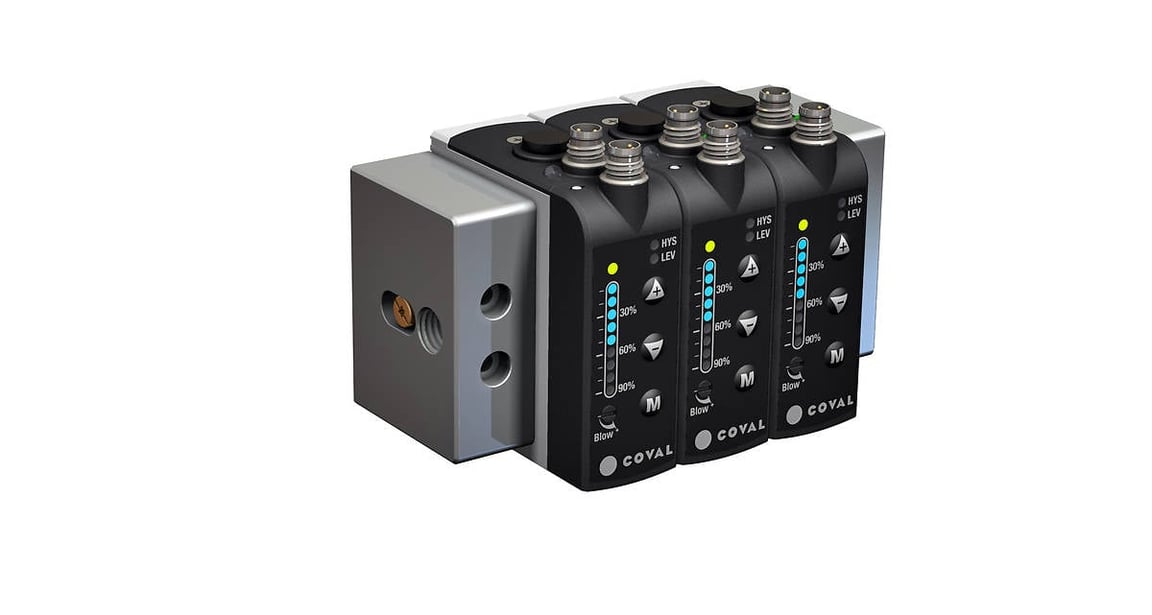

LEM60X10RVAB3
BANK OF 3 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 3 modules
LEM60X10RVAB4
BANK OF 4 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 4 modules

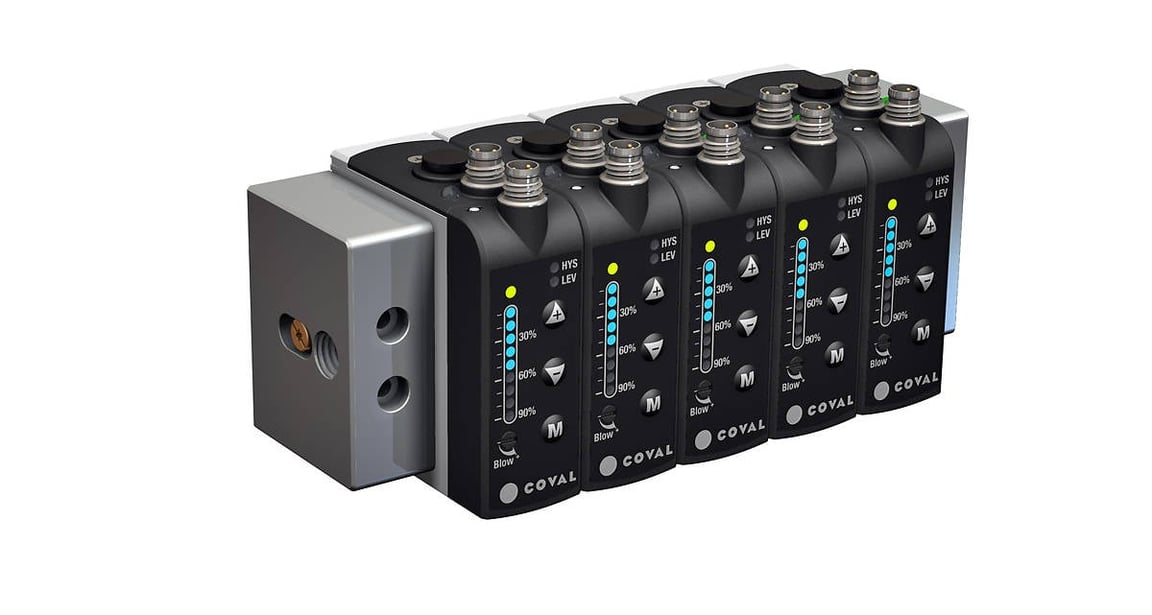

LEM60X10RVAB5
BANK OF 5 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 5 modules

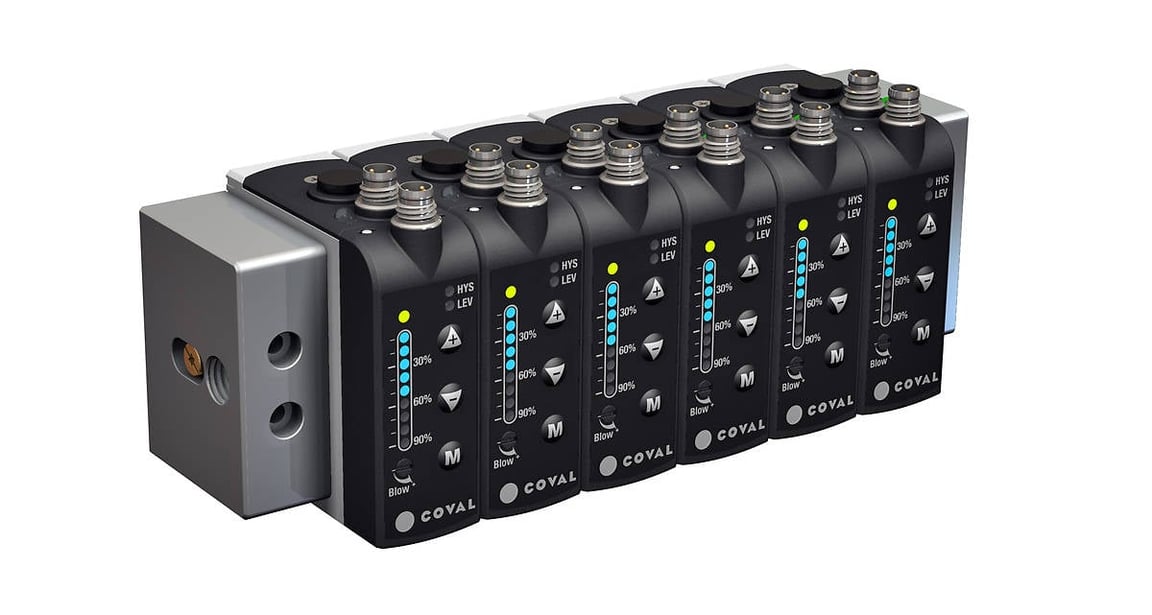

LEM60X10RVAB6
BANK OF 6 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 6 modules

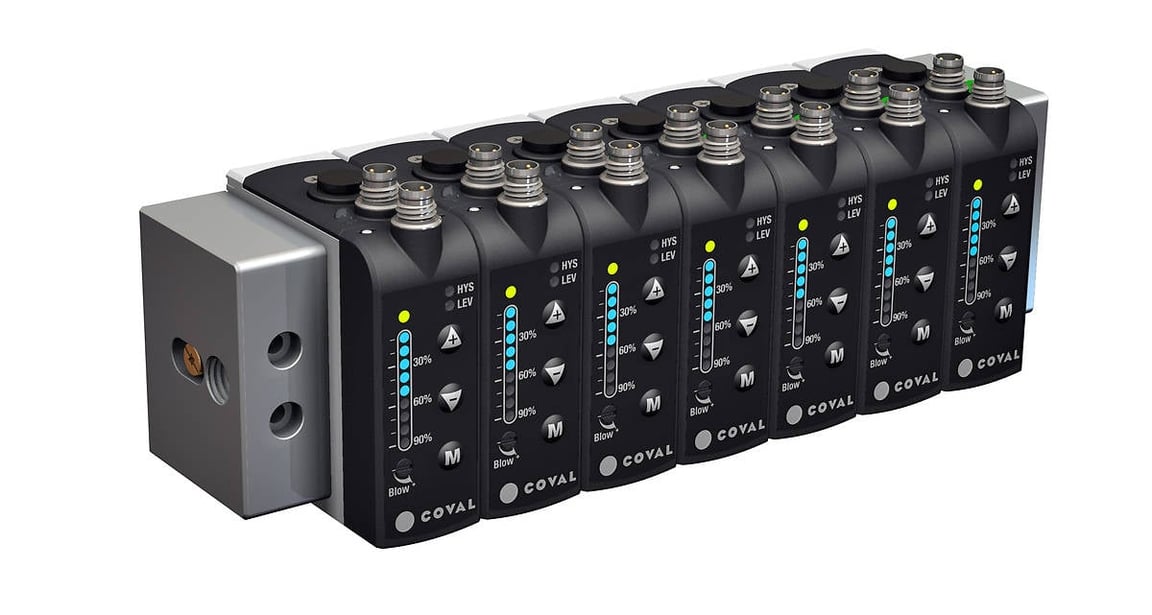

LEM60X10RVAB7
BANK OF 7 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 7 modules

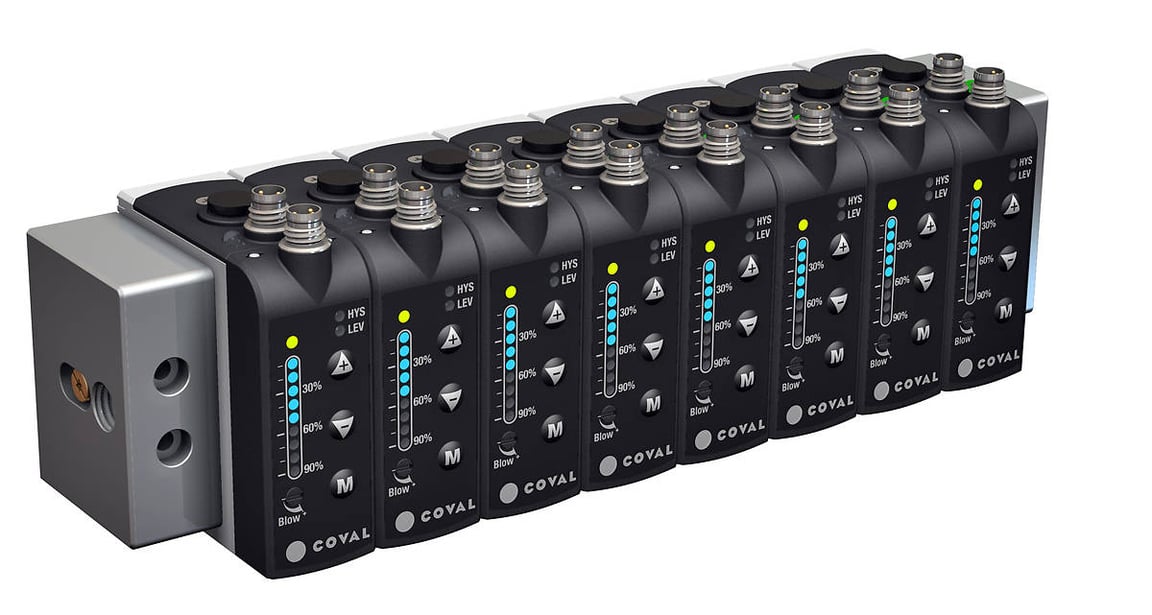

LEM60X10RVAB8
BANK OF 8 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 8 modules

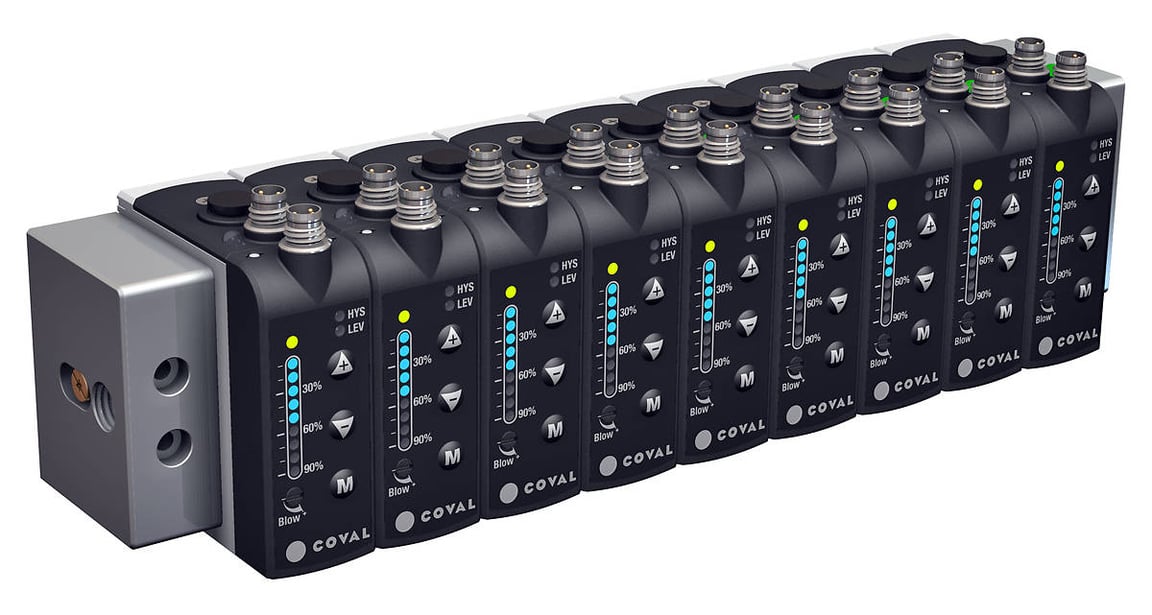

LEM60X10RVAB9
BANK OF 9 LEM60X10RVA- Nozzle diameter | mm: 1
- Air drawn in | Nl/min: 38
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M8 4-pin
- Exhaust: Through-type silencer
- Island Assembly Available: Bank of 9 modules
