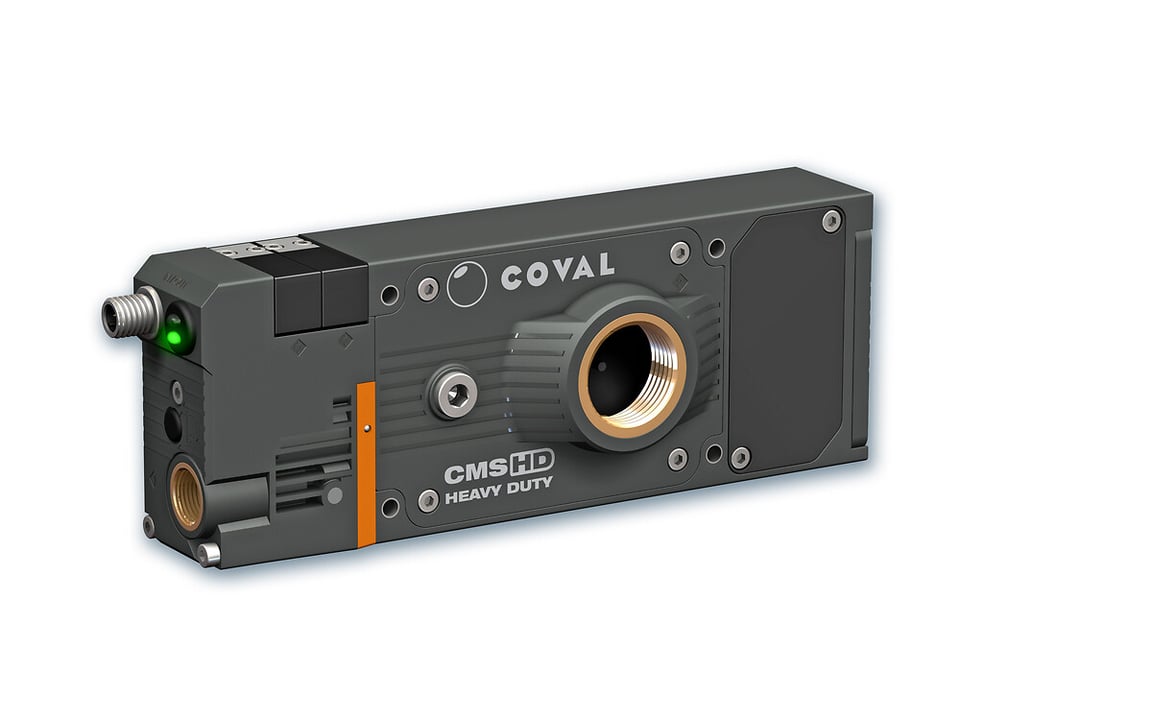

CMSHD90X100SVOC15PG4F - 1

CMSHD90X100SVOC15PG4F

CMSHD CONTROLLED MULTI-STAGE VACUUM PUMP
  • Air drawn in | Nl/min: 1100
  • Maximum vacuum | %: 80
  • Generator control: Vacuum NC/ Blow-off NC
  • Blow-off type: Standard and automatic blow-off
  • Electrical connection: 1 x M12 5-pin
  • Exhaust: Diffuser

Industry-specific applications

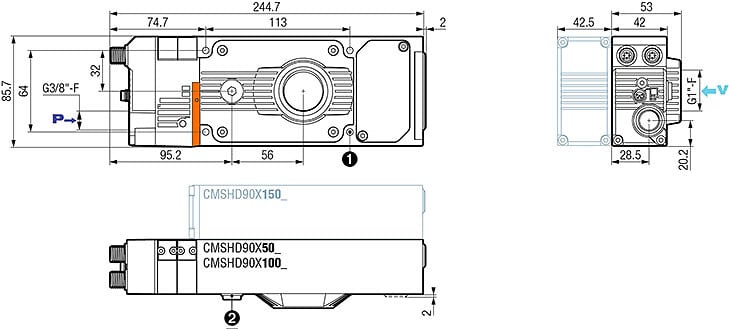

dimensionalDrawing

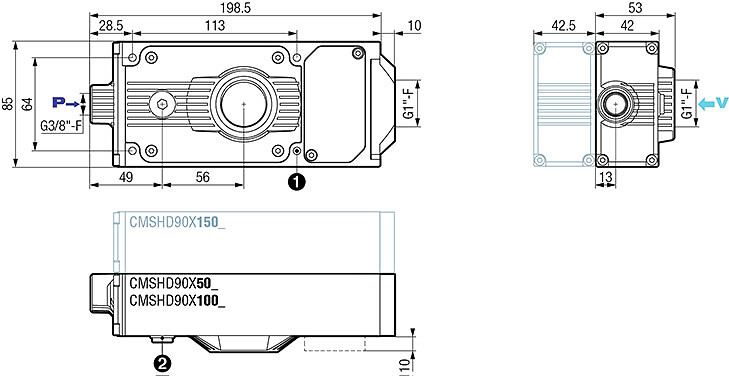

dimensionalDrawing
