"Compact, High Flow Vacuum Pump with ""ASR"" (Air Saving Regulator) LEM+ series"
LEM+ Series, compact, high flow vacuum pumps integrate ASR (Air Saving Regulator) technology that allows up to 40 % energy savings. They are designed for gripping porous products or those with a rough surface.
For gripping airtight or semi‑airtight products, it is recommended to use the LEMAX+ Series.
Industry-specific applications
Keypoints
- Nozzle Ø: 2, 2.5 mm
- 2 vacuum levels: 60% and 85%
- Suction flow rate: up to 275 Nl/min
- Integrated pressure regulator (ASR)
- M12 connections
LEM60X20RVAC15PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEM60X20RVAC24PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC 2XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer

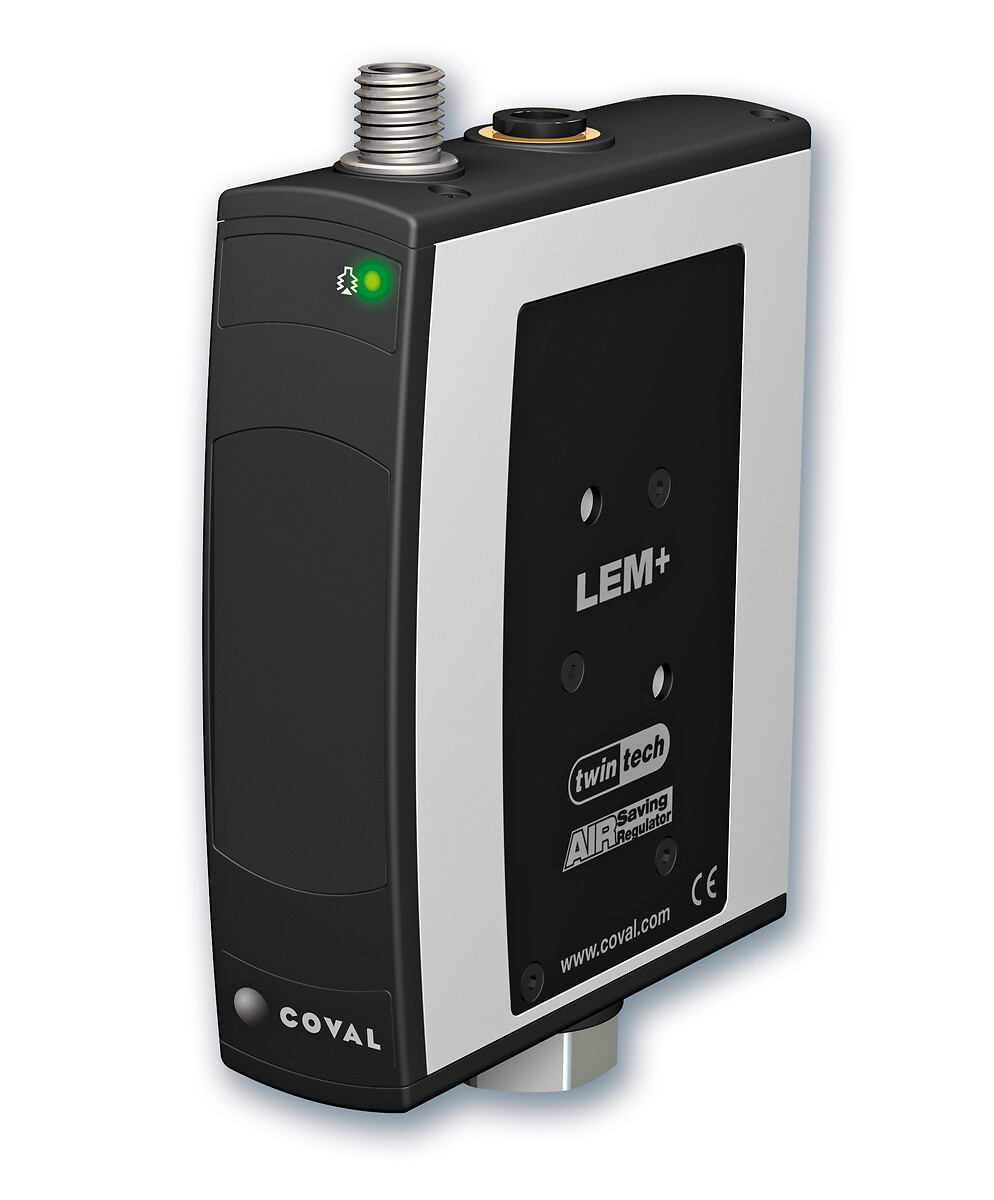

LEM60X20RVOC14PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer
LEM60X20SVAC15PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC/NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEM60X20SVAC15PG1F
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC/NC 1XM12 3/8G POWER. BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEM60X20SVAC24PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC/NC 2XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer
LEM60X20SVAC24PG1F
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC/NC 1XM12 3/8G POWER. BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer
LEM60X20SVOC14PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NC/NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer
LEM60X20SVOC14PG1F
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NO/NC 1XM12 3/8G POWER. BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 1 x M12 4-pin
- Exhaust: Through-type silencer
LEM60X20VVAC15PG1
LEM+ VACUUM PUMP 60% NOZZLE D2.0 NO/NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 189
- Maximum vacuum | %: 60
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
