Compact, High Flow Vacuum Pump with "ASC" (Air Saving Control) LEMAX+ series
LEMAX+ Series, compact, high flow vacuum pumps integrate ASC (Air Saving Control) technology that allows up to 90 % energy savings. They are specifically designed for gripping airtight or semi‑airtight products.
For gripping porous products or those with a rough surface, it is recommended to use the LEM+ Series.
Industry-specific applications
Keypoints
- Nozzle Ø: 2, 2.5 mm
- Vacuum levels: 85%
- Suction flow rate: up to 200 Nl/min
- Integrated pressure regulator (ASR)
- Auto regulated vacuum (ASC)
- M12 connections

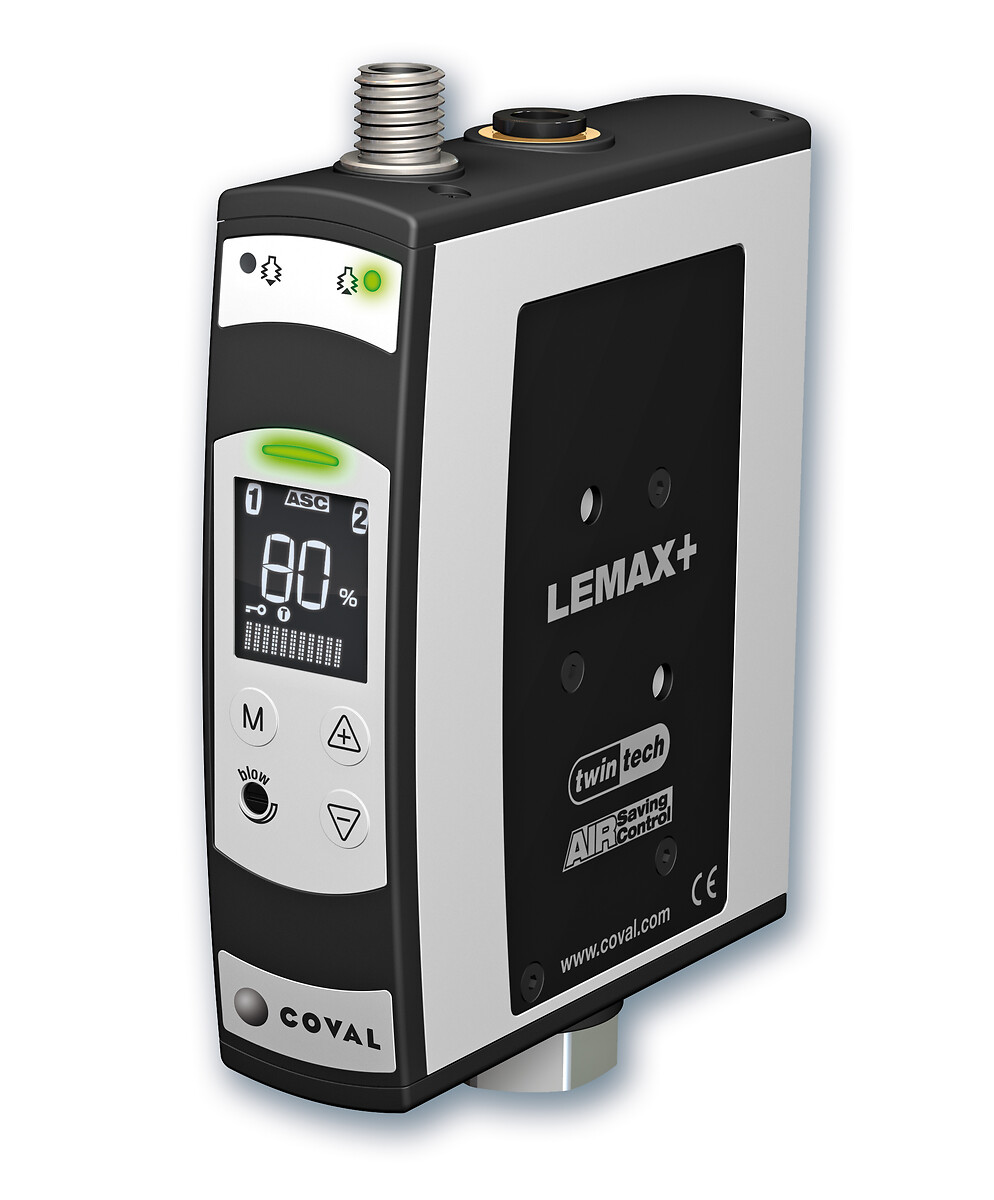

LEMAX90X20SC15PG1
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NC/NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEMAX90X20SC15PG1F
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NC/NC 1XM12 3/8G BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEMAX90X20SC24PG1
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NC/NC 2XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer
LEMAX90X20SC24PG1F
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NC/NC 2XM12 3/8G BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer
LEMAX90X20VC15PG1
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NO/NC 1XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEMAX90X20VC15PG1F
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NO/NC 1XM12 3/8G BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEMAX90X20VC24PG1
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NO/NC 2XM12 3/8G- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer
LEMAX90X20VC24PG1F
LEMAX+ VACUUM PUMP 90% NOZZLE D2.0 NO/NC 2XM12 3/8G BLOW-OFF- Nozzle diameter | mm: 2
- Air drawn in | Nl/min: 125
- Maximum vacuum | %: 85
- Generator control: Vacuum NO/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 2 x M12 4-pin
- Exhaust: Through-type silencer
LEMAX90X25SC15PG1
LEMAX+ VACUUM PUMP 90% NOZZLE D2.5 NC/NC 1XM12 3/8G- Nozzle diameter | mm: 2.5
- Air drawn in | Nl/min: 200
- Maximum vacuum | %: 85
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Standard and automatic blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
LEMAX90X25SC15PG1F
LEMAX+ VACUUM PUMP 90% NOZZLE D2.5 NC/NC 1XM12 3/8G BLOW-OFF- Nozzle diameter | mm: 2.5
- Air drawn in | Nl/min: 200
- Maximum vacuum | %: 85
- Generator control: Vacuum NC/ Blow-off NC
- Blow-off type: Powerful blow-off
- Electrical connection: 1 x M12 5-pin
- Exhaust: Through-type silencer
