PVS series, Rotary vane vacuum pumps
The electric dry vane vacuum pumps in series PVS are compact and robust. Industry-specific applications. They are equipped with a vacuum filter, vacuum and blow-off control valves. Their functioning is silent and vibration free and they meet a wide variety of applications.
- Flow rate: up to 112 m3/h
- Maximum vacuum: -150 mbar absolute (85% relative vacuum)
Available:
- 230 V Mono
- 230/400 V Tri
Industry-specific applications
Keypoints
- Flow rate: up to 112 m3/h
- Maximum vacuum: -150 mbar absolute (85% relative vacuum)
- Available: 230 V Mono
- 230/400 V Tri

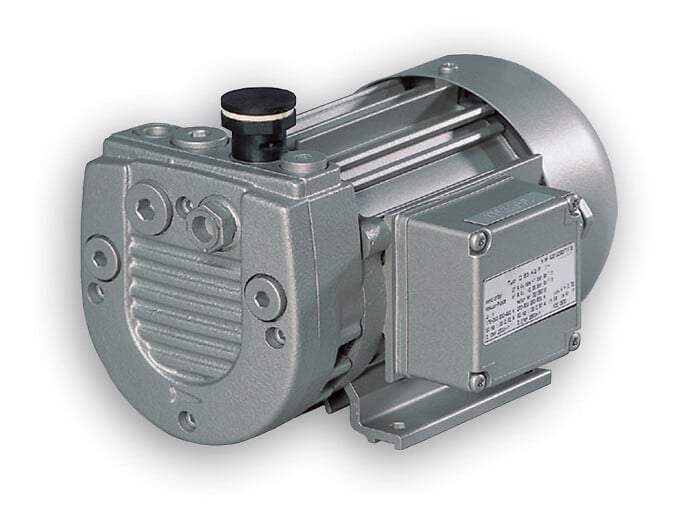

PVS4T3
ROTARY VANE VACUUM PUMP 4,1 m3/h 230/400V THREE-PHASE- Flow rate (50 Hz) I m3/h: 4.1
- Flow rate (60 Hz) I m3/h: 4.7
- Engine power (50 Hz): 0.19
- Engine power (60 Hz): 0.216
- Vacuum level | %: 85
PVS8M1
ROTARY VANE VACUUM PUMP 8 m3/h 230V MONO- Flow rate (50 Hz) I m3/h: 8
- Flow rate (60 Hz) I m3/h: 9.1
- Engine power (50 Hz): 0.35
- Engine power (60 Hz): 0.42
- Vacuum level | %: 85
PVS8T3
ROTARY VANE VACUUM PUMP 8 m3/h 230/400V THREE-PHASE- Flow rate (50 Hz) I m3/h: 8
- Flow rate (60 Hz) I m3/h: 9.1
- Engine power (50 Hz): 0.37
- Engine power (60 Hz): 0.44
- Vacuum level | %: 85

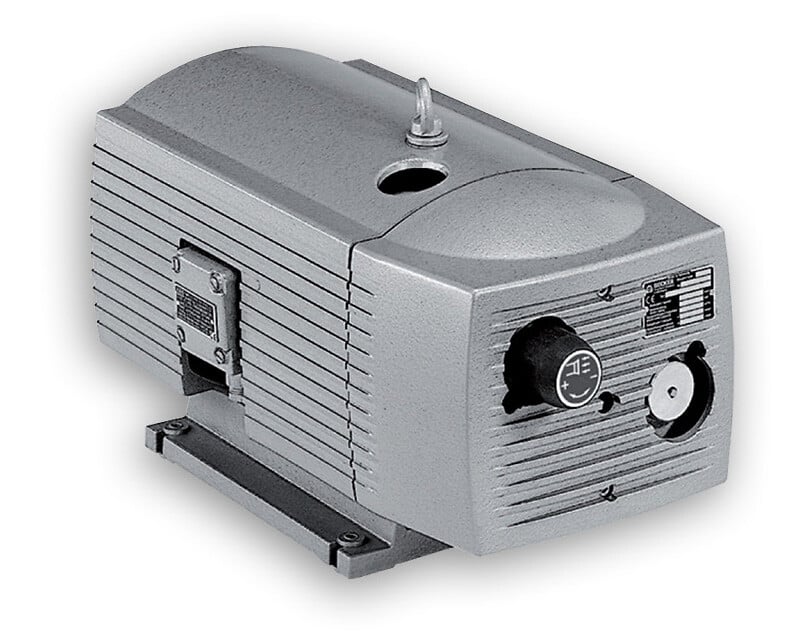

PVS10M1
ROTARY VANE VACUUM PUMP 10 m3/h 230V MONO- Flow rate (50 Hz) I m3/h: 10
- Flow rate (60 Hz) I m3/h: 12
- Engine power (50 Hz): 0.37
- Engine power (60 Hz): 0.44
- Vacuum level | %: 85
PVS10T3
ROTARY VANE VACUUM PUMP 10 m3/h 230V THREE-PHASE- Flow rate (50 Hz) I m3/h: 10
- Flow rate (60 Hz) I m3/h: 12
- Engine power (50 Hz): 0.37
- Engine power (60 Hz): 0.45
- Vacuum level | %: 85
PVS16M1
ROTARY VANE VACUUM PUMP 16 m3/h 230V MONO- Flow rate (50 Hz) I m3/h: 16
- Flow rate (60 Hz) I m3/h: 19
- Engine power (50 Hz): 0.55
- Engine power (60 Hz): 0.66
- Vacuum level | %: 85
PVS16T3
DRY VANE PUMP 16m3/h 230/400V THREE-PHASE- Flow rate (50 Hz) I m3/h: 16
- Flow rate (60 Hz) I m3/h: 19
- Engine power (50 Hz): 0.55
- Engine power (60 Hz): 0.7
- Vacuum level | %: 85
PVS25M1
ROTARY VANE VACUUM PUMP 25 m3/h 230V MONO- Flow rate (50 Hz) I m3/h: 25
- Flow rate (60 Hz) I m3/h: 30
- Engine power (50 Hz): 0.8
- Engine power (60 Hz): 1
- Vacuum level | %: 85
PVS25T3
DRY VANE PUMP 25m3/h 230/400V THREE-PHASE- Flow rate (50 Hz) I m3/h: 25
- Flow rate (60 Hz) I m3/h: 30
- Engine power (50 Hz): 0.75
- Engine power (60 Hz): 0.9
- Vacuum level | %: 85
PVS40M1
DRY VANE VACUUM PUMP 40M3/H THREE PHASE 230V MONO- Flow rate (50 Hz) I m3/h: 40
- Flow rate (60 Hz) I m3/h: 48
- Engine power (50 Hz): 1.1
- Engine power (60 Hz): 1.1
- Vacuum level | %: 85
