Soft and Flexible Suction Cups, MVS series

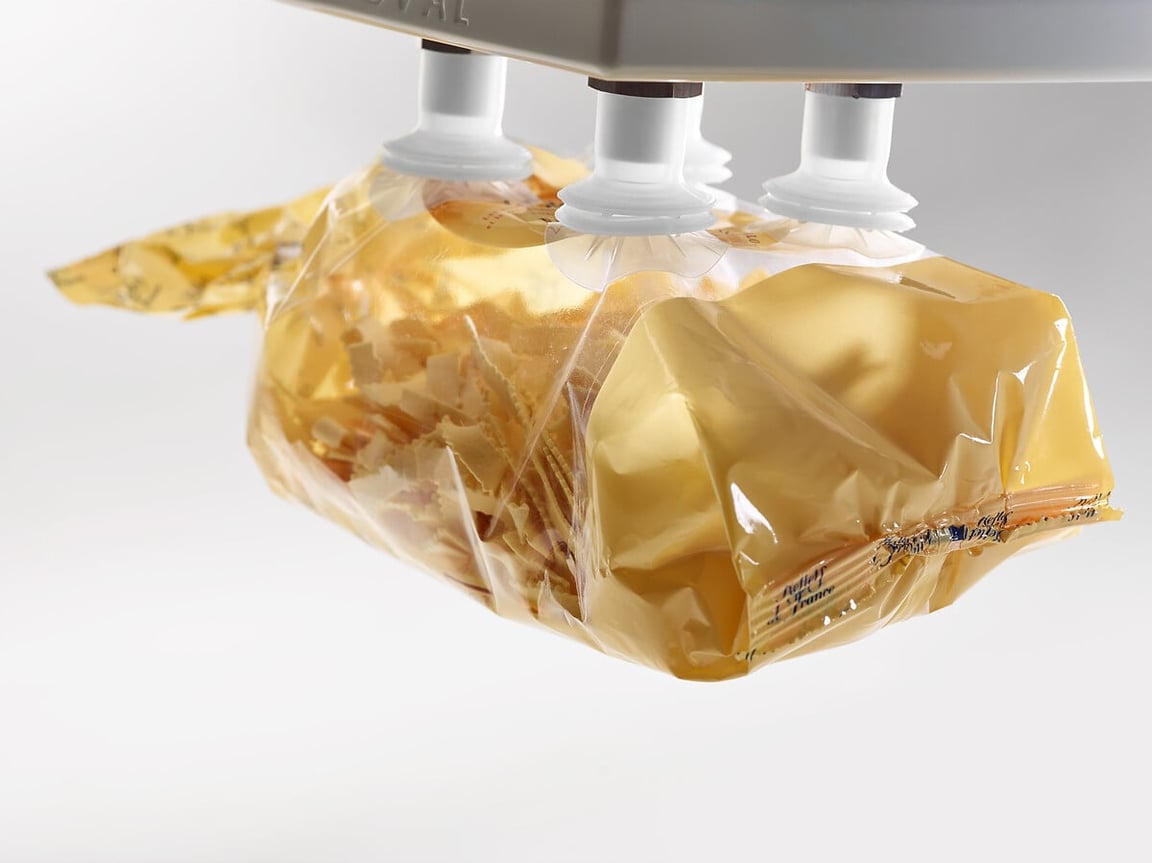

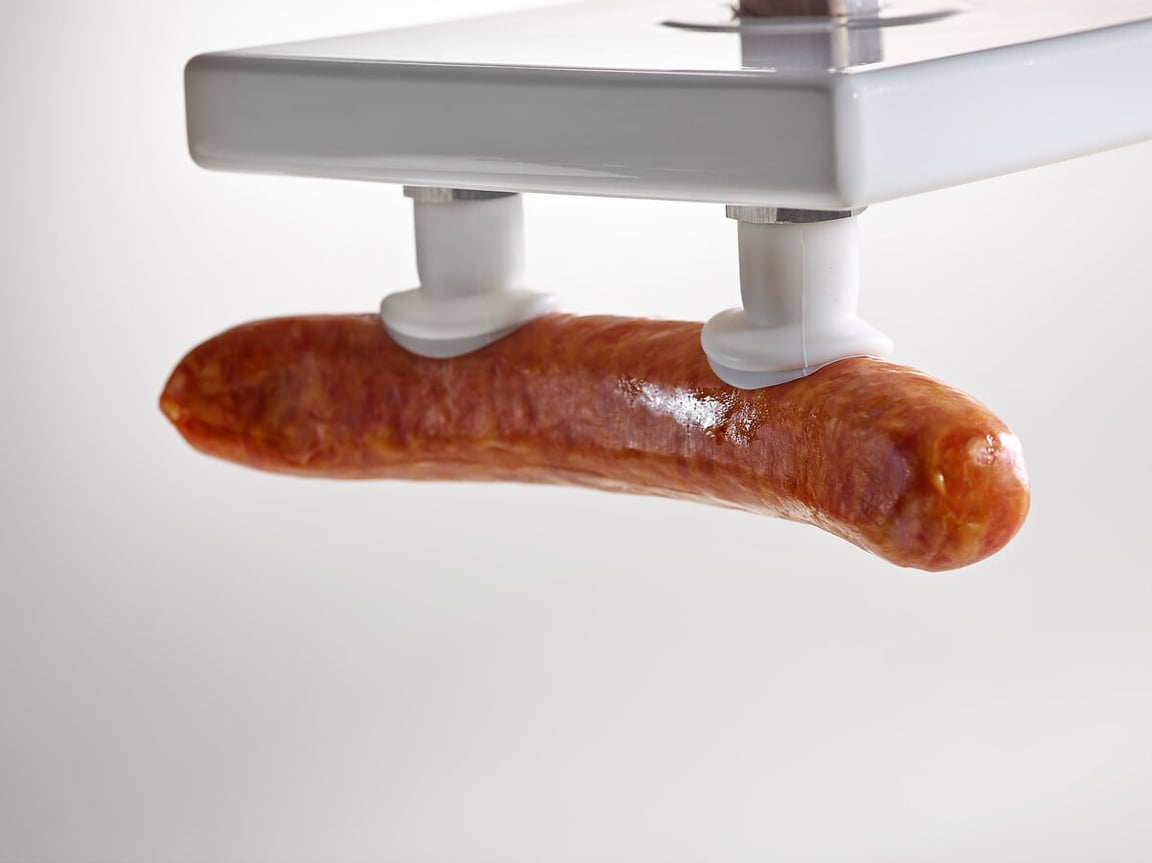

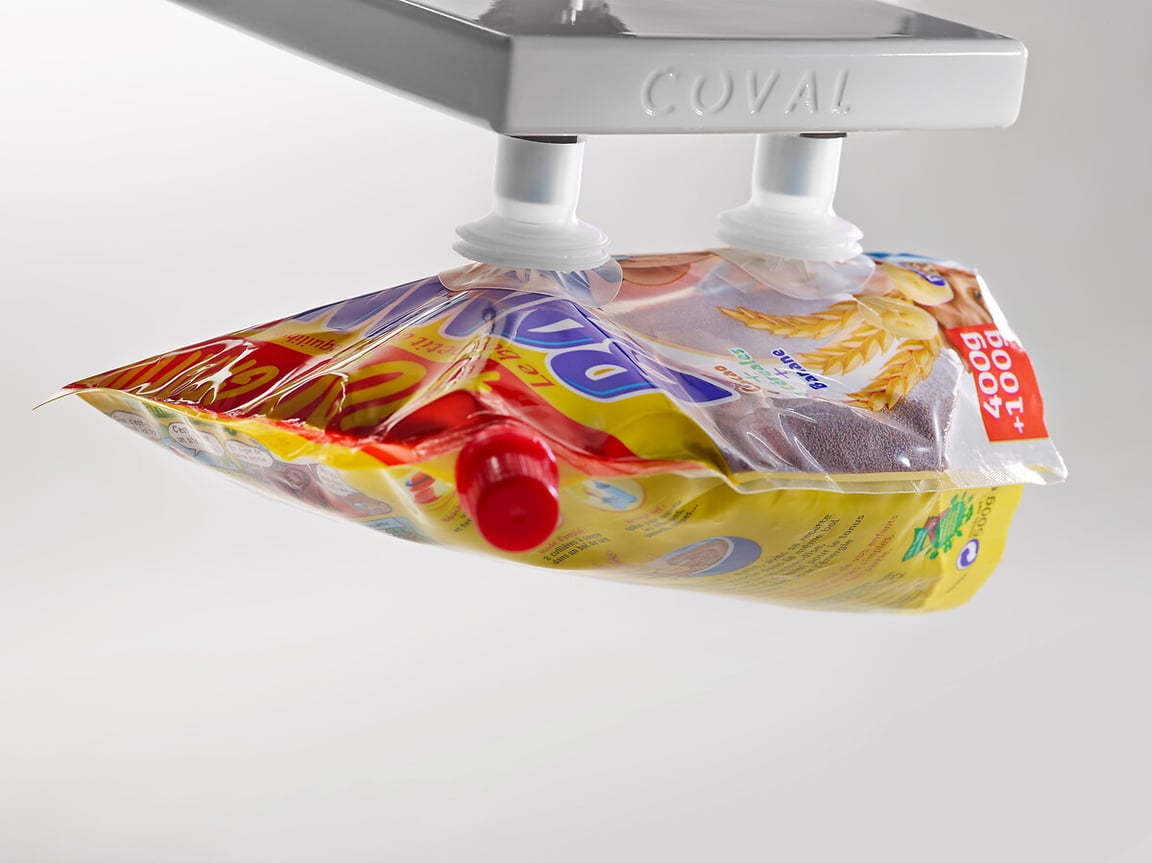

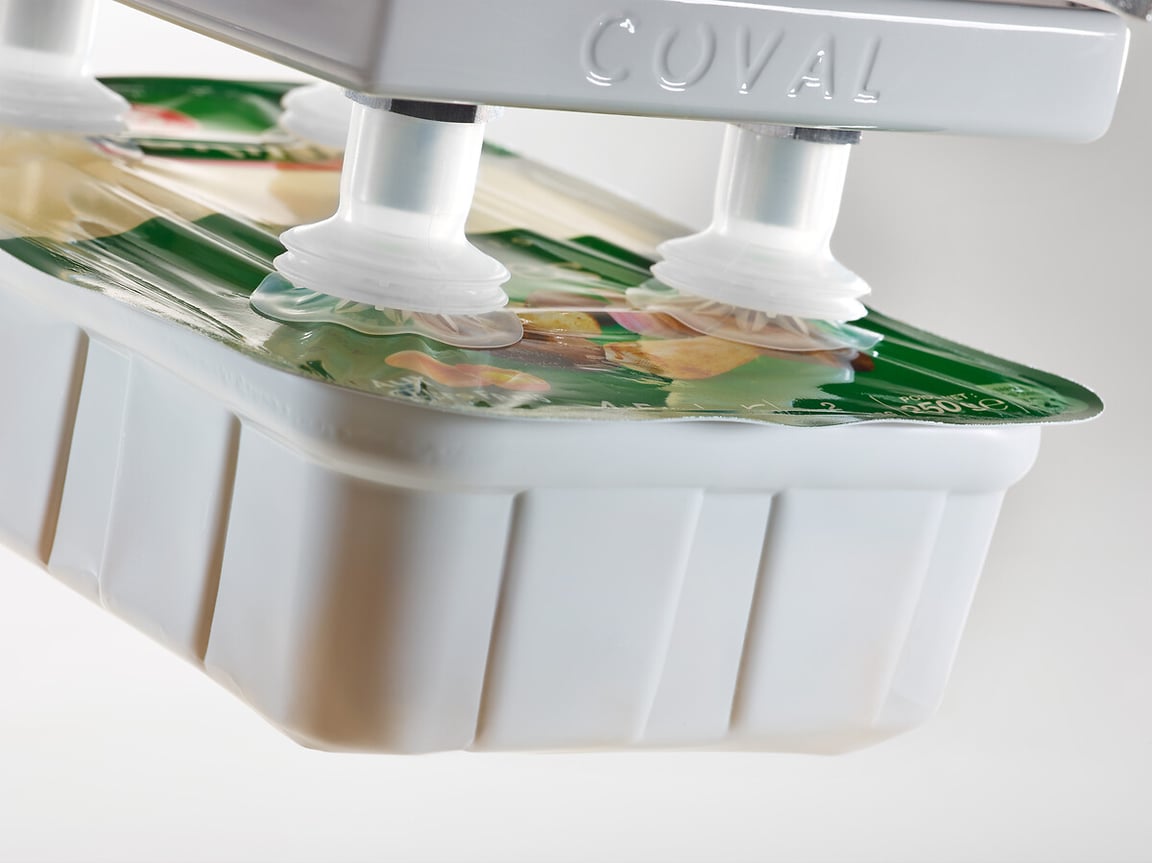

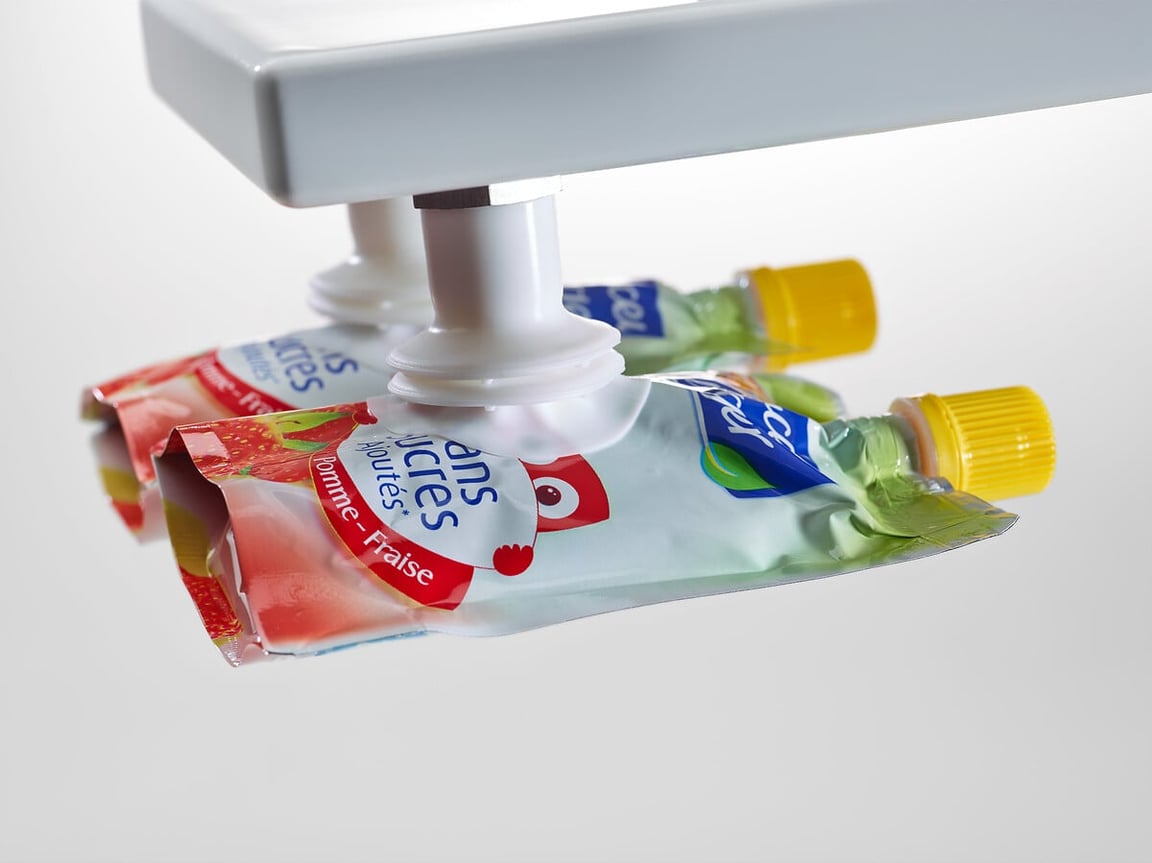

COVAL has designed a range of high performance cups in order to meet demanding industry requirements for gripping soft or flexible products at high speeds.
- Soft, thin sealing lip and optional cleats provide a perfect grip during high work rates for all types of flexible shapes and materials.
- Food-grade silicone meets FDA and CE standards.
- Available in 1.5, 2.5 and 3.5 bellows.
- Available in Ø 20–30–40 mm.
Industry-specific applications
Types of use
Keypoints
- COVAL has designed a range of high performance cups in order to meet Industry-specific applications demanding industry requirements for gripping soft or flexible products at high speeds.
MVS202.5SIBC
SUCTION CUP 2.5B DIA 20 WHITE SILICONE 35SH C PROFIL- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 20
- Stroke | mm: 10
- Suction cup material: Silicone (SI)
MVS202.5SIBG
SUCTION CUP 2.5B DIA 20 WHITE SILICONE 35SH G PROFIL- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 20
- Stroke | mm: 10
- Suction cup material: Silicone (SI)
MVS202.5SIT5C
SUCTION CUP 2.5B DIA 20 TRANSLUCENT SILICONE 50SH C PROFIL- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 20
- Stroke | mm: 10
- Suction cup material: Silicone (SI)
MVS202.5SIT5G
SUCTION CUP 2.5B DIA 20 TRANSLUCENT SILICONE 50SH G PROFIL- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 20
- Stroke | mm: 10
- Suction cup material: Silicone (SI)
MVS301.5SIBC
SUCTION CUP 1.5B DIA 30 WHITE SILICONE 35SH C PROFIL- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 30
- Stroke | mm: 9
- Suction cup material: Silicone (SI)
MVS301.5SIBG
SUCTION CUP 1.5B DIA 30 WHITE SILICONE 35SH G PROFIL- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 30
- Stroke | mm: 10
- Suction cup material: Silicone (SI)
MVS301.5SIT5C
SUCTION CUP 1.5B DIA 30 TRANSLUCENT SILICONE 50SH C PROFIL- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 30
- Stroke | mm: 9
- Suction cup material: Silicone (SI)
MVS301.5SIT5G
SUCTION CUP 1.5B DIA 30 TRANSLUCENT SILICONE 50SH G PROFIL- Form: 1.5 Bellow
- Type of suction cup: Round
- Diameter (ØA) | mm: 30
- Stroke | mm: 10
- Suction cup material: Silicone (SI)
MVS302.5SIBC
SUCTION CUP 2.5B DIA 30 WHITE SILICONE 35SH C PROFIL- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 30
- Stroke | mm: 15.5
- Suction cup material: Silicone (SI)
MVS302.5SIBG
SUCTION CUP 2.5B DIA 30 WHITE SILICONE 35SH G PROFIL- Form: 2.5 Bellows
- Type of suction cup: Round
- Diameter (ØA) | mm: 30
- Stroke | mm: 17.5
- Suction cup material: Silicone (SI)
