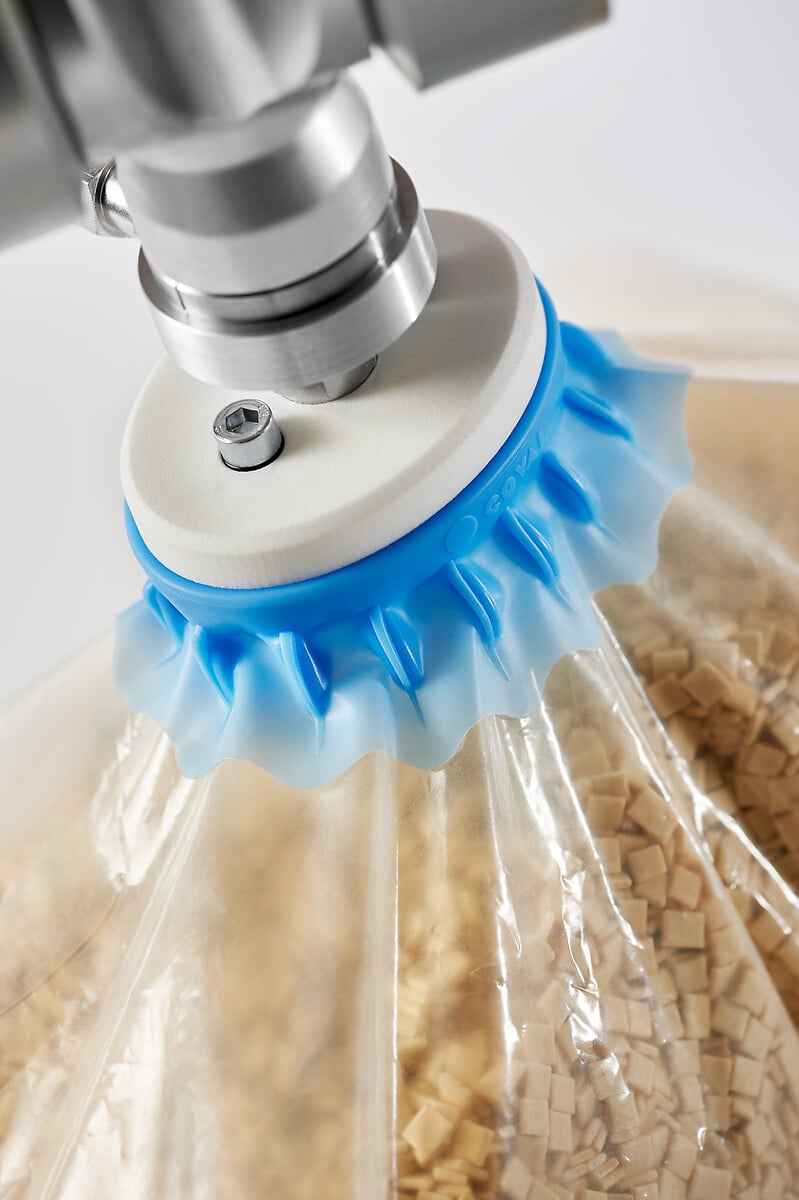

FlowPack Suction Cups, FPC/FPCX series - 3

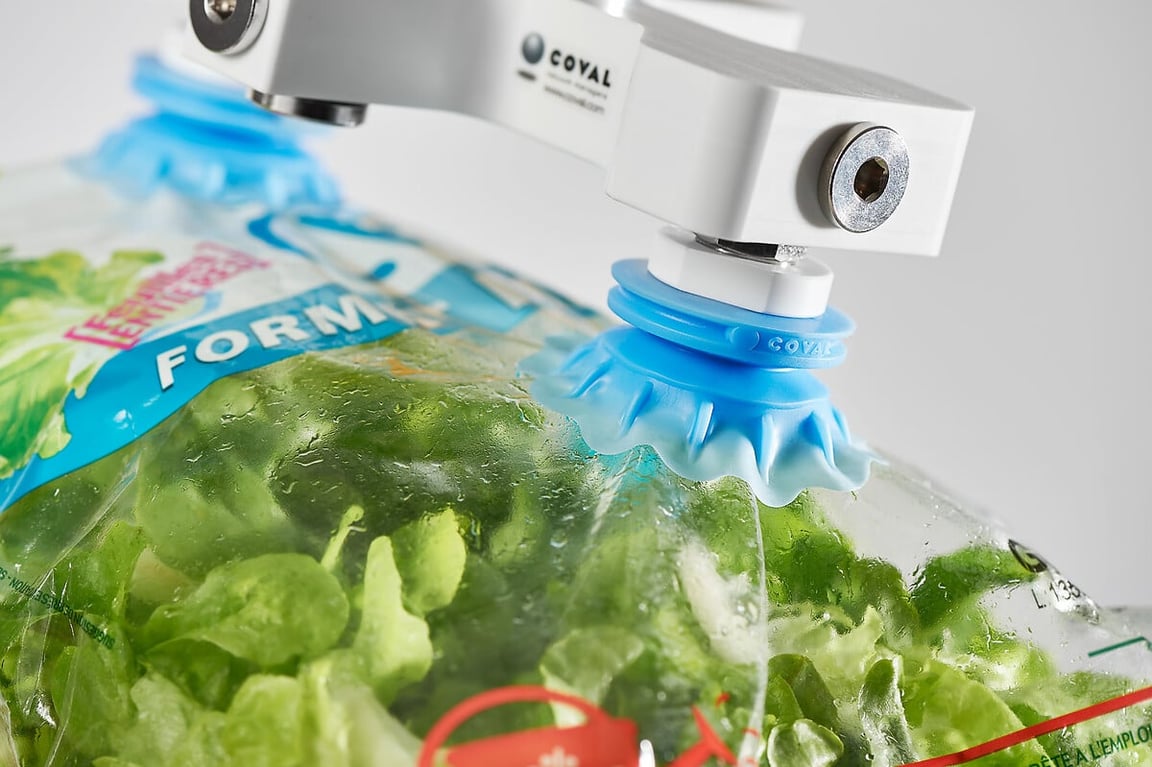

FlowPack Suction Cups, FPC/FPCX series - 4
FlowPack Suction Cups, FPC/FPCX series - 5
FlowPack Suction Cups, FPC/FPCX series - 6

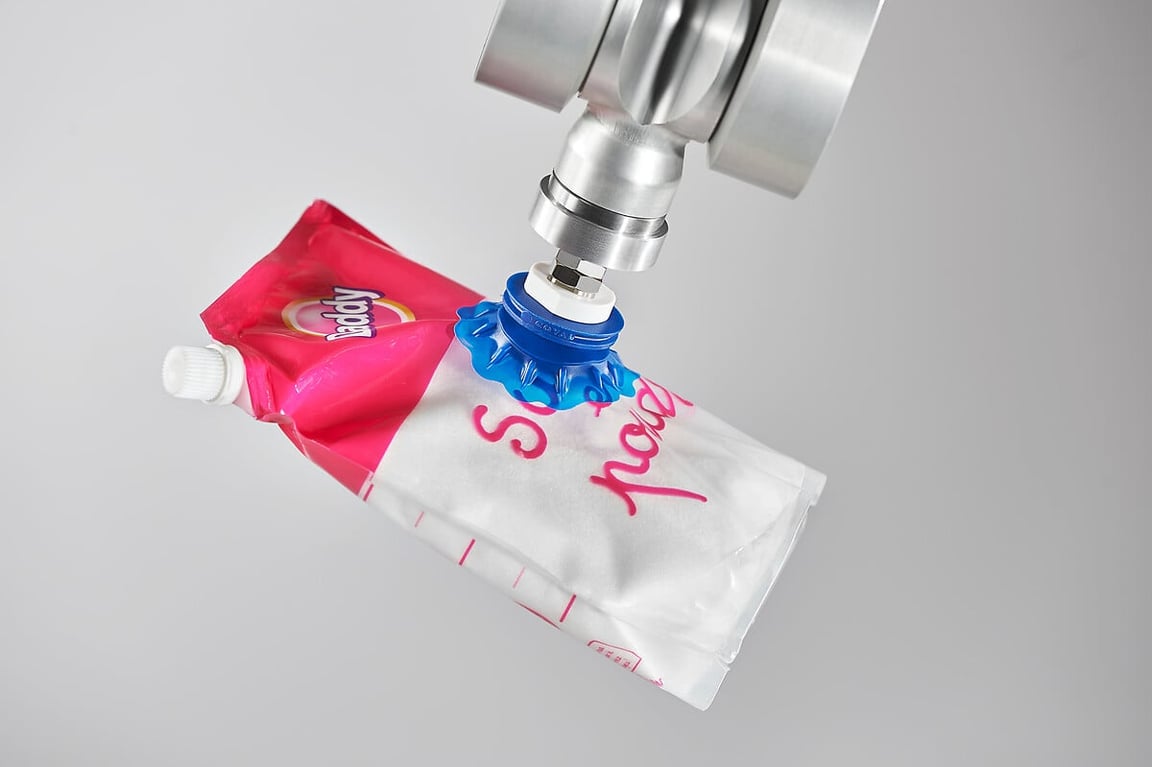

FlowPack Suction Cups, FPC/FPCX series - 7

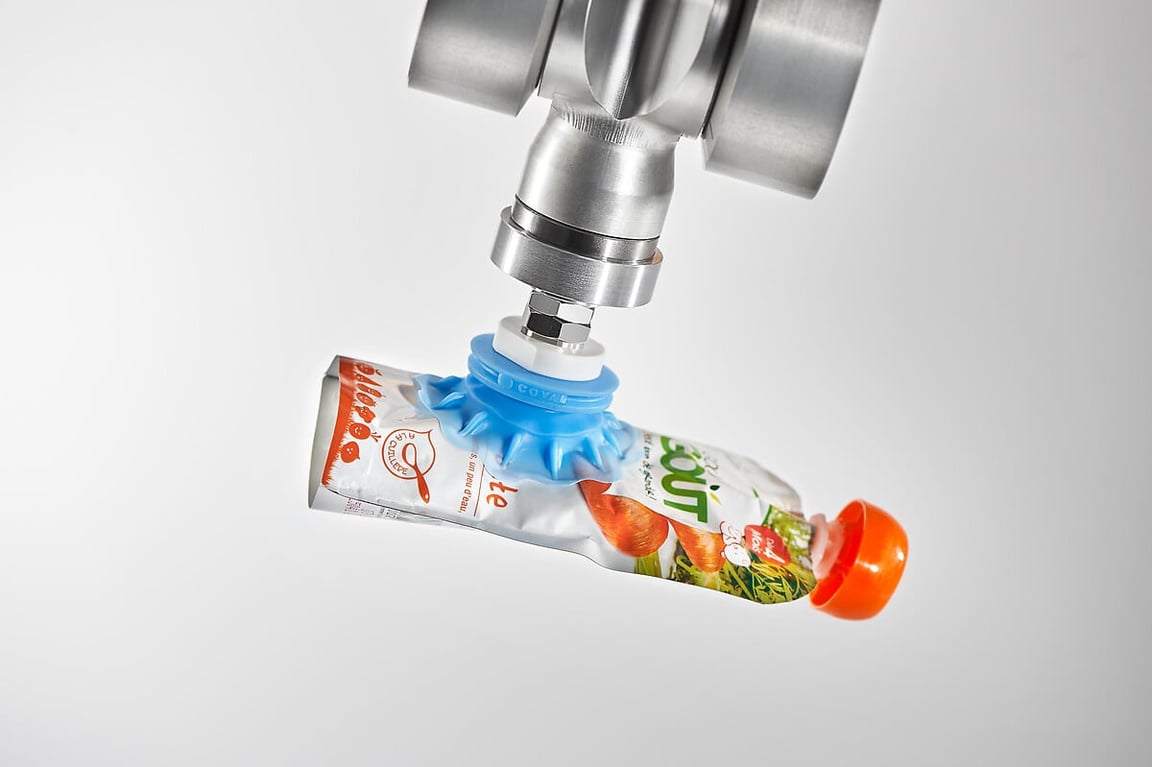

FlowPack Suction Cups, FPC/FPCX series - 8
FlowPack Suction Cups, FPC/FPCX series - 9

FlowPack Suction Cups, FPC/FPCX series

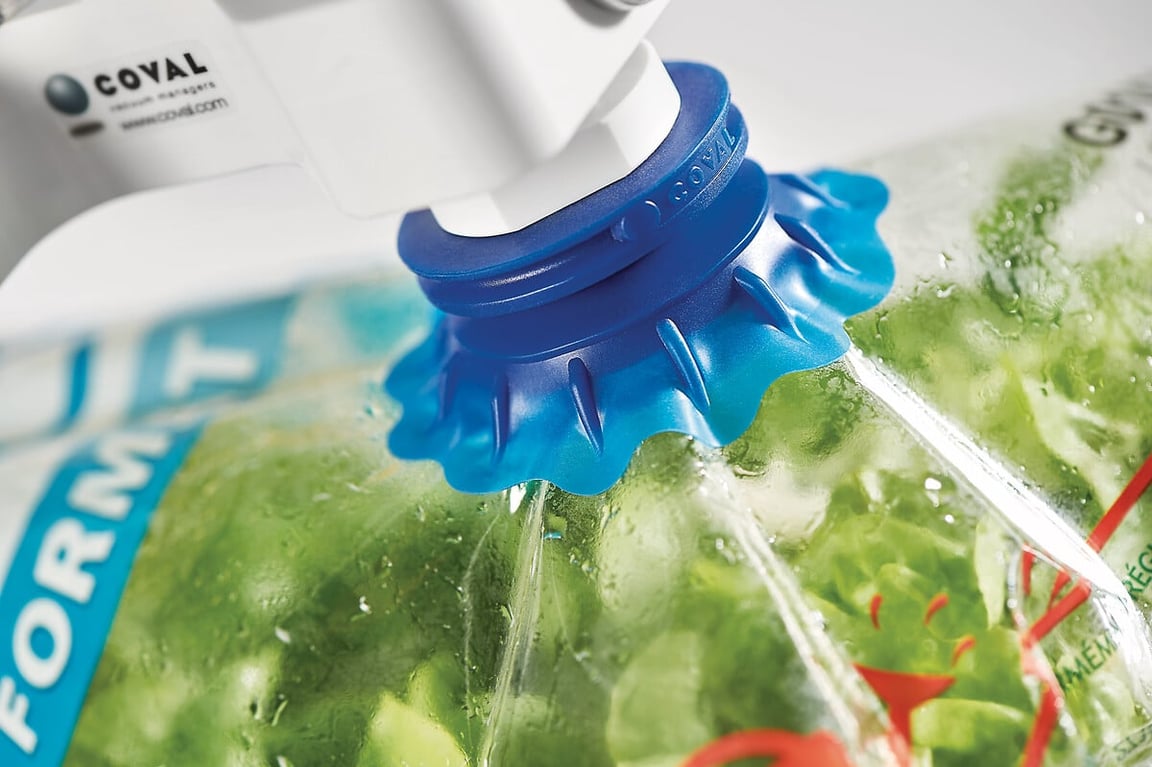

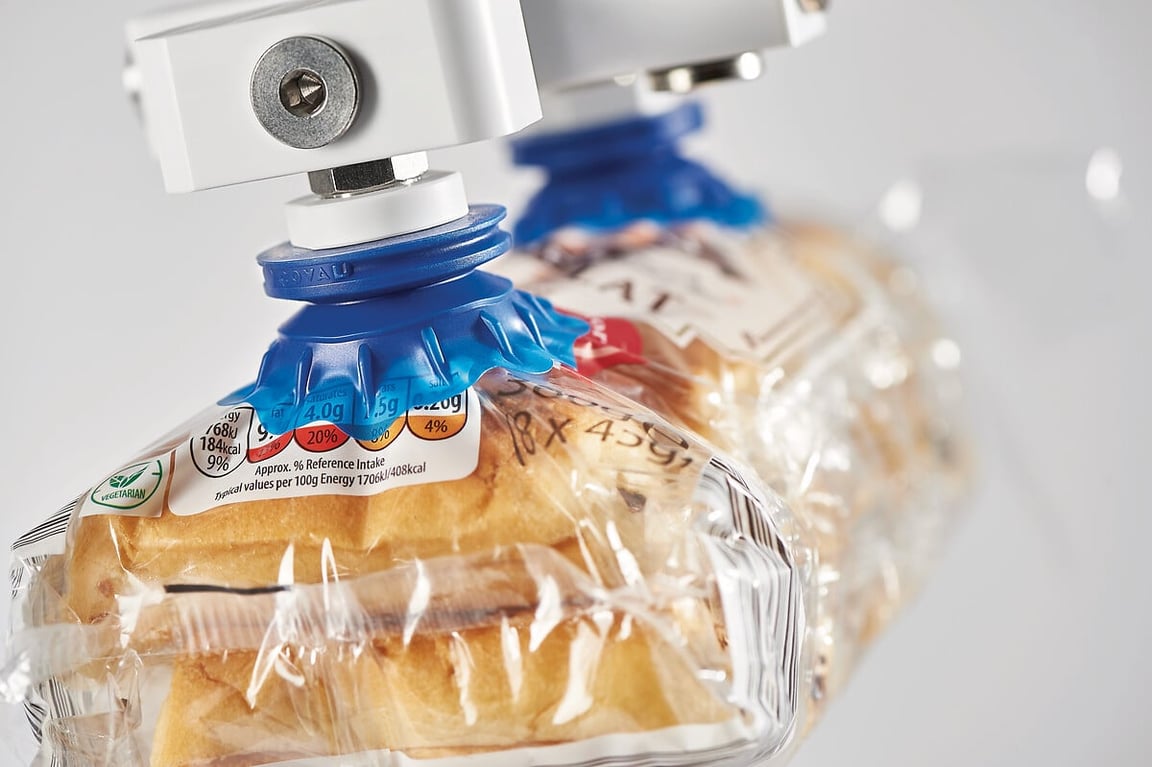

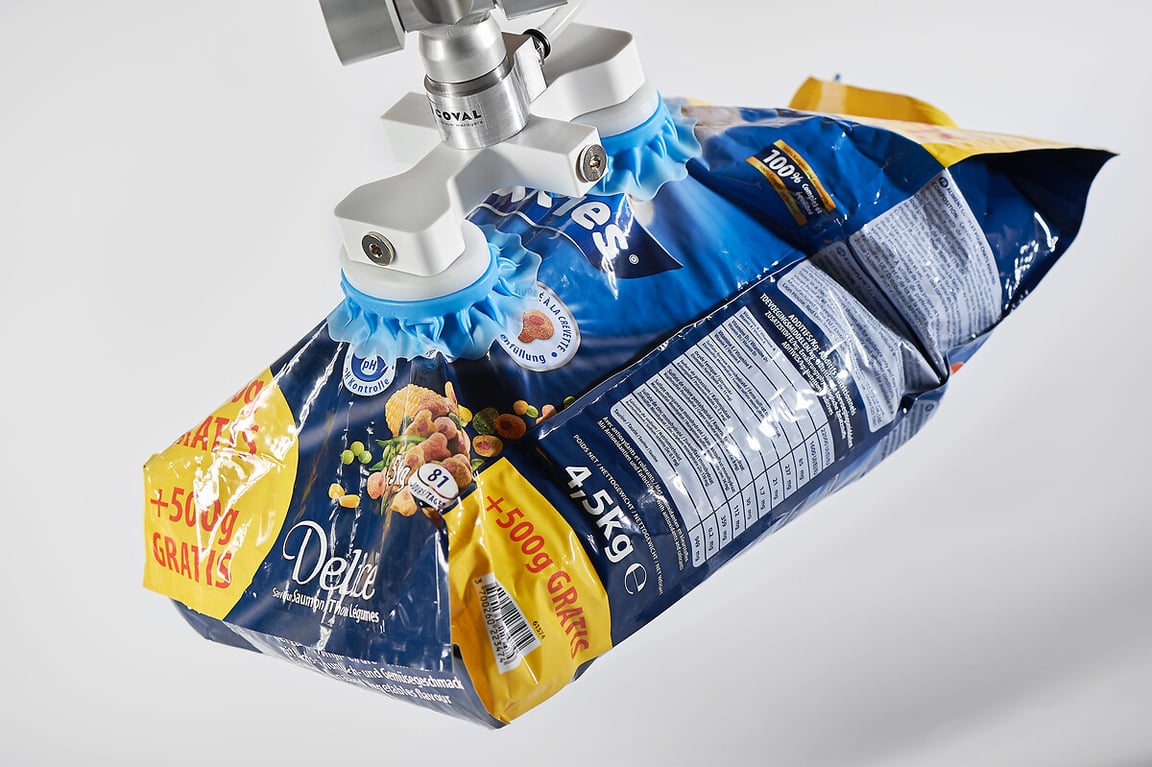

FPC/FPCX stands for FlowPack Cup: COVAL's new suction cup is fully dedicated to handling FlowPack packaging. A real technological breakthrough for a constantly evolving packaging method.
FlowPack now has its very own suction cup

The FPC/FPCX Series is based on three major innovations:

  1. Thin and wavy flower-shaped lips that perfectly mold to the packaging, whatever the shape
  2. Internal cleats that allow for optimized vacuum while preventing any crushing and also strengthen the hold on the product being handled
  3. Fittings featuring a lateral vacuum distributor that prevent any loss in efficiency when the product is held
  4. Materials: Food-grade silicone and plastic insert meets FDA and CE standards
DownloadsShare via email

Industry-specific applications

Types of use

Keypoints

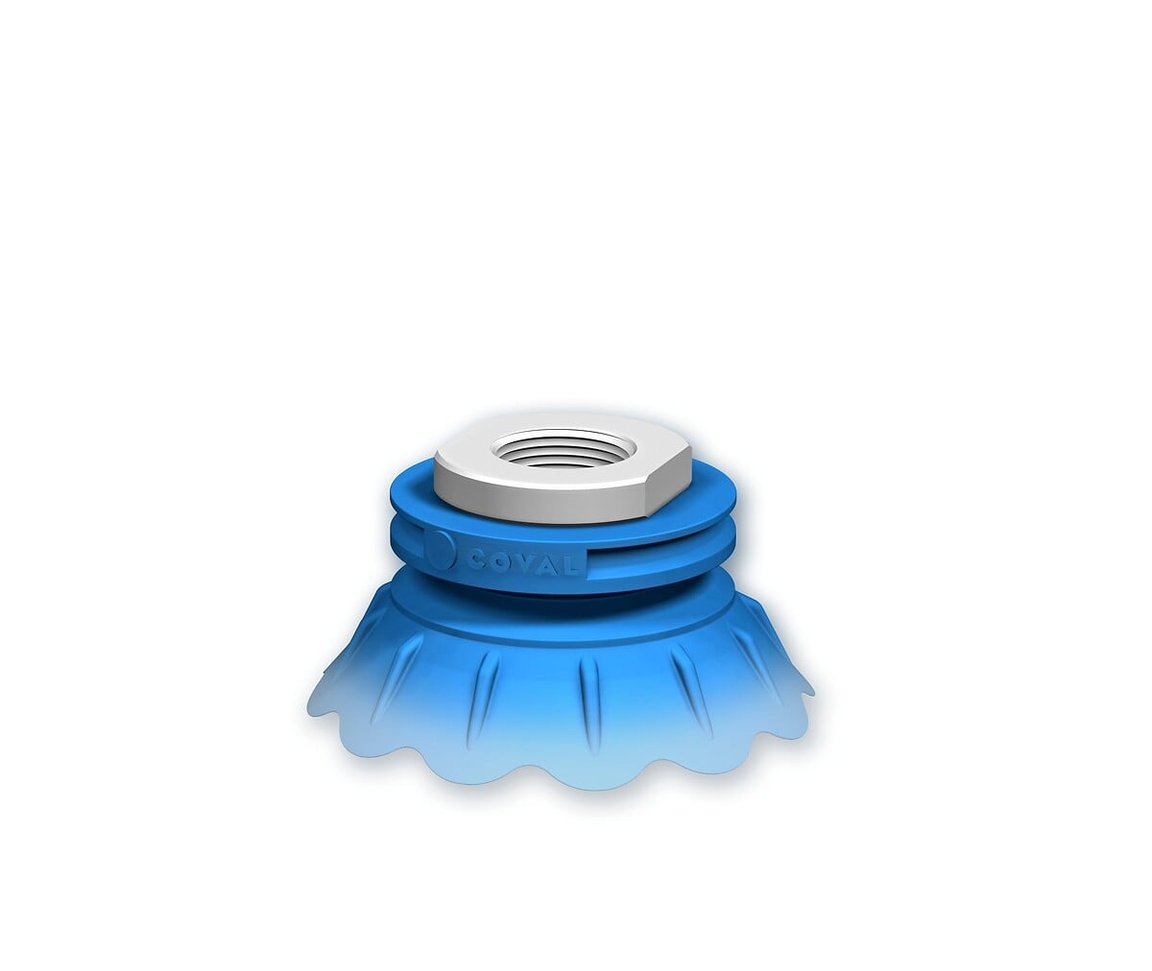

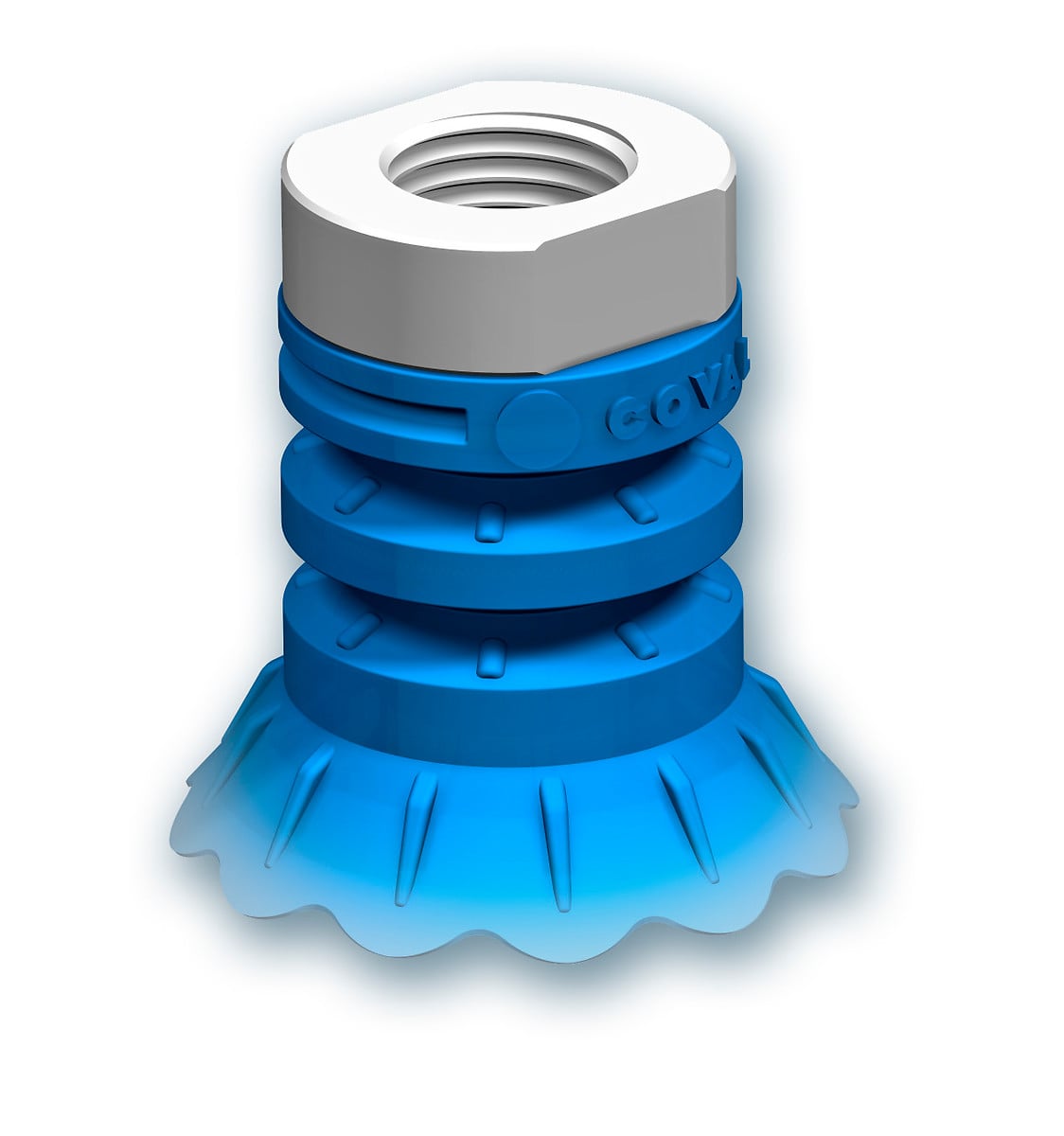

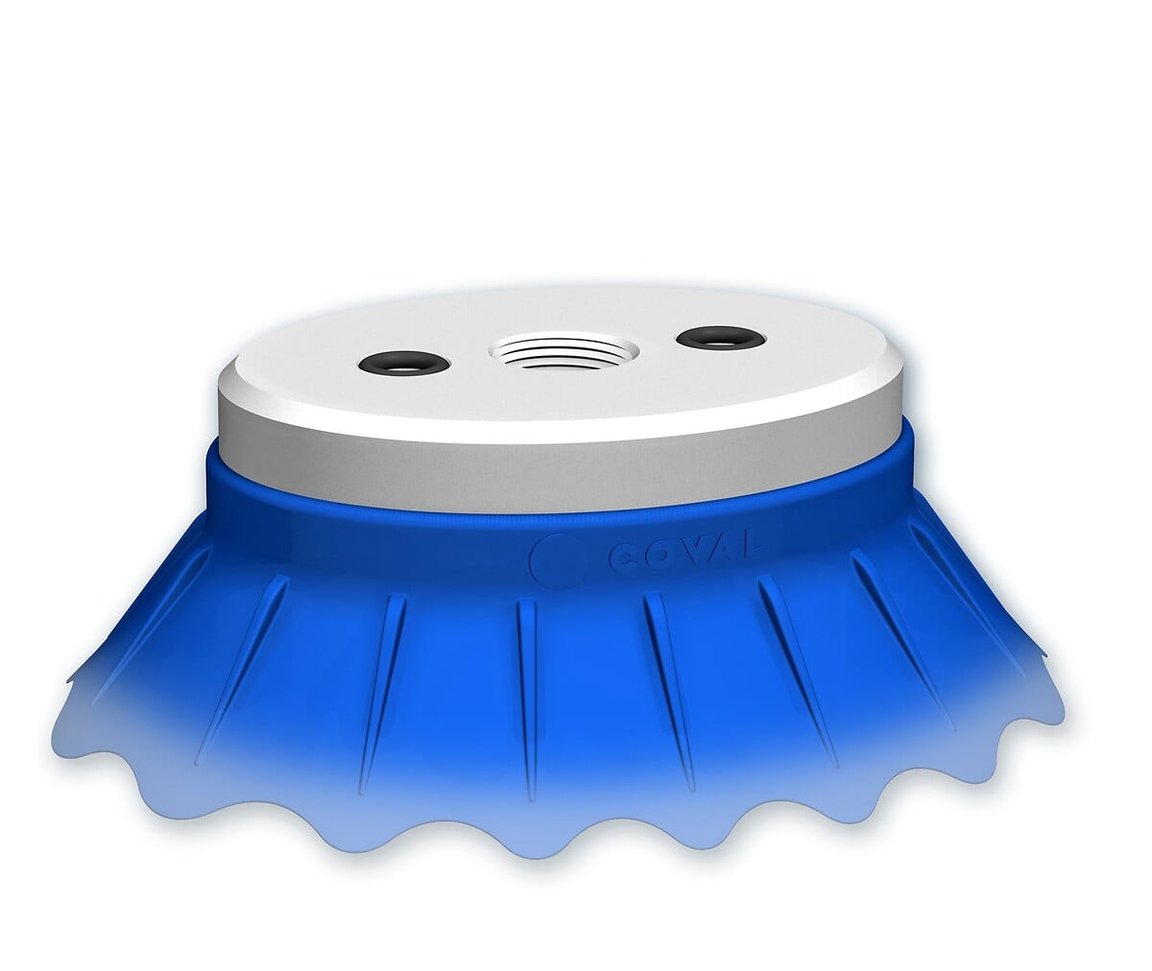

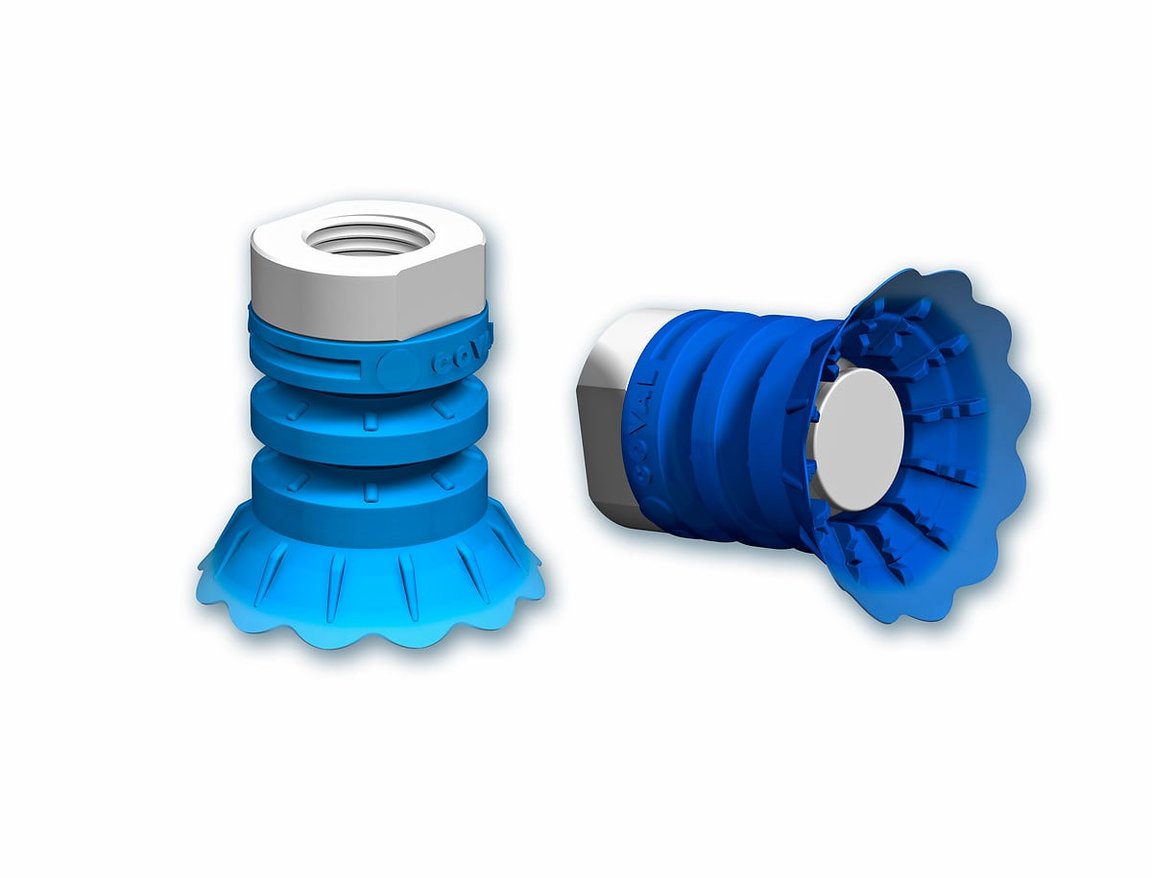

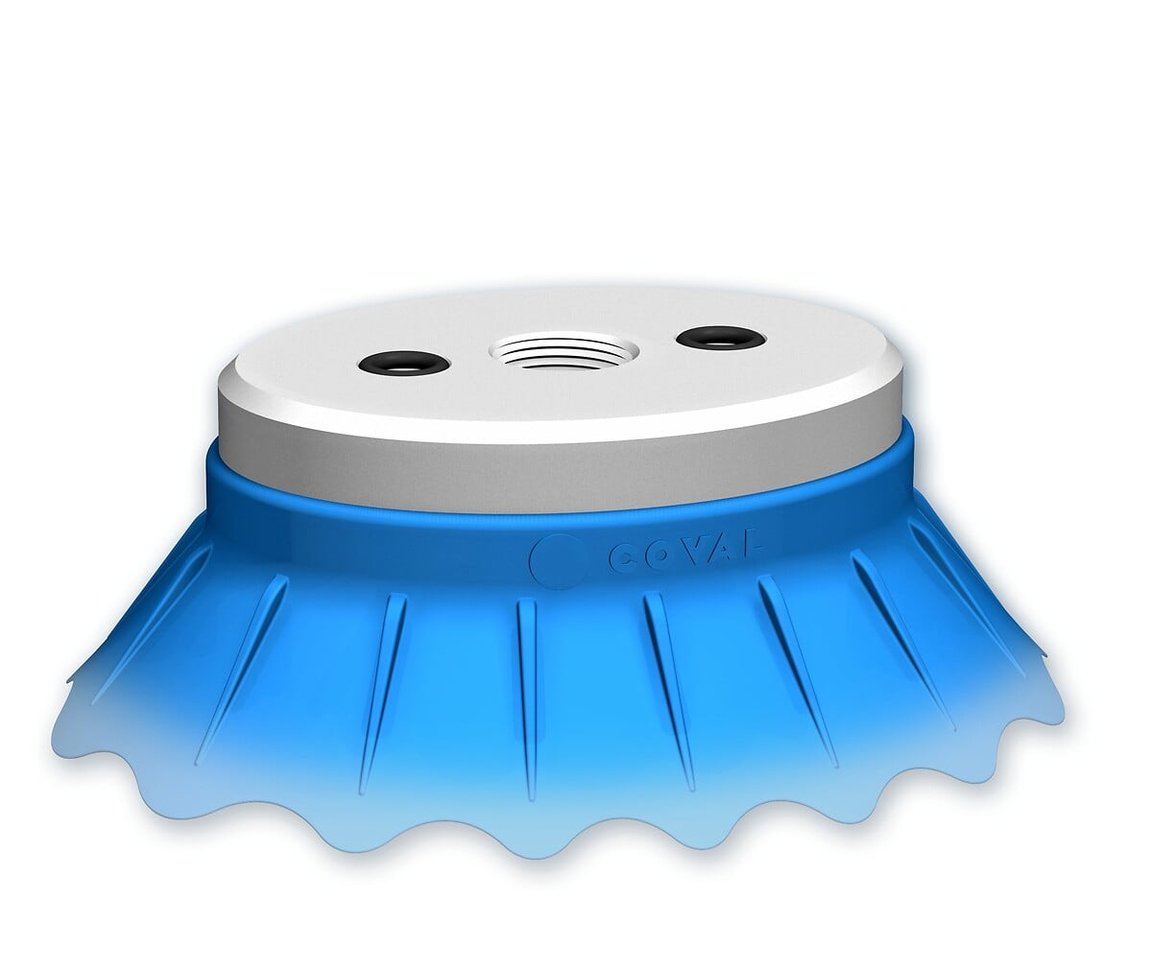

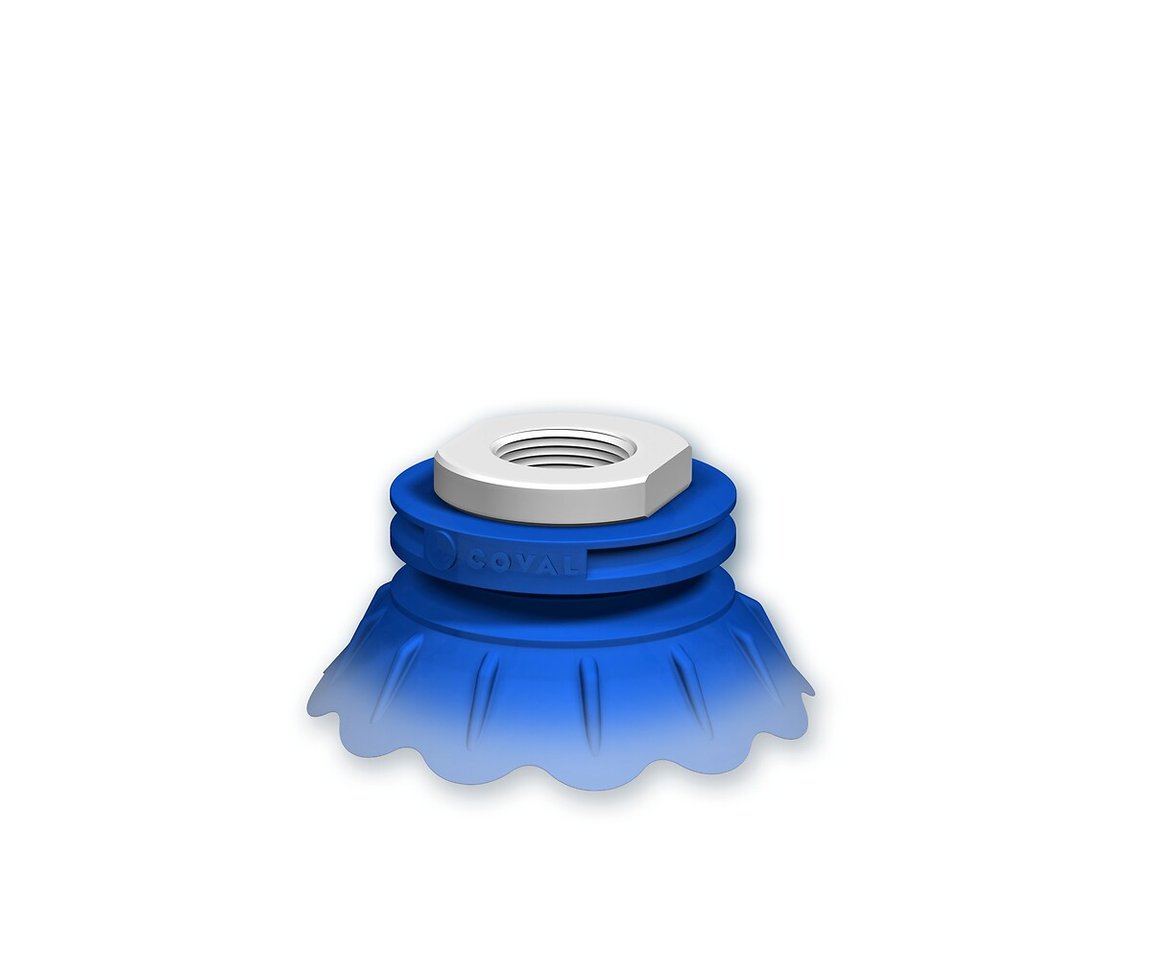

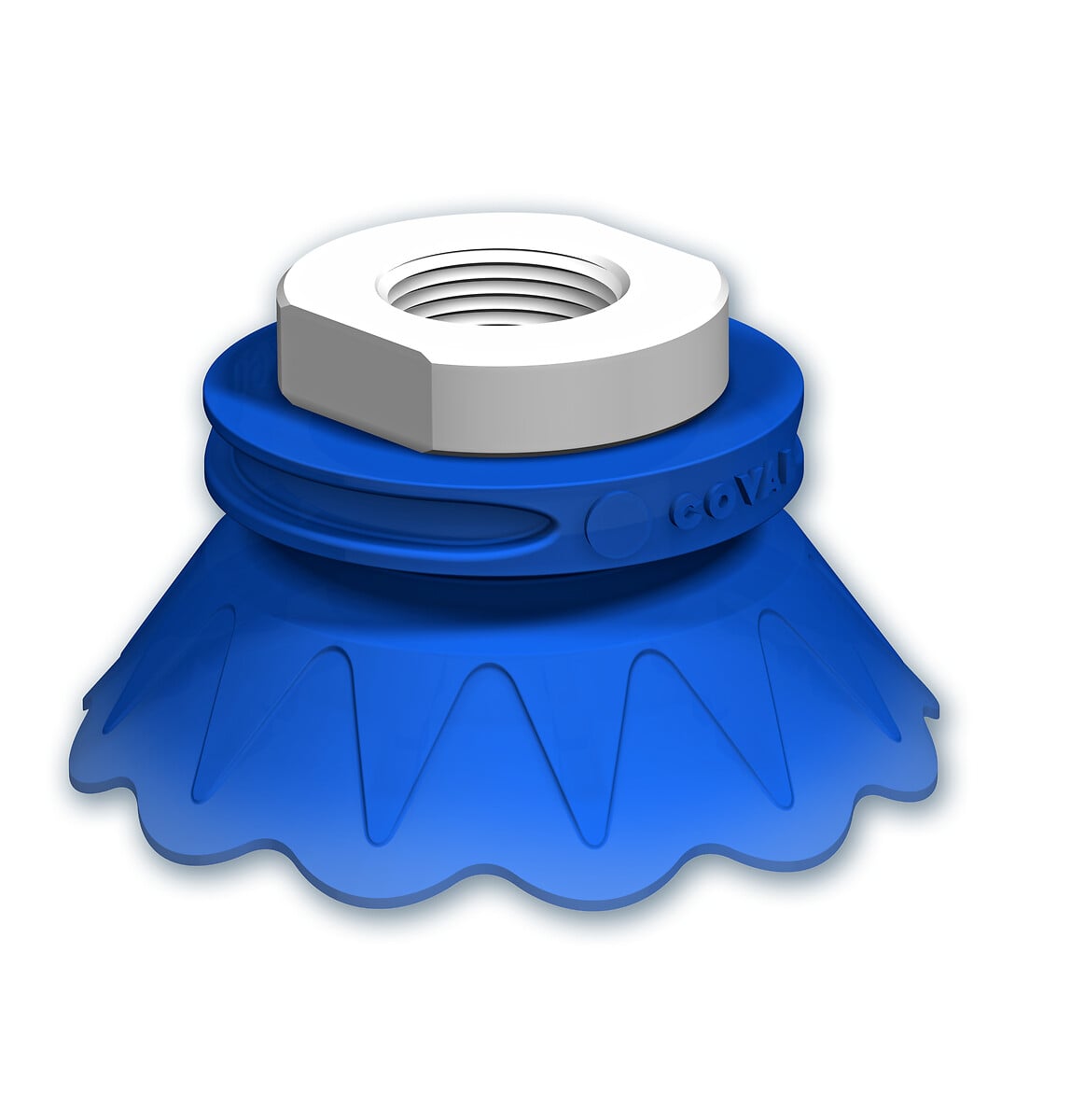

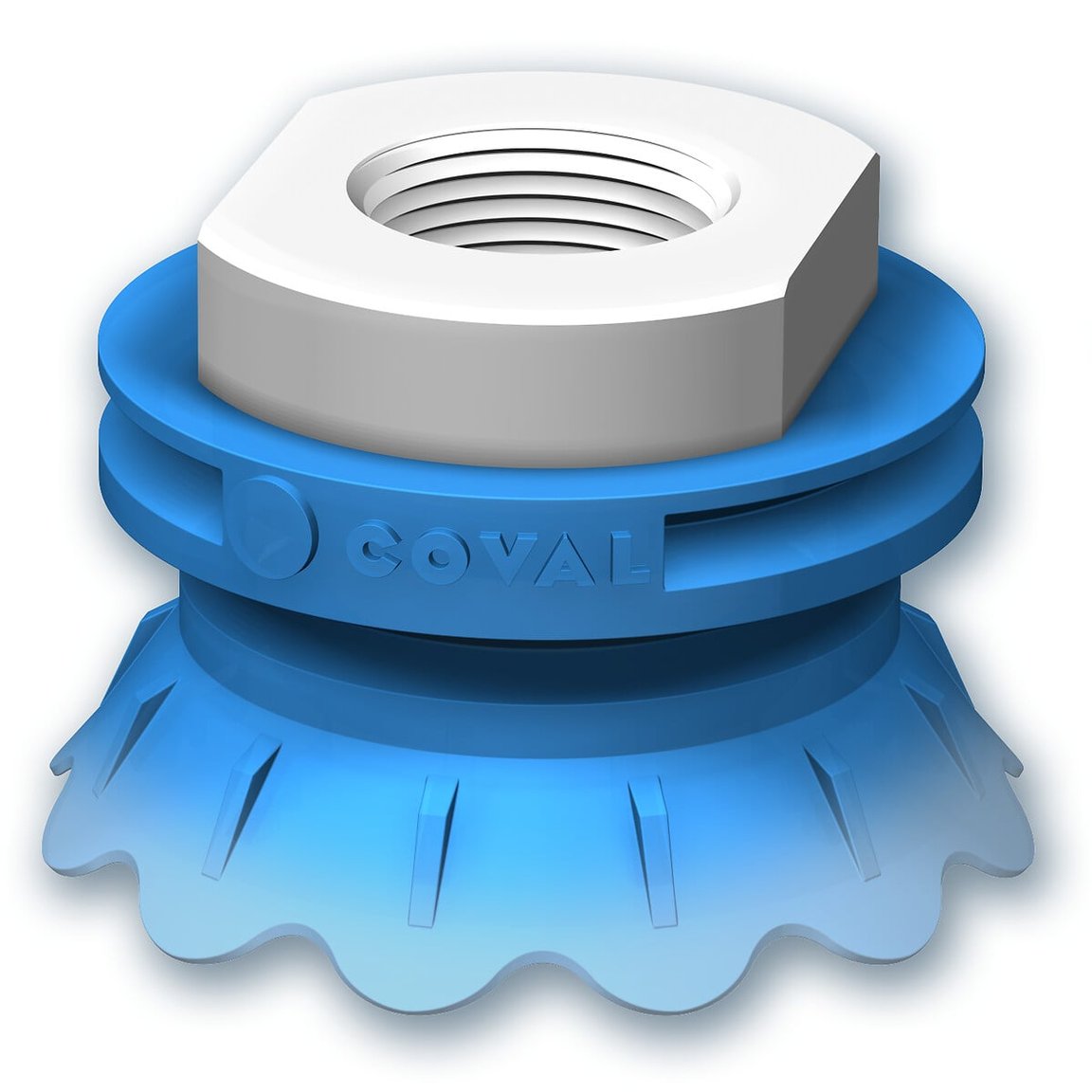

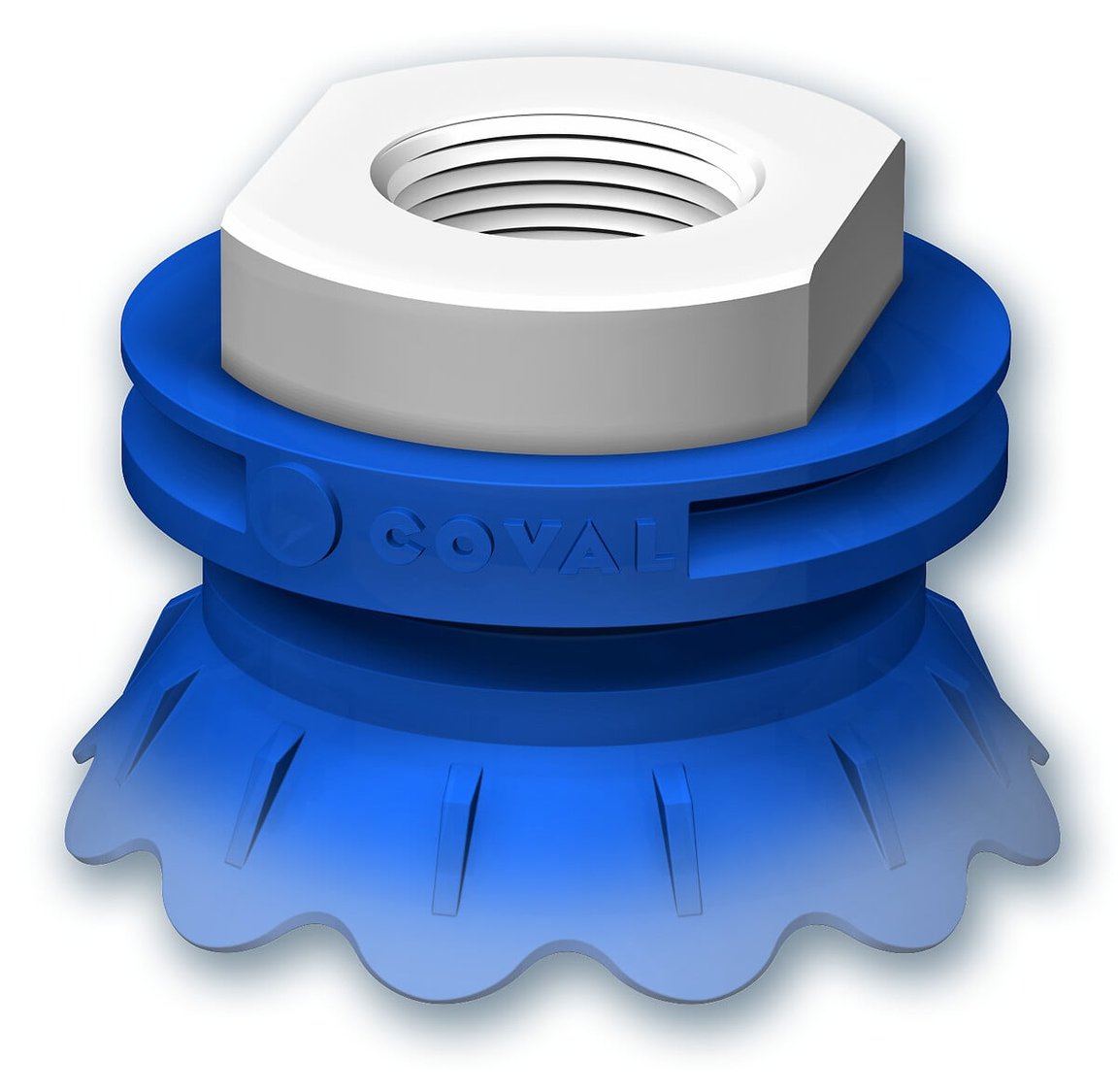

  • Available in four sizes: Round, Ø 35 mm, 1.5 bellows, Round, Ø 45 and 60* mm, Elliptical, 120 x 100 mm (* The Ø60 suction cups are available in 2 versions: FPC and FPCX)
  • Two levels of flexibility: 35 and 50 Shore
  • Materials: the FPC/FPCX Series suction cups are compatible with FDA food standards (FDA 21 CFR 177.2600.) and meet the European regulation (EC) 1935/2004

Advantages

  • Withstands High Production Rates: its gripping ability allows for high production rates. / no interruption in the packaging line due to faulty gripping.
  • Safety: the FPC/FPCX Series suction cup is made of silicone, a material that is recommended for its temperature resistance and food safe
  • Energy Savings: the airtightness of FPC/FPCX Series suction cups avoids the need for an oversized vacuum generator, allowing for considerable energy savings.
  • Suitable for all Flowpacks: different forms and dimensions for a suitable solution
