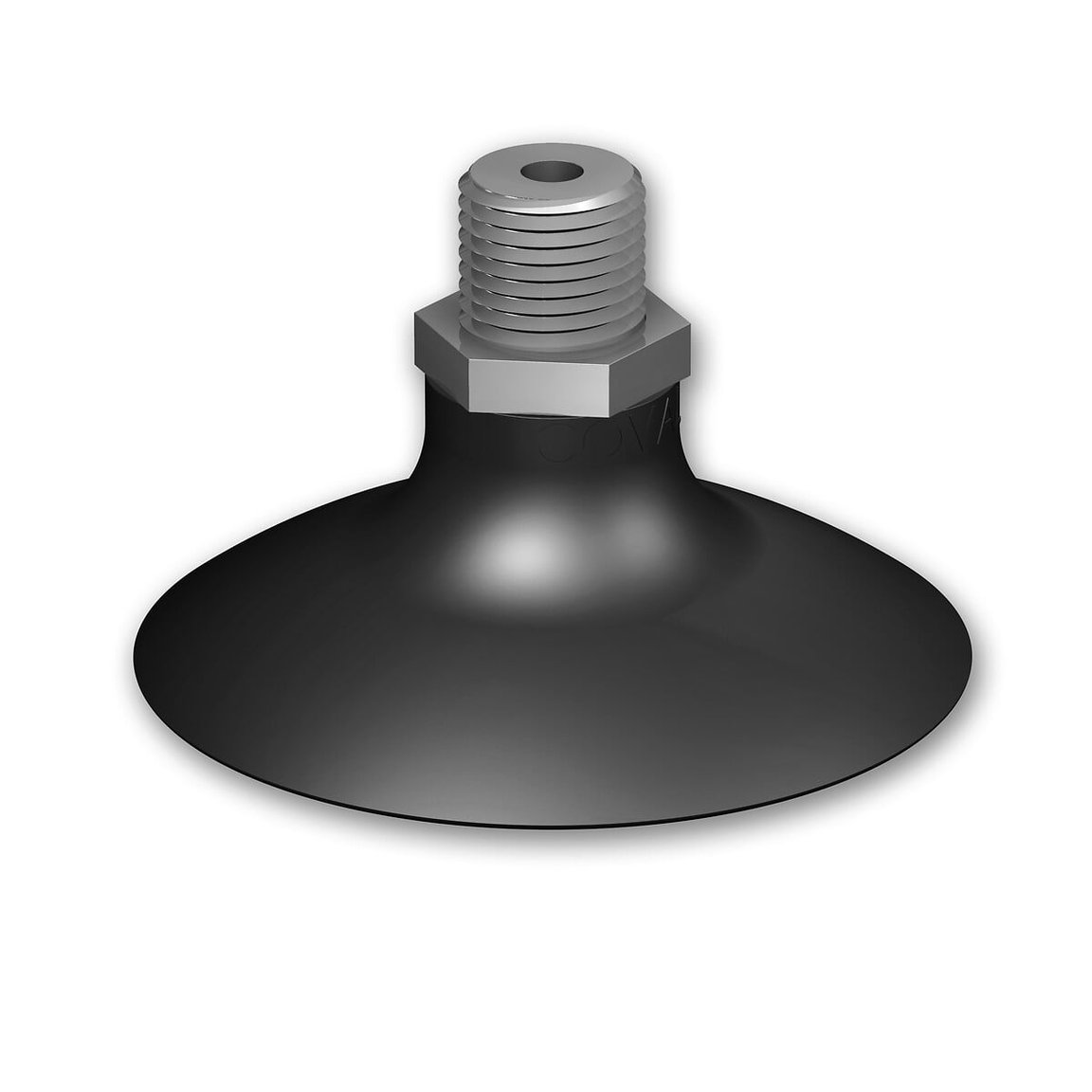

Flat Suction Cups Ø 8 to 75 mm, VP series
VP series flat suction cups are specially recommended for handling flat, rigid, smooth products.
- high tensile force
- high resistance to lateral forces allows vertical handling of products
- high degree of precision
The possible «suction cup+fitting» combinations are available on the documentation to download here.
Industry-specific applications
Types of use
Keypoints
- VP series flat suction cups are specially recommended for handling flat, rigid, smooth products.
- High tensile force
- High resistance to lateral forces enabling vertical handling
VP8NBR
FLAT SUCTION CUP DIA 8 NBR- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 7.5
- Stroke | mm: 1.3
- Suction cup material: Nitrile (NBR)
VP8SIT5
FLAT SUCTION CUP DIA 8 SILICONE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 7.5
- Stroke | mm: 1.3
- Suction cup material: Silicone (SI)
VP8STN
FLAT SUCTION CUP DIA 8 STN- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 7.5
- Stroke | mm: 1.3
- Suction cup material: Siton® (STN)
VP10NBR
FLAT SUCTION CUP DIA 10 NITRILE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 10
- Stroke | mm: 1.5
- Suction cup material: Nitrile (NBR)
VP10SIT5
FLAT SUCTION CUP DIA 10 SILICONE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 10
- Stroke | mm: 1.5
- Suction cup material: Silicone (SI)
VP15NBR
FLAT SUCTION CUP DIA 15 NITRILE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 15
- Stroke | mm: 2.25
- Suction cup material: Nitrile (NBR)
VP15SIT5
FLAT SUCTION CUP DIA 15 SILICONE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 15
- Stroke | mm: 2.25
- Suction cup material: Silicone (SI)
VP15STN
FLAT SUCTION CUP DIA 15 SITON- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 15
- Stroke | mm: 2.25
- Suction cup material: Siton® (STN)
VP20NBR
FLAT SUCTION CUP DIA 20 NITRILE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 20
- Stroke | mm: 3
- Suction cup material: Nitrile (NBR)
VP20SIT5
FLAT SUCTION CUP DIA 20 SILICONE- Form: Flat
- Type of suction cup: Round
- Diameter (ØA) | mm: 20
- Stroke | mm: 3
- Suction cup material: Silicone (SI)
